EXG.0B.307.HLN

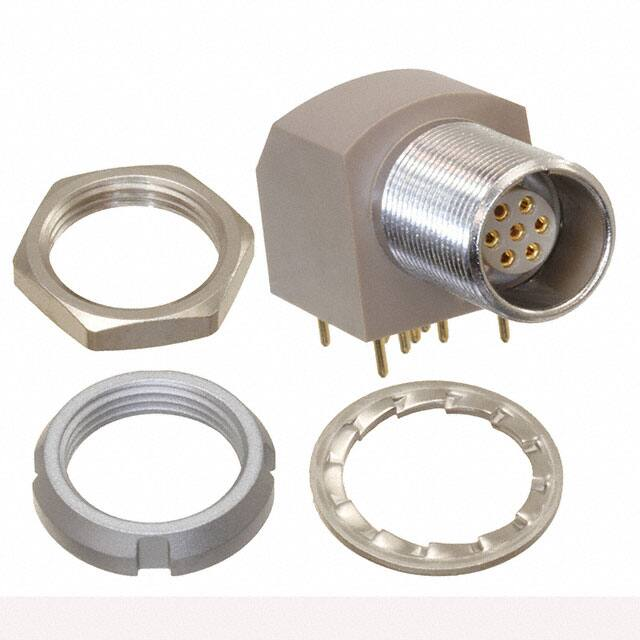

EXG.0B.307.HLN www.lemo.com SUMMARY # Wires Low voltage 7 Image is for illustrative purpose only Series 0B Termination type Female print PCB IP rating 50 AWG wire size 34.00 - 28.00 PCB Altium Pattern Cable Ø 0.00 - 0.00 mm PCB KiCad Pattern Status active Catalog Matching parts FGG.0B.307.CLAD32 Download Request a quote PCB Eagle Pattern TECHNICAL DETAILS Mechanics Shell Style/Model EX*: Elbow receptacle for printed circuit with two nuts (solder or screw fixing, back panel mounting) Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material PPS (Polyphenylene) shell, other pieces nickel plated [SAE AMS QQ N 290] brass Weight 11.07 g Performance Configuration 0B.307/EXG : 7 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 2 Amps Specifications Contact Type: Print (straight) Contact Dia.: 0.5 mm (0.02in) R (max): 8.7 mOhm Test voltage contact-contact : 1 kV rms Test voltage contact-body shell : 1 kV rms Others LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 144 hr 12NC part number: 4022.438.73511 DRAWINGS Dimensions A B D E H I K L M N S3 e mm. 12 12.4 14.6 4.5 6.7 12.6 13.3 25 2.5 11.7 11 M9x0.6 in. 0,47 0,49 0,57 0,18 0,26 0,50 0,52 0,98 0,10 0,46 0,43 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
