M SERIES CONNECTORS
RATCHET COUPLING
®
®
Introduction
This catalogue gives the complete description of LEMO M series connectors. M series connectors are lightweight triplestart ratchet coupling type connectors designed for avionics, aerospace, military, security, motorsport and heavy duty
applications.
The LEMO manufacturing programme has been extended to almost 40 series divided into 7 product families with specific
mating and environmental characteristics. Each series includes a wide variety of plug, socket and coupler models, available
in contact configurations adapted to all round cables. Watertight models are also available. Since LEMO connectors are
perfectly screened and designed to guarantee very low resistance to shell electrical continuity, they are particularly adapted
to applications where electromagnetic compatibility (EMC) is important.
Technical Characteristics
Materials and Treatments
Shell
material code
Component
Outer shell
Conical nut
Earthing crown
Coupling nut
Ratchet
Hexagonal nut
I X
l
C
l
l
Material (Standard)
l
Surface treatment (µm)
nickel
chrome
gold
I X
Brass (UNS C 38500)
Aluminium alloy (AA 6262A or AA 6023)
–
Brass (UNS C 38500)
Aluminium alloy (AA 6262A or AA 6023)
–
0.3 –
–
–
14 5
–
0.3 – –
–
14 5
Notes
–
1)
1)
l
l
l
l
l
Bronze (UNS C 54400) or special brass
– – – 1.5
l
Brass (UNS C 38500)
–
– 3
–
–
Aluminium alloy (AA 6262A or AA 6023)
–
14 3
–
1)
l
l
l
l
l
Special PEEK
–
l
Brass (UNS C 38500)
–
– 3
–
Aluminium alloy (AA 6262A or AA 6023)
–
– 5
–
l
l
Male crimp contact
l
l
l
Brass (UNS C 34500)
–
– – 1.0
–
Female crimp contact
l
l
l
Bronze (UNS C 54400)
–
– – 1.5
–
Clips
l
l
l
Cu-Be or special steel
Insulator
l
l
l
PEEK
–
l
Silicone
O-ring
without treatment
–
®
l
l
FPM/FKM (Viton )
–
Sealing resin
l
l
l
Epoxy (Araldite® or Stycast®)
–
Cable rear seal
l
l
l
Fluorosilicone
–
Spring
l
l
l
Stainless steel
–
Notes: standards for surface treatment are as follows: chrome-plated SAE AMS 2460; nickel-plated SAE AMS QQ N 290 or MIL DTL 32119; gold-plated
ISO 27874. 1) anthracite colour.
Product safety notice & disclaimers
Please read and follow all instructions specified on the last page or on our website carefully and consult all relevent
national and international safety regulations for your application. Improper handling, cable assembly, or wrong use of
connectors can result in hazardous situations.
LEMO products and services are provided “as is.” LEMO makes no warranties or representations with regard to LEMO
product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security.
In no event shall LEMO be liable for any direct, indirect, punitive, incidental, special consequential damages, to property
or life, whatsoever arising out of or connected with the use or misuse of LEMO’s products.
www.lemo.com 1
®
®
Environmental performance
Characteristics
Operating temperature (mated)
Value
IEC international
MIL-spec tests
-55°C/+200°C 1) (HEl model: -20°C/+80°C)
-20°C/+200°C 2) (HEl model: -20°C/+80°C)
Ingress protection index
IP 68 (at 2 m, 15Hr)
Fungus
Satisfied - by material analysis
MIL-STD 810F-508.5
Flammability
60 sec. front and back face
EIA-364-104A
Fluid contamination 3)
Fuels, gasoline, hydraulic oils, solvents, de-icing
MIL-STD-810F method 504
Sand and dust 4)
6 hr, 55°C, blowing < 150 µm dust
MIL-STD 810F-510.4
10 K amps - 6 times
EIA-364-75
-65°C; 40’000 feet and 400 VAC
EIA-364-105A
Alum. shell (up to 500Hr), Brass shell (1000Hr)
IEC 60512-6 test 11f
EIA-364-26
Thermal shock
5 cycles: -65°C to +150°C
IEC 60512-11-4
EIA-364-32 test condition IV
Altitude immersion
No moisture on contacts
EIA-364-03
Humidity
21 days at 95%
EIA-364-31 method IV
Lightning strike
Altitude-low temp
Salt fog
5)
6)
IEC 60529
IEC 60068-2
Note:
1)
Shell material code C + Silicone O-ring (see page 1).
2)
Shell material code I/X + FPM O-ring (see page 1).
3)
Connectors immersed at both 70°C and 25°C according to specification. Connectors are then inspected, no visual signs of damage seen.
Fuels: Kerosene, JP4, (Nato F40) at 70°C +/- 2°C. Gasoline: ASTM 4814. Hydraulic oils: Mineral oil based MIL-H-5606.
Solvents: Isopropanol. De-icing fluids: 25% ethylene glycol.
4)
No signs of damage, connectors opened and closed without difficulty. Dust or sand was not inside connector.
5)
Wired mated connectors = no voltage breakdown, shell to all contacts (connected together) w/400 VAC after 1 hour at -65° C at 40’000 feet altitude.
6)
Corrosion resistance. Inspection: salt deposits shall be removed by gentle wash in running water with light brushing using soft brush.
Aluminium Shell (material code: X) max: 48 hours, (material code: I) max: 500 hours. Brass shell (material code: C) over 1000 hours.
Electrical performance
Characteristics
Value
IEC international
MIL-spec tests
Insulation resist. (at ambient temp.) 6)
> 1012 Ω, > 1010 Ω (after humidity)
IEC 60512-2 test 3a
EIA-364-21
Dielectric withstanding volt. (sea level)
See table page 25, 26, 27
IEC 60512-2 test 4a
EIA-364-20
Contact resistance
See table below
IEC 60512-2 test 2a
EIA-364-06
Current rating
See insulator configuration page 25, 26, 27
IEC 60512-3 test 5a
Shell to shell conductivity
< 1.5m Ω
IEC 60512-2-6
Shielding effectiveness, low frequency
≥ 80 dB up to 1GHz
EIA-364-66
Shielding effectiveness, high frequency
≥ 70 dB (3GHz), ≥ 58 dB (6GHz), ≥ 40 dB (10GHz)
EIA-364-66
7)
EIA-364-83
Note: 6) After humidity test: 21 days at 95% RH according to IEC 60068-2. Insulation resistance measured between the contacts and contact/shell.
Contact resistance 7)
IEC 60512-2 test 2a
0.5
0.7
0.9
1.3
≤ 8.7 ≤ 6.1 ≤ 4.8 ≤ 3.6
Value
øA
(mm)
mΩ
Notes: 7) after 5000 mating cycles and the salt spray test according to IEC 60512-6 test 11 f.
2 www.lemo.com
®
®
Mechanical performance
Characteristics
Value
IEC international
3000 cycles
Endurance
IEC 60512-5 test 9a
MIL-spec tests
EIA-364-09
Gunfire vibration
25 to 2000 Hz, 3 axis (Apache helicopter)
MIL-STD-810F method 519.5
Vibration-Sine
30 g, 3 axis, 12 hr
MIL-STD-202 method 204-G
Vibration-Random
50-2000 Hz, 37.8 g rms-3 axes; 4h amb
IEC 60512-6-4
EIA-364-28 test cond. V letter I
Shock
300 g - 3 msec
IEC 60512-6-3
EIA-364-27 condition D
Acceleration
50 g acceleration
Contact retention
> 22 N (ø 0.7mm), > 30N (ø 0.9 mm)
Torque
See table below
8)
MIL-STD-1344 - 2011-1, A
IEC 60512-8 test 15a
Note: 8) Amplitude: 30G. Frequency: 10 to 2000 Hz. Time per axis: 4 hours (X, Y, Z). No signal discontinuity above 1 µs.
Series
Coupling torque
tightning (N.cm)
Coupling torque
untightning (N.cm)
Series
Coupling torque
tightning (N.cm)
Coupling torque
untightning (N.cm)
MM
8
4
TM
26
30
0M
4
5
4M
26
25
1M
10
11
LM
48 43
2M
20
14
5M
919) 54
3M
34
29
9)
Note: 9) Higher contact density = larger torque force.
www.lemo.com 3
®
®
M Series
The M Series connector offers a new innovative design for avionics, aerospace, military, security, motorsport and heavy
duty applications.
Made of high-strength aluminium, this connector is one of the lightest and most compact of the LEMO product line.
A one-grip ratchet screw system enables quick and secure coupling of the connectors. The arctic grip makes it easy to
manipulate the connector while wearing gloves or when the connector is located in a difficult to access area.
Features
– Ratchet-coupling mechanism
– Compact design for space savings
– Oil and fuel resistant
– 360° screening for full EMC shielding
– Colour coding / keying
– Scoop proof
– Threaded for MIL-DTL-38999L backshell
Metal housing models (page 6)
– Quick mating: less than 3/4 turn to seat
– Lightweight
– High vibration and shock resistance
– Sealed to IP68 when mated
– Reverse gender configuration
– Pin configuration from 2 to 114 contacts
Straight plugs
Free sockets
Fixed sockets
FA•
FG•
FM•
EG•
FA•
FG•
FM•
EG•
PM•
PV•
PB•
FA•
PM•
PV•
PB•
FG•
FM•
EC•
FW•
FX•
EC•
FW•
FX•
ED•
PE•
PF•
PH•
FW•
FX•
ED•
PE•
PF•
PH•
USB models (page 24)
Straight plugs
FG•
Fibre optic models (page 21)
FM•
Straight plugs
PM•
Watertight
model
(unmated)
Fixed sockets
EG•
PV•
PB•
EG•
Fixed sockets
Free sockets
FM•
EG•
PM•
FG•
ED•
PH•
PH•
Fixed socket
HE•
4 www.lemo.com
®
®
Part Numbering System
Plug
3 0 5 . X L C
F M N . 1 M .
3 0 5 . X L C M
F G N . 1 M .
Free socket
3 0 5 . X L M T
P M N . 1 M .
Fixed socket
3 0 5 . X L N P
H E N . 1 M .
Variant:
T = Mold stop
P = Potted
M = MIL-DTL-38999L shell thread
Contact: (page 28)
Insulator:
L = PEEK (multipole page 25)
R = PEEK (mixed multipole p. 27)
Model: (page 6)
Housing:
C = Chrome-plated brass
X = Nickel-plated aluminium alloy 1)
I = NiCorAITM Nickel
fluorocarbon polymer
aluminium alloy 2)
Alignment key: (page 24)
Series: (page 6)
Insert configuration: (page 25)
FMN.1M.305.XLC = straight plug with key (N), 1M series, multipole type with 5 contacts, outer shell in anthracite nickel-plated aluminium alloy, PEEK insulator, male crimp contacts.
FGN.1M.305.XLCM = straight plug with key (N), arctic grip, 1M series, multipole type with 5 contacts, outer shell in anthracite nickelplated aluminium alloy, PEEK insulator, male crimp contacts and with MIL-DTL-38999L thread for additional backshell (not supplied).
PMN.1M.305.XLMT = free socket with key (N), 1M series, multipole type with 5 contacts, outer shell in anthracite nickel-plated aluminium alloy, PEEK insulator, female crimp contacts and mold stop.
HEN.1M.305.XLNP = fixed socket, nut fixing, with key (N), 1M series, multipole type with 5 contacts, outer shell in anthracite nickel-plated aluminium alloy, PEEK insulator, female print contacts, watertight.
Note: 1) anthracite colour / 48 hours salt fog resistance. 2) anthracite colour / 500 hours salt fog resistance RoHS 2/REACH.
Part Section Showing Internal Components
Fixed socket
1
2
3
4
5
6
outer shell
o-ring
hexagonal nut
insulator
female contact
earthing crown
5
4
6
3
2
1
1
3
2
7
5
6
Straight plug
4
1
2
3
4
5
6
7
outer shell
insulator
male contact
rear seal
tightening screw
ratchet mechanism
spring
www.lemo.com 5
®
®
Metal housing models
FMl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip
Dimensions (mm)
Reference
Model Series A
Ls/Lr
øA
øC
P
øD
øB
X
B C D Ls Lr P X
FMl MM
11.1 6.4 10.7 5.6 21.3 21.3 5.5 5.8
FMl 0M
13.1 8.8 12.7 8.0 24.1 24.1 3.9 6.7
FMl 1M
14.6 10.5 14.2 9.7 24.1 24.1 3.9 6.7
FMl 2M
17.6 14.0 17.2 13.0 24.5 24.5 3.9 7.1
FMl 3M
19.6 16.0 19.2 15.0 24.5 24.5 3.9 7.1
FMl TM
22.5 17.9 22.0 16.7 28.6 28.6 3.4 7.6
FMl 4M
25.0 20.7 24.5 19.5 28.6 28.6 3.4 7.6
FMl LM
28.5 23.9 28.0 22.7 28.6 28.6 3.4 7.6
FMl 5M
34.0 29.7 33.5 28.5 28.6 28.6 3.4 7.6
Part number example: FMN.1M.305.XLC
Note: Ls = standard gender, Lr = reverse gender
FMl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip and mold stop
Dimensions (mm)
Reference
Model Series A B C D F Ls Lr M P X
Ls/Lr
øC
øD
øF
øB
X
1.5
øA
P
M
FMl MM
11.1 6.4 10.7 5.6 7.8 24.3 24.3 8.8 5.5 5.8
FMl 0M
13.1 8.8 12.7 8.0 10.7 27.1 27.1 9.7 3.9 6.7
FMl 1M
14.6 10.5 14.2 9.7 12.4 27.1 27.1 9.7 3.9 6.7
FMl 2M
17.6 14.0 17.2 13.0 15.5 27.5 27.5 10.1 3.9 7.1
FMl 3M
19.6 16.0 19.2 15.0 17.5 27.5 27.5 10.1 3.9 7.1
FMl TM
22.5 17.9 22.0 16.7 19.8 31.6 31.6 10.6 3.4 7.6
FMl 4M
25.0 20.7 24.5 19.5 22.6 31.6 31.6 10.6 3.4 7.6
FMl LM
28.5 23.9 28.0 22.7 25.8 31.6 31.6 10.6 3.4 7.6
FMl 5M
34.0 29.7 33.5 28.5 31.4 31.6 31.6 10.6 3.4 7.6
Part number example: FMN.1M.305.XLCT
Note: Ls = standard gender, Lr = reverse gender
FMl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X), knurled grip and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
Ls/Lr
øA
P
øC
e
9
e
Ls Lr P Code1)
FMl 1M
14.6 14.2 M12x1.0 26.4 26.4 3.9
A
FMl 2M
17.6 17.2 M15x1.0 26.4 26.4 3.9
B
FMl 3M
19.6 19.2 M18x1.0 26.4 26.4 3.9
C
FMl TM
22.5 22.0 M18x1.0 30.0 30.0 3.4
C
FMl 4M
25.0 24.5 M22x1.0 30.0 30.0 3.4
D
FMl LM
28.5 28.0 M25x1.0 30.0 30.0 3.4
E
FMl 5M
34.0 33.5 M31x1.0 30.0 30.0 3.4
G
Part number example: FMN.1M.305.XLCM
Note: Ls = standard gender, Lr = reverse gender. 1) MIL-DTL-38999L shell
size code (backshell not supplied).
6 www.lemo.com
®
®
FGl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip
Dimensions (mm)
Reference
Model Series A
Ls/Lr
øA
øC
øD
øB
P
X
B C D Ls Lr P X
FGl MM
12.0 6.4
10.7 5.6
21.3
21.3 5.5 5.8
FGl 0M
14.4 8.8
12.7 8.0
24.1
24.1 3.9 6.7
FGl 1M
15.9 10.5
14.2 9.7
24.1
24.1 3.9 6.7
FGl 2M
18.9 14.0 17.2 13.0 24.5 24.5 3.9 7.1
FGl 3M
20.9 16.0 19.2 15.0 24.5 24.5 3.9 7.1
FGl TM
23.4 17.9 22.0 16.7 28.6 28.6 3.4 7.6
FGl 4M
25.9 20.7 24.5 19.5 28.6 28.6 3.4 7.6
FGl LM
29.4 23.9 28.0 22.7 28.6 28.6 3.4 7.6
FGl 5M
34.9 29.7 33.5 28.5 28.6 28.6 3.4 7.6
Part number example: FGN.1M.305.XLC
Note: Ls = standard gender, Lr = reverse gender
FGl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip and mold stop
Dimensions (mm)
Reference
Model Series A B C D F Ls Lr M P X
Ls/Lr
X
1.5
øA
øC
P
øD
øF
øB
M
FGl MM
12.0 6.4
10.7 5.6 7.8
24.3
24.3 8.8 5.5 5.8
FGl 0M
14.4 8.8
12.7 8.0
10.7
27.1
27.1 9.7 3.9 6.7
FGl 1M
15.9 10.5 14.2 9.7 12.4 27.1 27.1 9.7 3.9 6.7
FGl 2M
18.9 14.0 17.2 13.0 15.5 27.5 27.5 10.1 3.9 7.1
FGl 3M
20.9 16.0 19.2 15.0 17.5 27.5 27.5 10.1 3.9 7.1
FGl TM
23.4 17.9 22.0 16.7 19.8 31.6 31.6 10.6 3.4 7.6
FGl 4M
25.9 20.7 24.5 19.5 22.6 31.6 31.6 10.6 3.4 7.6
FGl LM
29.4 23.9 28.0 22.7 25.8 31.6 31.6 10.6 3.4 7.6
FGl 5M
34.9 29.7 33.5 28.5 31.4 31.6 31.6 10.6 3.4 7.6
Part number example: FGN.1M.305.XLCT
Note: Ls = standard gender, Lr = reverse gender
FGl Straight plug, key (N) or keys (H, P, R, S, T, U, V, W and X), arctic grip and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
Ls/Lr
øA
P
øC
e
9
e
Ls Lr P Code1)
FGl 1M
15.9 14.2 M12x1.0 26.4 26.4 3.9
A
FGl 2M
18.9 17.2 M15x1.0 26.4 26.4 3.9
B
FGl 3M
20.9 19.2 M18x1.0 26.4 26.4 3.9
C
FGl TM
23.4 22.0 M18x1.0 30.0 30.0 3.4
C
FGl 4M
25.9 24.5 M22x1.0 30.0 30.0 3.4
D
FGl LM
29.4 28.0 M25x1.0 30.0 30.0 3.4
E
FGl 5M
34.9 33.5 M31x1.0 30.0 30.0 3.4
G
Part number example: FGN.1M.305.XLCM
Note: Ls = standard gender, Lr = reverse gender.
size code (backshell not supplied).
1)
MIL-DTL-38999L shell
www.lemo.com 7
®
®
FXl
Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip
Dimensions (mm)
Reference
Model Series A A1 B C D E G H K Ls Lr N V
FXl MM
21.5 11.1 6.4 10.7 5.6 9.5 17.0 12.0 1.5 26.1 26.1 17.0 2.7
Ls/Lr
X
1.5
øC
øV
H
ø A1
P
øD
øE
N
øB
øA
26.9 13.1 8.8 12.7 8.0 12.2 18.9 15.1 1.5 29.1 29.1 20.6 2.7
FXl 1M
31.4 14.6 10.5 14.2 9.7 13.7 18.9 18.3 1.5 29.1 29.1 23.8 3.3
FXl 2M
34.6 17.6 14.0 17.2 13.0 16.7 18.9 20.6 1.5 29.5 29.5 26.1 3.3
FXl 3M
34.6 19.6 16.0 19.2 15.0 18.7 18.9 20.6 1.5 29.5 29.5 26.1 3.3
FXl TM
38.0 22.5 17.9 22.0 16.7 21.5 22.5 23.0 2.0 34.8 34.8 28.5 3.3
FXl 4M
40.3 25.0 20.7 24.5 19.5 24.0 22.5 24.6 2.0 34.8 34.8 30.1 3.3
FXl LM
43.7 28.5 23.9 28.0 22.7 27.5 22.5 27.0 2.0 34.8 34.8 32.5 3.3
FXl 5M
47.0 34.0 29.7 33.5 28.5 33.0 22.5 29.4 2.0 34.8 34.8 37.0 3.3
Part number example: FXN.1M.305.XLC
G
K
FXl
FXl 0M
Note: The dimensions «P» and «X» are the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X), knurled grip and mold stop
Dimensions (mm)
Reference
Model Series A A1 B C D E G H K Ls Lr N V
FXl MM
21.5 11.1 6.4 10.7 5.6 9.5 17.0 12.0 1.5 29.1 29.1 17.0 2.7
Ls/Lr
øC
P
øD
øF
øB
øE
X
1.5
øV
H
1.5
M
26.9 13.1 8.8 12.7 8.0 12.2 18.9 15.1 1.5 32.1 32.1 20.6 2.7
FXl 1M
31.4 14.6 10.5 14.2 9.7 13.7 18.9 18.3 1.5 32.1 32.1 23.8 3.3
FXl 2M
34.6 17.6 14.0 17.2 13.0 16.7 18.9 20.6 1.5 32.5 32.5 26.1 3.3
FXl 3M
34.6 19.6 16.0 19.2 15.0 18.7 18.9 20.6 1.5 32.5 32.5 26.1 3.3
FXl TM
38.0 22.5 17.9 22.0 16.7 21.5 22.5 23.0 2.0 37.8 37.8 28.5 3.3
FXl 4M
40.3 25.0 20.7 24.5 19.5 24.0 22.5 24.6 2.0 37.8 37.8 30.1 3.3
FXl LM
43.7 28.5 23.9 28.0 22.7 27.5 22.5 27.0 2.0 37.8 37.8 32.5 3.3
FXl 5M
47.0 34.0 29.7 33.5 28.5 33.0 22.5 29.4 2.0 37.8 37.8 37.0 3.3
Part number example: FXN.1M.305.XLCT
G
K
FXl
ø A1
øA
N
FXl 0M
Note: The dimensions «F», «M», «P» and «X» are the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip
and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A A1 C
Ls/Lr
1.5
e
øC
P
ø A1
9
øE
N
øA
e
E G H K Ls Lr Code1)
FXl 1M
31.4 14.6 14.2 M12x1.0 13.7 18.9 18.3 1.5 31.4 31.4
A
FXl 2M
34.6 17.6 17.2 M15x1.0 16.7 18.9 20.6 1.5 31.4 31.4
B
FXl 3M
34.6 19.6 19.2 M18x1.0 18.7 18.9 20.6 1.5 31.4 31.4
C
FXl TM
38.0 22.5 22.0 M18x1.0 21.5 22.5 23.0 2.0 36.2 36.2
C
FXl 4M
40.3 25.0 24.5 M22x1.0 24.0 22.5 24.6 2.0 36.2 36.2
D
FXl LM
43.7 28.5 28.0 M25x1.0 27.5 22.5 27.0 2.0 36.2 36.2
E
FXl 5M
47.0 34.0 33.5 M31x1.0 33.0 22.5 29.4 2.0 36.2 36.2
F
Part number example: FXN.1M.305.XLCM
H
øV
G
K
Note: The dimensions «N» and «V» are the same as the FXl models and the dimension «P» is the same as the FMl models. Ls = standard gender, Lr = reverse gender.
1)
MIL-DTL-38999L shell size code (backshell not supplied).
8 www.lemo.com
®
®
FWl Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip
Dimensions (mm)
Reference
Model Series A A1 B C
Ls/Lr
X
1.5
øC
øV
H
ø A1
P
øD
øE
øB
øA
N
D E
G H K Ls Lr N V
FWl MM
21.5
12.0 6.4
10.7 5.6 9.5
17.0
12.0
1.5
26.1
26.1
17.0
2.7
FWl 0M
26.9 14.4 8.8 12.7 8.0 12.2 18.9 15.1 1.5 29.1 29.1 20.6 2.7
FWl 1M
31.4 15.9 10.5 14.2 9.7 13.7 18.9 18.3 1.5 29.1 29.1 23.8 3.3
FWl 2M
34.6 18.9 14.0 17.2 13.0 16.7 18.9 20.6 1.5 29.5 29.5 26.1 3.3
FWl 3M
34.6 20.9 16.0 19.2 15.0 18.7 18.9 20.6 1.5 29.5 29.5 26.1 3.3
FWl TM
38.0 23.4 17.9 22.0 16.7 21.5 22.5 23.0 2.0 34.8 34.8 28.5 3.3
FWl 4M
40.3 25.9 20.7 24.5 19.5 24.0 22.5 24.6 2.0 34.8 34.8 30.1 3.3
FWl LM
43.7 29.4 23.9 28.0 22.7 27.5 22.5 27.0 2.0 34.8 34.8 32.5 3.3
FWl 5M
47.0 34.9 29.7 33.5 28.5 33.0 22.5 29.4 2.0 34.8 34.8 37.0 3.3
Part number example: FWN.1M.305.XLC
G
K
Note: The dimensions «P» and «X» are the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
FWl Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X), arctic grip and mold stop
Dimensions (mm)
Reference
Model Series A A1 B C D E G H K Ls Lr N V
Ls/Lr
øC
P
øD
øF
øE
øB
X
1.5
øV
H
1.5
M
ø A1
øA
N
FWl MM
21.5 12.0 6.4 10.7 5.6 9.5 17.0 12.0 1.5 29.1 29.1 17.0 2.7
FWl 0M
26.9 14.4 8.8 12.7 8.0 12.2 18.9 15.1 1.5 32.1 32.1 20.6 2.7
FWl 1M
31.4 15.9 10.5 14.2 9.7 13.7 18.9 18.3 1.5 32.1 32.1 23.8 3.3
FWl 2M
34.6 18.9 14.0 17.2 13.0 16.7 18.9 20.6 1.5 32.5 32.5 26.1 3.3
FWl 3M
34.6 20.9 16.0 19.2 15.0 18.7 18.9 20.6 1.5 32.5 32.5 26.1 3.3
FWl TM
38.0 23.4 17.9 22.0 16.7 21.5 22.5 23.0 2.0 37.8 37.8 28.5 3.3
FWl 4M
40.3 25.9 20.7 24.5 19.5 24.0 22.5 24.6 2.0 37.8 37.8 30.1 3.3
FWl LM
43.7 29.4 23.9 28.0 22.7 27.5 22.5 27.0 2.0 37.8 37.8 32.5 3.3
FWl 5M
47.0 34.9 29.7 33.5 28.5 33.0 22.5 29.4 2.0 37.8 37.8 37.0 3.3
Part number example: FWN.1M.305.XLCT
G
K
Note: The dimensions «F», «M», «P» and «X» are the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
FWl Straight plug with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip
and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A A1 C
Ls/Lr
1.5
P
e
øC
9
ø A1
øA
øE
N
e
E G H K Ls Lr Code1)
FWl 1M
31.4 15.9 14.2 M12x1.0 13.7 18.9 18.3 1.5 31.4 31.4
A
FWl 2M
34.6 18.9 17.2 M15x1.0 16.7 18.9 20.6 1.5 31.4 31.4
B
FWl 3M
34.6 20.9 19.2 M18x1.0 18.7 18.9 20.6 1.5 31.4 31.4
C
FWl TM
38.0 23.4 22.0 M18x1.0 21.5 22.5 23.0 2.0 36.2 36.2
C
FWl 4M
40.3 25.9 24.5 M22x1.0 24.0 22.5 24.6 2.0 36.2 36.2
D
FWl LM
43.7 29.4 28.0 M25x1.0 27.5 22.5 27.0 2.0 36.2 36.2
E
FWl 5M
47.0 34.9 33.5 M31x1.0 33.0 22.5 29.4 2.0 36.2 36.2
F
Part number example: FWN.1M.305.XLCM
H
øV
G
K
Note: The dimensions «N» and «V» are the same as the FWl models and the dimension «P» is the same as the FMl models. Ls = standard gender, Lr = reverse gender.
1)
MIL-DTL-38999L shell size code (backshell not supplied).
www.lemo.com 9
®
®
FAl
Straight plug with square flange, non-coupling, key (N) or keys (H, P, R, S, T, U, V, W and X)
Reference
Dimensions (mm)
Model Series A
Ls/Lr
øA
P
øC
øD
øB
X
øE
N
øV
H
B C D
E G H K Ls Lr N P V
FAl MM
21.5 6.4 10.7 5.6 9.5 17.0 12.0 1.5 26.1 26.1 17.0 5.5 2.7
FAl 0M
26.9 8.8 12.7 8.0 12.2 18.9 15.1 1.5 29.1 29.1 20.6 3.9 2.7
FAl 1M
31.4 10.5 14.2 9.7 13.7 18.9 18.3 1.5 29.1 29.1 23.8 3.9 3.3
FAl 2M
34.6 14.0 17.2 13.0 16.7 18.9 20.6 1.5 29.5 29.5 26.1 3.9 3.3
FAl 3M
34.6 16.0 19.2 15.0 18.7 18.9 20.6 1.5 29.5 29.5 26.1 3.9 3.3
FAl TM
38.0 17.9 22.0 16.7 21.5 22.5 23.0 2.0 34.8 34.8 28.5 3.4 3.3
FAl 4M
40.3 20.7 24.5 19.5 24.0 22.5 24.6 2.0 34.8 34.8 30.1 3.4 3.3
FAl LM
43.7 23.9 28.0 22.7 27.5 22.5 27.0 2.0 34.8 34.8 32.5 3.4 3.3
FAl 5M
47.0 29.7 33.5 28.5 33.0 22.5 29.4 2.0 34.8 34.8 37.0 3.4 3.3
Part number example: FAN.1M.305.XLC
G
K
Note: The dimension «X» is the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
FAl
Straight plug with square flange, non-coupling, key (N) or keys (H, P, R, S, T, U, V, W and X) with mold stop
Reference
Dimensions (mm)
Model Series A
Ls/Lr
øA
øC
X
1.5
øV
H
P
øD
øF
øB
M
øE
N
B C D
E G H K Ls Lr N P V
FAl MM
21.5 6.4 10.7 5.6 9.5 17.0 12.0 1.5 29.1 29.1 17.0 5.5 2.7
FAl 0M
26.9 8.8 12.7 8.0 12.2 18.9 15.1 1.5 32.1 32.1 20.6 3.9 2.7
FAl 1M
31.4 10.5 14.2 9.7 13.7 18.9 18.3 1.5 32.1 32.1 23.8 3.9 3.3
FAl 2M
34.6 14.0 17.2 13.0 16.7 18.9 20.6 1.5 32.5 32.5 26.1 3.9 3.3
FAl 3M
34.6 16.0 19.2 15.0 18.7 18.9 20.6 1.5 32.5 32.5 26.1 3.9 3.3
FAl TM
38.0 17.9 22.0 16.7 21.5 22.5 23.0 2.0 37.8 37.8 28.5 3.4 3.3
FAl 4M
40.3 20.7 24.5 19.5 24.0 22.5 24.6 2.0 37.8 37.8 30.1 3.4 3.3
FAl LM
43.7 23.9 28.0 22.7 27.5 22.5 27.0 2.0 37.8 37.8 32.5 3.4 3.3
FAl 5M
47.0 29.7 33.5 28.5 33.0 22.5 29.4 2.0 37.8 37.8 37.0 3.4 3.3
Part number example: FAN.1M.305.XLCT
G
K
Note: The dimension «X» is the same as the FMl models.
Ls = standard gender, Lr = reverse gender.
FAl
Straight plug with square flange, non-coupling, key (N) or keys (H, P, R, S, T, U, V, W and X)
with MIL-DTL-38999L shell thread
Reference
Dimensions (mm)
Model Series A C
Ls/Lr
øA
P
e
øC
9
øE
N
e
E G H K Ls Lr N Code1)
FAl 1M
31.4 14.2 M12x1.0 13.7 18.9 18.3 1.5 31.4 31.4 23.8
A
FAl 2M
34.6 17.2 M15x1.0 16.7 18.9 20.6 1.5 31.4 31.4 26.1
B
FAl 3M
34.6 19.2 M18x1.0 18.7 18.9 20.6 1.5 31.4 31.4 26.1
C
FAl TM
38.0 22.0 M18x1.0 21.5 22.5 23.0 2.0 36.2 36.2 28.5
C
FAl 4M
40.3 24.5 M22x1.0 24.0 22.5 24.6 2.0 36.2 36.2 30.1
D
FAl LM
43.7 28.0 M25x1.0 27.5 22.5 27.0 2.0 36.2 36.2 32.5
E
FAl 5M
47.0 33.5 M31x1.0 33.0 22.5 29.4 2.0 36.2 36.2 37.0
F
Part number example: FAN.1M.305.XLCM
H
øV
G
K
Note: The dimensions «P» and «V» are the same as the FAl models.
Ls = standard gender, Lr = reverse gender. 1) MIL-DTL-38999L shell size code
(backshell not supplied).
10 www.lemo.com
®
®
EGl Fixed socket, nut fixing, key (N) or keys (H, P, R, S, T, U, V, W and X)
Dimensions (mm)
Reference
Model Series C D
Ls/Lr
S1
e
øC
P
S2
E Ls Lr
P S1 S2
EGl MM
10.7 5.2
M7x0.5
4.5 15.0 15.0 3.7
6.3 9.0
EGl 0M
12.7 6.8
M9x0.6
5.0 18.3 18.3 5.3
8.2 11.0
EGl 1M
14.2 6.8 M11x1.0 4.5 18.3 18.3 5.3
9.5 13.0
EGl 2M
17.2 6.8 M14x1.0 4.5 18.3 18.3 5.3 12.5 17.0
EGl 3M
19.2 6.8 M16x1.0 4.0 18.3 18.3 5.3 14.5 19.0
EGl TM
22.0 9.4 M18x1.0 4.0 20.0 21.9 7.9 16.5 22.0
EGl 4M
24.5 9.4 M21x1.0 4.0 20.0 21.9 7.9 19.5 25.0
EGl LM
28.0 9.4 M24x1.0 4.0 20.0 21.9 7.9 22.5 30.0
EGl 5M
33.5 9.4 M30x1.0 4.0 20.0 21.9 7.9 28.5 36.0
Part number example: EGN.1M.305.XLM
D
E maxi
e
Panel cut-out (page 36).
Note: Ls = standard gender, Lr = reverse gender
EGl Fixed socket, nut fixing, key (N) or keys (H, P, R, S, T, U, V, W and X) for printed circuit
Dimensions (mm)
Reference
Model Series C
Ls/Lr
G
P
øC
S2
e
S1
4.5
5.4
D
E maxi
D
e
E G Ls Lr P S1 S2
EGl MM
10.7 5.2
M7x0.5
4.5 13.8 15.0 15.0 3.7
6.3 9.0
EGl 0M
12.7 6.8
M9x0.6
5.0 16.8 18.3 18.3 5.3
8.2 11.0
EGl 1M
14.2 6.8 M11x1.0 4.5 16.8 18.3 18.3 5.3
EGl 2M
17.2 6.8 M14x1.0 4.5 16.8 18.3 18.3 5.3 12.5 17.0
EGl 3M
19.2 6.8 M16x1.0 4.0 16.8 18.3 18.3 5.3 14.5 19.0
EGl TM
22.0 9.4 M18x1.0 4.0 18.9 20.0 21.9 7.9 16.5 22.0
EGl 4M
24.5 9.4 M21x1.0 4.0 18.9 20.0 21.9 7.9 19.5 25.0
EGl LM
28.0 9.4 M24x1.0 4.0 18.9 20.0 21.9 7.9 22.5 30.0
EGl 5M
33.5 9.4 M30x1.0 4.0 18.9 20.0 21.9 7.9 28.5 36.0
9.5 13.0
Part number example: EGN.1M.305.XLN
Panel cut-out (page 36). PCB drilling pattern (page 37).
Note: Ls = standard gender, Lr = reverse gender
www.lemo.com 11
®
®
ECl Fixed socket with two nuts, key (N) or keys (H, P, R, S, T, U, V, W and X)
Dimensions (mm)
Reference
Model Series A
Ls/Lr
S1
e
øA
P
øB
øC
S3
C
E
e
G Ls
Lr
P S1 S2 S3
ECl MM
14 2.85 13.5 5.0 M10x0.50 13.8 15.0 15.0 3.7 9.0 11.0 12.0
ECl 0M
17 4.72 18.2 5.0 M13x0.75 16.8 18.3 18.3 5.3 11.5 14.0 16.0
ECl 1M
18 5.95 19.2 5.0 M14x1.00 16.8 18.3 18.3 5.3 12.5 16.0 17.0
ECl 2M
21 8.95 21.5 4.0 M17x1.00 16.8 18.3 18.3 5.3 15.5 18.0 19.0
ECl 3M
23 10.95 25.0 4.0 M19x1.00 16.8 18.3 18.3 5.3 17.5 20.0 22.0
ECl TM
27 12.30 28.0 2.5 M22x1.00 18.9 20.0 21.9 7.9 20.5 23.0 25.0
ECl 4M
29 13.95 34.0 2.5 M24x1.00 18.9 20.0 21.9 7.9 22.5 25.0 30.0
ECl LM
33 17.95 36.0 2.5 M28x1.00 18.9 20.0 21.9 7.9 26.5 29.0 32.0
ECl 5M
38 22.90 41.0 2.5 M33x1.00 18.9 20.0 21.9 7.9 31.5 34.0 37.0
Part number example: ECN.1M.305.XLM
S2
E maxi
B
Panel cut-out (page 36).
G
Note: Ls = standard gender, Lr = reverse gender. This model is not IP68
(no panel sealing).
ECl Fixed socket with two nuts, key (N) or keys (H, P, R, S, T, U, V, W and X) for printed circuit
Dimensions (mm)
Reference
Model Series A B C E
S3
S1
4.5
e
E maxi
G
S2
øA
P
øB
øC
5.4
Ls/Lr
e
G Ls Lr P S1 S2 S3
ECl MM
14 2.85 13.5 5.0 M10x0.50 13.8 15.0 15.0 3.7 9.0 11.0 12.0
ECl 0M
17 4.72 18.2 5.0 M13x0.75 16.8 18.3 18.3 5.3 11.5 14.0 16.0
ECl 1M
18 5.95 19.2 5.0 M14x1.00 16.8 18.3 18.3 5.3 12.5 16.0 17.0
ECl 2M
21 8.95 21.5 4.0 M17x1.00 16.8 18.3 18.3 5.3 15.5 18.0 19.0
ECl 3M
23 10.95 25.0 4.0 M19x1.00 16.8 18.3 18.3 5.3 17.5 20.0 22.0
ECl TM
27 12.30 28.0 2.5 M22x1.00 18.9 20.0 21.9 7.9 20.5 23.0 25.0
ECl 4M
29 13.95 34.0 2.5 M24x1.00 18.9 20.0 21.9 7.9 22.5 25.0 30.0
ECl LM
33 17.95 36.0 2.5 M28x1.00 18.9 20.0 21.9 7.9 26.5 29.0 32.0
ECl 5M
38 22.90 41.0 2.5 M33x1.00 18.9 20.0 21.9 7.9 31.5 34.0 37.0
Part number example: ECN.1M.305.XLN
Panel cut-out (page 36). PCB drilling pattern (page 37).
Note: Ls = standard gender, Lr = reverse gender. This model is not IP68 (no panel sealing).
12 www.lemo.com
®
®
EDl Fixed socket with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X)
Dimensions (mm)
Reference
Model Series
A B C G H K Ls Lr N P V
Ls/Lr
K
P
øB
øC
øA
N
H
øV
EDl MM
18.6 4.70 10.7 12.3 9.5 1.5 17.0 17.0 14.5 3.7 2.7
EDl 0M
20.6 4.72 12.7 12.8 11.0 1.5 18.3 18.3 16.0 5.3 2.7
EDl 1M
23.8 5.95 14.2 12.8 12.9 1.5 18.3 18.3 18.4 5.3 3.3
EDl 2M
26.9 8.95 17.2 12.8 15.1 1.5 18.3 18.3 20.6 5.3 3.3
EDl 3M
29.0 10.95 19.2 12.8 16.6 1.5 18.3 18.3 22.1 5.3 3.3
EDl TM
31.4 12.30 22.0 14.5 18.3 2.0 20.0 21.9 23.8 7.9 3.3
EDl 4M
34.6 13.95 24.5 14.5 20.6 2.0 20.0 21.9 26.1 7.9 3.3
EDl LM
38.0 17.95 28.0 14.5 23.0 2.0 20.0 21.9 28.5 7.9 3.3
EDl 5M
43.7 22.90 33.5 14.5 27.0 2.0 20.0 21.9 32.5 7.9 3.3
Part number example: EDN.1M.305.XLM
G
Panel cut-out (page 36).
Note: Ls = standard gender, Lr = reverse gender
EDl Fixed socket with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) for printed circuit
Reference
Dimensions (mm)
Model Series
A B C G H K Ls Lr N P V
Ls/Lr
N
K
øA
P
øB
øC
5.4
4.5
H
øV
G
EDl MM
18.6 4.70 10.7 12.3 9.5 1.5 17.0 17.0 14.5 3.7 2.7
EDl 0M
20.6 4.72 12.7 12.8 11.0 1.5 18.3 18.3 16.0 5.3 2.7
EDl 1M
23.8 5.95 14.2 12.8 12.9 1.5 18.3 18.3 18.4 5.3 3.3
EDl 2M
26.9 8.95 17.2 12.8 15.1 1.5 18.3 18.3 20.6 5.3 3.3
EDl 3M
29.0 10.95 19.2 12.8 16.6 1.5 18.3 18.3 22.1 5.3 3.3
EDl TM
31.4 12.30 22.0 14.5 18.3 2.0 20.0 21.9 23.8 7.9 3.3
EDl 4M
34.6 13.95 24.5 14.5 20.6 2.0 20.0 21.9 26.1 7.9 3.3
EDl LM
38.0 17.95 28.0 14.5 23.0 2.0 20.0 21.9 28.5 7.9 3.3
EDl 5M
43.7 22.90 33.5 14.5 27.0 2.0 20.0 21.9 32.5 7.9 3.3
Part number example: EDN.1M.305.XLN
Panel cut-out (page 36). PCB drilling pattern (page 37).
Note: Ls = standard gender, Lr = reverse gender
www.lemo.com 13
®
®

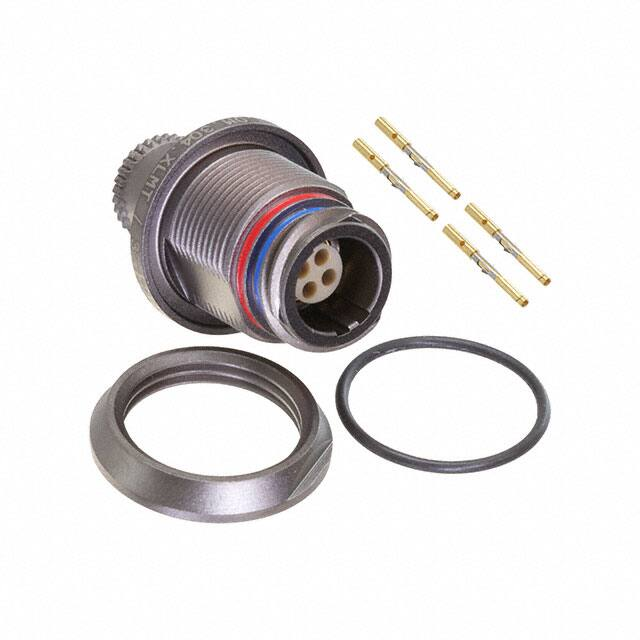

PEl Fixed socket, nut fixing, key (N) or keys (H, P, R, S, T, U, V, W and X) with mold stop (back panel mounting)
Dimensions (mm)
Reference
Model Series A B
Ls/Lr
e
S2
E maxi
X
øA
øD
øF
øB
øC
P
S1
M
C
D E
e
Ls Lr M P R S1 S2
PEl MM
14 6.4 13.8 5.6 4.0 M10x0.50 21.4 21.4 8.8 3.7 10.5 9.0 11
PEl 0M
17 8.8 16.8 8.0 5.0 M13x0.75 25.6 25.6 9.7 5.3 13.8 11.5 14
PEl 1M
18 10.5 17.8 9.7 5.0 M14x1.00 25.6 25.6 9.7 5.3 13.8 12.5 16
PEl 2M
21 14.0 20.8 13.0 5.0 M17x1.00 26.0 26.0 10.1 5.3 13.8 15.5 18
PEl 3M
23 16.0 22.8 15.0 5.0 M19x1.00 26.0 26.0 10.1 5.3 13.8 17.5 20
PEl TM
27 17.9 25.8 16.7 4.0 M22x1.00 29.5 30.1 10.6 7.9 16.9 20.5 23
PEl 4M
29 20.7 27.8 19.5 4.0 M24x1.00 29.5 30.1 10.6 7.9 16.9 22.5 25
PEl LM
33 23.9 31.8 22.7 4.0 M28x1.00 29.5 30.1 10.6 7.9 16.9 26.5 29
PEl 5M
38 29.7 36.8 28.5 4.0 M33x1.00 29.5 30.1 10.6 7.9 16.9 31.5 34
Part number example: PEN.1M.305.XLMT
Panel cut-out (page 36).
R
1.5
Note: this model is only available with mold stop. The dimensions «F» and «X» are the
same as the PBl models. Ls = standard gender, Lr = reverse gender.
PEl Fixed socket, nut fixing, key (N) or keys (H, P, R, S, T, U, V, W and X) with MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C E
Ls/Lr
e
øA
P
S1
e1
øC
9
e
e1
Ls Lr R S1 S2 Code1)
PEl 1M
18 17.8 5.0 M14x1.0 M12x1.0 26.4 26.4 13.8 12.5 16
A
PEl 2M
21 20.8 5.0 M17x1.0 M15x1.0 26.4 26.4 13.8 15.5 18
B
PEl 3M
23 22.8 5.0 M19x1.0 M18x1.0 26.4 26.4 13.8 17.5 20
C
PEl TM
27 25.8 4.0 M22x1.0 M18x1.0 28.2 30.1 16.9 20.5 23
C
PEl 4M
29 27.8 4.0 M24x1.0 M22x1.0 28.2 30.1 16.9 22.5 25
D
PEl LM
33 31.8 4.0 M28x1.0 M25x1.0 28.2 30.1 16.9 26.5 29
E
PEl 5M
38 36.8 4.0 M33x1.0 M31x1.0 28.2 30.1 16.9 31.5 34
G
Part number example: PEN.1M.305.XLMM
E maxi
R
S2
Panel cut-out (page 36).
Note: Ls = standard gender, Lr = reverse gender. The dimension «P» is the same as the
PBl models. 1) MIL-DTL-38999L shell size code (backshell not supplied).
14 www.lemo.com
®
®
PFl
Fixed socket with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with mold stop
Dimensions (mm)
Reference
Model Series
A B C D E F G H K N Ss Sr V
Ss/Sr
K
øA
N
G
P
øC
øD
øF
øB
øE
M
PFl MM
18.6 6.4 10.7 5.6 7.8 7.8 12.3 9.5 1.5 14.5 10.6 10.6 2.7
PFl 0M
20.6 8.8 12.7 8.0 10.7 10.7 12.8 11.0 1.5 16.0 11.3 11.3 2.7
PFl 1M
23.8 10.5 14.2 9.7 12.4 12.4 12.8 12.9 1.5 18.4 11.3 11.3 3.3
PFl 2M
26.9 14.0 17.2 13.0 15.5 15.5 12.8 15.1 1.5 20.6 11.7 11.7 3.3
PFl 3M
29.0 16.0 19.2 15.0 17.5 17.5 12.8 16.6 1.5 22.1 11.7 11.7 3.3
PFl TM
31.4 17.9 22.0 16.7 19.8 19.8 14.5 18.3 2.0 23.8 13.0 13.6 3.3
PFl 4M
34.6 20.7 24.5 19.5 22.6 22.6 14.5 20.6 2.0 26.1 13.0 13.6 3.3
PFl LM
38.0 23.9 28.0 22.7 25.8 25.8 14.5 23.0 2.0 28.5 13.0 13.6 3.3
PFl 5M
47.0 29.7 33.5 28.5 33.0 31.4 14.5 29.4 2.0 37.0 13.0 13.6 3.3
Part number example: PFN.1M.305.XLMT
X
øV
H
Panel cut-out (page 36).
1.5
Note: this model is only available with mold stop. The dimensions «M», «P» and «X» are
the same as the PBl models. Ss = standard gender, Sr = reverse gender.
PFl
Fixed socket with square flange, key (N) or keys (H, P, R, S, T, U, V, W and X)
with MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
Ss/Sr
N
K
øA
G
P
H
ø 3.3
øC
e
øE
9
e
E G H K N Ss Sr Code1)
PFl 1M
23.8 14.2 M12x1.0 12.4 12.8 12.9 1.5 18.4 12.2 12.2
A
PFl 2M
26.9 17.2 M15x1.0 15.5 12.8 15.1 1.5 20.6 12.2 12.2
B
PFl 3M
29.0 19.2 M18x1.0 17.5 12.8 16.6 1.5 22.1 12.2 12.2
C
PFl TM
31.4 22.0 M18x1.0 19.8 14.5 18.3 2.0 23.8 11.7 13.6
C
PFl 4M
34.6 24.5 M22x1.0 22.6 14.5 20.6 2.0 26.1 11.7 13.6
D
PFl LM
38.0 28.0 M25x1.0 25.8 14.5 23.0 2.0 28.5 11.7 13.6
E
PFl 5M
47.0 33.5 M31x1.0 33.0 14.5 29.4 2.0 37.0 11.7 13.6
G
Part number example: PFN.1M.305.XLMM
Panel cut-out (page 36).
Note: The dimension «P» is the same as the PBl models. Ss = standard gender,
Sr = reverse gender. 1) MIL-DTL-38999L shell size code (backshell not supplied).
www.lemo.com 15
®
®
PBl Fixed socket with antivibration flange, key (N) or keys (H, P, R, S, T, U, V, W and X), 2 holes fixing
Dimensions (mm)
Reference
Model Series
A B C D G H N P Ss Sr X
P
Ss/Sr
N
1.5 (MM)
2.0 (0M-5M)
A
øD
øB
H
øC
X
2.7 (MM)
3.3 (0M-5M)
PBl MM
21.0 6.4 11.3 5.6 6.7 16.2 12.5 3.7 13.2 13.2 5.8
PBl 0M
27.0 8.8 14.5 8.0 8.3 21.4 16.0 5.3 15.3 15.3 6.7
PBl 1M
29.0 10.5 16.5 9.7 8.3 23.4 18.0 5.3 15.3 15.3 6.7
PBl 2M
32.0 14.0 19.5 13.0 8.3 26.4 21.0 5.3 15.7 15.7 7.1
PBl 3M
35.0 16.0 21.5 15.0 8.3 29.0 23.0 5.3 15.7 15.7 7.1
PBl TM
38.5 17.9 24.5 16.7 11.0 32.5 26.0 7.9 15.2 17.1 7.6
PBl 4M
41.0 20.7 27.5 19.5 11.0 35.0 29.0 7.9 15.2 17.1 7.6
PBl LM
44.0 23.9 30.5 22.7 11.0 38.0 32.0 7.9 15.2 17.1 7.6
PBl 5M
51.0 29.7 37.5 28.5 11.0 45.0 39.0 7.9 15.2 17.1 7.6
Panel cut-out (page 36).
Part number example: PBN.1M.305.XLM
G
Note: Ss = standard gender, Sr = reverse gender
PBl Fixed socket with antivibration flange, key (N) or keys (H, P, R, S, T, U, V, W and X), 2 holes fixing, mold stop
Dimensions (mm)
Reference
Model Series
A B C D F G H M N P Ss Sr X
P
Ss/Sr
1.5 (MM)
2.0 (0M-5M)
N
A
øC
øD
øB
H
øF
M
X
1.5
2.7 (MM)
3.3 (0M-5M)
PBl MM
21.0 6.4
11.3 5.6 7.8 6.7 16.2 8.8
12.5 3.7 16.2
16.2 5.8
PBl 0M
27.0 8.8 14.5 8.0 10.7 8.3 21.4 9.7 16.0 5.3 18.3 18.3 6.7
PBl 1M
29.0 10.5 16.5 9.7 12.4 8.3 23.4 9.7 18.0 5.3 18.3 18.3 6.7
PBl 2M
32.0 14.0 19.5 13.0 15.5 8.3 26.4 10.1 21.0 5.3 18.7 18.7 7.1
PBl 3M
35.0 16.0 21.5 15.0 17.5 8.3 29.0 10.1 23.0 5.3 18.7 18.7 7.1
PBl TM
38.5 17.9 24.5 16.7 19.8 11.0 32.5 10.6 26.0 7.9 18.2 18.2 7.6
PBl 4M
41.0 20.7 27.5 19.5 22.6 11.0 35.0 10.6 29.0 7.9 18.2 18.2 7.6
PBl LM
44.0 23.9 30.5 22.7 25.8 11.0 38.0 10.6 32.0 7.9 18.2 18.2 7.6
PBl 5M
51.0 29.7 37.5 28.5 31.4 11.0 45.0 10.6 39.0 7.9 18.2 18.2 7.6
Part number example: PBN.1M.305.XLMT
G
Panel cut-out (page 36).
Note: Ss = standard gender, Sr = reverse gender
PBl Fixed socket with antivibration flange, key (N) or keys (H, P, R, S, T, U, V, W and X),
2 holes fixing with MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
P
Ss/Sr
2
e
øC
H
9
A
N
e
G H N P Ss Sr Code1)
PBl 1M
29.0 16.5 M12x1.0 8.3 23.4 18.0 5.3 17.2 17.2
PBl 2M
32.0 19.5 M15x1.0 8.3 26.4 21.0 5.3 17.2 17.2
B
PBl 3M
35.0 21.5 M18x1.0 8.3 29.0 23.0 5.3 17.2 17.2
C
PBl TM
38.5 24.5 M18x1.0 11.0 32.5 26.0 7.9 16.2 17.1
C
PBl 4M
41.0 27.5 M22x1.0 11.0 35.0 29.0 7.9 16.2 17.1
D
PBl LM
44.0 30.5 M25x1.0 11.0 38.0 32.0 7.9 16.2 17.1
E
PBl 5M
51.0 37.5 M31x1.0 11.0 45.0 39.0 7.9 16.2 17.1
G
A
Part number example: PBN.1M.305.XLMM
3.3
Panel cut-out (page 36).
G
Note: Ss = standard gender, Sr = reverse gender.
1)
MIL-DTL-38999L shell size code (backshell not supplied).
16 www.lemo.com
®
®
PVl Fixed socket with antivibration square flange, key (N) or keys (H, P, R, S, T, U, V, W and X)
Dimensions (mm)
Reference
Model Series A
øC
øD
øC
øB
øA
N
P
1.5 (MM)
2.0 (0M-5M)
Ss/Sr
X
øV
H
B C D G H
N
P Ss Sr V X
PVl MM
21.5 6.4 11.3 5.6 6.7 12.0 17.0 3.7 13.2 13.2 2.7 5.8
PVl 0M
26.9 8.8 14.5 8.0 8.3 15.1 20.6 5.3 15.3 15.3 2.7 6.7
PVl 1M
31.4 10.5 16.5 9.7 8.3 18.3 23.8 5.3 15.3 15.3 3.3 6.7
PVl 2M
34.6 14.0 19.5 13.0 8.3 20.6 26.1 5.3 15.7 15.7 3.3 7.1
PVl 3M
38.0 16.0 21.5 15.0 8.3 23.0 28.5 5.3 15.7 15.7 3.3 7.1
PVl TM
40.3 17.9 24.5 16.7 11.0 24.6 30.1 7.9 15.2 17.1 3.3 7.6
PVl 4M
43.7 20.7 27.5 19.5 11.0 27.0 32.5 7.9 15.2 17.1 3.3 7.6
PVl LM
47.1 23.9 30.5 22.7 11.0 29.4 34.9 7.9 15.2 17.1 3.3 7.6
PVl 5M
54.9 29.7 37.5 28.5 11.0 34.9 40.4 7.9 15.2 17.1 3.3 7.6
Panel cut-out (page 36).
Part number example: PVN.1M.305.XLM
G
Note: Ss = standard gender, Sr = reverse gender
PVl Fixed socket with antivibration square flange, key (N) or keys (H, P, R, S, T, U, V, W and X) with mold stop
Dimensions (mm)
Reference
Model Series
A B C D F G H M N P Ss Sr X
Ss/Sr
øA
N
øC
øD
øF
øB
øC
M
X
1.5
øV
H
P
1.5 (MM)
2.0 (0M-5M)
PVl MM
21.5 6.4 11.3 5.6 7.8 6.7 12.0 8.8 17.0 3.7 16.2 16.2 5.8
PVl 0M
26.9 8.8 14.5 8.0 10.7 8.3 15.1 9.7 20.6 5.3 18.3 18.3 6.7
PVl 1M
31.4 10.5 16.5 9.7 12.4 8.3 18.3 9.7 23.8 5.3 18.3 18.3 6.7
PVl 2M
34.6 14.0 19.5 13.0 15.5 8.3 20.6 10.1 26.1 5.3 18.7 18.7 7.1
PVl 3M
38.0 16.0 21.5 15.0 17.5 8.3 23.0 10.1 28.5 5.3 18.7 18.7 7.1
PVl TM
40.3 17.9 24.5 16.7 19.8 11.0 24.6 10.6 30.1 7.9 18.2 18.2 7.6
PVl 4M
43.7 20.7 27.5 19.5 22.6 11.0 27.0 10.6 32.5 7.9 18.2 18.2 7.6
PVl LM
47.1 23.9 30.5 22.7 25.8 11.0 29.4 10.6 34.9 7.9 18.2 18.2 7.6
PVl 5M
54.9 29.7 37.5 28.5 31.4 11.0 34.9 10.6 40.4 7.9 18.2 18.2 7.6
Panel cut-out (page 36).
Part number example: PVN.1M.305.XLMT
G
Note: Ss = standard gender, Sr = reverse gender.
The dimension «V» is the same as the PVl models without mold stop.
PVl Fixed socket with antivibration square flange, key (N) or keys (H, P, R, S, T, U, V, W and X)
with MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A
P
Ss/Sr
2
e
9
øC
øA
øC
N
C
e
G H N P Ss Sr V Code1)
PVl 1M
31.4 16.5 M12x1.0 8.3 18.3 23.8 5.3 17.2 17.2 3.3
PVl 2M
34.6 19.5 M15x1.0 8.3 20.6 26.1 5.3 17.2 17.2 3.3
B
PVl 3M
38.0 21.5 M18x1.0 8.3 23.0 28.5 5.3 17.2 17.2 3.3
C
PVl TM
40.3 24.5 M18x1.0 11.0 24.6 30.1 7.9 16.2 17.1 3.3
C
PVl 4M
43.7 27.5 M22x1.0 11.0 27.0 32.5 7.9 16.2 17.1 3.3
D
PVl LM
47.1 30.5 M25x1.0 11.0 29.4 34.9 7.9 16.2 17.1 3.3
E
PVl 5M
54.9 37.5 M31x1.0 11.0 34.9 40.4 7.9 16.2 17.1 3.3
G
A
Part number example: PVN.1M.305.XLMM
H
øV
G
Panel cut-out (page 36).
Note: Ss = standard gender, Sr = reverse gender. 1) MIL-DTL-38999L shell size code
(backshell not supplied).
www.lemo.com 17
®
®
PMl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip
Dimensions (mm)
Reference
Model Series A
Ls/Lr
øA
øC
P
øD
øB
X
B C D Ls Lr P X
PMl MM
11.1 6.4 10.7 5.6 21.4 21.4 3.7 5.8
PMl 0M
13.1 8.8 12.7 8.0 25.6 25.6 5.3 6.7
PMl 1M
14.6 10.5 14.2 9.7 25.6 25.6 5.3 6.7
PMl 2M
17.6 14.0 17.2 13.0 26.0 26.0 5.3 7.1
PMl 3M
19.6 16.0 19.2 15.0 26.0 26.0 5.3 7.1
PMl TM
22.5 17.9 22.0 16.7 28.2 30.1 7.9 7.6
PMl 4M
25.0 20.7 24.5 19.5 28.2 30.1 7.9 7.6
PMl LM
28.5 23.9 28.0 22.7 28.2 30.1 7.9 7.6
PMl 5M
34.0 29.7 33.5 28.5 28.2 30.1 7.9 7.6
Part number example: PMN.1M.305.XLM
Note: Ls = standard gender, Lr = reverse gender
PMl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X) with knurled grip and mold stop
Dimensions (mm)
Reference
Model Series A
Ls/Lr
X
1.5
øA
øC
P
øD
øF
øB
M
B C D F Ls Lr M P X
PMl MM
11.1 6.4
10.7 5.6 7.8
24.4
24.4 8.8 3.7 5.8
PMl 0M
13.1 8.8
12.7 8.0
10.7
28.6
28.6 9.7 5.3 6.7
PMl 1M
14.6
10.5
14.2 9.7
12.4
28.6
28.6 9.7 5.3 6.7
PMl 2M
17.6 14.0 17.2 13.0 15.5 29.0 29.0 10.1 5.3 7.1
PMl 3M
19.6 16.0 19.2 15.0 17.5 29.0 29.0 10.1 5.3 7.1
PMl TM
22.5 17.9 22.0 16.7 19.8 31.2 31.2 10.6 7.9 7.6
PMl 4M
25.0 20.7 24.5 19.5 22.6 31.2 31.2 10.6 7.9 7.6
PMl LM
28.5 23.9 28.0 22.7 25.8 31.2 31.2 10.6 7.9 7.6
PMl 5M
34.0 29.7 33.5 28.5 31.4 31.2 31.2 10.6 7.9 7.6
Part number example: PMN.1M.305.XLMT
Note: Ls = standard gender, Lr = reverse gender
PMl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X), knurled grip and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
Ls/Lr
øA
P
øC
e
9
e
Ls Lr P Code1)
PMl 1M
14.6 14.2 M12x1.0 27.9 27.9 5.3
A
PMl 2M
17.6 17.2 M15x1.0 27.9 27.9 5.3
B
PMl 3M
19.6 19.2 M18x1.0 27.9 27.9 5.3
C
PMl TM
22.5 22.0 M18x1.0 29.6 30.1 7.9
C
PMl 4M
25.0 24.5 M22x1.0 29.6 30.1 7.9
D
PMl LM
28.5 28.0 M25x1.0 29.6 30.1 7.9
E
PMl 5M
34.0 33.5 M31x1.0 29.6 30.1 7.9
G
Part number example: PMN.1M.305.XLMM
Note: Ls = standard gender, Lr = reverse gender.
1)
MIL-DTL-38999L shell size code (backshell not supplied).
18 www.lemo.com
®
®
PHl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip
Dimensions (mm)
Reference
Model Series A
Ls/Lr
øC
øB
øD
øA
P
X
B C D Ls Lr P X
PHl MM
12.0 6.4 10.7 5.6 21.4 21.4 3.7 5.8
PHl 0M
14.4 8.8 12.7 8.0 25.6 25.6 5.3 6.7
PHl 1M
15.9 10.5 14.2 9.7 25.6 25.6 5.3 6.7
PHl 2M
18.9 14.0 17.2 13.0 26.0 26.0 5.3 7.1
PHl 3M
20.9 16.0 19.2 15.0 26.0 26.0 5.3 7.1
PHl TM
23.4 17.9 22.0 16.7 28.2 30.1 7.9 7.6
PHl 4M
25.9 20.7 24.5 19.5 28.2 30.1 7.9 7.6
PHl LM
29.4 23.9 28.0 22.7 28.2 30.1 7.9 7.6
PHl 5M
34.9 29.7 33.5 28.5 28.2 30.1 7.9 7.6
Part number example: PHN.1M.305.XLM
Note: Ls = standard gender, Lr = reverse gender
PHl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip and mold stop
Dimensions (mm)
Reference
Model Series A
Ls/Lr
X
1.5
øA
øC
P
øD
øF
øB
M
B C D F Ls Lr M P X
PHl MM
12.0 6.4
10.7 5.6 7.8 24.4
24.4 8.8 3.7 5.8
PHl 0M
14.4 8.8
12.7 8.0
10.7 28.6
28.6 9.7 5.3 6.7
PHl 1M
15.9 10.5
14.2 9.7
12.4 28.6
28.6 9.7 5.3 6.7
PHl 2M
18.9 14.0 17.2 13.0 15.5 29.0 29.0 10.1 5.3 7.1
PHl 3M
20.9 16.0 19.2 15.0 17.5 29.0 29.0 10.1 5.3 7.1
PHl TM
23.4 17.9 22.0 16.7 19.8 31.2 31.2 10.6 7.9 7.6
PHl 4M
25.9 20.7 24.5 19.5 22.6 31.2 31.2 10.6 7.9 7.6
PHl LM
29.4 23.9 28.0 22.7 25.8 31.2 31.2 10.6 7.9 7.6
PHl 5M
34.9 29.7 33.5 28.5 31.4 31.2 31.2 10.6 7.9 7.6
Part number example: PHN.1M.305.XLMT
Note: Ls = standard gender, Lr = reverse gender
PHl Free socket, key (N) or keys (H, P, R, S, T, U, V, W and X) with arctic grip and MIL-DTL-38999L shell thread
Dimensions (mm)
Reference
Model Series A C
Ls/Lr
øA
P
øC
e
9
e
Ls Lr P Code1)
PHl 1M
15.9 14.2 M12x1.0 27.9 27.9 5.3
A
PHl 2M
18.9 17.2 M15x1.0 27.9 27.9 5.3
B
PHl 3M
20.9 19.2 M18x1.0 27.9 27.9 5.3
C
PHl TM
23.4 22.0 M18x1.0 29.6 30.1 7.9
C
PHl 4M
25.9 24.5 M22x1.0 29.6 30.1 7.9
D
PHl LM
29.4 28.0 M25x1.0 29.6 30.1 7.9
E
PHl 5M
34.9 33.5 M31x1.0 29.6 30.1 7.9
G
Part number example: PHN.1M.305.XLMM
Note: Ls = standard gender, Lr = reverse gender
1)
MIL-DTL-38999L shell size code (backshell not supplied).
www.lemo.com 19
®
®
Watertight model (unmated)
HEl Fixed socket, nut fixing, key (N) or keys (H, P, R, S, T, U, V, W and X), printed circuit, watertight
(back panel mounting)
Reference
Dimensions (mm)
Model Series A
Ls/Lr
S1
e
e
E H Ls Lr N P R S1 S2
HEl MM
14 13.8 M10x0.50 4.0 5.08 20.4 20.4 15.3 3.7 10.5 9.0 11
HEl 0M
17 16.8 M13x0.75 5.0 5.08 20.8 21.0 16.8 5.3 13.8 11.5 14
HEl 1M
18 17.8 M14x1.00 5.0 7.62 20.8 21.0 16.8 5.3 13.8 12.5 16
HEl 2M
21 20.8 M17x1.00 5.0 8.89 20.8 21.0 16.8 5.3 13.8 15.5 18
HEl 3M
23 22.8 M19x1.00 5.0 10.16 20.8 21.0 16.8 5.3 13.8 17.5 20
HEl TM
27 25.8 M22x1.00 4.0 12.70 24.6 24.6 19.9 7.9 16.9 20.5 23
HEl 4M
29 27.8 M24x1.00 4.0 13.97 24.6 24.6 19.9 7.9 16.9 22.5 25
HEl LM
33 31.8 M28x1.00 4.0 16.51 24.6 24.6 19.9 7.9 16.9 26.5 29
HEl 5M
38 36.8 M33x1.00 4.0 20.32 24.6 24.6 19.9 7.9 16.9 31.5 34
H
øA
P
øC
0.8
C
E maxi
R
N
S2
Part number example: HEN.1M.305.XLNP
Panel cut-out (page 36). PCB drilling pattern (page 37).
Note: In MM series, the four external earth contacts are shorter.
Ls = standard gender, Lr = reverse gender. Operating temperature: -20°C to +80°C.
20 www.lemo.com
®
®
Fibre optic models
FMl Straight plug with knurled grip
Part number
L
P
A C
L
P S1 S2
FMS.2M.03A.XLZT••Z
17.6 17.2 100.6 3.9 14 14
FMN.3M.95B.XLCT••Z
19.6 19.2 103.3 3.9 16 16
øA
FMW.5M.03W.XLZT••Z 34.0 33.5 148.4 3.4 29 29
øC
S2
Dimensions (mm)
Contact part number (to be ordered separately):
PSS.F7.12•.LCE23 (2M series).
FFS.F7.12•.LCE23 (3M and 5M series).
Note: •• Cable adaptor diameter defined upon request.
The bend relief must be ordered separately (see page 33).
S1
FGl Straight plug with arctic grip
Part number
L
P
A C
L
P S1 S2
FGS.2M.03A.XLZT••Z
18.9 17.2 100.6 3.9 14 14
FGN.3M.95B.XLCT••Z
20.9 19.2 103.3 3.9 16 16
øA
FGW.5M.03W.XLZT••Z 34.9 33.5 148.4 3.4 29 29
øC
S2
Dimensions (mm)
Contact part number (to be ordered separately):
PSS.F7.12•.LCE23 (2M series).
FFS.F7.12•.LCE23 (3M and 5M series).
Note: •• Cable adaptor diameter defined upon request.
The bend relief must be ordered separately (see page 33).
S1
PMl Free socket with knurled grip
Part number
PMS.2M.03A.XLZT••Z
A C
L
P S1 S2
17.6 17.2 105.8 5.3 16 14
PMN.3M.95B.XLMT••Z 19.6 19.2 113.3 5.3 18 16
L
P
S1
øA
PMW.5M.03W.XLZT••Z 34.0 33.5 155.2 7.9 32 29
øC
S2
Dimensions (mm)
Contact part number (to be ordered separately):
FFS.F7.12•.LCL23 (2M series).
PSS.F7.12•.LCL23 (3M and 5M series).
Note: •• Cable adaptor diameter defined upon request.
The bend relief must be ordered separately (see page 33).
www.lemo.com 21
®
®
PHl Free socket with arctic grip
Dimensions (mm)
Part number
A C
L
P S1 S2
PHS.2M.03A.XLZT••Z 18.9 17.2 105.8 5.3 16 14
PHN.3M.95B.XLMT••Z 20.9 19.2 113.3 5.3 18 16
L
P
S1
S2
øA
øC
PHW.5M.03W.XLZT••Z 34.9 33.5 155.2 7.9 32 29
Contact part number (to be ordered separately):
FFS.F7.12•.LCE23 (2M series).
PSS.F7.12•.LCE23 (3M and 5M series).
Note: •• Cable adaptor diameter defined upon request.
The bend relief must be ordered separately (see page 33).
EGl Fixed socket, nut fixing
Part number
L
S1
e
øC
P
Dimensions (mm)
C D
e
E L P S1 S2
EGS.2M.03A.XLZ
17.2 6.8 M14x1.0 4.5 28.9 5.3 12.5 17.0
EGN.3M.95B.XLM
19.2 6.8 M16x1.0 4.0 32.2 5.3 14.5 19.0
EGW.5M.03W.XLZ
33.5 9.4 M30x1.0 4.0 30.8 7.9 28.5 36.0
Panel cut-out (page 36).
S2
Contact part number (to be ordered separately):
FFS.F7.12•.LCE23 (2M series).
PSS.F7.12•.LCE23 (3M and 5M series).
D
E maxi
EDl Fixed socket with square flange
Part number
L
K
P
øC
øA
øB
N
H
ø 3.3
Dimensions (mm)
A
B
C G H K L
N P
EDS.2M.03A.XLZ
26.9 8.95 17.2 12.8 15.1 1.5 28.9 20.6 5.3
EDN.3M.95B.XLM
29.0 10.95 19.2 12.8 16.6 1.5 32.2 22.1 5.3
EDW.5M.03W.XLZ
43.7 22.90 33.5 14.5 27.0 2.0 30.8 32.5 7.9
Panel cut-out (page 36).
G
Contact part number (to be ordered separately):
FFS.F7.12•.LCE23 (2M series).
PSS.F7.12•.LCE23 (3M and 5M series).
More information on F7 fibre optic contact in LEMO F7 catalog.
22 www.lemo.com
®
®
Fibre Type
The choice of the ferrule hole diameter is dependent upon
the fibre cladding size. LEMO offers a range of ferrule hole
diameters to suit the users’ specific requirements.
l First choice alternative
125
126
Special order alternative
ø Core/Cladding
(µm)
Référence
128
9/125
50/125
62.5/125
Ferrule hole
diameter (µm)
Note
125
l
126
l
128
l
Accessories
PSS Alignment device for F7 fibre optic contact
ø 3.2
8.2
Part number
PSS.F7.290.NZZ
Note: Alignment device should be ordered
as replacement item.
Tooling
DCP Set of flat spanners for collet nuts
Part number
DCP.2M.110.TN
DCP.3M.110.TN
DCP.5M.110.TN
DCS F7 contact alignment device tool
Simple tool with two threaded end for installation/extraction
of the F7 contact alignment device.
Part number
DCS.F7.035.PN
WST Cleaning kit
Fibre optic cleaning kit of 2 cotton buds, 1 dry and
1 being soaked in Isopropyl Alcohol used for cleaning
the fibre optic contacts.
Part number
WST.KI.125.34
See also F7 tooling in the F7 fibre optic catalog.
www.lemo.com 23
®
®
USB models
FGl.LM.U2A.XPAT Straight plug, key (W) or key (R)
with arctic grip and mold stop
FMl.LM.U2A.XPAT Straight plug, key (W) or key (R)
with knurled grip and mold stop
31.6
31.6
ø 28
1.5
1.5
7.6
7.6
EGl.LM.U2A.XPL
Fixed socket, female to female,
nut fixing, key (W) or key (R)
40.5
7.9
S 22.5
ø 28
S 30
18.9
7.9
4 maxi
S 30
ø 28
M 24 x 1
S 22.5
Fixed socket, nut fixing,
key (W) or key (R)
M 24 x 1
EGl.LM.U2A.XPP
3.4
ø 22.7
ø 23.9
ø 25.8
ø 28
ø 28.5
10.6
ø 29.4
3.4
ø 22.7
ø 25.8
ø 23.9
10.6
4 maxi
9.4
9.4
31
Alignment Key
Alignment Key and Polarized Keying System
MM to 3M
Front view of a socket
Model
M series connector model part numbers are composed of three letters. The LAST LETTER indicates the keys corresponding
to a particular contact type.
For example, straight plugs with H, N, P, R, U or W keys, are fitted with male contacts; whereas with S, T, V or X keys,
plugs are fitted with female contacts. Sockets with H, N, P, R, U or W keys, are fitted with female contacts; whereas with
S, T, V or X keys, sockets are fitted with male contacts.
ll
β
N
ll
ll
γ
P
green
S
red
T
orange
Model
Colour
code
ll
β
ll
W
ll
ll
R
H
δ
γ
TM to 5M
α
ll
ll
X
V
Contact type
Plug
Socket
male
female
female
male
Contact type
Plug
Socket
male
female
3
3
green
red
orange
female
male
β
γ
165°
30°
130°
100°
155°
50°
150°
5
90°
Angles
α
95°
5
60°
135°
Nb
of
keys
blue
yellow
Angles
Nb
of
keys
blue
yellow
U
ll
Front view of a socket
Colour
code
105°
β
115°
115°
γ
35°
30°
δ
25°
20°
120° 95° 25° 45°
100°
110°
125°
120°
40°
35°
20°
25°
24 www.lemo.com
®
®
Insert configuration
Contact
type
MM
0M
1M
2M
3M
Female crimp contacts
303
3
0.5 l
l 28-30-32 1.15 0.95 3.0
304
4
0.5 l
l 28-30-32 0.95 0.90 2.0
302
303
3
0.9 l
l 20-22-24 1.70 1.40 8.0
304
4
0.7 l
l 22-24-26 1.35 0.90 7.0
305
5
0.7 l
l 22-24-26 1.25 1.00 6.5
302
2 1.3 l
l 16-18-20 1.55 1.10 19.0
303
3
1.3 l
l 16-18-20 1.05 0.95 15.5
305
5
0.9 l
l 20-22-24 1.30 1.30 9.0
307
7
0.7 l
l 22-24-26 1.45 1.20 7.0
308
8
0.7 l
l 22-24-26 1.30 1.10 5.0
304
4
1.3 l
l 16-18-20 1.55 1.35 15.5
308
8
0.9 l
l 20-22-24 1.95 1.10 10.0
310
10
0.9
l
l 20-22-24 1.80 1.20 8.0
312
12
0.7
l
l 22-24-26 1.65 1.15 7.0
316
16
0.7
l
l 22-24-26 1.20 1.00 4.5
319
19
0.7
l
l 22-24-26 1.20 1.00 4.0
312
12
0.9
l
l 20-22-24 1.40 1.25 6.0
322
22
0.7
l
l 22-24-26 1.25 1.15 4.0
330
30
0.7
l
l 22-24-26 1.10 1.00 3.5
2 0.9 l
Rated current (A)1)
Male crimp contacts
Test voltage (kV rms)1)
Contact-shell
2
AWG
3
Print (straight)2)
3
Crimp
2
ø A (mm)
1
Number of contacts
4
Reference
4
øA
1
Test voltage (kV rms)1)
Contact-contact
Multipole
l 20-22-24 1.45 1.00 10.0
www.lemo.com 25
®
®
TM
4M
LM
5M
325
25
0.9
l
l 20-22-24 1.10 1.25 5.0
332
32
0.7
l
l 22-24-26 1.25 1.20 3.5
340
40
0.7
l
l 22-24-26 1.05 1.20 3.0
340
40 0.7 l
l 22-24-26 1.20 1.35 3.5
348
48
l
l 22-24-26 1.10 1.35 3.0
355
55 0.9 l
l 20-22-24 1.65 1.95 3.5
368
68
l
l 22-24-26 1.40 1.65 2.5
366
66 0.9 l
l 20-22-24 1.60 1.70 3.0
114
114
l 22-24-26 1.37 1.34 2.0
0.7
0.7
0.7
l
Rated current (A)1)
Female crimp contacts
for sockets
AWG
Male crimp contacts
for plug
Test voltage (kV rms)1)
Contact-shell
Contact
type
Print (straight)2)
2
Crimp
3
ø A (mm)
1
3
Number of contacts
4
2
Reference
4
øA
1
Test voltage (kV rms)1)
Contact-contact
Multipole
Note: 1) Test voltage according to IEC 60512-2 test 4a. 2) For EG•, EC•, ED•, HE• socket.
26 www.lemo.com
®
®
Rated current (A)1)
AWG
Female crimp contacts
Reference
Male crimp contacts
Test voltage (kV rms)1)
Contact-contact
Contact
type
Print (straight)2)
2
Crimp
1
3
ø A (mm)
4
3
Number of contacts
4
2
øA
1
Test voltage (kV rms)1)
Contact-shell
Mixed multipole
1M
304
2 0.7
1.30 11.0
l
l 22-24-26 1.20
2 1.3
16-18-20 1.45 2.00 18.5
2M
306
3 0.7
1.40 10.5
l
l 22-24-26 1.55
3 1.3
16-18-20 2.05 1.35 18.0
308
6 0.7
1.40 7.0
l
l 22-24-26 1.95
2 1.3
16-18-20 1.75 1.60 23.0
310
8 0.7
1.35 6.0
l
l 22-24-26 1.35
2 1.3
16-18-20 1.90 1.15 23.0
316
10
0.7
0.95 2.0
l
l 22-24-26 0.90
6 1.3
16-18-20 1.35 1.15 11.0
366
44
0.7
l
l 22-24-26
22 1.3 2)
3M
5M
1.65 2.70 3.0
1.95 1.80 6.0
FGN.1M.304.XRCT2: straight plug with key (N), 1M series, multipole type with 4 mixed contacts (2 x ø 0.7 mm and 2 x ø 1.3 mm), outer shell with mold
stop in anthracite nickel-plated aluminium alloy, PEEK insulator, male crimp contacts.
FGN.2M.308.XRC6: straight plug with key (N), 2M series, multipole type with 8 mixed contacts (6 x ø 0.7 mm and 2 x ø 1.3 mm), outer shell in anthracite
nickel-plated aluminium alloy, PEEK insulator, male crimp contacts.
Multi fibre and Mixed fibre optic + LV
Low Voltage contact
3M
95B
4
4
0.9
03W
–
–
–
Rated current (A)
–
Test voltage (kV rms)
Contact-contact
–
Crimp
2
ø A (mm)
Fibre optic No
03A
Female contacts
Contact No
Reference
2M
Male contacts
Test voltage (kV rms)1)
Contact-shell
Crimp
contact
1)
Contact
type
–
l 1.00 0.80 8.0
5M
21 – – – – – –
Note: 1) Test voltage according to IEC 60512-2 test 4a. 2) For EG•, EC•, ED•, HE• socket. 2) Reduced crimp barrel.
www.lemo.com 27
®
®
LM
U2A
Rated current (A)1)
l
Test voltage (kV rms)1)
Contact-shell
4
Test voltage (kV rms)1)
Contact-contact
Solder contact
Female
front view
Number of contacts
Male
front view
Reference
USB
1.20 0.95 n.a.
Mixed High-Speed coax
2M
Test voltage (kV rms)
Contact-shell
Test voltage (kV rms)
Contact-contact
Rated current (A)
AWG
Crimp contact
2 0.9
1
l 22-24-26
0.75 1.05 10
75 C RG179
2 1.3
16-18-20
7
ø A (mm)
Female crimp contacts
Cable
Male crimp contacts
Type
Number of contacts
X04
øA
Reference
Coax
Impedance (Ω)
Coax
Number of contacts
Coax
Part number: FMN.2M.X04.XRC and EGN.2M.X04.XRM.
Note: Coaxial contacts must be ordered separately:
– 75 Ohms male contact FFS.2B.275.ZTCE31 (3GHz) and female contact PSS.2B.275.ZTME31(3GHz) – recommended cable Belden 179DT to reach
6GHz. For more information, please consult: https://www.lemo.com/catalog/ROW/UK_English/3GHz_75_ohms_connector_for_4k_8k_HDTV.pdf
– 50 Ohms male contact FFS.2B.250.ZTCE30 and female contact PSS.2B.250.ZTME30
(cable group 1, or other… see more details in coax-triax-mixed catalogue).
Contacts
Contact type
Reference
C
Contact type
Reference
Male crimp with standard crimp barrel (fig. 1)
M
Female crimp with standard crimp barrel (fig. 1)
B
Male crimp with reduced crimp barrel (fig. 2)
P
Female crimp with reduced crimp barrel (fig. 2)
D
Male straight print
N
Female straight print
Crimp contacts for plugs, free or fixed sockets
Fig. 1
øA
øC
øA
øC
Fig. 2
øA
øC
øA
øC
28 www.lemo.com
®
®
Dimension of crimp barrels
Contact
0M to 3M
MM
ø A
ø C
Form
(mm) (mm) per fig.
TM to 5M
Conductor
AWG
Section (mm2)
Female min. max. min. max.
Ref. contact type
Male
Part number
For male contacts
For female contacts
0.5 0.45 1
C
M
32
28 0.035 0.090
FGG.00.554.ZZC EGG.00.654.ZZM
1.3 1.60
1
C
M
20
16 0.616 1.433
FGN.0M.565.ZZC EGN.0M.665.ZZM
0.9 1.10
1
C
M
24
20 0.204 0.616
FGN.0M.560.ZZC
EGN.0M.660.ZZM
0.9 0.87
2
B
P
26
22 0.128 0.382
FGN.0M.561.ZZC
EGN.0M.661.ZZM
0.7 0.87
1
C
M
26
22 0.128 0.382
FGN.0M.555.ZZC
EGN.0M.655.ZZM
0.7 0.44
2
B
P
32
28 0.032 0.092
FGN.0M.556.ZZC
EGN.0M.656.ZZM
1.3 1.60
1
C
M
20
16 0.616 1.433
FGN.0M.565.ZZC
EGN.0M.665.ZZM
0.9 1.10
1
C
M
24
20 0.204 0.616
FGN.0M.560.ZZC
EGW.TM.660.ZZM
0.9 0.87
2
B
P
26
22 0.128 0.382
FGN.0M.561.ZZC
EGW.TM.661.ZZM
0.7 0.87
1
C
M
26
22 0.128 0.382
FGN.0M.555.ZZC
EGW.TM.655.ZZM
0.7 0.44
2
B
P
32
28 0.032 0.092
FGN.0M.556.ZZC
EGW.TM.656.ZZM
Note: In order to satisfy crimp pull-test requirements to the IEC 60352-2 standard, the use of single strand cables should be avoided.
Accessories
BMF Blanking caps for plugs
Part number
L
N
øA
P
øC
X
sliding loop
Note: 1) the tolerance on this dimension is ± 5 mm.
Dimensions (mm)
A C
L
N1) P X
BMF.MM.100.•AV
11.1 10.7 17.8 60.0 3.7 4.0
BMF.0M.100.•AV
13.1 12.7 24.6 85.0 5.3 6.0
BMF.1M.100.•AV
14.6 14.2 24.6 85.0 5.3 6.0
BMF.2M.100.•AV
17.6 17.2 24.6 85.0 5.3 6.0
BMF.3M.100.•AV
19.6 19.2 24.6 120.0 5.3 6.0
BMF.TM.100.•AV
22.5 22.0 31.1 120.0 7.9 10.0
BMF.4M.100.•AV
25.0 24.5 31.1 120.0 7.9 10.0
BMF.LM.100.•AV
28.5 28.0 31.1 150.0 7.9 10.0
BMF.5M.100.•AV
34.0 33.5 31.1 150.0 7.9 10.0
BGF Blanking caps for plugs
Part number
L
N
sliding loop
Note: 1) the tolerance on this dimension is ± 5 mm.
øA
P
øC
X
Dimensions (mm)
A C
L
N1) P X
BGF.MM.100.•AV
12.0 10.7 17.8 60.0 3.7
4.0
BGF.0M.100.•AV
14.4 12.7 24.6 85.0 5.3
6.0
BGF.1M.100.•AV
15.9 14.2 24.6 85.0 5.3
6.0
BGF.2M.100.•AV
18.9 17.2 24.6 85.0 5.3
6.0
BGF.3M.100.•AV
20.9 19.2 24.6 120.0 5.3
6.0
BGF.TM.100.•AV
23.4 22.0 31.1 120.0 7.9 10.0
BGF.4M.100.•AV
25.9 24.5 31.1 120.0 7.9 10.0
BGF.LM.100.•AV
29.4 28.0 31.1 150.0 7.9 10.0
BGF.5M.100.•AV
34.9 33.5 31.1 150.0 7.9 10.0
www.lemo.com 29
®
®
BME Blanking caps for fixed sockets
Part number
L
N
øA
P
øC
X
ø 3.5
Dimensions (mm)
A
C L
N1)
P X
BME.MM.200.•AZ
11.1 10.7 19.5 60.0 5.5
4.0
BME.0M.200.•AZ
13.1 12.7 23.4 85.0 3.9
6.0
BME.1M.200.•AZ
14.6 14.2 23.4 85.0 3.9
6.0
BME.2M.200.•AZ
17.6 17.2 23.4 85.0 3.9
6.0
BME.3M.200.•AZ
19.6 19.2 23.4 120.0 3.9
6.0
BME.TM.200.•AZ
22.5 22.0 31.0 120.0 3.4 10.0
BME.4M.200.•AZ
25.0 24.5 31.0 120.0 3.4 10.0
BME.LM.200.•AZ
28.5 28.0 31.0 150.0 3.4 10.0
BME.5M.200.•AZ
34.0 33.5 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
BGE Blanking caps for fixed sockets
Part number
L
N
øA
P
øC
X
ø 3.5
Dimensions (mm)
A
C L
N1)
P X
BGE.MM.200.•AZ
12.0 10.7 19.5 60.0 5.5 4.0
BGE.0M.200.•AZ
14.4 12.7 23.4 85.0 3.9 6.0
BGE.1M.200.•AZ
15.9 14.2 23.4 85.0 3.9 6.0
BGE.2M.200.•AZ
18.9 17.2 23.4 85.0 3.9 6.0
BGE.3M.200.•AZ
20.9 19.2 23.4 120.0 3.9 6.0
BGE.TM.200.•AZ
23.4 22.0 31.0 120.0 3.4 10.0
BGE.4M.200.•AZ
25.9 24.5 31.0 120.0 3.4 10.0
BGE.LM.200.•AZ
29.4 28.0 31.0 150.0 3.4 10.0
BGE.5M.200.•AZ
34.9 33.5 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
BMF Blanking caps for free sockets
Part number
L
N
sliding loop
øA
P
øC
X
Dimensions (mm)
A
C L
N1)
P X
BMF.MM.200.•AZ
11.1 10.7 19.5 60.0 5.5
4.0
BMF.0M.200.•AZ
13.1 12.7 23.4 85.0 3.9
6.0
BMF.1M.200.•AZ
14.6 14.2 23.4 85.0 3.9
6.0
BMF.2M.200.•AZ
17.6 17.2 23.4 85.0 3.9
6.0
BMF.3M.200.•AZ
19.6 19.2 23.4 120.0 3.9
6.0
BMF.TM.200.•AZ
22.5 22.0 31.0 120.0 3.4 10.0
BMF.4M.200.•AZ
25.0 24.5 31.0 120.0 3.4 10.0
BMF.LM.200.•AZ
28.5 28.0 31.0 150.0 3.4 10.0
BMF.5M.200.•AZ
34.0 33.5 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
30 www.lemo.com
®
®
BGF Blanking caps for free sockets
Part number
L
N
øA
P
øC
X
sliding loop
Dimensions (mm)
A C
L
N1) P X
BGF.MM.200.•AZ
12.0 10.7 19.5 60.0 5.5 4.0
BGF.0M.200.•AZ
14.4 12.7 23.4 85.0 3.9 6.0
BGF.1M.200.•AZ
15.9 14.2 23.4 85.0 3.9 6.0
BGF.2M.200.•AZ
18.9 17.2 23.4 85.0 3.9 6.0
BGF.3M.200.•AZ
20.9 19.2 23.4 120.0 3.9 6.0
BGF.TM.200.•AZ
23.4 22.0 31.0 120.0 3.4 10.0
BGF.4M.200.•AZ
25.9 24.5 31.0 120.0 3.4 10.0
BGF.LM.200.•AZ
29.4 28.0 31.0 150.0 3.4 10.0
BGF.5M.200.•AZ
34.9 33.5 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
BMK Blanking caps, large washer for ECl/PEl/HEl fixed sockets
Part number
L
øE
øB
N
øA
P
øC
X
Dimensions (mm)
A B C
E L
N1) P X
BMK.MM.200.•AZ
11.1 10.1 10.7 14.0 19.5 60.0 5.5 4.0
BMK.0M.200.•AZ
13.1 13.1 12.7 17.0 23.4 85.0 3.9 6.0
BMK.1M.200.•AZ
14.6 14.1 14.2 18.0 23.4 85.0 3.9 6.0
BMK.2M.200.•AZ
17.6 17.2 17.2 21.0 23.4 85.0 3.9 6.0
BMK.3M.200.•AZ
19.6 19.2 19.2 23.0 23.4 120.0 3.9 6.0
BMK.TM.200.•AZ
22.5 22.2 22.0 27.0 31.0 120.0 3.4 10.0
BMK.4M.200.•AZ
25.0 24.2 24.5 29.0 31.0 120.0 3.4 10.0
BMK.LM.200.•AZ
28.5 28.2 28.0 33.0 31.0 150.0 3.4 10.0
BMK.5M.200.•AZ
34.0 33.2 33.5 38.0 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
BGK Blanking caps, large washer for ECl/PEl/HEl fixed sockets
Part number
L
øE
øB
N
øA
P
øC
X
Dimensions (mm)
A B C
E L
N1) P X
BGK.MM.200.•AZ
12.0 10.1 10.7 14.0 19.5 60.0 5.5 4.0
BGK.0M.200.•AZ
14.4 13.1 12.7 17.0 23.4 85.0 3.9 6.0
BGK.1M.200.•AZ
15.9 14.1 14.2 18.0 23.4 85.0 3.9 6.0
BGK.2M.200.•AZ
18.9 17.2 17.2 21.0 23.4 85.0 3.9 6.0
BGK.3M.200.•AZ
20.9 19.2 19.2 23.0 23.4 120.0 3.9 6.0
BGK.TM.200.•AZ
23.4 22.2 22.0 27.0 31.0 120.0 3.4 10.0
BGK.4M.200.•AZ
25.9 24.2 24.5 29.0 31.0 120.0 3.4 10.0
BGK.LM.200.•AZ
29.4 28.2 28.0 33.0 31.0 150.0 3.4 10.0
BGK.5M.200.•AZ
34.9 33.2 33.5 38.0 31.0 150.0 3.4 10.0
Note: 1) the tolerance on this dimension is ± 5 mm.
These caps are suitable for use with any alignment key configuration. The position «•» of the part number indicates the housing material. See page 5.
www.lemo.com 31
®
®
GEA Hexagonal nuts for EC l model
Part number
A
L
øB
e
Series
Dimensions (mm)
A B
e
L
GEA.MM.241.RL
MM 12 13.5 M10x0.50 2.5
GEA.0M.241.RL
0M
16 18.2 M13x0.75 2.5
GEA.0E.240.RL
1M
17 19.2 M14x1.00 2.5
GEA.2M.241.RL
2M
19 21.5 M17x1.00 3.0
GEA.3M.241.RL
3M
25 22.0 M19x1.00 3.0
GEA.TM.241.RL
TM
25 28.0 M22x1.00 3.0
GEA.4M.241.RL
4M
30 34.0 M24x1.00 3.0
GEA.LM.241.RL
LM
32 36.0 M28x1.00 3.0
GEA.5M.241.RL
5M
37 41.0 M33x1.00 3.0
l Material: Nickel-plated aluminium alloy
GEA Hexagonal nuts for EG l model
Part number
A
L
øB
e
Series
Dimensions (mm)
A B
e
L
GEA.00.240.RL
MM
9 10.2 M7x0.50 2.0
GEA.0S.240.RL
0M 11 12.4 M9x0.60 2.0
GEA.1M.240.RL
1M
13 14.5 M11x1.00 2.5
GEA.0E.240.RL
2M
17 19.2 M14x1.00 2.5
GEA.1E.240.RL
3M
19 21.5 M16x1.00 3.0
GEA.3S.240.RL
TM
22 25.0 M18x1.00 3.0
GEA.4M.240.RL
4M
25 28.0 M21x1.00 4.0
GEA.3E.240.RL
LM
30 34.0 M24x1.00 5.0
GEA.5M.240.RL
5M
36 40.5 M30x1.00 5.0
l Material: Nickel-plated aluminium alloy
GEC Conical nut for models HE l, EC l, PE l
Part number
A
L
øB
e
Series
Dimensions (mm)
A B
e
L
GEC.MM.240.RN
MM 11 14 M10x0.50 2.5
GEC.0M.240.RN
0M
14 17 M13x0.75 3.2
GEC.0E.240.RN
1M
16 18 M14x1.00 3.0
GEC.2M.240.RN
2M
18 21 M17x1.00 3.2
GEC.3M.240.RN
3M
20 23 M19x1.00 3.2
GEC.TM.240.RN
TM
23 27 M22x1.00 5.0
GEC.4M.240.RN
4M
25 29 M24x1.00 5.0
GEC.LM.240.RN
LM
29 33 M28x1.00 5.0
GEC.5M.240.RN
5M
34 38 M33x1.00 5.0
l Material: Nickel-plated aluminium alloy (anthracite colour)
32 www.lemo.com
®
®
FGN M series constant force spring clips
A range of constant force spring clips are available for use
with M Series connectors, which permits repair of cable
terminations without having to discard any of the existing
braid shield system. When used in conjunction with LEMO
heatshrink boots, a fully sealed termination is achieved.
An additional benefit of the constant force spring is that it
provides excellent resistance to shock or vibration due to
its self-tensioning properties.
Series
Braid grounding
location diameter (mm)
FGN.0M.185.AZ
0M / 1M / 2M
8.0 / 9.7 / 13.0
FGN.3M.185.AZ
3M / TM
15.0 / 16.7
FGN.5M.185.AZ
4M / LM / 5M
19.5 / 22.7 / 28.5
Part number
Note: Force spring clips can be assembled by hand. Do not require
additional tools.
Heatshrink boot
Straight boot
Elbow boot
BEFORE HEATING
BEFORE HEATING
AFTER HEATING
AFTER HEATING
Series
Straight
Part number Raychem
®
Elbow 90°
Part number LEMO
Part number Raychem
®
Note
Supplier
Part number LEMO
cable
ø min.
(mm)
MM
–
GMA.10.290.DN – GHA.10.210.DN
2) 2.2
0M-2M
202 A 111-25/86
GMA.16.254.DN
222 A 111-25/86
GHA.18.170.DN
1) 3.8
Raychem
2M-4M
202 A 121-25/86
GMA.24.380.DN
222 A 121-25/86
GHA.25.200.DN
1) 5.3
4M-5M
202 A 142-25/86
GMA.31.670.DN
222 A 142-25/86
GHA.32.360.DN
1) 7.4
LEMO
®
Note:
1)
modified elastomer resistant to fluids with hot melt sealant.
2)
elastomer resistant to fluids. We recommend a thermosetting sealant with this type of boot.
www.lemo.com 33
®
®
GMA Bend relief (for M series fibre optic model only)
A bend relief made from thermoplastic polyurethane elastomer can be fitted over LEMO plugs and sockets that are
supplied with nut for fitting such bend relief.
An other bend relief has been designed for connectors
used in applications at high temperature or requiring vapour
sterilization. These bend reliefs are different from previous
ones as for their material, a silicone elastomer which is
noted for its retention of flexibility over a wide temperature
range.
Main characteristics
l Material: TPU (Thermoplastic Polyurethane)
l Temperature range in dry atmosphere: -40°C
Part number
(Polyurethane)
Series
Part number
(Silicone)
GMA.2B.0••.DG
2M GMA.2B.0••.RG
GMA.3B.0••.DG
3M GMA.3B.0••.RG
GMA.4B.0••.DG
5M GMA.4B.0••.RG
l Material: Silicone elastomer VMQ
l Temperature range in dry atmosphere: -60°C
l Temperature range in water steam: +140°C
Note:
Please see unipole/multipole catalogue for bend relief dimensions.
The last letter «G» of the part number indicates the grey colour of the
bend relief. For ordering a bend relief with another colour, see table on
the right and replace the letter «G» by the letter of the required colour.
Colour
Ref.
Ref.
Colour
Ref.
+80°C
+200°C
Colour
A blue
J yellow
R red
B white
M brown
S orange
G grey
N black
V green
Tooling
DCE Positioners for crimp contacts
Contact
Male
For male contacts
Contact ø
Size
1.3
0M-5M
DCE.91.130.5MVC
0.9
0M-5M
DCE.91.090.5MVC
0.7
0M-5M
DCE.91.070.5MVC
0.5
MM
Contact
Female
DCE.91.050.0VC
Positioners part number
For female contacts
Contact ø
Size
1.3
0M-5M
DCE.91.130.5MVM
0M-3M
DCE.91.090.3MVM
TM-5M
DCE.91.09T.5MVM
0M-3M
DCE.91.070.3MVM
TM-5M
DCE.91.07T.5MVM
0.9
0.7
These positioners are suitable for use with both manual and pneumatic
crimping tools according to the MIL-C-22520/7-01 standard.
Positioners part number
0.5
MM
DCE.91.050.0VM
34 www.lemo.com
®
®
DCF Extractors for crimp contacts
Contact
ø
Part number
1.3
DCF.93.131.4LT
0.9
DCF.93.090.4LT
0.7
DCF.93.070.4LT
0.5
DCF.91.050.2LT
Note: this model is used for male
and female contacts.
DCV Female contact insertion tool
Contact
ø
Part number
1.3
DCV.13.05M.LA
0.9
DCV.09.05M.LA
0.7
DCV.07.05M.LA
0.5
DCV.05.05M.LA
DCM Insert conical nut tightening tools
Insert conical nut
Series
Part number
Torque
(Nm)
DCM.65.110.AZ
MM
1.0
ECl , HEl , PEl
DCM.65.140.AZ
0M
1.0
ECl , HEl , PEl
1M
1.5
ECl , HEl , PEl
DCM.65.180.AZ
2M
2.0
ECl , HEl , PEl
DCM.65.200.AZ
3M
2.5
ECl , HEl , PEl
DCM.65.230.AZ
TM
4.0
ECl , HEl , PEl
4M
5.0
ECl , HEl , PEl
LM
6.5
ECl , HEl , PEl
5M
8.0
ECl , HEl , PEl
Insert conical nut
DCM.65.160.AZ
Torque wrench
DCM.65.250.AZ
DCM.65.290.AZ
Torque wrench
DCM.65.000.4PA
DCM.65.040.8PA
DCM.65.340.AZ
For models
DPC Manual crimping tool
Part number
DPC.91.701.V
According to specification MIL-C-22520/7-01.
For LEMO contacts ø 0.5-0.7-0.9-1.3 mm
Banding tool and Tie-wrap
Part number
GLEN-AIR TIE-DEX® AXON®
®
Banding tool
Tie
wrap 1)
600-061 A30199 ACDBS100
600-057
A31189
AXCL 02
Note: 1) need to be ordered in addition of tool.
The banding tool is to be used with screened cables to ensure a good
ground contact.
www.lemo.com 35
®
®
Panel Cut-Out
Cut-outs
Mounting nut torque (on panel)
EGl -ECl -HEl -PEl
Series
ø A+ 0.1
0
L mini
B + 0.1
0
EGl
ø A
B
L
ECl /HEl /PEl
ø A
B
L
Series
Torque (Nm)
MM
7.1 6.4 12.5 10.1 9.1 16.0
MM
1.0
0M
9.1 8.3 14.5 13.1 11.6 20.0
0M
1.0
1M
11.1 9.6 17.2 14.1 12.6 21.0
1M
1.5
2M
14.1 12.6 20.5 17.1 15.6 24.0
2M
2.0
3M
16.1 14.6 23.0 19.1 17.6 27.0
3M
2.5
TM
18.1 16.6 27.0 22.1 20.6 31.5
TM
4.0
4M
21.1 19.6 30.0 24.1 22.6 35.5
4M
5.0
LM
24.1 22.6 32.0 28.1 26.6 36.5
LM
6.5
5M
30.1 28.6 41.0 33.1 31.6 41.0
5M
8.0
Cut-outs
EDl -FAl -FWl -FXl -PVl -PFl
+ 0.1
0
H
øA
+ 0.1
0
+ 0.1
0
H
Series
B
EDl
ø A
B
H
FAl /FWl /FXl
ø A
B
H
ø A
PVl
B
H
ø A
PFl
B
H
MM
5.0 M2.5 9.5 9.6 M2.5 12.0 11.8 M2.5 12.0 7.9 M2.5 9.5
0M
5.1 M2.5 11.0 12.3 M2.5 15.1 15.0 M2.5 15.1 10.8 M2.5 11.0
1M
6.1 M3.0 12.9 13.8 M3.0 18.3 17.0 M3.0 18.3 12.5 M3.0 12.9
2M
9.1 M3.0 15.1 16.8 M3.0 20.6 20.0 M3.0 20.6 15.6 M3.0 15.1
3M
11.1 M3.0 16.6 18.8 M3.0 20.6 22.0 M3.0 23.0 18.1 M3.0 16.6
TM
12.5 M3.0 18.3 21.6 M3.0 23.0 25.0 M3.0 24.6 19.9 M3.0 18.3
4M
14.1 M3.0 20.6 24.1 M3.0 24.6 28.0 M3.0 27.0 22.7 M3.0 20.6
LM
18.1 M3.0 23.0 27.6 M3.0 27.0 31.0 M3.0 29.4 25.9 M3.0 23.0
5M
23.2 M3.0 27.0 33.1 M3.0 29.4 38.0 M3.0 34.9 33.1 M3.0 29.4
Cut-outs
PBl
H
øA
+ 0.1
0
+ 0.1
0
Series
B
PBl
ø A
B
H
Series
PBl
ø A
B
H
MM
11.8 M2.5 16.2
TM
25.0 M3.0 32.5
0M
15.0 M3.0 21.4
4M
28.0 M3.0 35.0
1M
17.0 M3.0 23.4
LM
31.0 M3.0 38.0
2M
20.0 M3.0 26.4
5M
38.0 M3.0 45.0
3M
22.0 M3.0 29.0
36 www.lemo.com
®
®
PCB drilling pattern
Fixed socket with straight print contact
+0.1
0
45°
4xø1
+0.1
0
0°
45°
4xø1
1M.302
+0.1
0
4xø1
°
72
4xø1
+0.1
0
+0.1
0
7.62
0M.305
+0.1
0
+0.1
0
4xø1
+0.1
0
5.08
ø 2.8
5.08
+0.1
0
2 x ø 1.1
1M.307
°
72
+0.1
0
1M.308
+0.1
0
4xø1
4xø1
30°
+0.1
0
°2
51
4xø1
6'
+0.1
0
+0.1
0
2 x ø 1.1
+0.1
0
10.16
ø 8.2
+0.1
0
6 x ø 1.1
7.62
ø 3.8
ø 6.2
8.89
2.4
60
°
16 x ø 0.8
+0.1
0
3.9
1.8
0
1.8
3.9
+ 0.1
0
+0.1
0
4xø1
+0.1
0
+0.1
0
22°30'
12°52'
45
4xø1
3
0.9
0.9
3
16°22’
4xø1
+0.1
0
43
'
+0.1
0
’
44
3M.322
10.16
°
45
12 x ø 0.8
°
72
+0.1
0
3
0.9
0.9
3
10 x ø 0.8
2 x ø 1.1
°
32
ø 6.5
12 x ø 0.8
4.45
2.1
0
2.1
4.45
4xø1
+0.1
0
ø 3.4
+0.1
0
22°30'
90°
15°
ø 6.7
°
+0.1
0
8.89
30
45°
ø 3.5
6
4xø1
+0.1
0
3M.316.•R 1)
3M.312
0°
22°30' 4 x ø 1
90°
8.89
ø 6.2
8 x ø 0.8
2M.319
19 x ø 0.8
°
45
2.4
50°
+0.1
0
+0.1
0
2M.316
45°
50°
8.89
ø 6.2
45
°
10 x ø 0.8
2M.312
5.1
ø 2.15
22°30' 4 x ø 1
+0.1
0
6 x ø 0.8
22 x ø 0.8
10.16
+0.1
0
2M.310.•R 1)
2M.310
+0.1
0
ø 8.8
4xø1
8 x ø 0.8
ø 6.6
+0.1
0
+0.1
0
ø 3.1
3 x ø 0.8
4xø1
ø5
+0.1
0
°
°
5.1
8.89
3 x ø 1.1
45
+0.1
0
°
ø 6.2
+0.1
0
4xø1
60
+0.1
0
ø 6.4
0°
12
8.89
4 x ø 1.1
4xø1
+0.1
0
8.89
°
ø 4.8
°
60
8.89
45
+0.1
0
8 x ø 0.8
2M.308.•R 1)
2M.308
ø 5.1
4xø1
+0.1
0
25°
2M.306.•R 1)
2M.304
7 x ø 0.8
7.62
+0.1
0
ø 3.7
60
5 x ø 0.8
ø 2.8
ø 2.8
+0.1
0
7.62
2 x ø 0.8
ø 3.4
+0.1
0
7.62
2 x ø 1.1
ø 3.8
ø 3.1
+0.1
0
7.62
12
3 x ø 1.1
5 x ø 0.8
1M.305
+0.1
0
0°
4xø1
+0.1
0
°
1M.304.•R 1)
1M.303
4 x ø 0.8
ø 2.5
+0.1
0
5.08
3 x ø 0.8
ø 2.3
90°
12
+0.1
0
4xø1
5.08
2 x ø 0.8
ø 2.2
4xø1
0M.304
4 x ø 0.6
ø 2.8
0M.303
+0.1
0
5.08
+0.1
0
3 x ø 0.6
0M.302
ø 1.35
90°
12
0°
4xø1
MM.304
4xø1
5.08
MM.303
For EGl , ECl and EDl models
+0.1
0
ø 1.6
For HEl models
+0.1
0
Note: 1) Special Mixed Multipole configurations, refer to page 27 for details.
www.lemo.com 37
®
TM.325
4xø1
10°35’18’’
5’’
’3
4xø1
+0.1
0
16
°
24
°
45
13.97
120
°
'
°26
51
1'
°5
13
13°51’
51°25’30’’
4xø1
+0.1
0
4xø1
6°55'30''
68 x ø 0.8
ø 10.08
66 x ø 0.8
5M.114
10°
16°21’49’’
0’’
4’5
°2
12
’’
’49
21
9°
°
15°
4xø1
+0.1
0
5°
6°12’25’’
8°10’55’’
4xø1
+0.1
0
°
45
45°
22 x ø 1.1
+0.1
0
22°30'
114 x ø 0.8
24°
ø 20.7
20.32
ø 17.1
ø 9.9
ø 6.3
ø 13.5
ø 2.7
20.32
ø 20
ø 14
ø 6.6
+0.1
0
ø 10.4
ø3
44 x ø 0.8
12
0°
30
°
16
°
18
+0.1
0
18°57'
+0.1
0
5M.366.•R 1)
+0.1
0
16.51
ø15.5
ø8
ø11.75
ø 4.25
27°
41
’30
16.51
ø15.3
ø 6.9
ø11.1
ø 2.8
36°
+0.1
0
12.7
+0.1
0
27°41'30''
55 x ø 0.8
+0.1
0
5M.366
9°
°
18
°
’’
18°
’
4xø1
22°30'
48 x ø 0.8
6°40’
°20
13
12°
13.97
7°30’
°
15
ø 11.64
ø 7.94
+0.1
0
LM.368
8°10'55''
''
'49
21
20.32
40 x ø 0.8
+0.1
0
ø 5.6
+0.1
0
LM.355
21
°1
0
9°
27°4
1'3
2
18°
12.7
ø 6.8
40 x ø 0.8
4xø1
5
''
ø 10.2
27°
41
'3
18°
9°
ø 3.4
6
2''
6'
1°2
+0.1
0
ø 4.24
4xø1
0°
4M.348
ø 11.9
4M.340
+0.1
0
ø 8.5
TM.340
32 x ø 0.8
+0.1
0
ø 5.2
25 x ø 0.8
2.6
ø19.84
12.7
ø 9.8
ø 5.8
10.16
ø9
2.2
4.45
ø 5.7
22°
71°51'52''
3.23
+0.1
0
30 x ø 0.8
+0.1
0
'
24°
30
'
4xø1
11°15'
ø 6.6
40°
ø 10.2
+0.1
0
ø14.96
4xø1
11°15'
TM.332
+0.1
0
22
°3
0
32°43'38
''
36°
ø3
3M.330
ø 1.9
®
+ 0.1
0
40°
Note: 1) Special Mixed Multipole configurations, refer to page 27 for details.
38 www.lemo.com
®
®
Assembly instructions for plugs and sockets
2
1
2
1
FG●
PH●
PB●
1. Cable preparation
L ± 0.5
1
T ± 0.2
First place the heatshrink boot
➀ over the cable. Strip the cable
according to dimensions of the
table, then widen the shield.
S ± 0.5
Series
L S T
MM
14 9 3.0
0M to 5M 20 15 3.5
Note: dimensions are in mm.
2. Cable termination
2
Crimp
2
Crimp
2.1 With shielded cables, widen and pull the shield all the way to the back.
Fix the appropriate positioner onto the crimping tool and set the selector to the number corresponding to the AWG of the conductor used as
indicated on the positioner label.
Fit the conductor into the contact ➁; make sure it is visible through the
contact’s inspection hole.
Slide the conductor-contact assembly into the open crimping tool;
make sure that the contact is pushed fully into the positioner. Close the
tool. Remove from crimping tool and check that conductor is secure in
contact and shows in inspection hole.
2.2 Arrange the conductor-contact assemblies according to the markings,
into the rear cable seal.
Push them deeply into the insulator, using tweezers if necessary;
check that all the contacts are correctly located in the insulator: 1) by
verifying the alignment of the contacts at the front of the insulator and
2) by gently pulling on each conductor.
Verification should also be made using the appropriate retention
testing tool.
2.3 Bring the shield around the rear of connector.
Secure it with a band-it tie-wrap (not furnished) to fix the shield in place.
Cut off the possible shield surplus.
Steel tie-wrap band (~3 mm wide)
Steel tie-wrap band (~3 mm wide)
Heat
Heat
2.4 Put the heatshrink boot in place and heat gently until it retracts.
www.lemo.com 39
®
®
Assembly instructions for plugs and sockets (with optional mold stop)
1
FG●
PH●
1
PB●
1. Cable preparation
L ± 0.5
T ± 0.2
Strip the cable according to dimensions of the table, then widen the
shield.
S ± 0.5
Series
L S T
MM
14 9 3.0
0M to 5M 20 15 3.5
Note: dimensions are in mm.
2. Cable termination
1
Crimp
1
Crimp
2.1 With shielded cables, widen and pull the shield all the way to the back.
Fix the appropriate positioner onto the crimping tool and set the selector to the number corresponding to the AWG of the conductor used as
indicated on the positioner label.
Fit the conductor into the contact ➀; make sure it is visible through the
contact’s inspection hole.
Slide the conductor-contact assembly into the open crimping tool;
make sure that the contact is pushed fully into the positioner. Close the
tool. Remove from crimping tool and check that conductor is secure in
contact and shows in inspection hole.
2.2 Arrange the conductor-contact assemblies according to the markings,
into the rear cable seal.
Push them deeply into the insulator, using tweezers if necessary;
check that all the contacts are correctly located in the insulator:
1) by verifying the alignment of the contacts at the front of the insulator and 2) by gently pulling on each conductor.
Verification should also be made using the appropriate retention testing tool.
Steel tie-wrap band (~3 mm wide)
2.3 Bring the shield around the rear of connector until the mold stop.
Secure it with a band-it tie-wrap (not furnished) to fix the shield in place.
Cut off the possible shield surplus.
Steel tie-wrap band (~3 mm wide)
Overmolding
2.4 Custom overmold cable assembly.
Overmolding
40 www.lemo.com
®
®
Product safety notice
PLEASE READ AND FOLLOW ALL INSTUCTIONS CAREFULLY AND CONSULT ALL RELEVENT NATIONAL AND
INTERNATIONAL SAFETY REGULATIONS FOR YOUR APPLICATION.
IMPROPER HANDLING, CABLE ASSEMBLY, OR WRONG USE OF CONNECTORS CAN RESULT IN HAZARDOUS
SITUATIONS.
1. SHOCK AND FIRE HAZARD
Incorrect wiring, the use of damaged components, presence of foreign objects (such as metal debris), and / or residue
(such as cleaning fluids), can result in short circuits, overheating, and / or risk of electric shock.
Mated components should never be disconnected while live as this may result in an exposed electric arc and local
overheating, resulting in possible damage to components.
2. HANDLING
Connectors and their components should be visually inspected for damage prior to installation and assembly. Suspect
components should be rejected or returned to the factory for verification.
Connector assembly and installation should only be carried out by properly trained personnel. Proper tools must be used
during installation and / or assembly in order to obtain safe and reliable performance.
3. USE
Connectors with exposed contacts should never be live (or on the current supply side of a circuit). Under general
conditions voltages above 30 VAC and 42 VDC are considered hazardous and proper measures should be taken to
eliminate all risk of transmission of such voltages to any exposed metal part of the connector.
4. TEST AND OPERATING VOLTAGES
The maximum admissible operating voltage depends upon the national or international standards in force for the
application in question. Air and creepage distances impact the operating voltage; reference values are indicated in the
catalog however these may be influenced by PC board design and / or wiring harnesses.
The test voltage indicated in the catalog is 75% of the mean breakdown voltage; the test is applied at 500 V/s and the
test duration is 1 minute.
5. CE MARKING
CE marking
means that the appliance or equipment bearing it complies with the protection requirements of one or
several European safety directives.
CE marking
applies to complete products or equipment, but not to electromechanical components, such as
connectors.
6. PRODUCT IMPROVEMENTS
The LEMO Group reserves the right to modify and improve to our products or specifications without providing prior
notification.
7.
WARNING (Prop 65 State of California)
Proposition 65 requires businesses to provide warnings to Californians about significant exposures to chemicals that
cause cancer, birth defects or other reproductive harm. LEMO products are exempt from proposition 65 warnings because
they are manufactured, marketed, and sold solely for commercial and industrial use. For further information, please visit
https://www.lemo.com/quality/LEMO-Prop-65-compliance-declaration.pdf.
Disclaimers
LEMO works constantly to improve the quality of its products; the information and illustrations figuring in this document may
therefore vary and are not binding. In any case, LEMO makes no specific warranty of merchantability, fitness for a particular purpose, third party components as such or included in assembly, non-infringement, title, accuracy, completeness, or
security. The user is fully responsible for his products and applications using LEMO component.
In no event shall LEMO, its affiliates, officers, agents or employees be liable for any incidental, indirect, special or consequential damages in connection with the products or services provided by LEMO, including (without limitation) loss of profits
or revenues, interruption of business, loss of use of the products or any associated equipment, materials, components or
products, damages to associated equipment or in combination with other components, materials.
Reproduction of significant portions of LEMO information in LEMO data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. LEMO is
not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.
No reproduction or use without express permission of editorial or pictorial content, in any manner.
LEMO SA reserves the right to modify and improve specifications, at all times, without any notification.
www.lemo.com 41
LEMO HEADQUARTERS
SWITZERLAND
LEMO SA
Chemin des Champs-Courbes 28 - P.O. Box 194 - CH-1024 Ecublens
Tel. +41 21 695 16 00 - e-mail: info@lemo.com
SUBSIDIARIES
AUSTRIA
LEMO Elektronik GesmbH
Lemböckgasse 49/E6-3
1230 Wien
Tel: +43 1 914 23 20 0
Fax:+43 1 914 23 20 11
salesAT@lemo.com
BRAZIL
LEMO Latin America Ltda
Av. Dr. Adhemar de Barros,
566 – Sala 1407, Vila Adyana
CEP: 12245-011
São José dos Campos - SP - Brazil
Tel: +55 11 94242 4293
info-la@lemo.com
CANADA
LEMO Canada Inc
44 East Beaver Creek Road, unit 20
Richmond Hill, Ontario L4B 1G8
Tel: +1 905 889 56 78
Fax: +1 905 889 49 70
info-canada@lemo.com
CHINA / HONG KONG
LEMO Electronics (Shanghai) Co., Ltd
First Floor, Block E,
18 Jindian Road, Pudong
Shanghai, China, 201206
Tel: +86 21 5899 7721
Fax: +86 21 5899 7727
cn.sales@lemo.com
DENMARK
LEMO Denmark A/S
Mandal Allé 16A
5500 Middelfart
Tel: +45 45 20 44 00
Fax: +45 45 20 44 01
info-dk@lemo.com
FRANCE
LEMO France Sàrl
24/28 Avenue Graham Bell
Bâtiment Balthus 4
Bussy Saint Georges
77607 Marne la Vallée Cedex 3
Tel: +33 1 60 94 60 94
Fax: +33 1 60 94 60 90
info-fr@lemo.com
GERMANY
LEMO Elektronik GmbH
Hanns-Schwindt-Str. 6
81829 München
Tel: +49 89 42 77 03
Fax: +49 89 420 21 92
info@lemo.de
HUNGARY
REDEL Elektronika Kft
Nagysándor József u. 6-12
1201 Budapest
Tel: +36 1 421 47 10
Fax: +36 1 421 47 57
info-hu@lemo.com
ITALY
LEMO Italia srl
Viale Lunigiana 25
20125 Milano
Tel: +39 02 66 71 10 46
Fax: +39 02 37 90 80 46
sales.it@lemo.com
JAPAN
LEMO Japan Ltd
2-7-22, Mita,
Minato-ku, Tokyo, 108-0073
Tel: +81 3 54 46 55 10
Fax: +81 3 54 46 55 11
info-jp@lemo.com
LEMO
NETHERLANDS / BELGIUM
LEMO Connectors Nederland B.V.
Jacques Meuwissenweg 6
2031 AD Haarlem
Tel. +31 23 206 07 01
info-nl@lemo.com
NORWAY / ICELAND
LEMO Norway A/S
Soerumsandvegen 69,
1920 Soerumsand
Tel: +47 22 91 70 40
Fax: +47 22 91 70 41
info-no@lemo.com
SINGAPORE
LEMO Asia Pte Ltd
4 Leng Kee Road,
#06-09 SiS Building
Singapore 159088
Tel: +65 6476 0672
Fax: +65 6474 0672
sg.sales@lemo.com
SPAIN / PORTUGAL
IBERLEMO SAU
Brasil, 45, 08402 Granollers
Barcelona
Tel: +34 93 860 44 20
Fax: +34 93 879 10 77
info-es@lemo.com
SWEDEN / FINLAND
LEMO Nordic AB
Gunnebogatan 30, Box 8201
163 08 Spånga
Tel: +46 8 635 60 60
Fax: +46 8 635 60 61
info-se@lemo.com
SWITZERLAND
LEMO Verkauf AG
Grundstrasse 22 B,
6343 Rotkreuz
Tel: +41 41 790 49 40
ch.sales@lemo.com
TAIWAN
TAOYUAN TAIWAN
Tel: +886 967 132 824
speng@lemo.com
UNITED ARAB EMIRATES
LEMO Middle East Connectors LLC
Concorde Tower 11th Floor,
Office 1102, Dubai Media City,
P.O. Box 449849
Dubai, United Arab Emirates
Tel: +971 4 568 1904
info-me@lemo.com
UNITED KINGDOM
LEMO UK Ltd
12-20 North Street, Worthing,
West Sussex, BN11 1DU
Tel: +44 1903 23 45 43
lemouk@lemo.com
USA
LEMO USA Inc
P.O. Box 2408
Rohnert Park, CA 94927-2408
Tel: +1 707 578 88 11
+1 800 444 53 66
Fax: +1 707 578 08 69
info-US@lemo.com
DISTRIBUTORS
ARGENTINA, AUSTRALIA, BRAZIL, CHILE, COLOMBIA, CZECH REPUBLIC,
GREECE, INDIA, ISRAEL, NEW ZEALAND, PERU, POLAND, RUSSIA,
SOUTH AFRICA, SOUTH KOREA, TURKEY, UKRAINE
www.lemo.com
CAT.MM.LEN.P0811, © LEMO / Data subject to change, printed in Switzerland, updated November 2021
LEMO
工商网监
湘ICP备2023018690号
