PHG.1B.307.CLLD52Z

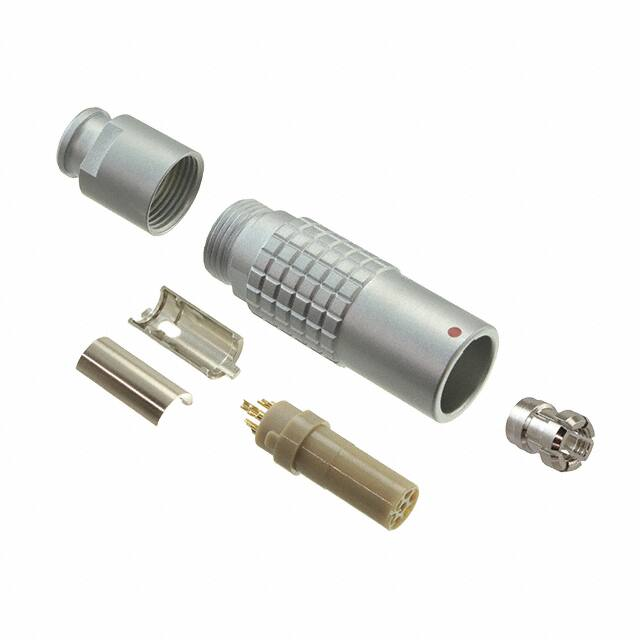

PHG.1B.307.CLLD52Z www.lemo.com SUMMARY # Wires Low voltage 7 Image is for illustrative purpose only Series 1B Termination type Female solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 4.30 - 5.20 mm Status active Matching parts FGG.1B.307.CLAD52Z Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PH*: Free receptacle, cable collet and nut for fitting a bend relief Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 20.45 g Performance Configuration 1B.307 : 7 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 7 Amps Specifications Contact Type: Solder Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 6.1 mOhm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-shell): 1050 V (AC), 1490 V (DC) Vtest (contact-contact): 950 V (AC), 1340 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L S1 S2 mm. 12.5 39.5 10 9 in. 0,49 1,56 0,39 0,35 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Spanner wrench: DCD.1B.015.PA090 Cables CMN.07.T28.044PGZE Grey CMN.07.T28.044PNZE 70140 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
