EGG.1B.307.CYM

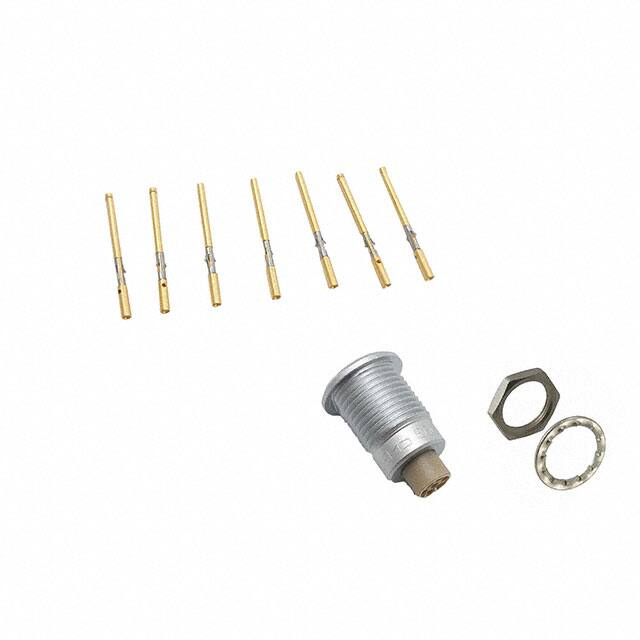

EGG.1B.307.CYM www.lemo.com SUMMARY # Wires Low voltage 7 Image is for illustrative purpose only Series 1B Termination type Female crimp IP rating 50 AWG wire size 26.00 - 22.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.1B.307.CYCD42Z Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 10.35 g Performance Configuration 1B.307 : 7 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 7 Amps Specifications Contact Type: Crimp Contact Retention: 22 N Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.8 mm (0.031in) Min. Conductor: 0.14 mm^2 (AWG 26) Max. Conductor: 0.34 mm^2 (AWG 22) R (max): 6.1 mOhm Vtest (contact-shell): 1450 V (AC), 2050 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-contact): 1450 V (AC), 2050 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 14 16 7.5 23 1.5 21.1 10.5 14 M12x1.0 in. 0,55 0,63 0,30 0,91 0,06 0,83 0,41 0,55 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 22-24-26/6-5-5 Positionner: DCE.91.071.BVM Extractor: DCF.91.070.2LT Replacement contact: EGG.1B.655.ZZM Cables CMN.07.T26.037QGZE TPR (medical) CMN.07.T28.044PGZE Grey Grey CMN.07.T28.044PNZE 270250 PVC Grey 70140 PVC Grey 7041 PVC Grey 7050 PVC Black 717920 PVC Grey CTR.75.030.121875G PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
