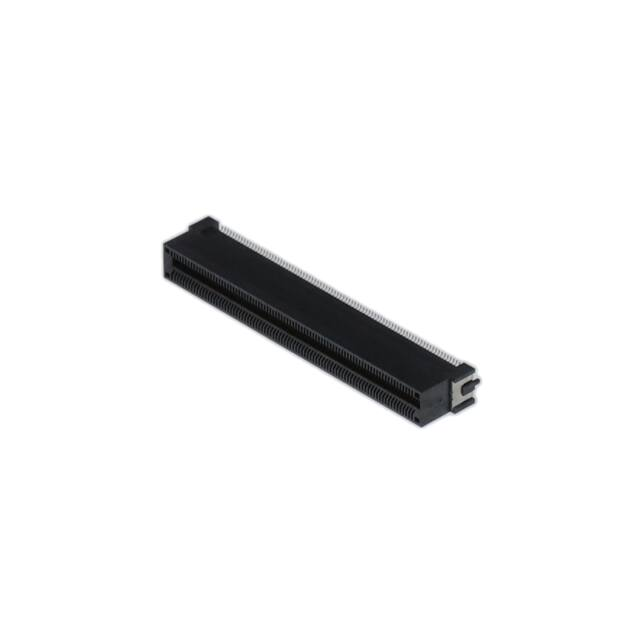

MTCA-085-02-S-DV-SMT-K-TR

F-221 SUPPLEMENT MTCA–085–02–S–DV–SMT–K–TR (0.75 mm) .030" MTCA SERIES MICRO TCA CONNECTOR SPECIFICATIONS Contacts on (0.75 mm) .030" pitch Mates with: (1.60 mm) .062" thick cards Supports hot plugging and high-speed serial connections For complete specifications see www.samtec.com?MTCA Insulator Material: LCP Terminal Material: Brass Alloy Plating: Au or Sn over 50 µ" (1.27 µm) Ni Operating Temp Range: -55 °C to +125 °C APPLICATION RECOGNITIONS For complete scope of recognitions see www.samtec.com/quality Surface Mount FILE NO. E111594 ALSO AVAILABLE MTCA POSITIONS PER ROW LEAD STYLE PLATING OPTION DV SMT –S –DV –SMT K "X"R (MOQ Required) • Additional positions –02 = (1.60 mm) .062" Thick Card –020, –085 = 30 µ" (0.76 µm) Gold on contact, Matte Tin on tail = Dual Vertical = Surface Mount –K = (8.00 mm) .315" DIA Polyimide film Pick & Place Pad No. of positions x (0.75) .030 + (6.25) .246 (0.75) .030 86 85 170 –TR = Tape & Reel –FR = Full Reel Tape & Reel (must order max. quantity per reel; Contact Samtec for quantity breaks) 01 (7.50) .295 (12.45) (1.79) .490 .070 (5.15) .203 (1.00) .039 (0.75) .030 (0.40) .016 (0.20) .008 Note: Some lengths, styles and options are non-standard, non-returnable. WWW.SAMTEC.COM Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
