ECG.1B.304.CLV

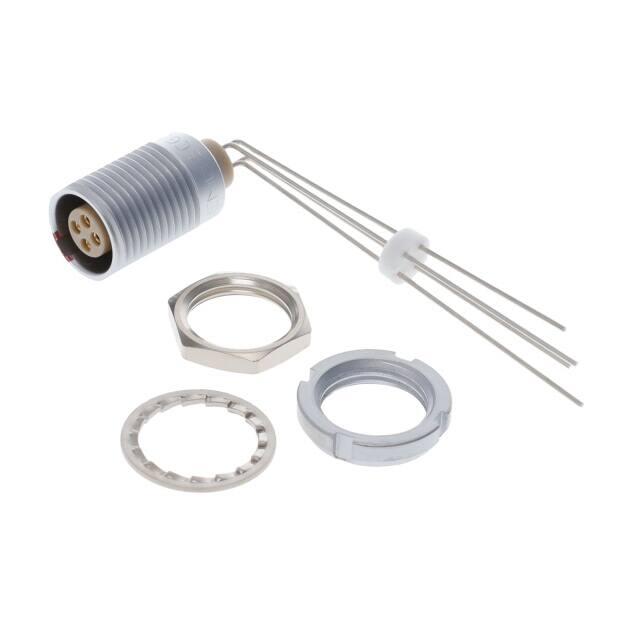

ECG.1B.304.CLV www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 1B Termination type Female print 90° PCB IP rating 50 AWG wire size 30.00 - 22.00 PCB Altium Pattern Cable Ø 0.00 - 0.00 mm PCB KiCad Pattern Status active Catalog Matching parts FGG.1B.304.CLAD62 Download Request a quote PCB Eagle Pattern TECHNICAL DETAILS Mechanics Shell Style/Model EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting) Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 10.70 g Performance Configuration 1B.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current Specifications Contact Type: Print (elbow) Contact Dia.: 0.9 mm (0.035in) R (max): 4.8 mOhm Vtest (contact-shell): 1450 V (AC), 2050 V (DC) Vtest (contact-contact): 1350 V (AC), 1910 V (DC) Others LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E Lmax M Nmax S1 S3 e mm. 16 15.8 6 32.96 3.5 20.3 10.5 14 M12x1.0 in. 0,63 0,62 0,24 1,30 0,14 0,80 0,41 0,55 RECOMMENDED BY LEMO Tools Spanner 2: DCH.91.161.PA LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
