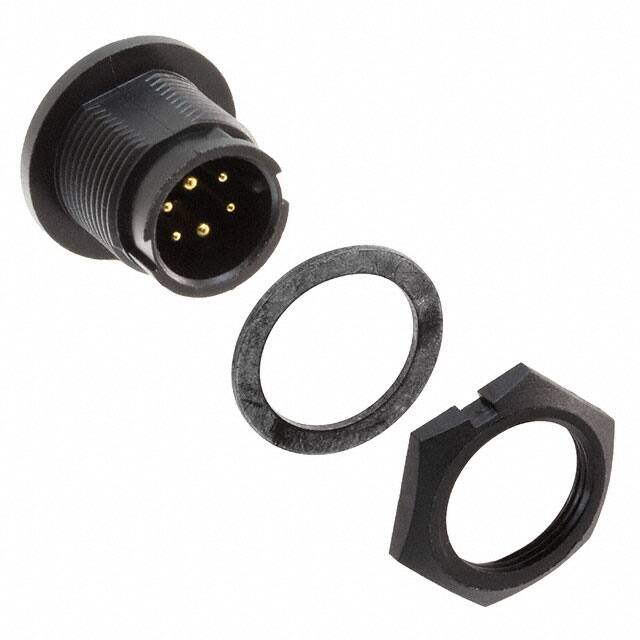

W7C82-6PG-300

Mixed Signal/ Power Contact Size Mini-Con-X® NPB 631 Power and Signal contacts in the same Mini-Con-X connectors Cable End, Panel Mount, and Cable-to-Cable Connectors Available Made From High Quality, UV Resistant Thermoplastic (UL F1 rated) Two options available: 6 pin (2#16 4#20) & 8-pin (2 #16, 6#26) FEATURES APPLICATIONS • • • • • • • • • • Combine signal and power into the same connector, saving space and cost. Cable End, Panel Mount, and Cable-to-Cable (In-Line) options available with male pin or female socket contacts. Fits the same overall dimensions as existing Mini-Con-X® connectors Made by Conxall® in the USA Also available as factory molded cables See drawings on Switchcraft.com for detailed specifications Outdoor Instrumentation Agriculture and construction vehicles Communication devices Safety and Security equipment 601 EAST WILDWOOD, VILLA PARK, IL 60181 - 630.834.7504 - SALES@CONXALL.COM Mixed Signal/ Power Contact Size Mini-Con-X® NPB 631 OVERALL DIMENSIONS 0.92 23.5 1.9 48 0.80 20.3 13/16 HEX 0.71 18 CABLE END 0.582 14.78 2.0 51 0.610 15.49 PANEL MOUNT CABLE-TO-CABLE RECOMMENDED PANEL CUTOUT ALL DIMENSIONS ARE FOR REFERENCE ONLY ORDERING CODE/ CONTACT LAYOUTS (Panel Mount Wiring Side) W Connector Type: X X XX - XXX - XXX 6: Cable End KEY W Special Features W: Winged Coupling Ring 7: Panel Mount 8: Cable to Cable Cable-end and Cable-to-cable Backshell with Grommet Cable O.D. Range: Mixed Contact Sizes: A: #16 & #26 C: #16 & #20 6 POSITON 2 #16 & 4 #20 PIN OR SOCKET CONTACTS 513: 0.13-0.15" (3.3 -3.8 mm) Contacts Style: 516: 0.16-0.18" (4.1 -4.6 mm) 80: Crimp 519: 0.19-0.21" (4.8 -5.3 mm) 81: PC Tail 522: 0.22-0.25" (5.6 -6.3 mm) 82: Solder 528: 0.26-0.285" (6.6 -7.2 mm) KEY Positions & Contact Types: 6PG: 6 Pins (2-16 + 4-20) Panel Mount: 6SG: 6 Sockets (2-16 + 4-20) 300: with Hex Nut & Gasket 8PG: 8 Pins (2-16 + 6-26) 3ES: 300 with Epoxy 8 POSITON 2 #16 & 6 #26 PIN OR SOCKET CONTACTS 8SG: 8 Sockets (2-16 + 6-26) Mixed Contacts Arrangement Wire (AWG) Maximum Current Rating (A) at Maximim Operating Temperature (°C) 85°C max 2-#16 / 4-#20 2-#16 / 6-#26 2x16 10 4x20 4 2x16 10 6x26 2 Temperature Rise does not exceed 30°C when tested according to UL2238 Minimum Test Voltage (V rms) Voltage Rating (V rms) 1300 125 1700 250 Tested per UL2238 VISIT WWW.SWITCHCRAFT.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS Mixed Signal/ Power Contact Size Mini-Con-X® NPB 631 SPECIFICATIONS MECHANICAL: Mating / Locking Type: Life: Vibration: Panel Hex Nut Tongue: Back Shell Type: Bayonet with ribbed coupling ring (winged coupling ring available) 300 cycles minimum Mil-Std 202G Method 201A 8-10 in-lb [0.8-1.1 Nm] Twist lock ELECTRICAL: Voltage Rating: Current Rating: Insulation Resistance: Contact Resistance: 125 V rms for 6 contact arrangement 250 V rms for 8 contact arrangement 10A max for #16 contacts Refer to table on pg3 for detailed information 1000 MΩ minimum 10 mΩ typical ENVIRONMENTAL: Operating Temperature: Moisture Resistance: Insulation Resistance: Thermal Shock: Salt Atmosphere : Ingress Protection : -40ºC to +85ºC (-40ºF to +185°F) Refer to website for detailed information Mil-Std 202G Method 106G Mil-Std 202G Method 302 Condition B Mil-Std 202G Method 107G Mil-Std 202G Method 101E Condition B IP67 (consult factory for specific application) MATERIAL: Connector Shell (Insulator) Hex Nut: Coupling Ring: Cable Clamp: Backshell: Seal O-rings: Seal Grommet: Contacts: Thermoplastic, black Thermoplastic, black Thermoplastic, black Thermoplastic, black Thermoplastic, black Elastomer, red Elastomer, black Copper Alloy, gold over nickel plating 601 EAST WILDWOOD, VILLA PARK, IL 60181 - 630.834.7504 - SALES@CONXALL.COM
