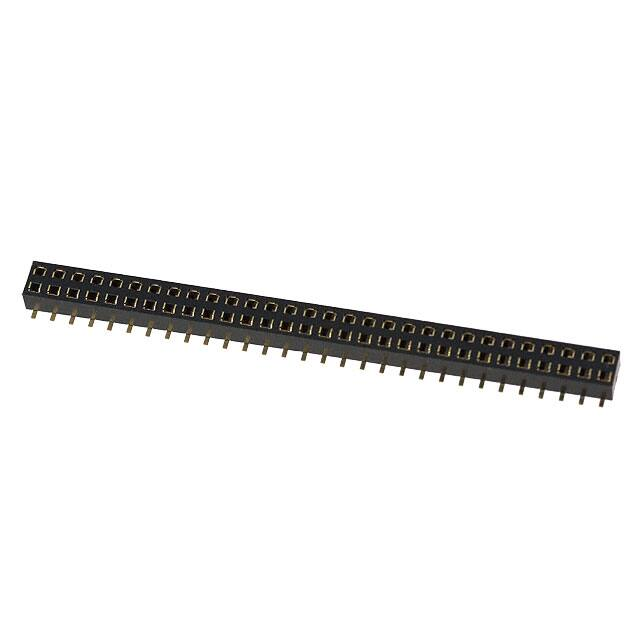

PPPN302GHNP

A B C D E WI-0901 SPECIFICATIONS No. of 1 2 DIMENSIONS Current Rating: Insulator Resistance: 1 Amp Contact Resistance: Dielectric Withstanding: Operating Temperature: Max Processing Temp: 20 milli Ohms Max. 500 VAC Contacts A B 10 8.00 10.00 12 10.00 12.00 14 12.00 14.00 16 14.00 16.00 18 16.00 18.00 20 18.00 20.00 22 20.00 22.00 Contact Material: Phosphor Bronze. 24 22.00 24.00 Insulator Material: 26 24.00 26.00 Polyester,UL 94V-0 Standard: Nylon 6T 28 26.00 28.00 30 28.00 30.00 32 30.00 32.00 34 32.00 34.00 36 34.00 36.00 38 36.00 38.00 40 38.00 40.00 42 40.00 42.00 44 42.00 44.00 46 44.00 46.00 48 46.00 48.00 50 48.00 50.00 52 50.00 52.00 54 52.00 54.00 56 54.00 56.00 58 56.00 58.00 60 58.00 60.00 5000 Mega Ohms min. -40 Degrees C. to +105 Degrees. C. 230 Degrees C. for 30~60 seconds (260 Degrees C. for 10 seconds) B •+-0.20 A •+-0.10 1 2.00•+-0.05 4.20•+-0.15 0.50•+-0.05 2 2.70•+-0.15 2.80•+-0.20 0.15•+-0.03 1.00•+-0.10 1.00+-0.05 DIA. A-2.00•+-0.10 5.80•+-0.50 3 3 SULLINS 801 E. Mission Rd. San Marcos, CA 92069 GENERAL TOLERANCE XX. •+XXX. •+X. •+- 0.20 .XXX •+.X •+- 0.10 .XX •+- 0.05 A SCALE UNIT SIZE 5:1 DRAWN DATE MM CHECK DATE APPROVE DATE DWG. NO. PARTS NO. A4 B C T0014 REV. TITLE SHEET PPPNxx2GHNP D E FM-0524
