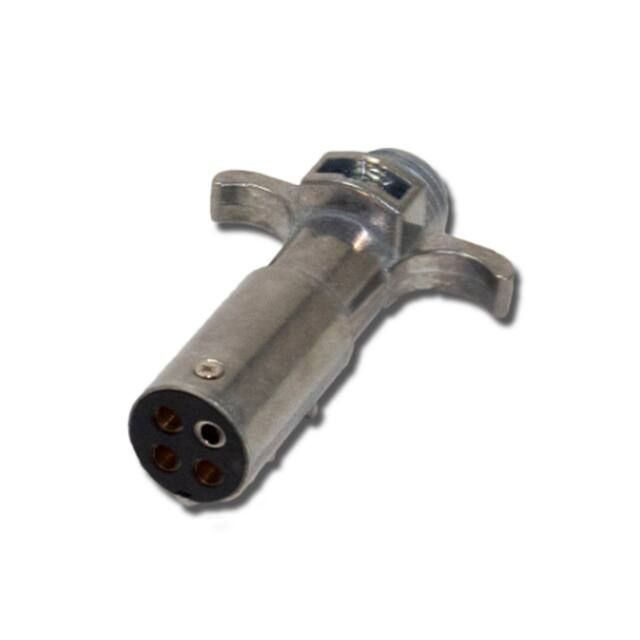

TC4-P2-Z

Trailer Connector TC4-P2-Z Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Material Specifications Wiring Color Codes A.T.A & S.A.E WIRING CODES RECOMMENDED STANDARD CIRCUITS POLE WIRING COLOR CODE ITEM# NAME Ground Return White 1 PLUG SHELL ZINC Right Turns & Brake Lights Green 2 SET SCREW IRON Left Turns & Brake Lights Yellow or Red 3 TERMINALS BRASS Tail Lights Brown 4 TERMINALS BASE NYLON 5 BASE SET SCREW IRON Rev A 08/2019 MATERIAL Trailer Connector Rev A TC4-P2-Z Designed Approved Date of issue Revision Notes 08-12-2019 Initial Drawing RC Rev A 08/2019 OH
