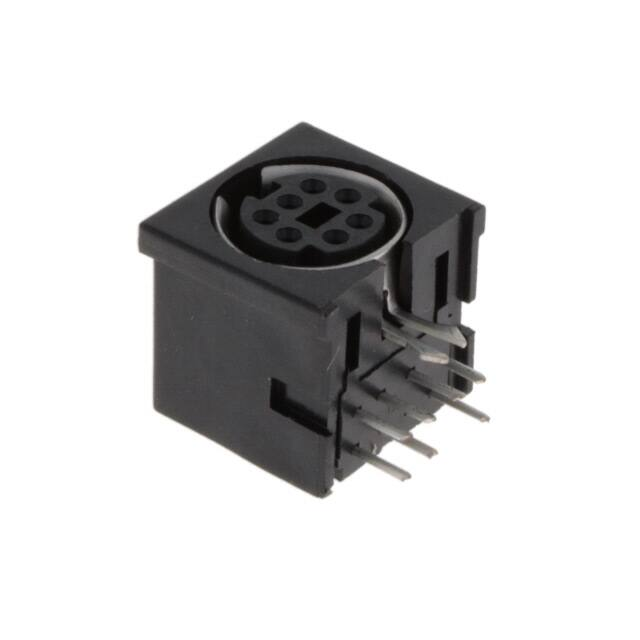

KMDGX-7S-N

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number KMDGX-3S-N Part Number Builder R E 140125 LR78160 MINI/CIRCULAR DINs: KMDGX Series Right Angle Mini-DIN Product Features PC99 Colors Available Shielded Options Available for Good Conductivity, Grounding and EMI/RFI Protection Mates with Standard and Snap and Lock Plugs Visual and Mechanical Polarization for Plug Insertion Reflow Compatible Design Available Gold Plated Contacts CSA/NRTL Certified File No. LR78160 UL File No. E140125 Performance Specifications Materials and Finish Body PBT Thermoplastic, Black, Purple, or Green Color Contacts Copper Alloy, Gold Plated Shield See Drawing KMDGX 3 S N Series Number of Contacts Contact Type Option Series KMDGX - Right Angle PCB Mount Mini-DIN Number of Contacts 3 Contacts 4 Contacts 5 Contacts 6 Contacts 7 Contacts 8 Contacts 9 Contacts 10 Contacts (10 Available only with BS option) Contact Type S - Receptacle Shielding Option N - Non-Shielded AS - Sides and Back Shielded BS - Fully Shielded (Contact Kycon for 9 Contacts) Contact Kycon for Other Options Mechanical Characteristics Insertion Force 3.0kg Max. Extraction Force 0.3kg - 3.0kg Durability 1000 Cycles Min. KMDGX Series Dimensions in mm KMDGX-8S-BS Electrical Characteristics Rated Current 2A Rated Voltage 12V DC Insulation Resistance 500 Megohm Min. at 500V DC Contact Resistance Before Durability Test Plug to Terminals: 30 milliohms Max. After Durability Test Plug to Terminals: 60 milliohms Max. Dielectric Withstanding Voltage 500V RMS AC for 1 Minute Operating Temperature -25°C to + 80°C Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0418
