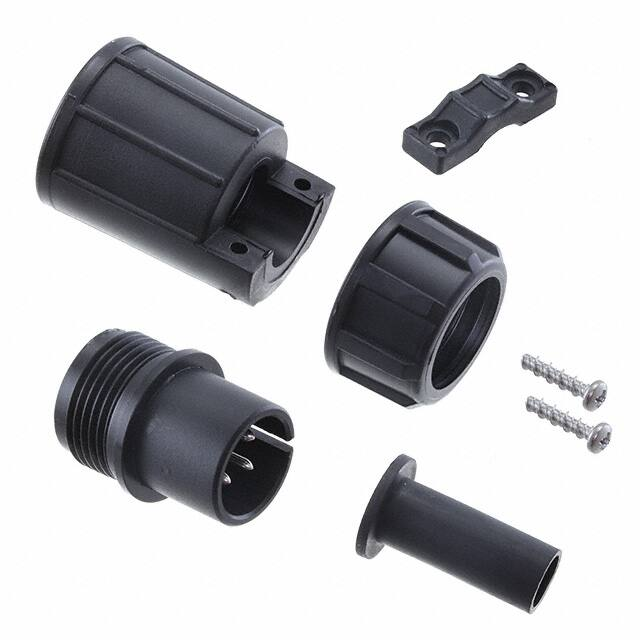

CXS3106A14S2P

MIL-E-QUAL® FIRST MATE LAST BREAK CONTACT NEW PRODUCT BULLETIN C707 FEATURES & BENEFITS • First mate last break contact protects the electrical components around the connection • Two contact sizes available: #12 size and #16 size standard • Sturdy construction is IP-67 rated when overmolded • Black thermoplastic with UV inhibitor for rugged outdoor applications APPLICATIONS • Lighting fixtures • Power transmission for alternative energy CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504 Please visit conxall.com for the most up-to-date product specifications. Made in USA. MIL-E-QUAL® FIRST MATE LAST BREAK CONTACT NEW PRODUCT BULLETIN C707 CX X 310XA XXXX XX X XXXX Conxall Options 300 - Weathertight Option adds O-Ring for plug (3106A) Contact Style S - Solder C - Crimp Elastomer Gasket for Receptacle. (3102A) 010 - Receptacle with (4) mounting hole reinforcements. Consult factory. Shell Type 310 - Same as -010 except with Elastomer Gasket. 3101A - Cable Receptacle In-Line with Accessory Thread 3102A - Box Receptacle 3106A - Straight Plug 320 - Gold plated contacts. (gold is optional) Insert Number / Arrangement per 5015 10SL-4 10SL-3 12S-3 14S-1 14S-2 14S-5 14S-6 14S-7 14S-9 16S-1 16S-8 16-10 18-1 18-4 18-8 18-10 18-11 18-12 18-19 20-7 20-16 20-27 20-29 22-14 24-2 24-28 28-2 28-12 28-21 30GX - Pin Insert Receptacle with ground pin. “X” is the letter position of the extended pin. Letter is left “Blank” for crimp contacts. Standard plating, silver. 32GX - Pin Insert Receptacle with ground pin. “X” is the letter position of the extended pin. Letter is left “Blank” for crimp contacts. Optional plating, gold. No. & Type of Contacts P - Pin S - Socket Specifications Product Specifications Manufacturers ID Description: Rating: Contact Sizes: Conductor Sizes: Configuration: Certification: MIL-E-QUAL® Field Installable Connector & Custom Cable Assemblies 3.4 thru 23.0A, 600V DC #12 and #16 AWG #12AWG, #14AWG, #16AWG #18AWG or #20AWG Contacts per Mil-C-5015 UL File E150822 Electrical Specifications 600V-AC for Shell Types 3101A and 3102A 500V-AC for Shell Type 3106A up to 28 positions 277V-AC for Shell Type 3106A from 29 or greater positions Environmental Specifications Operating Temperature: Corrosion: Durability: Weathertight: -40 °C to +75 °C(-40ºF to +167°F) 48hr salt spray contacts (mated) 300 mate/unmate cycles minimum Consult factory with specific application FACTORY MOLDED CABLE ASSEMBLIES Watertight: NEMA 6P, 13: IEC IP67 NOTE Gasket, O-Ring & Grommet materials are suitable for -40 °C to +75 °C(-40ºF to +167°F). Consult factory for higher temperature requirements. Material Specifications Cable Pin/Socket: Mechanical Backshell: Strap: Screws: Grommet: Coupling Ring: Contacts: Connector Body: O-Ring: Optional Connector Cap: Gold Contacts: Alternate Key Positions Available Box Receptacle Contacts: Receptacle Body: Optional Receptacle Cap: Gasket: Gold Contacts: Extended Bosses Alternate Key Positions Available Thermoplastic, UL Recognized, Black with UV Inhibitor (Threaded) Thermoplastic, UL Recognized, Black with UV Inhibitor Stainless Steel Elastomer, Black Thermoplastic, UL Recognized, Black with UV Inhibitor Copper Alloy, Standard Silver Plated, Gold Plated Optional Thermoplastic, UL Recognized, Black with UV Inhibitor Elastomer Thermoplastic, UL Recognized, Black with UV Inhibitor Copper Alloy, Gold over Nickel Copper Alloy, Standard Silver Plated, Gold Plated Optional Thermoplastic, UL Recognized, Black with UV Inhibitor Thermoplastic, UL Recognized, Black with UV Inhibitor Elastomer, Black Copper Alloy, Gold over Nickel CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504 Please visit conxall.com for the most up-to-date product specifications. Made in USA.
