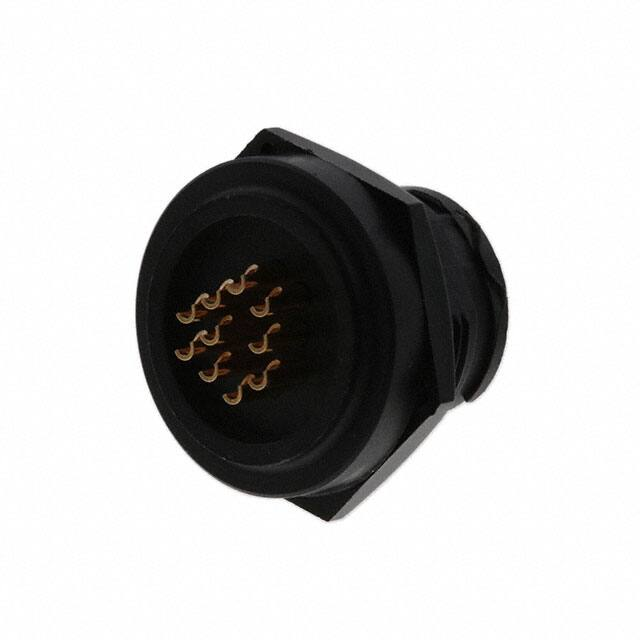

W4282-10PG-300

NOTES: 1. ALL PARTS TO BE BULK PACKED. 2. CONTACTS ASSEMBLED INTO CONNECTOR. SOLDER CUPS FACING TOP KEY. 3. ALL DIMENSIONS ARE REFERENCE ONLY EXCEPT WHERE NOTED WITH A TOLERANCE. DIMENSIONS IN BRACKETS [ ] ARE METRIC. ASS'Y P/N CONTACTS W4282-10PG-300 W4282-11PG-300 W4282-12PG-300 W4282-1XPG-300 10 - #20 11 - #20 12 - #20 HOLE POS. CLOSED 11, 12 12 NONE NO. OF CONTACTS 3 3 2 10 9 4 CUSTOMER PRINT 6 10 4 9 8 5 8 5 2 11 6 7 7 FACE VIEW FACE VIEW W4282-10PG-300 10-POS. 1.00 W4282-11PG-300 11-POS. TOP KEY .153 [3.9mm] .550 .205 [14.0mm] [5.2mm] [26.8mm] TOP KEY .104±.020 [2.6 0.5mm] 3 2 11 10 4 9 1 1.00 6 12 3 10 [25.4mm] FLATS 11 5 8 7 7 .79 [20.1mm] 4 9 8 5 2 12 PIN CONTACT SOLDER CUP GOLD PLATED 6 .742 [18.9mm] FACE VIEW HEX NUT MAT'L: UV THERMOPLASTIC, BLACK O-RING MAT'L: RUBBER, BLACK W4282-12PG-300 12-POS. PANEL INSERT, PIN MAT'L: UV THERMOPLASTIC, BLACK 13/16-27 UNS-2A MOD. THREAD WIRE VIEW W4282-10PG-300 - 10-POS. (11&12 CLOSED) W4282-11PG-300 - 11-POS. (12 CLOSED) W4282-12PG-300 - 12-POS. (ALL OPEN) .188 MAX [4.8mm] .750 .003 PANEL THICKNESS [19.1mm] .790±.003 PART NUMBER: W4282-1XPG-300 FLAT [20.0mm] CUSTOMER APPROVAL RECOMMENDED PANEL CUTOUT STANDARD MULTI-CON-X THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: A PAK REV. INIT. 09/12/19 DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX DRAWING CREATED AND RELEASED PER DOR 10-2523JS-1 DESCRIPTION ORIG. DRAWN BY: DATE: 10/07/14 PAK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE SHEET NTS B 1 OF 1 FILE: W4282-1XPG-300 DIRECTORY: SLW PANEL PIN, E-KEY #20 SOLDER, 12-POS. PATTERN MULTI-CON-X, WEATHER RESISTANT CUSTOMER: STANDARD PRODUCT PART NUMBER: W4282-1XPG-300 REV A
