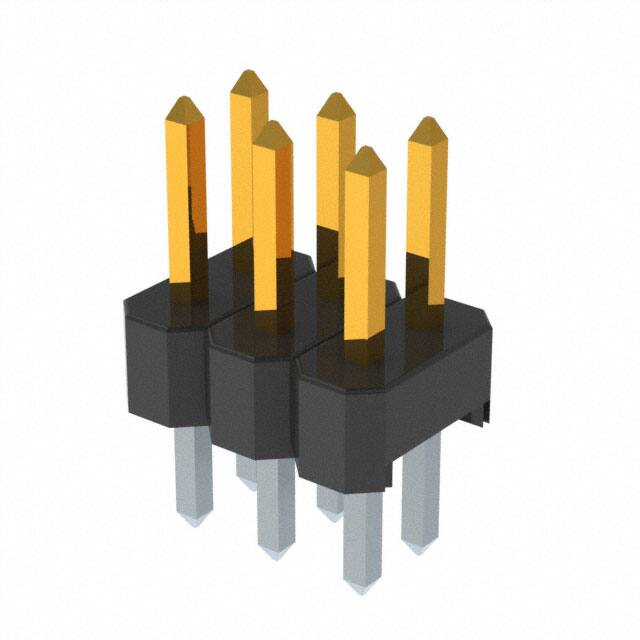

PR20C03VBDN

Page 1/4 Data sheet P/N PR20CXXVBDN xx=number of poles PR20CxxVBDN 2021/09/15 Version: R Illustrations Dimensional drawing Drill pattern See enlarged drawings at the end of document Product specification • pin header, THR solderable • centerline 2.00 mm, direction of connection vertical 0° • color black • Tape & Reel packaging possible • dual rows Data sheet Page 2/4 PR20CxxVBDN P/N PR20CXXVBDN xx=number of poles 2021/09/15 Version: R Technical Data General Data min. number of poles max. number of poles 2 clearance/creepage dist. 1.5 mm Protection category IP00 Rated current 1A 40 Material insulating material PE-HT contact pin material CuZnPb contact pin surface Ni + Au Flash Glow-Wire Flammability GWFI - Glow-Wire Flammability GWIT - Climatic Data upper limit temperature 105 °C lower limit temperature -55 °C general Tolerance ISO 2768 -mH Solderability Acc. to IPC/JEDEC J-STD-020D-MSL 1 Data sheet PR20CxxVBDN Page 3/4 P/N PR20CXXVBDN xx=number of poles 2021/09/15 Version: R Illustrations Dimensional drawing L=(pole size - 1) x centerline + 2 mm [0.079] Data sheet PR20CxxVBDN Page 4/4 P/N PR20CXXVBDN xx=number of poles 2021/09/15 Version: R Illustrations Drill pattern Powered by TCPDF (www.tcpdf.org)
