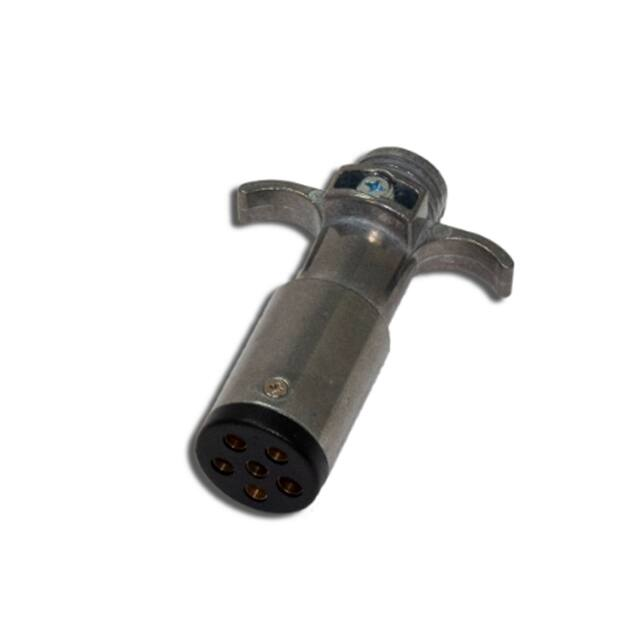

TC6-P2-Z

Trailer Connector TC6-P2-Z Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Material Specifications Wiring Color Codes S.A.E WIRING CODES RECOMMENDED STANDARD CIRCUITS POLE WIRING COLOR CODE ITEM# NAME Ground Return White 1 PLUG SHELL ZINC Tail Lights Brown 2 SET SCREW IRON Left Turn Yellow 3 TERMINALS BRASS Stop Red 4 TERMINALS BASE NYLON Right Turn Green 5 BASE SET SCREW IRON Auxiliary Circuit Blue 6 CHROME PLATED Rev A 08/2019 MATERIAL Trailer Connector Rev A TC6-P2-Z Designed Approved Date of issue Revision Notes 08-12-2019 Initial Drawing RC Rev A 08/2019 OH
