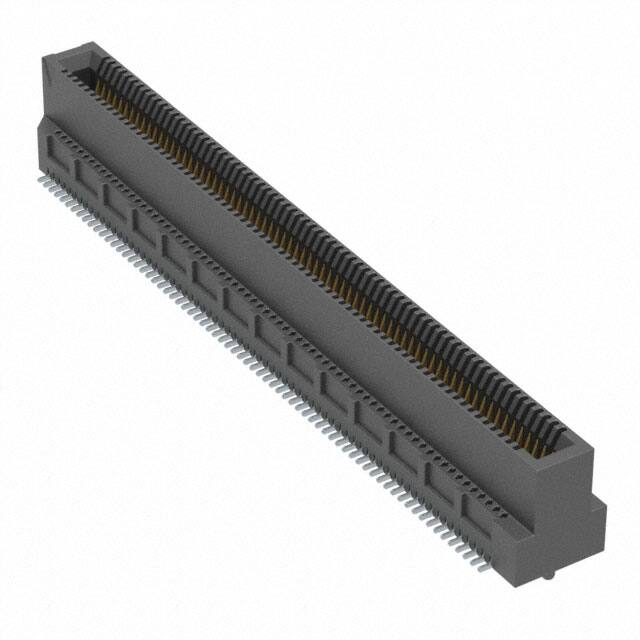

MEC8-170-02-L-DV-A

RECOMMENDED PCB LAYOUT FOR MEC8X-1XX-XX-XX-DV-XX REVISION R DESIGNED & DIMENSIONED IN MILLIMETERS [INCHES] "D" "A" 0.800 .0315 (TYP) PIN 2 -A = -LC = 1.50 .0591 REF 1.05 .0413 1.19 [.0469] NPTH (2 PLCS) PIN 60 CL 9.50 .374 1.500 .0591 1.800 .0709 CL PIN 59 PIN 1 0.500 .0197 (TYP) NOTES: FIG 1 -30 POSITION SHOWN (USE FOR 10, 20 & 30 POSITIONS) 1. MEASUREMENTS SYMMETRIC ABOUT CENTERLINE "D" "A" "B" SPACES @ .800 = "C" 1.50 .059 REF 0.800 .0315 (TYP) PIN 2 -A = -LC = PIN 80 4.000 .1575 1.05 .0413 1.19[.0469] NPTH (2 PLCS) CL 9.50 .374 1.500 .0591 NOTES: 1.800 .0709 PIN 79 1. MEASUREMENTS SYMMETRIC ABOUT CENTERLINE PIN 1 0.500 .0197 (TYP) FIG 2 -40 POSITION SHOWN (USE FOR 40 THRU 70 POSITIONS) F:\dwg\misc\mktg\footprnt\MEC8-1XX-XX-XX-DV-XX-FOOTPRINT.SLDDRW UNLESS OTHERWISE SPECIFIED TOLERANCES ARE: DECIMALS .X: .3 [.01] .XX: .10 [.004] .XXX: .050 [.0020] PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 SHEET 1 OF 3 REVISION R RECOMMENDED STENCIL LAYOUT FOR MEC8X-1XX-XX-XX-DV-XX DESIGNED & DIMENSIONED IN MILLIMETERS [INCHES] NOTE: STENCIL TO BE .006[.15] THICK "A" 1.800 .0709 CL CL 0.500 .0197 (TYP) FIG 3 -30 POSITION SHOWN (SAME AS FIG 1, EXCEPT AS SHOWN) (USE FOR 10, 20 & 30 POSITIONS) NOTE: STENCIL TO BE .006[.15] THICK "A" "B" SPACES @ .800 = "C" 1.800 .0709 CL 0.500 .0197 (TYP) FIG 4 -40 POSITION SHOWN (SAME AS FIG 2, EXCEPT AS SHOWN) (USE FOR 40 THRU 70 POSITIONS) F:\dwg\misc\mktg\footprnt\MEC8-1XX-XX-XX-DV-XX-FOOTPRINT.SLDDRW PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 SHEET 2 OF 3 RECOMMENDED MATING CARD LAYOUT FOR MEC8X-1XX-XX-XX-DV-XX REVISION R 0.600 .0236 DESIGNED & DIMENSIONED IN MILLIMETERS [INCHES] 3.50 .138 3.00 .118 0.800 .0315 DETAIL 'B' SCALE 4 : 1 C2 "F" "G" (PAD TO PAD DIMENSION) 4.00 .157 'B' PIN 100 PIN 99 PIN 1 PIN 2 6.50 .256 C2 1.03 .040 2.400 .0945 SEE NOTE 3 C2 C2 0.30 .012 45° "A" FIG 5 "E" -50 POSITION SHOWN R "A" DETAIL "A" SCALE 4 : 1 NOTES: 1. -10, -20 AND -30 CARDS HAVE NO SLOT. 2. ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE. 3. PLATING TO BE .000030 INCHES GOLD WITH A HARDNESS OF 130-200 KNOOP PER ASTM B 488 TYPE 2, GRADE C. 4. C REPRESENTS CRITICAL DIMENSION. 5. FOR PROPER CONTACT REGISTRATION, PLATING BUS TIE TO BE THE WIDTH OF THE EDGE FINGER. PROPRIETARY NOTE SEE NOTE 5 F:\dwg\misc\mktg\footprnt\MEC8-1XX-XX-XX-DV-XX-FOOTPRINT.SLDDRW THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 SHEET 3 OF 3
