EGG.3B.304.CLL

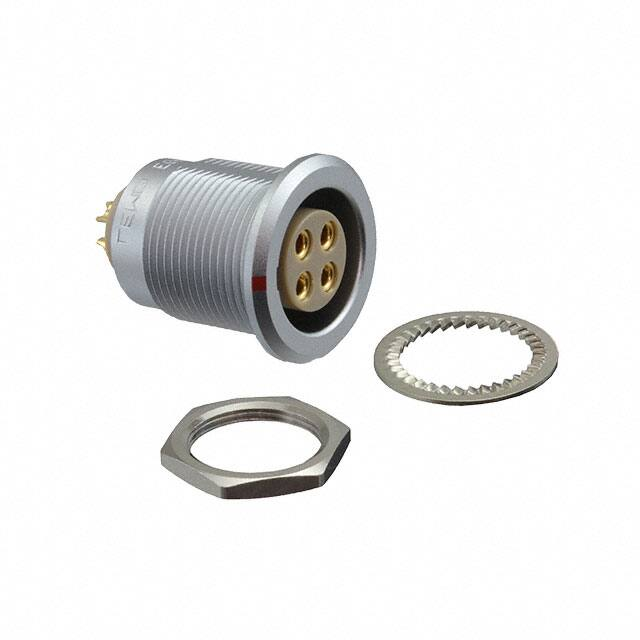

EGG.3B.304.CLL www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 3B Termination type Female solder IP rating 50 AWG wire size 22.00 - 14.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.3B.304.CLAD92 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 26.43 g Performance Configuration 3B.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 19 Amps Specifications Contact Type: Solder Contact Dia.: 2 mm (0.079in) Bucket Dia.: 1.8 mm (0.071in) Max. Solid Conductor: 1.5 mm^2 (AWG 14) Max. Stranded Conductor: 1.5 mm^2 (AWG 16) R (max): 3.3 mOhm Vtest (contact-shell): 1250 V (AC), 1770 V (DC) Vtest (contact-contact): 1450 V (AC), 2050 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 22 25 11.5 30.7 2 28.1 16.5 22 M18x1.0 in. 0,87 0,98 0,45 1,21 0,08 1,11 0,65 0,87 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.04.T14.083PGZE Grey CMN.04.T14.083PNZE CMN.04.T20.053PGZE Grey CMN.04.T20.053PNZE CMN.04.T20.053QGZE TPR (medical) Grey CMN.04.T22.047QGC TPR Grey CMN.04.T22.048QGZE TPR (medical) Grey CMN.04.T28.031PGCE PVC GREY CMN.04.T28.031PGZE CMN.04.T28.031PNCE Grey PVC Black CMN.04.T28.031QGC TPR Grey 140240 PVC Black 140250 PVC Grey 240500 PVC Grey 240750 PVC Grey 340 150 PVC Grey 40080 PVC Black 40086 PVC Blue 40140 PVC Black 40240 PTFE White 40260 PVC Black 4041 PVC Grey 4050 PVC Black 4080 PVC Grey 417920 PVC Grey 4220 PVC Black 4221 PVC Black 4260 PTFE White 4280 PVC Black 80080 PVC Grey 80082 PVC Red 80084 PVC Black CTR.75.030.121870G PVC Grey CMN.04.T28.031PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
