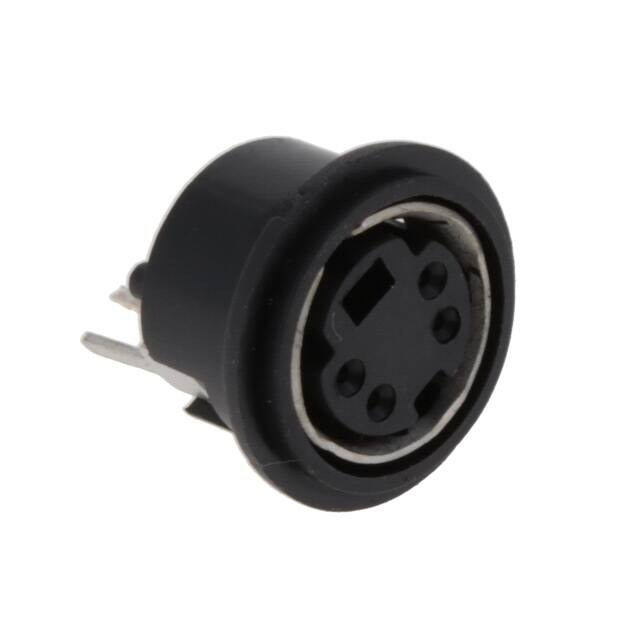

KMDVLX-4S-N-1

KYCON, Inc. 305 Digital Drive, Morgan Hill, CA 95037 (408)494-0330 Materials and Finish Housing: PBT Thermoplastic Color: Black 1.0 1.0 Shield: Brass, Matte Tin Plated 9.4 5.7 1.6 8-Ø1.00 4.7 4 2.7 3 Electrical Characteristics 7 5 Rated Current: 2A Max. Rated Voltage: 12V DC 2 0.4 1 8 2-0.70x1.30 0.1 9.5 1.3 3.5 P.C.B LAYOUT (BOTTOM VIEW) 8 7 5 3 8 6 5 3 6 8 3 5 1 5 2 6 8 3 5 1 8 7 6 7 6 3 2 1 5 2 3 4 Insulation Resistance: 50 Megohms Min. at 500V DC Contact Resistance: 30 milliohms Max. 1.0 8.0 2.4 1.9 Ø12.0 Ø14.0 6 Contact Material: Brass, Silver Plated Dielectric Withstanding Voltage: 500V AC for 1 Minute Mechanical Characteristics Insertion Force: 0.3kg-3.0kg Withdrawal Force: 0.3kg-3.0kg Durability Rating: 5000 Mating Cycles Min. Operating Temperature: -25°C to +85°C 1 KMDVLX-3S-N-1 KMDVLX-4S-N-1 KMDVLX-5S-N-1 KMDVLX-6S-N-1 KMDVLX-7S-N-1 KMDVLX-8S-N-1 Tolerances R RoHS COMPLIANT REV. DATE DESCRIPTION REV. BY CHK. BY DRAWN BY DATE A1 A2 05/17/18 11/09/18 New Drawing Release Drawing DC18-020 G. Serrato D. Shehan D. Shehan G. Serratto G. Serrato 05/17/18 UNITS mm KMDVLX-xS-N-1 R E140125 Mini-Din, Vertical Mount Snap and Lock, RoHS Compliant C US LR78160 X.X ± 0.35 X.XX ± 0.25 Unless Stated Otherwise
