FGG.1K.314.CYCC55

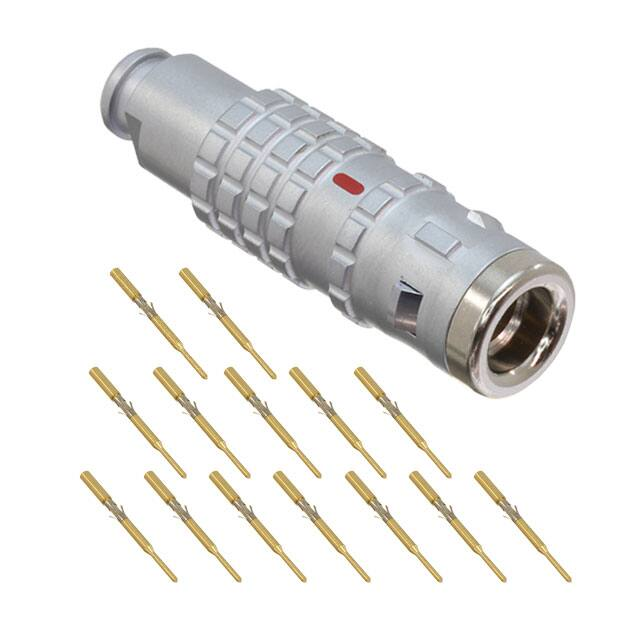

FGG.1K.314.CYCC55 www.lemo.com SUMMARY # Wires Low voltage 14 Image is for illustrative purpose only Series 1K Termination type Male crimp IP rating 68 AWG wire size 32.00 - 28.00 Cable Ø 5.10 - 5.50 mm Status active Matching parts EGG.1K.314.CLL Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 23.55 g Performance Configuration 1K.314 : 14 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 2 Amps Specifications Contact Type: Crimp Contact Retention: 12 N Contact Dia.: 0.5 mm (0.02in) Bucket Dia.: 0.45 mm (0.018in) Min. Conductor: 0.035 mm^2 (AWG 32) Max. Conductor: 0.09 mm^2 (AWG 28) R (max): 8.7 mOhm Vtest (contact-shell): 1600 V (AC), 2250 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-contact): 950 V (AC), 1340 V (DC) Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +200°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S2 mm. 13 42 28 9 in. 0,51 1,65 1,10 0,35 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 28-30-32/4-3-3 Positionner: DCE.91.051.BVC Extractor: DCF.91.050.2LT Replacement contact: FGG.1B.554.ZZC Spanner wrench: DCD.1E.008.PA090 Caps: BFG.1K.100.NAS LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
