FGG.0B.302.CLAD56

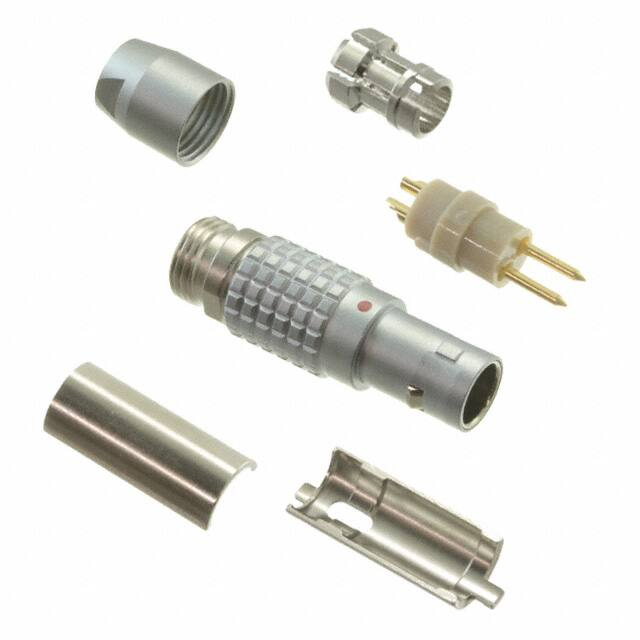

FGG.0B.302.CLAD56 www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 0B Termination type Male solder IP rating 50 AWG wire size 28.00 - 20.00 Catalog Cable Ø 5.30 - 5.60 mm See video assembly instructions Status active Matching parts EGG.0B.302.CLL Download Request a quote Eplan PHG.0B.302.CLLD56 TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 8.09 g Performance Configuration 0B.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.0 mm (0.039in) Max. Solid Conductor: 0.56 mm^2 (AWG 20) Max. Stranded Conductor: 0.56 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 1050 V (AC), 1490 V (DC) Vtest (contact-contact): 1000 V (AC), 1400 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 9.5 36 26 8 7 in. 0,37 1,42 1,02 0,31 0,28 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.0B.005.PA070 Caps: BFG.0B.100.PCSG LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables 120184 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
