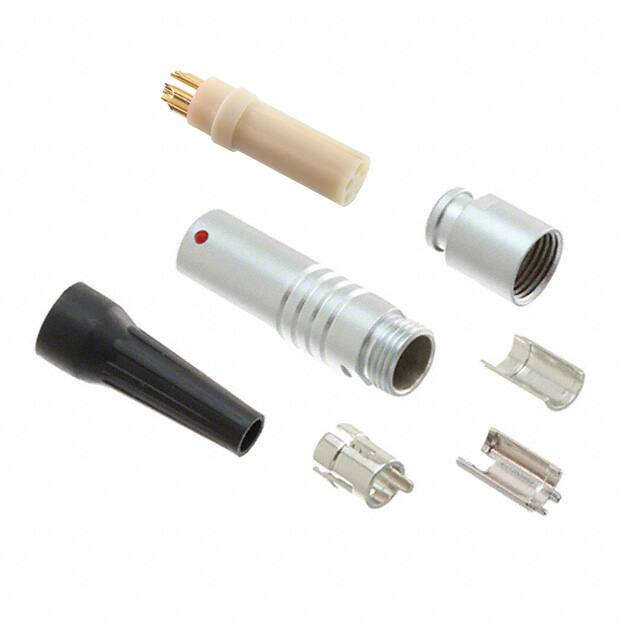

820B005-273L301

DESCRIPTION: QUIK-LOQ - FEMALE - CABLE MOUNT UNITS = MM [INCHES] CHARACTERISSTICS MATERIALS HOUSING : BRASS HOUSING PLATING : 196µ" NICKEL MIN. SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN. CONTACTS : COPPER ALLOY CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN. INSULATOR : PPS (HIGH TEMPERATURE) STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE 820B YYY - 2 7 3 L YY 1 1 = GOLD FLASH SERIES 9.50 [0.374] COLLET SIZE **SEE CHART B** # OF POSITIONS (Ex. 002) **SEE CHART A** 2 = FEMALE RoHS COMPLIANT CABLE MOUNT MECHANICAL DURABILITY: 5000 CYCLES OPERATING TEMP. RANGE: -40 C ~ +200 C PROCESS TEMPERATURE : 260 C FOR 5 SECONDS MAX. TOURQUE VALUE : 0.5 Nm [4.4 IN/LBS] SHIELDING: 75dB @ 10MHz 40dB @ 1GHz NICKEL/CHROME PLATED SHELL 1.339 34.00 IP RATING: 50 CHART B CHART A 1 1 CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1000V WORKING VOLTAGE = 330V 3 POSITION 22 AWG MAX. 8 AMP MAX. PIN = 0.90 [0.035] CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1200V WORKING VOLTAGE = 400V 4 POSITION 24 AWG MAX. 7 AMP MAX. PIN = 0.70 [0.028] CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V RoHS COMPLIANT N C THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF NorComp AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. WIRE DIAMETER 30 2.50 [0.098] ~ 3.20 [0.126] 40 3.30 [0.130] ~ 4.20 [0.165] 50 4.30 [0.169] ~ 5.20 [0.205] **VIEW FROM TERMINATION END** = KEY LOCATION 1 2 POSITION 22 AWG MAX. 10 AMP MAX. PIN = 0.90 [0.035] 0.315 8.00 0.315 8.00 0.346 8.80 COLLET SIZE 1 1 1 1 5 POSITION 24 AWG MAX. 6.5 AMP MAX. PIN = 0.70 [0.028] 6 POSITION 28 AWG MAX. 2.5 AMP MAX. PIN = 0.50 [0.020] 7 POSITION 28 AWG MAX. 2.5 AMP MAX. PIN = 0.50 [0.020] 9 POSITION 28 AWG MAX. 2 AMP MAX. PIN = 0.50 [0.020] CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 800V WORKING VOLTAGE = 260V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 600V WORKING VOLTAGE = 200V NorComp DRAWN: M. SIGMON DATE: 02-02-16 SCALE: N.T.S. SHEET 1 DWG NO. OF 1 820BYYY-273LYY1 REV: 6
