FGK.1B.304.CYMD62Z

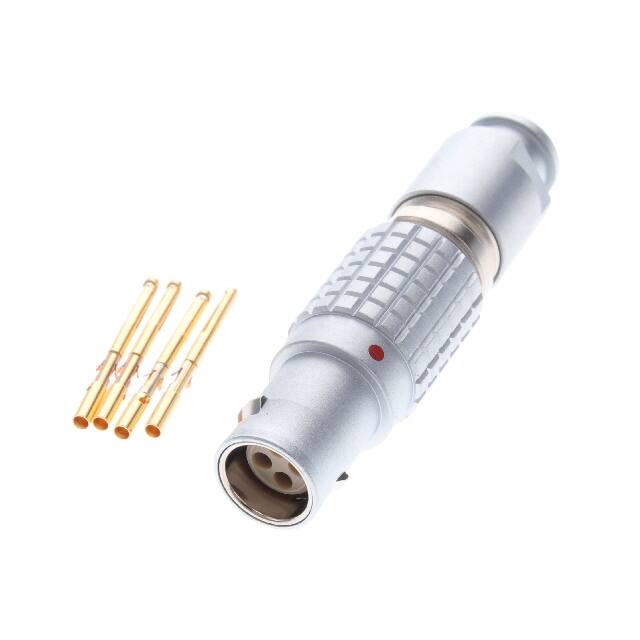

FGK.1B.304.CYMD62Z www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 1B Termination type Female crimp IP rating 50 AWG wire size 24.00 - 20.00 Cable Ø 5.30 - 6.20 mm Status active Matching parts EGK.1B.304.CYC Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet and nut for fitting a bend relief Keying 2 keys (gamma=70, plug: female contacts, receptacle: male contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 17.21 g Performance Configuration 1B.304 : 4 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 10 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 R (max): 4.8 mOhm Vtest (contact-shell): 1800 V (AC), 2550 V (DC) Vtest (contact-contact): 1700 V (AC), 2400 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 12 42 31 10 9 in. 0,47 1,65 1,22 0,39 0,35 RECOMMENDED BY LEMO LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Tools Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 20-22-24/6-5-5 Positionner: DCE.91.091.BVM Extractor: DCF.91.090.2LT Replacement contact: EGG.1B.660.ZZM Spanner wrench: DCD.1B.015.PA090 Cables CMN.04.T20.053PGZE Grey CMN.04.T20.053PNZE CMN.04.T20.053QGZE TPR (medical) Grey 240500 PVC Grey 4220 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
