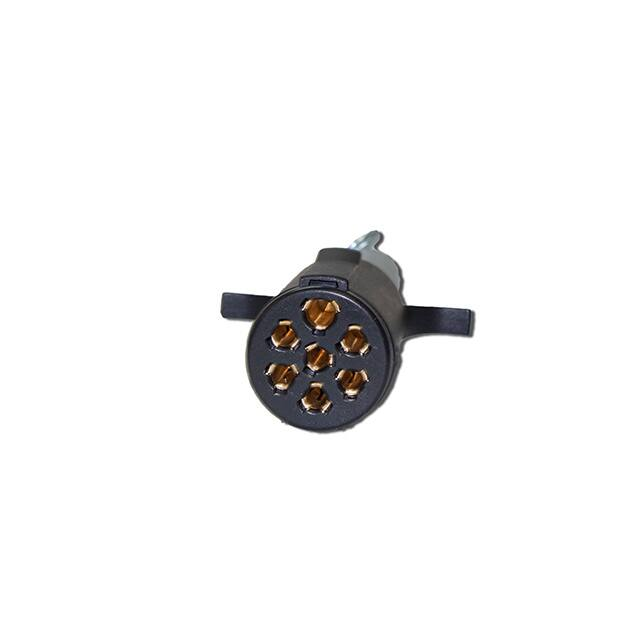

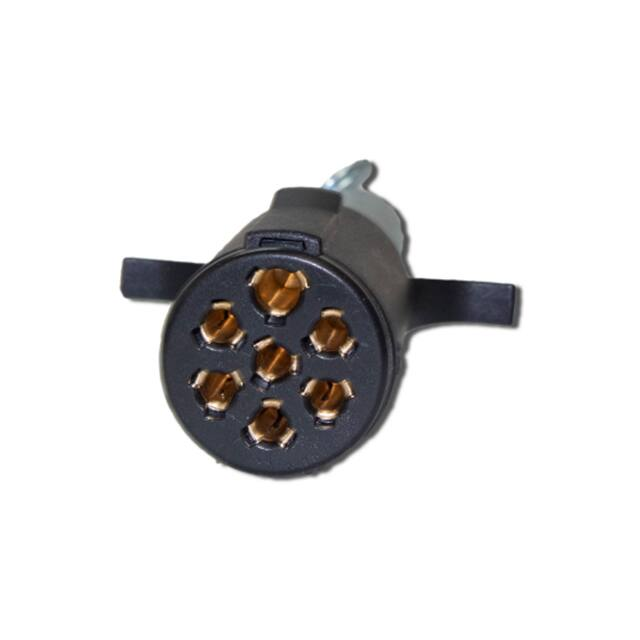

TC7-P2-N

Trailer Connector TC7-P2-N Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Wiring Color Codes A.T.A & S.A.E WIRING CODES RECOMMENDED STANDARD CIRCUITS POLE WIRING COLOR CODE Ground Return White 8 GA Clearance, Side Marker and Identification Lamps Black 12 GA Left Turn & Hazard Signal Yellow 12 GA Stop Lamps & Anti-Lock Devices Red 10 GA Right Turn Signal & Hazard Signal Green 12 GA Tail, Rear Clearance Marker, and License Plate Lamps Brown 12 GA Auxiliary Circuit/ABS Blue 10 GA Rev A 08/2019 Trailer Connector Rev A TC7-P2-N Designed Approved Date of issue Revision Notes 08-31-2019 Initial Drawing RC Rev A 08/2019 OH
