FGN.0F.302.XLC

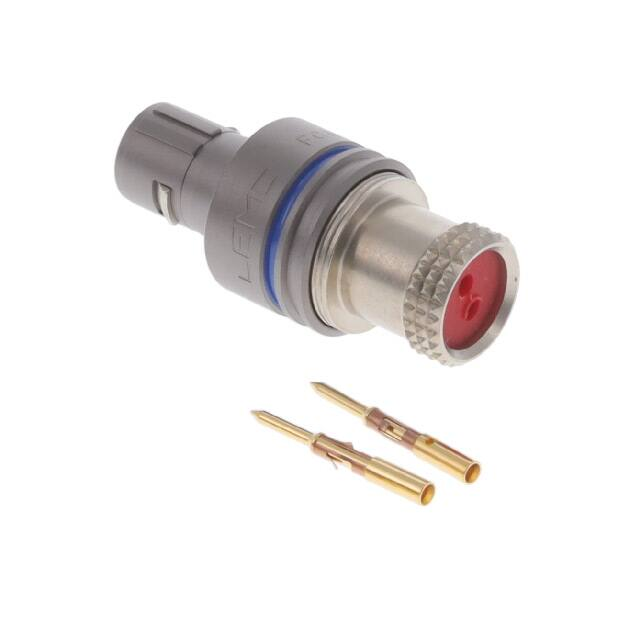

FGN.0F.302.XLC www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 0F Termination type Male crimp IP rating 67 AWG wire size 24.00 - 20.00 Cable Ø 3.80 - 9.00 mm Status active Matching parts EGN.0F.302.XLM Download Request a quote Catalog See video assembly instructions TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug Keying 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts) Housing Material Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass Weight 6.46 g Performance Configuration 0F.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 1200 V (AC), 1700 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-contact): 1450 V (AC), 2100 V (DC) Others Endurance (Shell): 1000 mating cycles Temp (min / max): -15°C / +200°C Humidity (max):
