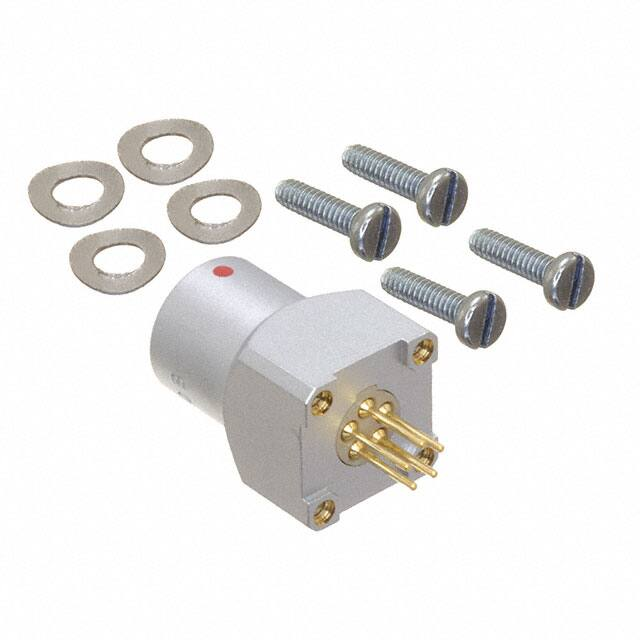

EZG.0B.305.CLN

EZG.0B.305.CLN www.lemo.com SUMMARY # Wires Low voltage 5 Image is for illustrative purpose only Series 0B Termination type Female print PCB IP rating 50 AWG wire size 30.00 - 22.00 PCB Altium Pattern Cable Ø 0.00 - 0.00 mm PCB KiCad Pattern Status active Catalog Matching parts FGG.0B.305.CLAD52Z Download Request a quote PCB Eagle Pattern TECHNICAL DETAILS Mechanics Shell Style/Model EZ*: Straight receptacle for printed circuit Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 6.55 g Performance Configuration 0B.305 : 5 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 6.5 Amps Specifications Contact Type: Print (straight) Contact Dia.: 0.7 mm (0.028in) R (max): 6.1 mOhm Vtest (contact-shell): 700 V (AC), 990 V (DC) Vtest (contact-contact): 1000 V (AC), 1400 V (DC) Others LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr 12NC part number: 4022.438.33233 DRAWINGS Dimensions A B H K L N mm. 9 10 7.62 8 3-4.5 15 in. 0,35 0,39 0,30 0,31 0,12 0,59 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
