PAG.M0.4GL.AC39G

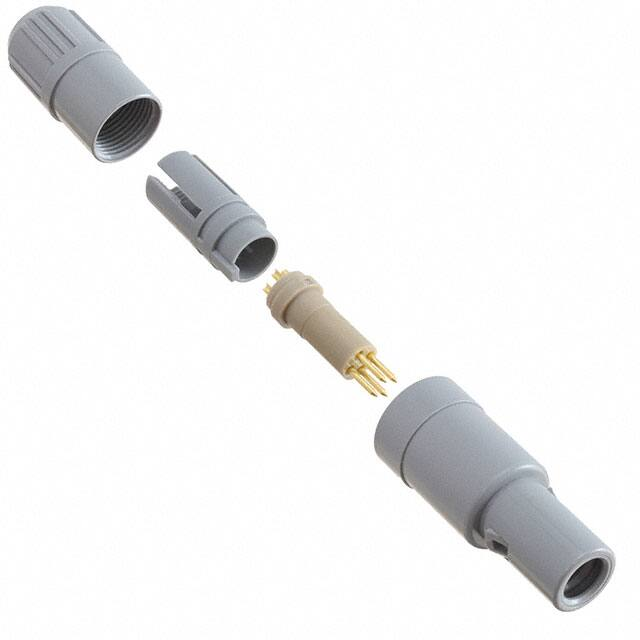

PAG.M0.4GL.AC39G www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 1P Termination type Male solder IP rating 50 AWG wire size 0.00 - 22.00 Cable Ø 2.70 - 3.90 mm Status active Matching parts PLG.M0.4GL.LG Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PA*: Straight plug with cable collet Keying 1 key (alpha=0; Plug: male contact; Receptacle: female contact) Housing Material PSU (Polysulfone), gray Variant G : Gray collet nut Weight 4.86 g Performance Configuration 1P.M04 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 8 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 4.5 mOhm Test voltage (kV rms) Contact-contact: 1.2 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Air clearance min.: 1.2 mm Creepage distance min.: 1.2 mm Others Endurance (Shell): >2000 mating cycles Temp (min / max): -50°C / +150°C F ret (min): 50 N F ret (max): 150 N Steam sterilization: > 100 times (with potting on rear connection) DRAWINGS RECOMMENDED BY LEMO Tools Cables CMN.04.T28.031PGCE PVC CMN.04.T28.031PGZE CMN.04.T28.031PNCE GREY Grey PVC Black CMN.04.T28.031QGC TPR Grey 40080 PVC Black CMN.04.T28.031PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 40086 40240 PVC PTFE Blue White 4041 PVC Grey 4050 PVC Black 4260 PTFE White LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
