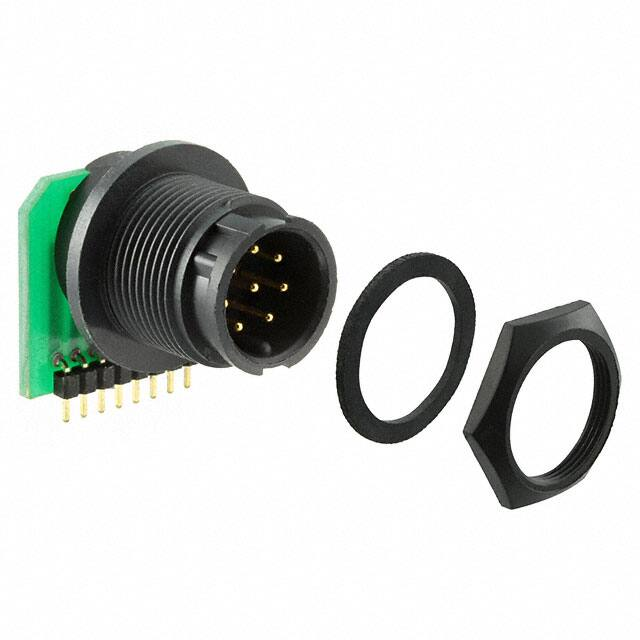

7261-8PG-300

CUSTOMER DRAWING MFG. ENG. APPROVED BY: DATE: QA APPROVED BY: DATE: NOTES: 1. ALL HOLES REQUIRED REGARDLESS OF NUMBER OF POSITIONS OF CONNECTOR. 2. MAXIMUM PANEL THICKNESS RECOMMENDED: 0.188 [4.78mm] 3. HEX NUT & GASKET SHIPPED UNASSEMBLED. 4. HEX NUT TIGHTENING TORQUE: 8-10 IN/LB 5. THE DIMENSION DOES NOT INCLUDE THE GASKET. 6. CURRENT RATING5-8 CONTACT: 4.0 AMP 2-4 CONTACT: 5.0 AMP 7. TEMPERATURE RATING: -40 C TO +85 C (-40 F TO +185 F) 8. MATERIALSPANEL CONNECTOR, HEX NUT, & SPACER: THERMOPLASTIC GASKET: ELASTOMER CONTACTS: COPPER ALLOY, GOLD PLATE PCB: FR-4 HEADER INSULATOR: THERMOPLASTIC, UL94V-0 9. THIS PRODUCT IS RoHS COMPLIANT. 0.96 24.3 0.80 20.3 0.81 20.6 0.56 14.2 (SEE NOTE 5) 7261-8PG-300 SHOWN 0.77 19.6 0.10 2.5 POSITION 1 INDICATOR 8X 0.020 0.50 0.502 12.75 HEX NUT (SEE NOTE 3 & 4) GASKET (SEE NOTE 3) 0.551 14.00 8X 0.038 0.97 5/8-27 THREAD 0.222 5.63 (SEE NOTE 5) 7X 0.079 2.00 5 6 1 2 3 4 NC NC CL RECOMMENDED PCB LAYOUT PCB COMPONENT SIDE SCALE 3:1 (SEE NOTE 1) 0.582 14.8 7261-6SG-300 SHOWN 6 PIN FEMALE ASSEMBLY CL 2, 3, 5 & 6 POSITION LOCATIONS 0.128 MAX 3.25 TO EDGE OF PCB 4 1 2 NC NC NC 3 NC 7261-_ _ G-300 SERIES CL 4 POSITION LOCATIONS 0.610 15.5 RECOMMENDED PANEL CUT-OUT (SEE NOTE 2) 5 6 7 8 1 2 3 4 CL PART NUMBER: 7261 7261-8PG-300 SHOWN 8 PIN MALE ASSEMBLY PRELIMINARY # OF CONTACTS 2,3,4,5,6,7,8 (7&8 NOT AVAILABLE IN FEMALE) 7 & 8 POSITION LOCATIONS G - 300 GENDER P - MALE S - FEMALE CUSTOMER DRAWING 0C 0B 0A JGK JGK JGK REV. INIT. 11/05/15 9/21/15 8/28/13 DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. RoHS COMPLIANT UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX UPDATED NOTES. UPDATED NOTES. DRAWING CREATED PER PROJECT #09001. DESCRIPTION ORIG. DRAWN BY: JGK DATE: 8/26/13 CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE 3:2 FILE: SIZE B SAME AS P/N SHEET 1 OF 1 CUSTOMER: DIRECTORY: PART NUMBER: SLW MINI-CON-X RIGHT ANGLE 2-8 POSITION NARROW PC BOARD STANDARD PRODUCT 7261- _ _G-300 SERIES REV 0C
