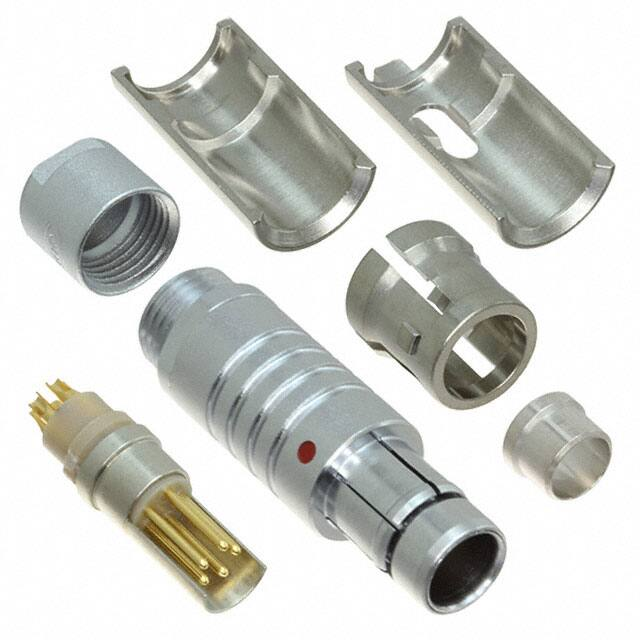

ODU MINI-SNAP® Series F 010.054.000.000.000 Assembly Instructions Unsealed Plugs (IP 50) – Crimp Version – Solder Version Sealed Plugs (IP 68) – Crimp Version – Solder Version Sealed Right-Angled Plugs (IP 68) – Crimp Version – Solder Version www.odu.de 010.054.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Straight Plug and In-line Receptacle IP 50 Crimp Version Back nut (style 1) In-line receptacle Insert with solder capacity Half-shells EMI ring Cable collet Plug Crimp insert Back nut for cable bend relief (style 2) cable bend relief 1. Slide cable bend relief, back nut, cable collet and EMI ring over the cable. 2. Strip cable and wire corresponding the table (see page 18). 3. Fit wire into the contact barrel and crimp. Page 2 www.odu.de 010.054.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Insert contacts into insulator according to contact arrangement. 5. Bend cable shield outwards. Assemble half-shells. 6. Slide the EMI ring and the cable collet against the half-shells and clamp the shield against it. 7. Put the assembled cable considering the guidings (B) in the connector housing. If necessary, secure thread (A) with adhesive (see page 18) . A B 8. Screw back nut on the assembled plug and hold against (C) with ODU spanner wrench. C Caution! Consider tightening torque (see page 18). The assembly is finished. www.odu.de Page 3 010.054.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Straight Plug and In-line Receptacle IP 50 Solder Version Back nut (style 1) In-line receptacle Insert with solder capacity Half-shells EMI ring Plug Crimp insert Cable collet Back nut for cable bend relief (style 2) cable bend relief 1. Slide cable bend relief, back nut, cable collet and EMI ring over the cable. 2. Strip cable and wire corresponding the table (see page 18). 3. Pre-tinning of strands. Page 4 www.odu.de 010.054.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Solder the wires (A) according to contact arrangement. A 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring and the cable collet against the half-shells and clamp the shield against it. 7. Put the assembled cable considering the guidings (C) in the connector housing. If necessary, secure thread (B) with adhesive (see page 18). B C 8. Screw back nut on the assembled plug, counterhold by means of the spanner flat (D) and hold against with ODU spanner wrench. D Caution! Consider tightening torque (see page 18). The assembly is finished. www.odu.de Page 5 010.055.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Straight Plug and In-line Receptacle IP 68 Crimp Version Washer EMI ring (optional) In-line receptacle Insert with solder capacity Back nut (style 1) Half-shells Sealing Cable collet Plug Crimp insert Back nut for cable bend relief (style 2) cable bend relief 1. Slide cable bend relief, back nut, cable collet, washer, sealing and EMI ring over the cable. 2. Strip cable and wire corresponding the table (see page 18). 3. Fit wire into the contact barrel and crimp. Page 6 www.odu.de 010.055.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Insert contacts into insulator according to contact arrangement. 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring, sealing, washer and the cable collet against the half-shells and clamp the shield against it. 7. Put the assembled cable considering the guidings (B) in the connector housing. If necessary, secure thread (A) with adhesive (see page 18). A B 8. Screw back nut on the assembled plug, counterhold by means of the spanner flat (C) and hold against with ODU spanner wrench. C Caution! Consider tightening torque (see page 18). The assembly is finished. www.odu.de Page 7 010.055.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Straight Plug and In-line Receptacle IP 68 Solder Version Washer EMI ring (optional) In-line receptacle Insert with solder capacity Back nut (style 1) Half-shells Sealing Cable collet Plug Crimp insert Back nut for cable bend relief (style 2) cable bend relief 1. Slide cable bend relief, back nut, cable collet, washer, sealing and EMI ring over the cable. 2. Strip cable and wire corresponding the table (see page 18). 3. Pre-tinning of strands. Page 8 www.odu.de 010.055.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Solder the wires (A) according to contact arrangement. A 5. Bend cable shield outwards, assemble half shells. 6. Slide the EMI ring, sealing, washer and the cable collet against the half-shells and clamp the shield against it. 7. Put the assembled cable considering the guidings (C) in the connector housing. If necessary, secure thread (B) with adhesive (see page 18). B C 8. Screw back nut on the assembled plug, counterhold by means of the spanner flat (D) and hold against with ODU spanner wrench. D Caution! Consider tightening torque (see page 18). The assembly is finished. www.odu.de Page 9 010.053.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Right-Angled Plug IP 68 Crimp Version Plug Insert with solder capacity Half-shell O-ring Back screw Right-angled part EMI ring Sealing Washer (optional) Crimp insert Cable collet Back nut for cable bend relief (style 2) Cable bend relief Back nut (style 1) 1. Slide cable bend relief, back nut, cable collet, washer, sealing, EMI ring and right-angled part over cable. Page 10 2. Strip cable and wire corresponding the table (see page 19). 3. Fit wire into the contact barrel and crimp. www.odu.de 010.053.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Insert contacts into insulator according to contact arrangement. 5. Bend cable shield outwards, place half-shells and right-angled part over insulator. 6. Slide EMI ring, sealing, washer and cable collet against the rightangled part, and clamp shield between EMI ring and rightangled part. If necessary, secure thread (B) with adhesive (see page 19). Screw back nut on the assembled plug, counterhold by means of the spanner flat (C) and hold against with ODU spanner wrench. C B Caution! Consider tightening torque (see page 19). www.odu.de Page 11 010.053.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Right-Angled Plug IP 68 Crimp Version 7. Put the assembled cable considering the guidings (E) in the connector housing. If necessary, secure thread (D) with adhesive (see page 19). D E 8. Mount back screw (F) on the assembled plug and fasten cable with the ODU spanner wrench in the housing. F Caution! Consider tightening torque (see page 19). The assembly is finished. Page 12 www.odu.de ODU MINI-SNAP® Series F www.odu.de 010.053.000.000.000 Assembly Instructions Page 13 010.053.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F Assembly Right-Angled Plug IP 68 Solder Version Plug Insert with solder capacity Half-shell O-ring Back screw Right-angled part EMI ring Sealing Washer (optional) Crimp insert Cable collet Back nut for cable bend relief (style 2) Cable bend relief Back nut (style 1) 1. Slide cable bend relief, back nut, cable collet, washer, sealing, EMI ring and right-angled part over the cable. Page 14 2. Strip cable and wire corresponding the table (see page 19). 3. Pre-tinning of strands. www.odu.de 010.053.000.000.000 Assembly Instructions ODU MINI-SNAP® Series F 4. Solder the wires (A) according to contact arrangement. A 5. Bend cable shield outwards, place half-shells and right-angled part over insulator. 6. Slide EMI ring, sealing, washer and cable collet against the rightangled part, and clamp shield between EMI ring and rightangled part. If necessary, secure thread (B) with adhesive (see page 19). Screw the back nut, counterhold by means of the spanner flat (C) and tighten it with ODU spanner wrench. C B Caution! Consider tightening torque (see page 19). www.odu.de Page 15 ODU MINI-SNAP® Series F 010.053.000.000.000 Assembly Instructions Assembly Right-Angled Plug IP 68 Solder Version 7. Put the assembled cable considering the guidings (D) in the connector housing. If necessary, secure thread (E) with adhesive (see page 19). E D 8. Mount back screw on the assembled plug and counterhold by means of the spanner flat (F) with ODU spanner wrench. F Caution! Consider tightening torque (see page 19). The assembly is finished. Page 16 www.odu.de ODU MINI-SNAP® Series F www.odu.de 010.053.000.000.000 Assembly Instructions Page 17 ODU MINI-SNAP® Series F Assembly Instructions Notes for Straight Plug and In-line Receptacle IP 50 and IP 68 Crimp and Solder Version In sealed versions plugs and cables must always be matched to each other, so we need detailed information about the cable you are using. 1. Recommended stripping length Size Contact diameter 0 1 1.5 2 3 2. Tightening torque of the back nut Solder termination Crimp termination Size 0 1 1.5 2 3 L A S L A S Torque moment in Nm 0.6 1.0 1.5 2.0 3.5 0.5 6 2 2.5 - - - 0.7 6 2.5 2.5 6 3 2.5 0.9 6 2.5 2.5 6 3 2.5 0.5 9 2 2.5 - - - 0.7 9 2.5 2.5 13 4 2.5 0.9 9 2.5 2.5 13 4 2.5 1.3 9 3 2.5 13 4 2.5 0.5 12 2 2.5 - - - 0.7 12 2.5 2.5 16 4 2.5 0.7 11 2.5 2.5 15 4 2.5 0.9 11 2.5 2.5 15 4 2.5 1.3 11 3 2.5 15 4 2.5 0.7 14 2.5 2.5 18 4 2.5 0.9 14 2.5 2.5 18 4 2.5 1.3 14 3 2.5 18 4 2.5 3. Tools/Accessories ––ODU open-ended spanner see ODU MINI-SNAP series F, product catalogue section accessories and tools ––ODU crimping tool see ODU MINI-SNAP series F, product catalogue section accessories and tools Torque wrench 0.2 – 2.0 Nm Part number: 098.002.002.101.000 Torque wrench 1.0 – 10.0 Nm Part number: 098.002.002.102.000 Plug-in wrench, different width across flats Part number: 098.002.003.10..000 Calibration clockwork 0.2 – 4.0 Nm Part number: 098.002.001.001.000 Calibration clockwork 1.0 – 12.0 Nm Part number: 098.002.001.002.000 All dimensions in mm, dimension tolerance: +10 % 4. Recommended glue for the back nut A S Shield Loctite® 243™, ODU part number 890.204.000.030.031 Single conductor Cable Insulation L A = Stripping length single conductor L = Stripping length cable jacket S = Schirmgeflechtlänge Page 18 www.odu.de ODU MINI-SNAP® Series F Assembly Instructions Notes for Right-Angled Plug IP 68 Crimp and Solder Version In sealed versions plugs and cables must always be matched to each other, so we need detailed information about the cable you are using. 1. Recommended stripping length Size Contact diameter 0 1 1.5 2 3 2. Tightening torque of the back nut Solder termination Crimp termination Size 0 1 1.5 2 3 L A S L A S Torque moment in Nm 0.6 1.0 1.5 2.0 3.5 0.5 16 2 2.5 - - - 0.7 16 2.5 2.5 18 3 2.5 0.9 16 2.5 2.5 18 3 2.5 0.5 23 2 2.5 - - - 0.7 24 2.5 2.5 28 4 2.5 0.9 24 2.5 2.5 28 4 2.5 1.3 24 3 2.5 28 4 2.5 0.5 18 2 2.5 - - - 0.7 19 2.5 2.5 24 4 2.5 0.7 20 2.5 2.5 24 4 2.5 0.9 20 2.5 2.5 24 4 2.5 1.3 20 3 2.5 24 4 2.5 0.7 25 2.5 2.5 30 4 2.5 0.9 25 2.5 2.5 30 4 2.5 1.3 25 3 2.5 30 4 2.5 All dimensions in mm, dimension tolerance: +10 % A S Single conductor Shield Cable Insulation A = Stripping length single conductor L = Stripping length cable jacket S = Schirmgeflechtlänge www.odu.de L 3. Tightening torque of the back screw (right-angled plug) Size 0 1 1.5 2 3 Torque moment in Nm 0.3 0.4 0.6 0.9 1.3 4. Tools/Accessories ––ODU open-ended spanner see ODU MINI-SNAP series F, product catalogue section accessories and tools ––ODU crimping tool see ODU MINI-SNAP series F, product catalogue section accessories and tools Torque wrench 0.2 – 2.0 Nm Part number: 098.002.002.101.000 Torque wrench 1.0 – 10.0 Nm Part number: 098.002.002.102.000 Plug-in wrench, different width across flats Part number: 098.002.003.10..000 Calibration clockwork 0.2 – 4.0 Nm Part number: 098.002.001.001.000 Calibration clockwork 1.0 – 12.0 Nm Part number: 098.002.001.002.000 5. Recommended glue for the back nut Loctite® 243™, ODU part number 890.204.000.030.031 Page 19
