GTPWRDIN4LW

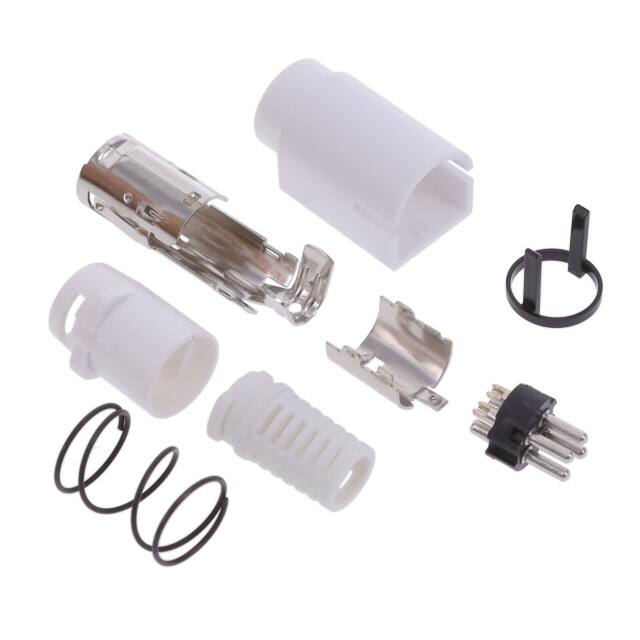

GlobTek, Inc. www.globtek.com 186 Veterans Drive, Northvale, NJ 07647 Tel. (201) 784-1000 Fax (201) 784-0111 Drawing Title:  Power Din Plug, 4P, Snap and Lock, White, supplied in kit, ready to assemble Model No.  High Power DC Connectors Part No./Ordering No.  GTPWRDIN4LW Rev A1 REVISION HISTORY REV DESCRIPTION SUB DATE APPROVED A1 Update the locking latch detail 06/21/2020 QA A Initial release 05/28/2020 QA In Addition to GlobTek Inc.'s renewed ISO9001:2008 - Quality Management System Certification, GlobTek Inc. is now certified to: ISO13485:2003 - Medical Devices Quality Management System Certification ISO14001:2004 - Environmental Management System Certification ISO Certificates are available online at http://www.globtek.com/iso-certificates/ Customer Approval of Specification: Please approve, sign and send back to GlobTek so we can complete order processing. A delay in receipt of this form will delay delivery schedule. Company Name: Customer P/N: Quote Number: Date: Authorized Representative Name: Authorized Representative Signature: The acceptance of this specification and use of the product described in this document indicates the acceptance and binding of the customer to Globtek terms and conditions, which supersede all other agreements, terms, and conditions ( http://en.globtek.com/terms-and-conditions/). Prop 65 Statement:https://en.globtek.com/prop-65-statement.pdf Footnote: GlobTek Inc. will not be liable for the safety and performance of these power supplies if unauthorized access and repair occurs. End user should consult applicable UL, CSA or EN standards for proper installation instruction. Limitation of Use: GlobTek products are intended for use with commercial, medical, and/or industrial equipment only. GlobTek product are not authorized for use as mission critical components in life support hazardous environment, nuclear or aircraft applications without prior written approval from the CEO of GlobTek Inc. Contents of this document are subject to change without prior notice. PROPRIETARY INFORMATION PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK, INC. © GlobTek, Inc. 2020 - 2021 guest /12/21/2021 3:14:17 AM CLONED FROM L01 Page 1 of 3 GlobTek, Inc. www.globtek.com 186 Veterans Drive, Northvale, NJ 07647 Tel. (201) 784-1000 Fax (201) 784-0111 Drawing Title:  Power Din Plug, 4P, Snap and Lock, White, supplied in kit, ready to assemble Model No.  High Power DC Connectors Part No./Ordering No.  GTPWRDIN4LW Rev A1 AGENCY ONLINE DOCUMENTS RoHS/RoHS3 Declaration https://www.globtek.com/pdf/rohs_cert/01t3a000004GWEYAA4 REACH Declaration https://www.globtek.com/pdf/iso_certificates/REACH.pdf Conflict Minerals Declaration https://www.globtek.com/pdf/conflict-minerals.pdf Prop 65 Statement https://en.globtek.com/prop-65-statement.pdf IPXY rating is based on 3rd party testing and customers should check suitability and test system level IPXY rating before ordering. Drawing: Locking Assembly detail: Standard and on this item: under different part #)   Optional cover upon request  ( Electrical Specification: Current /Voltage Pin 1, 2, 3, 4 : 7.5Amax/54VDC Insulation resistance 50M 250VDC Contact resistance 30 m Withstand voltage (pin to pin) 250VAC / 1min Lifetime 5000 Operation Temperature -20- 50 contacts designed for AWG18 max wire PROPRIETARY INFORMATION PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK, INC. © GlobTek, Inc. 2020 - 2021 guest /12/21/2021 3:14:17 AM CLONED FROM L01 Page 2 of 3 GlobTek, Inc. www.globtek.com 186 Veterans Drive, Northvale, NJ 07647 Tel. (201) 784-1000 Fax (201) 784-0111 Drawing Title:  Power Din Plug, 4P, Snap and Lock, White, supplied in kit, ready to assemble Model No.  High Power DC Connectors Part No./Ordering No.  GTPWRDIN4LW Rev A1 Mechanical Specification: Body: ABS, UL 94HB Rated Insert: Nylon, UL 94V-2 Rated Inner Shield: Copper Alloy, Nickel Plated Contacts: Brass, Silver Plated Insertion Force: 4.5KG Max Pull Force: 1.0-4.5KG unlocked, 4.5KG Min locked.   Durability: 5000 cycles Color: GlobTek White, Similar to RAL9003 "Signal White" Pin contacts designed for AWG18 max wire. Each set is individually bagged. Mates with: KPJX-CM-4S    KPJX-PM-4S    KPJXHT-4S    KPJX-4S    KPJX-PM-4S-S    KPJXHT-4S-S    PD-40VS    PD-40V    PD-40    PD-40S   PROPRIETARY INFORMATION PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK, INC. © GlobTek, Inc. 2020 - 2021 guest /12/21/2021 3:14:17 AM CLONED FROM L01 Page 3 of 3
