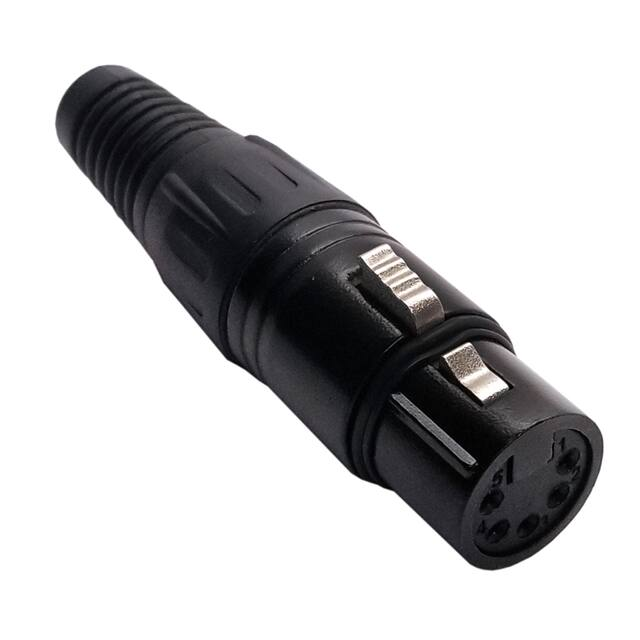

IO-XLR5-F-BK

XLR CABLE CONNECTORS 5 PIN XLR 5 pin XLR style connectors perfect for use in audio cables and also in DMX cables. IO-XLR5-M-BK IO-XLR5-F-BK SPECIFICATIONS MECHANICAL PRODUCT Gender: Male (IO-XLR5-M-BK) Female (IO-XLR5-F-BK) Lifetime: > 1000 Mating Cycles Cable O.D.: 3.5 - 8.0mm Contacts: 5 Wiresize: 1.25mm OD Max ELECTRICAL Wiring: Solder Contacts Capacitance Between Contacts: < 2 pF Capacitance Between Contact and Ground: < 2 pF Contact Resistance: < 7 mΩ Solderability: Complies with IEC 60068-2-20 MATERIAL Pins: Brass (IO-XLR5-M-BKAU) Insulation Resistance: ≥ 1000 MΩ Dielectric Strength: 1500V @ 60s Current Rating: 7.5 A / 125 V AC Phosphor Bronze (IO-XLR5-F-BKAU) Pin Plating: Silver Push Button: Die Cast Zinc ENVIRONMENTAL Locking Mechanism: Stainless Steel UL Flammability Rating: UL 94 HB Locking Mechanism Finish: Tin Standard Compliance: IEC 61076-2-103 Shell: Die Cast Zinc Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Shell Finish: Black Insert: POM Bushing: PVC Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR5-M-BK IO-XLR5-F-BK FEATURES & APPLICATIONS The IO-XLR5-M-BK and IO-XLR5-F-BK connectors feature durable die cast zinc shells with built in latch locks which provide a reliable connection when mated with the opposite gender. They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support from excessive bending. The silver plated contacts ensure a great signal every time. 5 pin XLR connectors are a perfect solution for applications requiring a rugged and dependable locking connection. Because the housing construction is threaded, the connectors require no tools for assembly, making them ideal for onsite termination and allow the user to be able to troubleshoot connection issues quickly. This connector is perfect for use in balanced audio, DMX, low voltage power, and control applications where the termination method is solder cups. These connectors are also available with gold plated contacts (IO-XLR5-M-BKAU & IO-XLR5-F-BKAU). PART NUMBER BREAKDOWN: STANDARDS & CLASSIFICATIONS IO-XLR5-M-BK Connector Type IO-XLR5-M-BK Number of Pins IO-XLR5-M-BK Gender IO-XLR5-M-BK Body Color Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
