EGG.2B.308.CLL

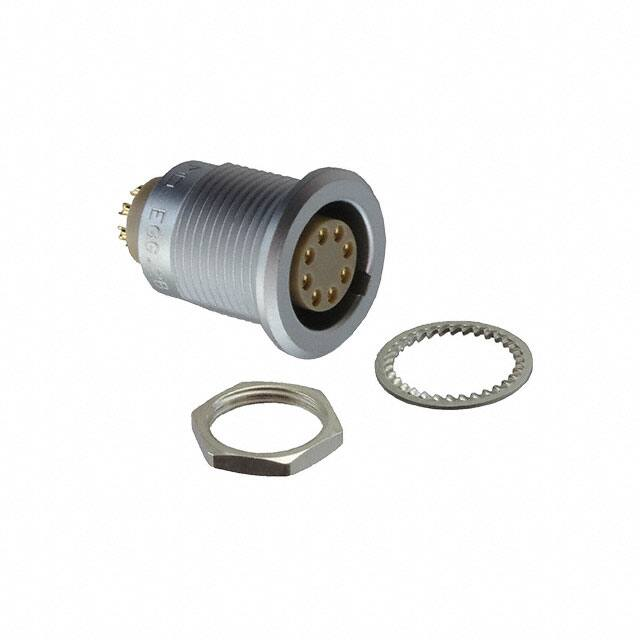

EGG.2B.308.CLL www.lemo.com SUMMARY # Wires Low voltage 8 Image is for illustrative purpose only Series 2B Termination type Female solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.2B.308.CLAD62Z Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 14.59 g Performance Configuration 2B.308 : 8 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 4.8 mOhm Vtest (contact-shell): 1250 V (AC), 1770 V (DC) Vtest (contact-contact): 1500 V (AC), 2120 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 18 19.5 8.5 26.7 1.8 24.6 13.5 17 M15x1.0 in. 0,71 0,77 0,33 1,05 0,07 0,97 0,53 0,67 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.08.T22.059QGC TPR Grey CMN.08.T22.059QGZE TPR (medical) Grey CMN.08.T26.042QGZE TPR (medical) Grey 108220 PVC Black 108240 PTFE White 108260 PTFE White 16080 PVC Grey 180240 PVC Black 180260 PVC Black 280250 PVC Grey 335990 PVC Black 335991 PVC Black 42265 PVC Yellow 80140 PVC Grey 8050 PVC Black 8280 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
