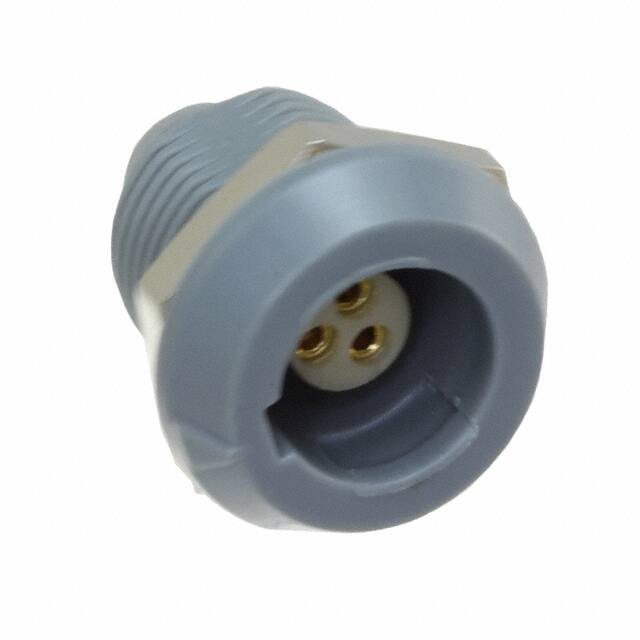

8P1P003200GRF01

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - FRONT PANEL MOUNT - PLASTIC UNITS = MM [INCHES] CHARACTERISTICS MATERIALS HOUSING : ABS+PC HOUSING COLOR : GREY NUT A : BRASS NUT A PLATING : NICKEL CONTACTS : COPPER ALLOY CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN. INSULATOR : PPS (HIGH TEMPERATURE) 8P1P YYY 2 0 0 GRF 01 1 = GOLD FLASH SERIES 14.00 [0.551] RoHS COMPLIANT NUT "B" COLOR G = GREY # OF POSITIONS (Ex. 002) **SEE CHART A** MECHANICAL DURABILITY: 2000 CYCLES OPERATING TEMP. RANGE: -20 C ~ +120 C PROCESS TEMPERATURE : 260 C FOR 5 SECONDS MAX. TORQUE VALUE : 0.7 Nm [6.19 IN/lbs] 2 = FEMALE SOLDER CUP (PANEL MOUNT) PLASTIC SHELL 0.955 24.25 IP RATING: 50 0.797 20.25 0 4.0 1] 55 [0. 0.496 12.60 0.728 18.50 M14*1.0 0.488 12.40 0.669 17.00 1 1 14 POSITION 26 AWG MAX. 2 AMP MAX. PIN = 0.50 [0.020] PANEL CUTOUT 0.157 4.00 0.315 8.00 MAX. PANEL THICKNESS CHART A 1 1 CONTACT RESISTANCE = 5 mΩ TEST VOLTAGE = 1200V WORKING VOLTAGE = 400V 3 POSITION 22 AWG MAX. 10 AMP MAX. PIN = 1.30 [0.051] CONTACT RESISTANCE = 5 mΩ TEST VOLTAGE = 1200V WORKING VOLTAGE = 400V 4 POSITION 22 AWG MAX. 8 AMP MAX. PIN = 0.90 [0.035] CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1200V WORKING VOLTAGE = 400V RoHS COMPLIANT N C THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF NorComp AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 600V WORKING VOLTAGE = 200V **VIEW FROM TERMINATION END** = KEY LOCATION 1 2 POSITION 22 AWG MAX. 10 AMP MAX. PIN = 1.30 [0.051] TOLERANCE = +0.10, -0.0 [+0.004, -0.00] 1 1 1 1 1 1 5 POSITION 22 AWG MAX. 7 AMP MAX. PIN = 0.90 [0.035] 6 POSITION 24 AWG MAX. 6 AMP MAX. PIN = 0.70 [0.028] 7 POSITION 24 AWG MAX. 5 AMP MAX. PIN = 0.70 [0.028] 8 POSITION 24 AWG MAX. 5 AMP MAX. PIN = 0.70 [0.028] 9 POSITION 26 AWG MAX. 3 AMP MAX. PIN = 0.50 [0.020] 10 POSITION 26 AWG MAX. 3 AMP MAX. PIN = 0.50 [0.020] CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1050V WORKING VOLTAGE = 350V CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 1050V WORKING VOLTAGE = 350V CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 1050V WORKING VOLTAGE = 350V CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 1050V WORKING VOLTAGE = 350V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V NorComp DRAWN: M. SIGMON DATE: 10-04-16 SCALE: N.T.S. SHEET 1 DWG NO. OF 1 REV: 8P1PYYY200GRF01 2
