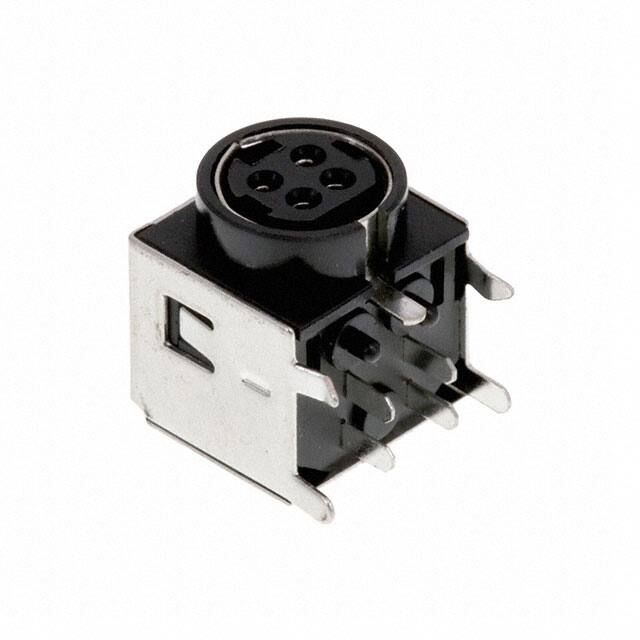

KPJX-4S-S

Material and Finish 9.0 Ø3.0 Body: PBT Thermoplastic UL94V-0 Rated Color: Black 4.0 Ø12.9 4 15.0 3 Contacts Plating Options: Standard: Tin Plating 30 Option: 30u" Gold Plated 7.1 2 14.4 Contacts: Brass 1 Outer Shield: Steel, Tin Plated 3.2 2-Ø1.50 1.80 5.5 7.5 11.0 14.65 16.0 Contact Rating (Per Pin): 7.5A Max. @ 48V DC Insulation Resistance: 50 Megohms Min. at 250V DC Dielectric Withstanding Voltage: 500V AC RMS for 1 Min. Contact Resistance: 30 milliohms Max. 5.00 4 1 2 6-0.6x2.7 3 4 1 2 -40°C to 75°C Face Detail 5.80 15.60 5.8 3 Recommended PCB Layout Bottom View Part Number 1 Note: Recommended for use with Kycon KPPX plug. 2.95 3.8 3.0 4-Ø1.60 2.30 2-Ø2.20 Mechanical Characteristics Operating Temperature: 3.00 5.50 2-Ø1.70 3.60 1.75 1.25 2.2x1.0 16.00 2.5 3 Electrical Characteristics 8-2.00 0.40±0.2 4-0.30±0.2 7.50 11.00 14.65 2.0 Inner Shield: Copper Alloy, Tin Plated 3.5 KYCON, Inc. 305 Digital Drive, Morgan Hill, CA 95037 (408)494-0330 17.4 16.0 2 4 3.60 Tolerances Contact Area Plating Finish KPJX-4S-S KPJX-4S-S-30 R Tin Plating R RoHS COMPLIANT 30u" Gold (30 Option) REV. DATE DESCRIPTION REV. BY CHK. BY DRAWN BY DATE A12 A13 A14 A15 A16 A17 09/18/15 02/19/16 12/12/16 08/20/18 10/05/18 08/15/22 ECO #15-010 ECO #16-005 ECO #16-033 ECO #18-034 ECO #18-051 ECO #22-004 C. Kelleher C. Kelleher G. Serrato G. Serrato G. Serrato W. Cook W. Cook W. Cook W. Cook D. Shehan D. Shehan C. Furumasu H. MA 4/13/05 UNITS mm KPJX-4S-S E140125 DC Power Jack, RoHS Compliant 4 Position, Shielded C US LR78160 X.X ± 0.35 X.XX ± 0.25 Unless Stated Otherwise
