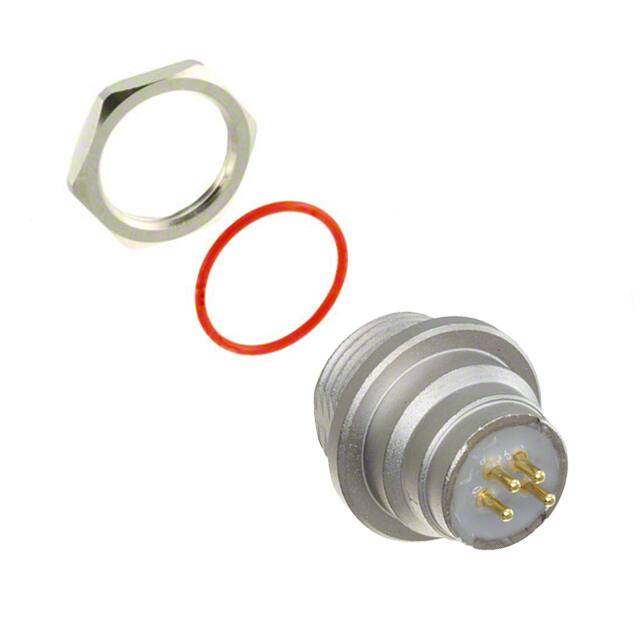

HS2P4M20-BP

PCB Mount Dura-Pull® & Dura-Twist® Connectors Dura-Pull® NEW Option NPB 653 Dura-Twist® REAR-MOUNT RECEPTACLES WITH PC-TAIL CONTACTS The Dura-Pull® and Dura-Twist® series are the first push-pull connectors to offer the harshenvironment reliability Switchcraft/Conxall is known for. These new options feature “PC-tail” type contacts which are suitable for mounting directly on a PCB for quick and reliable installation. Visit Switchcraft.com to learn more about the Dura-Pull® and Dura-Twist series! IP68 REAR-Mount Connector Design Optional Sealed Unmated Switchcraft Quality Rear-mountable receptacles make it easy to solder the connectors to a PCB prior to mounting on a panel. High quality, silicon-based potting compound ensures the connector remains sealed to IP68 - even when unmated! Built to the same high quality-level and specifications that the Dura-Pull® and DuraTwist® connector series are known for. Specifications Life: 5,000 insert/withdrawals min Ingress Protection: IP68 Temp. Limits: -40°C to 135°C Electrical: 10A, 125V AC (2-pin) Housing: Copper Alloy, Ni Plated Contacts: Copper Alloy, Au Plated Insulator: LCP, Natural O-Rings: Thermoplastic Elastomer P - BP CONNECTOR: HS2 - Dura-Pull Push-Pull TS2 - Dura-Twist Threaded # OF CONTACT PINS: 2 thru 9 GENDER: M - Male Pins F - Female Sockets CONTACT SIZE: 20 - #20 (2-5 contacts) 26 - #26 (6-9 contacts) EPOXY SEAL: E - Optional potting compound sealed VISIT WWW.SWITCHCRAFT.COM FOR DRAWINGS AND DETAILED SPECIFICATIONS
