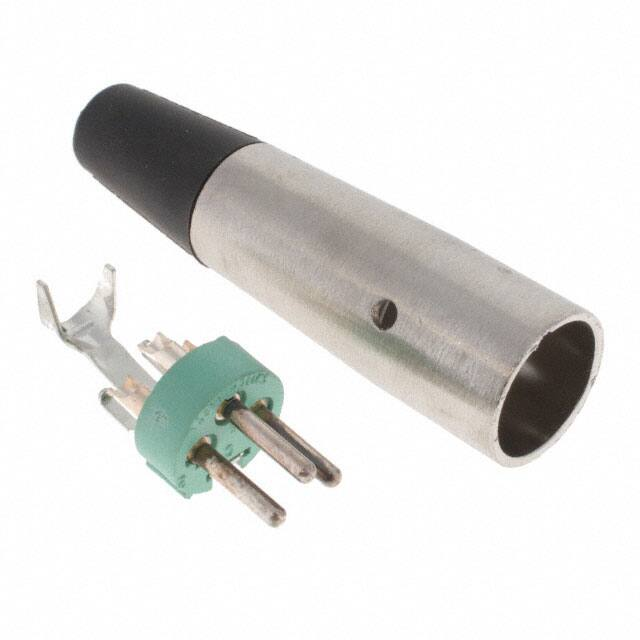

AA3M

* Please visit the product pages on our website for the most up-to-date product information ABOUT SWITCHCRAFT, INC. Switchcraft, Inc. was established in 1946 to manufacture jacks, plugs and switches, from its original plant located on West Diversey Street in Chicago. The company moved to a larger facility at 1328 North Halsted Street in 1948, and in 1958, the operation moved to 5555 North Elston Avenue, which is still the headquarters of the corporation. CATALOG SECTIONS Connectors . . . . . . . . . . . 1-78 Jacks & Plugs . . . . . . . . . 79-162 Jack Panels . . . . . . . . . . . 163-238 Patch Cords and Molded Cable Assemblies . . . . . . . . . . . 239-268 In the 185,000-square-foot Chicago facility, Switchcraft manufactures electronic and elecromechanical components, including: • Jacks • Plugs • Connectors • Jackfields • Patch Panels • Patch Cords • Switches • EAC Power • Molded Cable Assemblies Receptacles Switches . . . . . . . . . . . . . 269-318 Index by Part Number . . . 319-328 With a basic line of over 5,000 standard products and thousands of variations, Switchcraft is proud to offer a limited lifetime warranty on all products. Switchcraft markets products both domestically and internationally through a network of manufacturers’ representatives and independent distributors. In 1999, Switchcraft acquired the Conxall Corporation located in Villa Park, Illinois. Conxall was founded in 1971 as a manufacturer of sealed connectors for the marine industry. Today, the company offers a broad line of custom cable assemblies and connectors used in marine, industrial, sensor, communications and transportation applications. For more information contact Conxall at (630) 834-7504, or visit their website at www.conxall.com. LIMITED LIFETIME WARRANTY Switchcraft warrants all of its products to be of sound design, good materials and workmanship at the time of manufacture. Switchcraft will repair or replace at its discretion any product proven to be defective under normal use. Switchcraft’s liabilty under the terms of this warranty is limited to the repair or replacement of defective products which have not been damaged through accident, abuse, misuse or unauthorized repair. Switchcraft shall in no case be liable for special or consequential damages of any nature. Visit us on the net: www.switchcraft.com Switchcraft®. . . Consistently Excellent Since 1946sm ABOUT Switchcraft is a leading supplier of a broad line of components for the audio/video, broadcast, telecommunication, computer, medical, military, appliance, transportation and instrumentation industries. i PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information TABLE OF CONTENTS CONNECTORS AND RECEPTACLES Q-G® XLR CONNECTORS.........................................................1-30 Q-G® Connector Part Numbering System....................................2 Professional Series Q-G® Connector Part Numbering System .......2 Q-G® Audio Connectors A, AA, AND QGP Series....................3-4 Part Numbers - Male Cord Plugs/Female Cord Plugs ..................4 Q-G® Color Flex Reliefs/Flex Relief .............................................5 AAA XLR Connectors ................................................................6-7 P(*)M Gooseneck Plug, P(*)F Microphone Plug, R(*)MZ Cord Plug, R(*)FZ Cord Plug ...........................................8 D(*)M, D(*)F and D(*)FD Receptacles ..........................................9 T(*)F and T(*)FM Cord Plug With On-Off Switch ..........................9 B(*)F Receptacle, C(*)F Receptacle, B(*)M Receptacle, C(*)M Receptacle ........................................................................10 E Series Receptacles.............................................................11-15 EH Series Receptacles ...............................................................16 PQG® Receptacles................................................................17-18 PD Series - Plastic Panel Mount ...........................................19-21 Y3F, Y3FPC, Y3FDPC and Y3MPC Receptacles ........................22 F Series Receptacles ............................................................23-24 Q-G® Adapters, Accessories .....................................................25 Q-G® Wall Plate Receptacles ....................................................26 Q-G® Connector-Adapters.....................................................27-28 S*FM Audio Connector-Adapter .................................................28 Audio “Y” Adapters .....................................................................28 DMX Adapter ..............................................................................29 Q-G® Connector-Adapter Receptacles ......................................30 Z Matching Transformers, Series M(*)M, Series L(*)MN ............30 TINI Q-G® MINIATURE CONNECTORS .................................31-37 Tini Q-G® Audio Adapters ..........................................................31 TB(*)M AND TB(*)MB Receptacle,TLP(*) Looping Plug, Straight Female Looping Plug, Reverse Gender TQG Series .................33 TRA(*)M PC Mount Male Receptacle ........................................34 TRASM*M, TRAPC*M Series ...............................................34-36 TY(*)F and TY(*)FPC Receptacles,TYEF Escutcheons, TQG(*)F and TQG(*)M Connector Inserts, TBA(**) Audio Adapter .............................................................................37 HPC HIGH POWER AUDIO CONNECTORS ...........................38-40 EN3TMini WEATHERTIGHT CONNECTOR SERIES ..............41-45 2 - 8 pin Cord Connector, 9 - 18 pin Cord Connector ................43 2 - 8 pin Panel Connector, 9 - 18 pin Panel Connector .............44 2 - 8 pin Inline Connector, 2 - 8 pin Overmolded Cord and Inline Connector ..................................................................45 DIN CONNECTORS .................................................................46-55 Plugs .....................................................................................46-48 Panel Mount Receptacles .....................................................48-50 Right Angle PC Mount Receptacles .....................................51-52 Mini-DIN Right-Angle Receptacles, Right-Angle, PC Mount Receptacles ..........................................................................47-53 SMD Series ................................................................................54 DMD Series ................................................................................55 USB CONNECTORS ................................................................56-57 IEEE 1394 FIREWIRE CONNECTORS ...................................58-59 SLIM-LINE CONNECTORS ......................................................60-64 Cord Plugs .................................................................................60 Slim-Line Connector Part Numbering System, Cable Clamp and Strain Relief ................................................................................61 SL40-SL41 Male/Female Cord Plugs .........................................62 SL10-SL17 Male/Female Receptacles .......................................63 www.switchcraft.com SL18 Male/Female Receptacles ................................................64 CB CONNECTORS MICROPHONE CONNECTORS, MINI-CON MINIATURE CONNECTORS .......................................65 HP75BNC SERIES BNC CONNECTORS ................................66-67 EAC RECEPTACLES ...............................................................68-77 RAPC322 POWER INLET SOCKET .............................................78 JACKS AND PLUGS JACK SCHEMATICS ................................................................79-80 1/4" LONG FRAME TELEPHONE JACKS ...............................81-85 1/4" Jack Blocks .........................................................................86 BANTAM TYPE® JACKS ..........................................................87-90 TT-JAX® (.173") Telephone Jacks Bantam Type® ................87-88 TT-JAX® (.173") Telephone Twin Jacks Bantam Type® .............89 TT-JAX® (.173") Telephone Triple Jacks Bantam Type® ............90 RTT Series Miniature Telephone Jacks, Right Angle, PC Mount .........................................................91-92 .177" Enclosed Jacks .................................................................93 LITTEL JAX® 2- AND 3-CONDUCTOR, 1/4" PHONE JACKS ...............................................................94-109 Hi-D Jax® 2- and 3-Conductor .............................................96-99 Spring Lock PC Terminals for Hi-D Jax® .................................100 SN Series, RA Series Right-Angle Phone Jacks ..............101-105 500 Series Jack Covers ...........................................................106 Series E (Locking) and Thick Panel Phone Jacks ...................107 1/4" Extension Jacks and 1/4" Speaker Jacks .........................108 1/4" Shielded Phone Jacks, SF-Jax® Short Frame Jacks ...................................................................109 .141" MINIATURE PHONO JACKS .......................................109-111 3.5MM DUAL STEREO JACK ...............................................112-113 3.5MM SINGLE MONO AND STEREO JACKS ...................114-118 3.5MM SINGLE MONO JACKS ...................................................119 2.5MM SINGLE MONO AND STEREO JACKS ..........................120 .101" SUBMINIATURE PHONE JACKS ...............................121-122 RCA PHONO JACKS AND PHONO JACK SETS ................123-129 RIGHT ANGLE MINIATURE POWER JACKS ......................130-133 STRAIGHT MINIATURE POWER JACKS ............................134-135 VJ SERIES VIDEO JACKS ..........................................................136 MVJ SERIES VIDEO JACKS .......................................................137 MIL-TYPE 1/4" PHONE PLUGS ...........................................138-141 Littel Plug® Phone Plugs .........................................................139 MIL-TYPE 1/4" EXTENSION JACKS ...........................................142 ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery ii FAX: 773 792-2129 * Please visit the product pages on our website for the most up-to-date product information TELEPHONE PATCH ADAPTERS ..............................................142 BANTAM TYPE MINIATURE TELEPHONE PLUGS ............143-144 3.5MM HEAVY DUTY STEREO PLUGS .....................................156 .141" MINIATURE PHONE PLUGS .............................................157 .097" SUBMINIATURE PHONE PLUGS ......................................158 AUDIO ADAPTERS .....................................................................159 RCA PHONO PLUGS ...........................................................160-161 MINIATURE POWER PLUGS ......................................................162 JACK PANELS, PATCH PANELS, PATCH KITS AND JACKFIELDS AUDIO PATCHBAYS .............................................................163-190 Professional Punchdown Terminal (PPT) ..................................163 Front Access MTPFA/TTPFA Series ..................................164-165 MTP48K Wired Audio Series .............................................166-167 TTP96K Wired Audio Series ..............................................168-169 MTPH/TTPH Harness Audio Series...................................170-173 MTPBP/TTPBP Backpanel Series .....................................174-175 EZ NORM Patchbay Series ...............................................176-177 TT96 EDAC Series.............................................................178-179 TTP96K Patchkit Series ....................................................180-181 MT48K/MT52K Patchkit Series ..........................................182-183 MT48/MT52 Patchbay Series.............................................184-185 TTP96AS Patchbay Series ................................................186-187 Q-G®XLR Patchbay Series................................................188-189 HPC Patchbay Series................................................................190 RS 422 DATA PATCHBAY SERIES ......................................191-192 VIDEO PATCHBAYS .............................................................193-201 VPP Video Patchbay Series ..............................................193-195 MVP Midsize Video Patchbay Series ................................196-198 VAP Video/Audio Patchbay Series ....................................199-200 MBPK Video/Audio Patchbay Series ........................................201 TELECOM TYPE JACK PANELS .........................................202-238 Long Frame (1/4")Single Row Telephone Jack Panels ....202- 203 Long Frame (1/4") Twin Row Jack Panels ........................204-205 Long Frame (1/4") Modular Twin Row Jack Panels ..........206-209 Long Frame (1/4") Modular 3 Row Jack Panels .......................210 TT-Jax® (.173") Jack Panel Series 1600, A1600, B1600, C1600 ...................................................................211-214 Modular TT-JAX® (.173") Panels Blank Series TT51, TT53, TT56, TT59 .....................................215 TT Module Inserts - Series TT91, TT92 And TT93 ..................216 Modular TT-Jax® (.173") Jack Panels -Series TT5102000, PATCH CORDS AND MOLDED CABLE ASSEMBLIES MOLDED CABLE ASSEMBLIES ..........................................239-261 Design Materials and Features ................................................239 3.5MM Molded Cables .............................................................240 Power-Plug Battery Charger Plugs and Jacks .........................241 Power Plugs and Jacks Part Numbering System .....................242 EN3T MINI Weathertight Overmolded Cable Assemblies ........243 Cordette® and Cord Switch Assemblies ....................................44 Cordette® Switches .................................................................245 DIN Plugs ..........................................................................246-248 MIDI Cables ..............................................................................249 Miniature, Shielded, Molded Tini Q-G® Plugs .........................250 Molded Cable Assemblies for Multi-Pin Interconnection Part Numbering System ...........................................................251 Standard Multi-Pin Interconnection Cables ..............................252 Micro Plug® Subminiature Phone Plugs ..................................253 Tini Plug® Miniature Phone Plugs ...........................................254 Phono Plugs and Phono Extension Jacks ...............................255 Tini-Extension® Jacks ..............................................................256 Littel Plug® Phone Plugs ..................................................256-257 Extension Jax® Phone Jacks ...................................................257 Cable Clamp Bands, “Y” Junctions ..........................................258 Part Numbering System ...........................................................259 Standard Cable Guide ..............................................................260 Cross Reference Guide ............................................................261 AUDIO/VIDEO PATCHCORDS ............................................262- 267 1/4" Longframe Telephone Patch Cords, MIL Type 1/4" Patch Cords ........................................................................................262 Combination Patch Cords and MIL Type 1/4" Twin Patch Cords .............................................................263 Miniature TT® Braided Patch Cords .......................................264 Miniature TT® Molded Patch Cords and Telephone Couplers ..........................................................265 Video Patch Cords ...................................................................266 Broadcast Series 3-Conductor Bantam TT Patch Cords, Analog-AES/EBU Audio, and RS422 Patching ........................267 SWITCHES PUSHBUTTON SWITCHES IBS Series Miniature Keyboard Switches .................................269 IBS Keyboard Switch Pushbuttons ...........................................270 US Series Uniswitch® Switches ...............................................271 BXR Series Box Switch® Switches ..........................................272 Button-Switch® Switches, Tini-Switch® Switches ...................273 Littel-Switch® Switches ............................................................274 Hi-D Switch® PC Mount Switches, DA-Switch Switches .........275 Cord-Switch® Cord Switches, Cordette® Cord Switches ........276 SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 TABLE OF CONTENTS 1/4" COMMERCIAL PHONE PLUGS LITTEL-PLUG® PLUGS .......................................................145-147 Silent-Plug And Lug® Phone Plugs .........................................148 Audio Loudspeaker and Heavy Duty 1/4" Commercial Phone Plugs .................................................149-150 .206" Commercial Phone Plugs ...............................................151 1/4" Miti-Plug® Audio Plugs .....................................................152 1/4" Flat Plug Phone Plugs ......................................................153 Right-Angle Phone Plugs .........................................................154 1/4" Lock-Extension Jacks And Plugs ......................................155 TT5202000, TT5502000, TT5602000 ...............................217-218 TT-Jax® (.173") Twin Row and Three Row Jack Panels ....219-220 TT-Jax® (.173") Connectorized Jackfields - Series TT, 2-wire, 4-wire, 6-wire .........................................................221-229 TT® Lamps and Jewel Assemblies ..........................................230 Longframe Switchboard Switches ............................................231 Dummy Plugs and Hole Plugs .................................................232 TT® (Bantam) Circuit Guard Plugs ..........................................233 Miniature, Dummy Plugs, Hole Plugs .......................................234 Designation Strips .............................................................235-236 Kwik-Change® Designation Strips (Double Height) .................237 X-Wide® Vertical Designation Strips ........................................238 iii PHONE: 773 792-2700 TABLE OF CONTENTS * Please visit the product pages on our website for the most up-to-date product information Push-Lite® Switches and Indicators .................................277-281 Series PL9000 - PL® Indicators, Pushbutton/Indicator Screens, Color Filter Snap-Insserts, Optional Mounting Barriers, Light Divider ...............................................278 Part Numbering System ...........................................................279 Outline Dimensions ...........................................................280-281 SLIDE SWITCHES ...............................................................282-290 General Purpose Slide Switches ......................................284-287 Miniature Slide Switches ...................................................288-290 Side-Slide®/Miniature Slide Switches ......................................290 European Line Voltage Selector Switches ........................291-293 LEVER SWITCHES ..............................................................294-298 GENERAL PURPOSE STACK SWITCHES .........................299-300 MULTIPLE STATION SWITCHES .........................................301-302 Littel® Multi Switch ............................................................303-308 DW Multi-Switch ................................................................309-311 Tini® DW Multi-Switch ......................................................312-313 IBS Multi-Switch - Series IBS ...........................................314-315 Multi-Switch Pushbuttons ..................................................316-317 INDEX BY PART NUMBER ...................................................319-328 www.switchcraft.com ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES Q-G® CONNECTORS FAX: 773 792-2129 1 * Please visit the product pages on our website for the most up-to-date product information SECTIONALIZED VIEW - A3F Plug to B3M Receptacle MALE RECEPTACLE FEMALE CONNECTOR Panel Ground Terminal Latch Lock Insert set screw (Shell ground) Ground Terminal Pin Cable Clamp Strain Relief Insert Shell DESIGN FEATURES CONSTRUCTION: Sturdy, die-cast zinc with satin nickel finish or Black-Velvet® finish to withstand hard use – even abuse. Vel-Tone non-reflective finish on QGP connectors only. INSERT INSULATION: High-impact, molded thermoplastic provides high dielectric strength, and superior insulation resistance. Field-proven Switchcraft Q-G ® (Quick-Ground) 3- through 7-contact audio connectors with ground terminal and ground contactors are available in a wide range of plugs and receptacles for microphones, test equipment, instrumentation, computers, video cameras, mixing consoles, tape recorders, PA and sound reinforcement, stereo systems and many more applications. Switchcraft Q-G® connectors feature a separate ground-terminal electrically integral with connector shell. Ground continuity between mating plugs is automatically accomplished through exclusive “Dual Point” grounding system. Socket and pin assemblies utilize “wedge-action” to insure firm, reliable positioning in connector shell. Inserts are easily removable for wiring and soldering. High-impact thermoplastic insures long reliable insert assembly life. Female connectors have latch lock feature to hold connectors firmly together. Plugs and receptacles are mechanically keyed for proper mating. Q-G (*) Series 3-, 4-, 5-, 6-, and 7-pin/contact connectors offer 4-, 5-, 6-, 7-, and 8-pin contact versatility when ground-terminal is used. Switchcraft QGP connectors; are compatible with 3- and 4-contact (Neutrik, Amphenol 91-850 and Excellite 91-450 Series, and Cannon XLR-3, XLR-4): 5-contact (Neutrik, Cannon XLR-5 and Amphenol Excellite 91-450 Series). Captive Design® Insert Screws LOCKING: Latchlock on female plugs and receptacles locks into groove in mating male connector to prevent accidental disconnect. Manual release of latchlock is required to separate connectors. Q-G connectors are also available with FAS-DISCONNECT detent in place of latchlock. QGP has diecast latchlock. FAS-DISCONNECT: FAS-DISCONNECT detent permits immediate disconnect of locked connectors with a 4-pound (1.8 kg) force. FAS-DISCONNECT connectors are not recommended for use in situations where strong or violent pulls on cable may occur and cause accidental disconnect. Available on Q-G connectors only. Insert screw engages as any conventional screw, except it is lefthand threaded. To disassemble the connector, turn screw counterclockwise down into insert (see illustration). DUAL PRESSURE PLATES: A*F and A*M Series provides secure cable lock and strain relief for all standard size cables. FLEX RELIEF: TPR cable flex relief bushings on cord plugs are keyed to shell. Standard bushing opening accepts cables from .21" to .3" diameter Bushings with other openings accommodate cables from .105" to .205" diameter and from .3" to .328" diameter. CONTACTS: Q-G female connectors are copper alloy, silver-plated, tarnish-resistant; male contacts are copper alloy, silver-plated, tarnish-resistant. Gold-plated female contacts are copper alloy. Male contacts are gold-plated. WIRING: Large, unique design solder cups make wiring fast and easy. Certain receptacles are also available with PC terminals for use with printed circuit boards. Grounding and Shielding Tightening the insert screw establishes continuity between ground terminal, ground contactors and connector housing. Upon engagement with a mating plug or receptacle, the ground circuit is automatically connected to the mating shell through the ground contactor. Any pin or contact can be grounded by “jumping” it to the ground terminal. Contact 1 engages before all other contacts and disengages after all other contacts. Insert assembly is now readily removed from shell. Note “Ground Terminal” area – large soldering cups make cable installation fast and easy. Unitized 1-piece insert eliminates possible loss of latchlock and spring. To reassemble, replace insert assembly into shell, align insert screw under hole in shell and secure insert by turning insert screw clockwise. This “wedges” insert against interior of shell providing a rigid connector assembly and positive electrical continuity between ground terminal and shell (see illustration). DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G ® CONNECTORS 2 CONNECTORS & RECEPTACLES QG® PART NUMBERING SYSTEM PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® CONNECTOR PART NUMBERING Number of Contacts Series A CORD PLUG WITH SCREW CABLE CLAMP AA CORD PLUG WITH CRIMP CABLE CLAMP AAA CORD PLUG WITH TWIST ON HANDLE B FRONT PANEL MOUNT USING NUT C FRONT PANEL MOUNT - CIRCULAR D FRONT PANEL MOUNT - RECTANGULAR 3-7 Gender Options M MALE F FEMALE D B FAS-DISCONNECT (FEMALE CONNECTORS) BLACK EPOXY FINISH FM BOTH (S SERIES) ST STRAIGHT PC TAILS RA RIGHT ANGLE PC TAILS MOMENTARY SWITCH ACTION M (T SERIES ONLY) PC PC TERMINALS (Y SERIES ONLY) N KNURLED COUPLING NUT (L SERIES ONLY) L FLEX RELIEF FOR .250" TO .328" CABLE O.D. S SEE NOTE 1. AU GOLD CONTACTS H HOUSING ONLY OPTIONS SHOWN IN ORDER OF APPEARANCE Z SCREWLESS STRAIN RELIEF E MODULAR FRONT PANEL MOUNT G WALL PLATE - 1 B SERIES MALE H WALL PLATE - 2 B SERIES MALES J WALL PLATE - 1 D SERIES FEMALE K WALL PLATE - 2 D SERIES FEMALE L MICROPHONE ADAPTER - INTERNAL THREAD M MICROPHONE ADAPTER - EXTERNAL THREAD N CAP PLUG P GOOSENECK MOUNT QG CONNECTOR INSERT R RIGHT-ANGLE CORD PLUG S MALE/FEMALE BARREL ADAPTER T CORD PLUG WITH ON-OFF SWITCH W RIGHT-ANGLE PANEL MOUNT Y REAR PANEL MOUNT NOTE 1: S HAS DIFFERENT DESIGNATIONS DEPENDING ON THE SERIES. FOR A, AA, AND T SERIES: SMALL FLEX RELIEF FOR .105" TO .205" CABLE OUTSIDE DIAMETER FOR B, C, AND D SERIES: SANDED FRONT FACE FINISH FOR G, H, J, AND K SERIES: STAINLESS STEEL WALL PLATE (STANDARD) FOR N SERIES: SHORTING WIRING INSTALLED NOTE 2: J, K AND T SERIES AVAILABLE IN FEMALE GENDER ONLY. G, H, L, M, N, AND W SERIES AVAILABLE IN MALE GENDER ONLY. PROFESSIONAL SERIES Q-G® CONNECTOR PART NUMBERING SYSTEM Series QGP Number Of Contacts PROFESSIONAL SERIES PROFESSIONAL SERIES CORD PLUG WITH CRIMP CABLE CLAMP 3 AQGP Model 22 FEMALE CORD PLUGS 23 MALE CORD PLUGS 62 63 RECTANGULAR FEMALE PANEL MOUNT RECTANGULAR MALE PANEL MOUNT DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES Q-G CORD PLUG CONNECTOR – A, AA AND QGP SERIES ® FAX: 773 792-2129 3 * Please visit the product pages on our website for the most up-to-date product information Q-G ® AUDIO CONNECTORS A, AA, AND QGP SERIES Sleek, streamlined shell Easy change flex relief for color coding Cable clamp Solid pins, silver plated for reliability “No screws” retention system Bifurcated high performance socket contacts Durable metal latch lock Rugged cable clamp to ground (no screws) Solder terminals Light green, high “Dual-point rotated for easy performance insert shell grounding” access & soldering QGP connectors (3 contacts only) feature Vel-Tone® non-reflective finish, gray TPR flex relief and plated pins/contacts for the most demanding applications. Preferred by audio professionals the world over, Switchcraft® QG® connectors feature unsurpassed durability and a choice of finishes and contact platings. Features include: • High performance inserts in traditional Switchcraft® green or black. • Solder terminals rotated for easier access and soldering. • All metal housing. AA Series Only • Rugged 1-piece cable clamp to relieve pulling and twisting stresses on terminations. • No Screws flex relief retention system. • Integral bump shell grounding system. SPECIFICATIONS ELECTRICAL Contact Resistance: 50 milliohm maximum, per pole. Current Rating: 3 pole – 15A, 4 pole - 10A, 5 and 6 pole – 7.5A, 7 pole – 5A @ 125VAC. Insulation Resistance: 1,000 MΩ, minimum. Dielectric Withstanding Voltage: 1,000 V (rms). Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F). MECHANICAL Insertion/Withdrawal Forces: 7 pound maximum, 5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal. Wire Size: #12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and QGP). Rugged metal shell “No screws” retention system Standard nickel or black finish Easy change flex relief for color coding MATERIAL Q-G CONNECTORS (A AND AA SERIES) Shell: Die-cast zinc. Satin nickel finish, black velvet. Insert Insulation: Molded thermoplastic. Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provide excellent electrical conductivity. Gold is available. Latchlock: High-strength die-cast zinc. Latch Release: Steel, nickel-plated. Latch Detent: Formed stainless steel. Insert Screw: Stainless steel. Flex Relief: TPR (thermoplastic rubber). QGP CONNECTORS Shell: Die-cast zinc, non-reflective gray Vel-Tone® finish. Socket Contacts: Gold-plated copper alloy Pin Contact: Gold-plated copper alloy DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G ® CORD PLUG CONNECTORS (continued) 4 CONNECTORS & RECEPTACLES QG® CORD PLUGS – A AND QGP SERIES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® CORD PLUG CONNECTORS (continued) AA(*)F CORD PLUG AA(*)FD CORD PLUG PART NUMBERS - MALE CORD PLUGS PART NUMBERS - FEMALE CORD PLUGS Advanced Q-G® Cord Plugs, Series AA(*)M and AQGP Advanced Q-G® Cord Plugs, Series AA(*)F and AQGP AA3F — ◊AA4F ◊AA5F ◊AA6F ◊AA7F AA3FB ◊AA3FBAU ◊AA3FD ◊AA3FL — — AA3FLD ◊AA4FB — ◊AA4FD ◊AA4FL ◊AA5FB — ◊AA5FD ◊AA5FL ◊AA6FB — ◊AA6FD ◊AA6FL ◊AA7FB — ◊AA7FD ◊AA7FL ◊AQGP322 — — — — — 3 3 4 5 6 7 ◊ Available on special order only; contact Switchcraft for price and delivery. A(*)F CORD PLUG AA(*)M CORD PLUG AA3M ◊AA4M ◊AA5M ◊AA6M ◊AA7M AA3MB — ◊AA5MB — — ◊AA3MBAU — — — — ◊AA3ML ◊AA4ML ◊AA5ML ◊AA6ML ◊AA7ML 3 4 5 6 7 ◊AQGP323 — — — — All above part numbers have black flex relief installed. Contact Switchcraft for color flex relief. A(*)FD CORD PLUG A(*)M CORD PLUG *Number of insert contacts or pins must be specified to complete part number. Straight female cord plug with standard latchlock. Available in 3-7 pin versions. Straight female cord plug with FAS-DIS-CONNECT detent. PART NUMBERS - FEMALE CORD PLUGS PART NUMBERS - MALE CORD PLUGS Standard Q-G ® Cord Plugs, Series A(*)F and QGP Satin Nickel Finish nContacts A3F A3FS3 A4F A5F A6F A7F Black Finish Silver 1 Gold 1 A3FB — A4FB A5FB A6FB A7FB A3FBAU — A4FBAU A5FBAU A6FBAU A7FBAU FasLarge DisFlex Connect Relief 2 ◊A3FD — ◊A4FD ◊A5FD — — A3FL — A4FL ◊A5FL — — Standard Q-G ® Cord Plugs, Series A(*)M and QGP Insert QGP Series QGP322 — — — — — 3 3 4 5 6 7 1. Contact plating. 2. Accepts cables from .25" (6.35 mm) to .328" (8.33 mm) diameter 3. Accepts cables from .105" (2.7 mm) to .205" (5.2 mm) ◊ Available on special order only; contact Switchcraft for price and delivery. Satin Nickel Finish Black Finish Silver 1 Gold 1 Large Flex Relief 2 QGP Series Insert Contacts A3M A3MS 3 A4M A5M A6M A7M A3MB — A4MB A5MB — — A3ML — A4ML ◊A5ML — — QGP323 — — — — — 3 3 4 5 6 7 A3MBAU — A4MBAU A5MBAU A6MBAU A7MBAU All above part numbers have black flex relief installed. Contact Switchcraft for color flex relief. ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Straight male cord plug. Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES Q-G® FLEX RELIEF FAX: 773 792-2129 5 * Please visit the product pages on our website for the most up-to-date product information Q-G ® COLOR FLEX RELIEFS Rainbow color cable strain relief bushings can be specified to match or complement equipment decors or code individual or grouped connections for quick recognition. On special order, tan, pink and dark blue are available. Bushings accommodate cables from .21" to .30" diameter. Prepackaged, 25 per bag. Part Numbers 3 Pins/Contacts Female Male A3F A3M ◊A3F01 ◊A3M01 ◊A3F02 ◊A3M02 ◊A3F03 ◊A3M03 ◊A3F04 ◊A3M04 ◊A3F05 ◊A3M05 ◊A3F06 ◊A3M06 ◊A3F07 ◊A3M07 ◊A3F08 ◊A3M08 ◊A3F09 ◊A3M09 Flex Relief Color Black Brown Red Orange Yellow Green Blue Violet Gray White ◊ Special order only; contact Switchcraft for price and delivery. Q-G ® FLEX RELIEF Small Cables .105 to .205 (2.7) (5.2) Flex relief bushing with small opening accommodates cables from .105" (2.7 mm) to .205" (5.2 mm). Standard size bushing accepts cables from .210" (5.3 mm) to .300" (7.6 mm) outside diameter. Bushing with large opening accommodates cables from .300" (7.6 mm) to .328" (8.3 mm). Larger cables are often needed for multiple-conductor instrumentation. Code letter “L” in last or second to last digit in part number indicates plug with large bushing. Code letter “S” in last or second to last digit in part number indicates plug with smaller bushing. Standard Cables .210 to .300 (5.3) (7.6) SWITCHCRAFT PART NUMBER ◊K255 Package of 100 cable clamp screws. Large Cables .300 to .328 (7.6) (8.3) ◊ Special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Flex Relief Only SR00 SR01 SR02 SR03 SR04 SR05 SR06 SR07 SR08 SR09 CONNECTORS & RECEPTACLES Q-G ® CONNECTORS (continued) 6 CONNECTORS & RECEPTACLES AAA CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information AAA CONNECTORS AAA SERIES Q-G® TWIST CONNECTOR Switchcraft introduces the AAA Series or Q-G® Twist XLR connectors.The Q-G® Twist Series is available in male or female cord plug, 3 through 7 pins or contacts. The unique features are the easy twist on combination handle/strain relief, and the reduced number of parts to assemble. With the insert built into the front shell, and the strain relief preloaded into the handle, the end user has only two parts to assemble – slide the handle onto the cable, solder the terminations, and twist on the handle. As the handle is tightened, the strain relief tightens around the outer jacket of the cable. A ramp on the strain relief keeps it from rotating around the cable jacket and twisting the cable. The strain relief was designed to accommodate the most popular cable sizes. A rugged die-cast metal handle insures optimum protection, and increases signal shielding. Popular options include black and gold finishes, as well as a lower cost plastic handle version. FEATURES AND BENEFITS SPECIFICATIONS ELECTRICAL 4 Contact #14 wire gauge solid 5 & 6 Contact #16 wire gauge solid 7 Contact #18 wire gauge solid Contact Resistance: 50 milliohm maximum, per pole. Current Rating @ 125VAC: 3 pole – 15A 4 pole –10A 5 & 6 pole – 7.5A 7 pole – 5A Insulation Resistance: 1,000 MΩ, minimum. Dielectric Withstanding Voltage: 1,000 V (rms) Capacitance: ≤3 pF between pins and ≤6 pF between pins and shell, maximum MECHANICAL Insertion/Withdrawal Forces: 10 lbs. maximum, 8 lbs. nominal / 7 lbs. maximum, 5 pounds nominal. Wire Size: 3 Contact #12 wire gauge solid #14 wire gauge stranded • • • • • • • Only two pieces to assemble Easy twist on handle reduces assembly time Rugged die-cast metal handle Accepts cable OD’s (.100" – .285") Black finish available Gold-plated pins/contacts available Lower cost plastic handle version available APPLICATIONS • • • • Audio Medical Instrumentation Process Controls #16 wire gauge stranded #18 wire gauge stranded #20 wire gauge stranded MATERIAL Shell: Die-Cast zinc with nickel finish or black chrome. Handle: Die cast with nickel finish or black chrome. Also black thermoplastic handle available. O Ring: TPR (Thermoplastic rubber). Insert Insulation: Molded thermoplastic. Socket Contacts: Silver plated copper alloy tarnish resistant; bifurcated on 3 and 4 contact types. Gold is available. Pin Contacts: Silver plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity. Gold is available. Latch lock: High strength die cast zinc. Strain Relief: TPR Flex Relief: TPR (Thermoplastic rubber) CONNECTOR PART NUMBER SCHEME Series Pins/Contacts Gender Handle Material AAA 3 -7 pins 3 -7 pins F: Female M: Male P: Plastic Blank: Metal Housing Finish B: Black Blank: Nickel DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Terminal Finish AU: Gold Blank: Silver Z New Strain Relief Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES AAA CONNECTORS FAX: 773 792-2129 7 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES AAA CONNECTORS (continued) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 8 CONNECTORS & RECEPTACLES Q-G ® CORD PLUG CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® CONNECTORS (continued) R(*)MZ CORD PLUG R(*)FZ CORD PLUG Right angle, female cord mount plug, latching. New style incorporates an insert that can rotate every 45° for added flexibility in tight applications. Also utilizes the new strain relief system with twist-on handle. Part Number R3FZ R4FZ R5FZ R6FZ R7FZ Right angle, male cord mount plug, latching. New style incorporates an insert that can be rotated every 45° for added flexibility in tight applications. Also utilizes the new strain relief system with twist-on handle. Part Number R3MZ R4MZ R5MZ R6MZ R7MZ Insert Contacts 3 4 5 6 7 Accepts cable O.D.'s .100"–.285" For black finish, add "B" suffix. For black/gold finish, add "BAU" suffix. Accepts cable O.D.'s .100"–.285" For black finish, add "B" suffix. For black/gold finish, add "BAU" suffix. P(*)F MICROPHONE PLUG Female microphone plug for gooseneck mount. Fits standard gooseneck with external 5/8-27 thread. Microphone plugs directly into connector. (Gooseneck not supplied.) Part Number 1 ◊P3F ◊P4F ◊P5F Insert Pins 3 4 5 6 7 P(*)M GOOSENECK PLUG Male plug for gooseneck mount. Fits standard gooseneck with internal 5/8-27 thread. Use on gooseneck with microphone plug on opposite end. Plugs directly into female receptacle. (Gooseneck not supplied.) Insert Contacts 3 4 5 1. Satin Nickel Finish. (standard) 2. Large flex relief accepts cable from .25" to .328" diameter. (optional) 3. Gold-plated contacts. (optional) ◊ Available on special order only; contact Switchcraft for price and delivery. Part Number 1 ◊P3M ◊P4M ◊P5M DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Insert Pins 3 4 5 Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ® Q-G CORD PLUG CONNECTORS AND RECEPTACLES FAX: 773 792-2129 9 * Please visit the product pages on our website for the most up-to-date product information T(*)F AND T(*)FM CORD PLUG WITH ON-OFF SWITCH Part Number ◊T3F ◊T3FM ◊T4F ◊T4FM Part Number ◊T3FL ◊T3FLM ◊T4FL ◊T4FLM Insert Contacts 3 3 4 4 T(*)F Straight female cord plug with DPDT (2-C) locking on-off switch; standard latchlock. T(*)FM Straight female cord plug with SPDT (1-C) momentary on-off switch; standard latchlock. Slide switches rated 500 mA, 125V (AC or DC). Mounting screws are supplied. D(*)M, D(*)F AND D(*)FD RECEPTACLES Studio quality black and gold Q-G® receptacle with black housing and gold contacts is designed for low/stable contact resistance and withstands corrosion where highest quality is required for recording and broadcast studio equipment, consoles, and other applications. D(*)M SERIES – Male receptacle for panel or chassis mounting. Special rectangular flange permits close spacing on crowded panels, has two .136" (3.45mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .766" (19.45) diameter hole. Satin nickel finish (Series D*M) or black finish (Series D*MB, or D*MBAU). D(*)F SERIES – Female receptacle for panel or chassis mounting. Flange has two .136" (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953" (24.21 mm) diameter hole. Series D(*)F has standard latchlock; Series D(*)FD has FAS-DISCONNECT detent. Satin nickel finish (Series D*F and D*FD) and “Black-Velvet” finish (Series D*FBAU). Nickel Finish D3M D4M D5M D6M D7M D3F D4F D5F D6F D7F Black Finish Silver Gold D3MB D4MB D5MB D6MB D7MB D3FB D4FB D5FB D6FB D7FB D3MBAU D4MBAU D5MBAU D6MBAU D7MBAU D3FBAU D4FBAU D5FBAU D6FBAU D7FBAU Detent QGP Series1 Pins — — — — — D3FD ◊D3FDB — ◊D6FDB — QGP363 — — — — QGP362 — — — — 3 4 5 6 7 3 4 5 6 7 * Number of insert contact or pins must be specified to complete part number. ◊ Available on special order only; contact Switchcraft for price and delivery. 1 Non-reflective gray finish, gold-plated pins. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G® CORD PLUG CONNECTORS AND RECEPTACLES 10 CONNECTORS & RECEPTACLES Q-G® RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® RECEPTACLES (continued) B(*)F RECEPTACLE B(*)M RECEPTACLE Panel-mount female receptacle. Mounts with spanner nut from front of panels up to .4375" (11.11 mm) thick. Slot in threaded part of housing permits non-turn mounting. Requires 1.25" (31.75 mm) diameter minimum mounting hole. Spanner nut is die-cast zinc with satin nickel finish (Series B*F) or black finish (Series B*FB). Panel-mount male receptacle. Mounts with locknut from front of panels up to .250" (6.35 mm) thick. Requires .812" (20.64 mm) diameter mounting hole. For non-turning mounting, can be keyed to “D” shaped panel hole, or S3519 mounting adapter can be used. Satin nickel finish (Series B*M) or black finish (Series B*MB). Part No.1 Part No.2 B3M B3MB B4M — B5M — B6M — B7M — Part No.1 Part No. 2 Insert Contacts B3F B3FB 3 B4F — 4 B5F — 5 B6F — 6 B7F — 7 Insert Pins 3 4 5 6 7 C(*)F RECEPTACLE C(*)M RECEPTACLE Female receptacle for panel or chassis mounting. Flange has three .140" (3.57 mm) diameter holes for #5-40 mounting screws (not supplied). Mounts from front of panel or chassis in 0.953" (24.21 mm) diameter hole. Male receptacle for panel or chassis mounting. Flange has three .140" (3.57 mm) diameter holes for #5-40 mounting screws (not supplied). Mounts from front of panel or chassis in .766" (19.45 mm) diameter hole. Part No.1 C3F C4F C5F C6F C7F Part No. 5 ◊QGP326 — — — — Insert Contacts 3 4 5 6 7 Part No. 1 Part No.5 C3M ◊QGP327 C4M — C5M — C6M — C7M — Insert Pins 3 4 5 6 7 ◊ Special order only. Contact Switchcraft. 1. Satin nickel finish. (standard) 2. “Black-Velvet” finish. (optional) 3. Gold-plated contacts. (optional) 4. Fas-disconnect detent. (optional) 5. Non-reflective gray finish, gold-plated pins. (standard) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES E SERIES Q-G® RECEPTACLES FAX: 773 792-2129 11 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES E SERIES RECEPTACLES E Series Receptacles Conical Spring Solder Terminals Straight PC Terminals Solder cup Right Angle PC Terminals E Series Q-G® Receptacles are available with quick release inserts. Quick insert release is accomplished by turning screw lock from front of insert. Insert can then be removed from the rear. For PC board applications, insert can be removed/assembled to the housing while soldered to the PC board. E Series receptacles can be specified as complete assemblies, or as separate inserts and housings. Stocking separate inserts and housings offer considerable cost and time savings by minimizing inventory and maximizing configuration possibilities. FEATURES 3. Right-angle PC terminals - direct termination to PC board at a right-angle. Housing mounts to panel. 4. SC - Solder cup • • • • Replaces Neutrik D Series 3-pin contact; male and female types Both male and female fit in same panel cutout Choice of 4 terminations; solder cups, conical springs, straight or right angle PC terminals. • Inserts and housings can be specified separately • Quick release inserts for ease of removal • Locking receptacles • Protected ground clip minimizes scooping damage • Insert lock detent resists disassembly from shock or vibration during normal handling and transportation • Silver and gold-plated contacts available • Rugged metal shells; black or satin nickel finishes • Through-the-shell ground connection and all-metal shells for greater shielding effectiveness • Compatible with Switchcraft Q-G ®, QGP and other connectors with similar configurations SPECIFICATIONS ELECTRICAL Contact Resistance: 50 milliohms maximum, per pole. Current Rating: 15A Insulation Resistance: 2 X 106 MΩ Dielectric Resistance: 1,000 V rms Capacitance: 10 pF MECHANICAL Insertion/Withdrawal Forces: 7 pounds maximum / 5 pounds nominal insertion; 7 pounds maximum / 5 pounds nominal withdrawal. Life: 10,000 operations (minimum). ENVIRONMENTAL QUICK RELEASE INSERT In two simple steps, inserts can be released while housing stays fastened to the panel. 1. With a small screwdriver, twist insert locking screw from front of insert. 2. Remove insert from the rear of the housing. Thermal Range: -55° C to +85° C Humidity: Meets MIL-STD-202F, method 106E. Thermal Shock: Meets MIL-STD-202F, method 107D. Salt Spray: Meets MIL-STD-202F, method 101D. TERMINALS Shells: Die-cast; satin-nickel or Black Velvet. Inserts: Glass-filled thermoplastic. Socket Contacts: Copper alloy, silver- or gold-plated. Pin Contacts: Copper alloy, silver- or gold-plated. Latch Release: Steel, nickel-plated. Insert Locking Cam: Die-cast zinc. Four terminations are available on E Series receptacles: 1. Conical Spring Solder terminals – conical spring on each pin holds wire in place providing constant pressure during soldering process. This effectively acts as a third hand, assuring a high quality solder termination. Housing mounts to panel. 2. Straight PC terminals – direct termination to PC board. Housing mounts to panel. MATERIAL DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 12 CONNECTORS & RECEPTACLES E SERIES PART NUMBERING SYSTEM PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information E SERIES PART NUMBERING SYSTEM CONNECTOR PART NUMBER SCHEME Series Pins/ Gender Contacts E 3-5 pins F: Female M: Male Fas-disconnect Option D: Fas-disconnect Blank: Standard locking Termination Style ST: Straight PC terminals RA: Right angle PCterminals SC: Solder cups Blank: Conical springs* Housing Finish B: Black Blank: Nickel Terminal Finish AU: Gold Blank: Silver Mounting Hole Options M3: M3 x 0.5 thread 440: #4-40 thread Blank: Countersunk hole HOUSING ONLY PART NUMBER SCHEME Series Pins/ Housing Mounting Hole Contacts Finish Options E F: Female B: Black M3: M3 x 0.5 thread M: Male Blank: Nickel 440: #4-40 thread Blank: Counter-sunk hole INSERT ONLY PART NUMBER SCHEME Series Pins/ Contacts E 3-5 pins Gender F: Female M: Male Fas-disconnect Option D: Fas-disconnect Blank: Standard locking Termination Style ST: Straight PC terminals RA: Right angle PC terminals SC: Solder cups Blank: Conical springs* Housing Finish Terminal Finish AU: Gold Blank: Silver *3-pin only DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES E SERIES FAX: 773 792-2129 13 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES E SERIES DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 14 CONNECTORS & RECEPTACLES E SERIES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information E SERIES (continued) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES E SERIES FAX: 773 792-2129 15 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES E SERIES (continued) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 16 CONNECTORS & RECEPTACLES EH SERIES RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EH SERIES RECEPTACLES The EH Series consist of different styles of popular connectors in our E Series housing. This allows the end user to punch one single hole size and populate wall plates, gang assemblies with different types of connectors. Connector styles include BNC feed-throughs, RCA feed-throughs, USB feed-throughs, IEEE 1394 Firewire feed-throughs, BNC to solder cup, and RCA to BNC. EHBNC2 FEATURES • Utilizes same panel cut-out as E Series QG connectors • Rugged metal shells • Available with a wide variety of popular feed-through connectors EHRCA2 EHBNC2 EHRCA2 EHBNCSC EHRCABNC Part Number EHBNC2 EHBNCSC EHRCA2 EHRCABNC EHUSB2 EH13942 EHCAT62 Description BNC to BNC BNC to solder cup RCA to RCA RCA to BNC USB to USB IEEE1394 to IEEE1394 Cat6 to Cat6 DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES PQG® RECEPTACLES FAX: 773 792-2129 17 * Please visit the product pages on our website for the most up-to-date product information PQG3FRA112 PQG3MRA112 Q-G® 3 pin/contact PC receptacles offer economy, reliability and performance in amplifiers, audio mixing boards, and other outboard gear. Choose receptacles with just the right combination of standard and optional bonus features to tailor the PQG series to your exact needs. STANDARD FEATURES • UL 94V-0 plastic materials. • Circuit #1 “makes” first and “breaks” last during connect/disconnect. • Positive mechanical polarization. • Minimum PC board space required. • Integral PC board locating posts. • Mating/unmating cycles in excess of 10,000. • Mates with Switchcraft Q-G and other compatible connectors. PQG3FST112 PQG3MST112 SPECIFICATIONS Housing: Black, glass-filled thermoplastic, UL 94V-0. Flange mounting holes are .128 inch diameter Socket Contacts: Copper alloy, electrotinned. Pin Contacts: Copper alloy, electrotinned. Latch Release: Steel, nickel-plated. Mounting Plate: Copper alloy. Shell-to-Ground Terminals: Copper alloy, electrotinned. Latches: Copper alloy, nickel-plated. Insertion/Withdrawal Forces: 2 pound (nominal). Contact Resistance: .05 ohms per pole (maximum). Dielectric Withstanding Voltage: 1,000 V rms for 1 minute. Insulation Resistance: 104 MΩ @ 500 V DC. Current Capacity: 10A maximum (carry only). Operating Temperature: -30°F to 185°F (-34°C to 85°C). Mechanical Life: 10,000 cycles @ 10 cpm. OPTIONAL FEATURES • Positive latch lock or FasDisconnect (female only). • Shell-to-ground terminal. • Mounting Plates: A. Backup Mounting Plate with two, M3 x 0.5 threaded holes for faster, more rugged mounting to equipment panel/chassis. B. “Tri-Mounting” Plate...plus two bifurcated pcb retainers with snap-in terminals which perform three valuable functions: 1. Provide ground connection from panel to PCB. 2. Hold connector securely to PCB during wave-soldering. 3. Add strength between panel/chassis and PCB during soldering by “wicking” solder through the PCB and up sides of retainers to assure continuity. C. Two panel grounds are integral with mounting plate. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES PQG® RECEPTACLES 18 CONNECTORS & RECEPTACLES PQG® SERIES PART NUMBERING SYSTEM PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information PQG® SERIES PART NUMBERING SYSTEM P Q G 3 SERIES PQG- PINS/ CONTACTS Composite QG 3 GENDER F - Female M - Male PC TERMINALS RA - Right Angle, Bottom Exit ST - Straight Rear Exit LATCHING 0 - None 1 - Latch Lock 2 - FasDisconnect (female only) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com GROUND TERMINAL 0 - None 1 - Installed MOUNTING PLATE 0 - None 1 - Plate with two, M3 x 0.5 threaded holes 2 - Plate with two, M3 x 0.5 threaded holes, panel grounds and PCB retainers Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ® Q-G AUDIO RECEPTACLES FOR PC/PANEL MOUNT FAX: 773 792-2129 19 * Please visit the product pages on our website for the most up-to-date product information See for N Next P ag e Cup w Sold e Opti er on PD SERIES - PLASTIC PANEL MOUNT NEW Bifurcated PCB Terminals PD3FS2 PD3MS1 PD3FRL1 PD3FRML1 PD3MRML1 PD3FS2 PD3FRA1 Bifurcated PCB Terminals Switchcraft offers the PD Series (plastic panel mount) audio connectors with a wide variety of 3-pin/contact, male and female types and many terminals for combined PC/panel mount. Female types offer larger contact area for higher ratings and longer life. Panel mounting may be at users option, either front or rear. New PD series connectors mate with Switchcraft Q-G and other compatible types. PD SERIES FEATURES • • • • • • 3 pins/contacts Male and female Straight and right-angle terminals PC or PC/panel mount Front or rear panel mount Special PC/solder terminal type with exits at 0° (down, 90° (right), 180° (top), and 270° (left) • Rugged molded black glass-filled thermoplastic housings. SPECIFICATIONS Housing: Black molded thermoplastic, glass-filled. Ground Pin: Copper alloy. Stamped Terminals/Contacts: Copper alloy, electrotinned. Screw Machine Terminals/Pins: Copper alloy, silver-plated. BIFURCATED PC TERMINALS Bifurcation configuration for PC terminals on selected connectors offers these advantages. 1. Provides convenient snap-in retention for mounting. 2. Holds connector securely to PCB during wavesoldering. 3. Adds strength to all terminal connections by solder “wicking” through PCB and up sides of terminals. BIFURCATED HOLD-DOWN FEATURE FOR ALL PC TERMINALS DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G® AUDIO RECEPTACLES FOR PC/PANEL MOUNT 20 CONNECTORS & RECEPTACLES PD SERIES PART NUMBERING SYSTEM PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information PD SERIES PART NUMBERING SYSTEM P D SERIES PD 3 PINS/ CONTACTS GENDER F - Female M - Male Note: New solder cup option shown. GENDER FEMALE RA - Right-angle, Bottom Exit RL - Right-angle, Left exit RR - Right-angle, Right Exit RU - Right-angle, Top Exit RML - Right-angle, Bottom Exit, Long Screw Mach. Term. RMS - Right-angle, Bottom Exit, Short Screw Mach. Term. S - Straight, Rear Exit SC - Solder Cup HOUSING MALE RML - Right-angle, Bottom Exit, Long Screw Mach. Term. RMS - Right-angle, Bottom Exit, Short Screw Mach. Term. S - Straight, Rear Exit SC - Solder Cup TERMINALS 1 - Front Mount .11" (2.8 mm) diameter flange mounting holes 2 - Rear Mount .091" (2.3 mm) diameter flange mounting holes 3 - Front Mount .126" (3.2 mm) diameter flange mounting holes Blank= Silver terminals AU= Gold terminals Bifurcated PCB Terminals Bifurcated PCB Terminals PD3MS1 3-pin male, straight (rear exit) PC terminals. Front mount. PD3MRML2 3-pin male, right angle (bottom exit) long screw machine terminals. Panel mount holes not countersunk. PD3FRA1 3-contact female, right-angle (bottom exit) PC/solder terminals. Ground lug. Front panel mount. PD3FRL1 3-contact female, right-angle (left exit) PC/solder terminals. Ground lug. Front panel mount. RECOMMENDED PC BOARD LAYOUT (Component Side) RECOMMENDED PC BOARD LAYOUT (Component Side) Numbers PD3FRA1, 2, and 3; PD3FRL1, 2, and 3; PD3FRR1, 2 and 3; PD3FRU1, 2 and 3 (Typical) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Numbers PD3FS1, 2, and 3 (Typical) Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES PD SERIES FAX: 773 792-2129 21 * Please visit the product pages on our website for the most up-to-date product information RECOMMENDED PC BOARD LAYOUT (Component Side) RECOMMENDED PC BOARD LAYOUT (Component Side) Numbers PD3FRMS1, 2, and 3 (Typical) Numbers PD3FRML1, 2, and 3 (Typical) RECOMMENDED PC BOARD LAYOUT (Component Side) RECOMMENDED PC BOARD LAYOUT (Component Side) Numbers PD3MRML1, 2, and 3 (Typical) Numbers PD3MRMS1, 2, and 3 (Typical) RECOMMENDED PC BOARD LAYOUT (Component Side) Numbers PD3MS1, 2, and 3 (Typical) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES PD SERIES (continued) 22 CONNECTORS & RECEPTACLES Q-G® RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G ® RECEPTACLES SERIES Y(*)F, Y(3)FPC, Y(*)FD, Y(3)FDPC AND Y(3)MPC RECEPTACLES Y3MPC Y3FPC Series Y(*)MPC. Male receptacle for panel or chassis mounting escutcheon. PC terminals and standoffs. Rear of panel mount in .750 inch diameter hole. Maximum panel thickness: 25 inches (6.35 mm); .156 inches (3.96 mm) if YEM escutcheon is used. Series Y(*)FPC. Female receptacle for panel or chassis mounting. PC Terminal and standoffs. Rear of panel mount in .875 inch (22.22 mm) diameter hole. Series Y(*)F. Female receptacle for panel or chassis mounting. Rear of panel mount in .875 inch (22.22 mm) diameter hole. Series Y(*)FD, Y(*)FDPC. Female receptacles. Same as Y(*)F and Y(*)FPC, respectively, except with FAS-DISCONNECT detent. Series YEF Escutcheons. Trim escutcheons provide distinctive panel appearance and can also color code connections. Available in black (standard), red, green, white, and yellow. Other colors possible on special order where production quantities warrant. RECEPTACLES Part Numbers Female Female Latchlock† Detent† Y3F Y3FD Insert Contacts 3 Part Number Male† Y3MPC Insert Pins 3 †Suffix letters “PC” indicate PC terminals; all others have solder lugs. ESCUTCHEONS Part Number ◊YEF01 ◊YEF02 ◊YEF03 Color Red Black Green Part Number ◊YEF04 ◊YEF05 ◊YEF08 Color Blue White Yellow SPECIFYING NOTE: YEM02 escutcheon can be ordered on special order; contact Switchcraft. ASSEMBLY/MOUNTING AII receptacles are rear-of-panel mount (units with PC terminals also mount/terminate to PC board). Flange fastens to chassis/panel with two #4-40 machine screws (not supplied). Use of escutcheons is optional. Install latch release lever (Series Y(*)F and Y(*)FPC) after receptacle is fastened to chassis/panel. Insert lever in slot from front and press inward until it locks (snaps) into place. To remove lever, depress rear of lever (with screwdriver) through opening at top rear of housing and pull lever straight out. YEF02 ESCUTCHEONS DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES F SERIES RECEPTACLES FAX: 773 792-2129 23 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES F SERIES RECEPTACLES F3MSTF F3FRAF F3FSTF Switchcraft now offers the F Series. Available in male and female, the receptacles can be mounted from the rear of the panel. Features include an all metal housing with a ferrite disk for added EMI/RMI shielding. Both male and female connectors can be mounted vertical or horizontal to the PC board. All connectors have a PC-board retention feature to hold the connectors firmly to the PC board prior to soldering. See the chart below for part numbers. SPECIFICATIONS: ELECTRICAL F SERIES FEATURES MECHANICAL • Replaces Cannon XLM-Series • 3-pin contact; male and female types • Both male and female fit in same panel cutout • Locking receptacles • Silver-plated contacts • Rugged metal shells; satin nickel finishes • Through-the-shell ground connection and all-metal shells for greater shielding effectiveness • Compatible with Switchcraft Q-G®, QGP and other connectors with similar configurations • Added EMI/RFI ferrite shield Insertion/Withdrawal Forces: 7 pounds maximum/nominal Insertion: 7 pounds maximum withdrawal. Life: 10,000 operations (minimum). Part Number F3MSTF Terminals Contacts Housing F3MRAF MATERIAL F TERMINALS Satin Nickel M Right Angle F3FRAF Thermal Range: -55° C to +85° C Thermal Shock: Meets MIL-STD-202F, method 107D Salt Spray: Meets MIL-STD-202F, method 101D (for 16 hrs.) M Straight Silver ENVIRONMENTAL Shells: Die-cast; satin-nickel plated Inserts: Glass-filled thermoplastic. Socket Contacts: Copper alloy, silver-plated. Pin Contacts: Copper alloy, silver-plated. Latch Release: Steel, nickel-plated. Type F3FSTF Contact Resistance: 50 milliohms maximum, per pole. Current Rating: 15A Insulation Resistance: 1,000 MΩ Dielectric Resistance: 1,000 V rms Capacitance: 2 to 4 pF F Two terminations are available on F-Series receptacles: 1. Straight PC-terminals – direct termination to PC-board. Housing mounts to panel. 2. Right Angle PC terminals – direct termination to PC-board at right angle. Housing mounts to panel. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 24 CONNECTORS & RECEPTACLES F SERIES RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information F SERIES RECEPTACLES (continued) F3MSTF F3FSTF F3MRAF F3FRAF DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES Q-G® ADAPTERS, ACCESSORIES FAX: 773 792-2129 25 * Please visit the product pages on our website for the most up-to-date product information Q-G® CONNECTOR INSERTS Male and female Q-G ® inserts with 3-7 pins/contacts, fit appropriate plug and receptacle housings. Female inserts available with standard latchlock or FAS-DISCONNECT detent mating, and with solder or PC terminals. Intended for replacement, or building into equipment such as microphones and transducers. Standard Latchlock — QG3F QG4F QG5F QG6F QG7F FAS-* DISCONNECT ◊ QG3FDPC QG3FD QG4FD QG5FD QG6FD QG7FD Male Inserts — QG3M QG4M QG5M QG6M QG7M Insert Pins/ Contacts 3 3 4 5 6 7 *Suffix letters “PC” indicate PC terminals; all others (except “S”) have solder lugs. **Suffix letter “S” indicates locking PC terminal and plastic housing. ◊ Special order only. Contact Switchcraft. Note: Add suffix “BAU” for black insert with gold-plated contacts. W(*)M RECEPTACLE Part Number W3M W4M Insert Pins 3 4 SHORTING PLUG Part Number ◊N3MS Right-angle male panel receptacle. Mounts with two, #5-40 machine screws. 3-pin plug shorts out unused hi-Z microphone inputs or other sensitive circuits (shorting jumper installed between pins 2 and 3). 6" (152.4 mm) chain fastened to end pin to prevent plug loss. Switchcraft can install special wiring for a nominal extra charge. Insert Pins 3 ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G® ADAPTERS, ACCESSORIES 26 CONNECTORS & RECEPTACLES Q-G® WALL PLATE RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® WALL PLATE RECEPTACLES G(*)M WALL PLATE RECEPTACLE J(*)F WALL PLATE RECEPTACLE Wall plate with one, D3F or D4F female receptacle. Mounts on standard single electrical outlet box. Cover mounting screws included. Wall plate with one B3M or B4M male receptacle mounted (in “D”-shaped hole to prevent turning) on standard single electrical outlet box. Cover mounting screws included. Part Number ◊G3MS ◊G4MS Finish Insert Pins Stainless Steel 3 Part Number ◊J3FS 4 ◊J4MS ◊ Special order only. Contact Switchcraft. H(*)M WALL PLATE RECEPTACLE ◊H4MS Finish Stainless Steel Stainless Steel Insert Pins 3 4 ◊ Special order only. Contact Switchcraft. K(*)F WALL PLATE RECEPTACLE Wall plate with two, D3F or D4F female receptacles. Mounts on standard single electrical outlet box. Cover mounting screws included. Wall plate with two, B3M or B4M male receptacles mounted (in “D”-shaped holes to prevent turning) on standard single electrical outlet box. Cover mounting screws included. Part Number ◊H3MS Finish Insert Pins Part Number K3FS 3 4 ◊K4FS ◊ Special order only. Contact Switchcraft. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Finish Stainless Steel Insert Pins 3 4 ◊ Special order only. Contact Switchcraft. Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES Q-G® CONNECTOR-ADAPTERS FAX: 773 792-2129 27 * Please visit the product pages on our website for the most up-to-date product information 321 322 323 Switchcraft Q-G ® Connector-Adapters, designed to solve common interconnection problems, are ideally suited to the interconnection of microphones, mixers, amplifiers, public address and sound reinforcement equipment, broadcast equipment, and any other component that does not have an appropriate mating connector. All are completely shielded, and incorporate the high quality and outstanding design features of the Switchcraft line of Q-G Audio Connectors, including: 1. Separate ground terminal. 2. Ground Contactors. 3. Captive Design® Insert Screw 4. High impact Thermoplastic Insulation. MATERIAL SPECIFICATIONS PHONE JACK AND PLUG TERMINATIONS Shell: Copper alloy, nickel-plated. Insulation: Paper-base phenolic. Plug Tip and Sleeve: Copper alloy, nickel-plated. Phone Pin and Plug Housing: Copper alloy, nickel-plated. Phono Plug Insulation: Rigid plastic. Phono Jack Housing: Steel, copper alloy-plated, tarnish-resistant. 324 383A 384A Phono Jack Pin Receptacle: Brass, silver-plated, copper alloy. Phono Jack Insulation: Thermoplastic. 321. Phono plug to 3-contact female audio-connector (Switchcraft® A3F). 322. Phono jack to 3-contact female audio-connector (Switchcraft® A3F). 323. Phono plug to 3-pin male audio-connector (Switchcraft A3M). 324. Phono jack to 3-pin male audio-connector (Switchcraft® A3M). 383A. Three-contact female audio-connector (Switchcraft® A3F) to standard .250" (6.35 mm) diameter 3-conductor extension phone jack. 384A. Three-pin male audio connector (Switchcraft® A3M) to standard .250" (6.35 mm) diameter 3-conductor extension phone jack. 321 324 322 383A 323 384A DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES Q-G® CONNECTOR-ADAPTERS 28 CONNECTORS & RECEPTACLES QG® AUDIO CONNECTOR ADAPTERS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® AUDIO CONNECTOR-ADAPTERS 386A: Three-contact female audio connector (Switchcraft® A3F) to standard .250" (6.35 mm) diameter 3-conductor phone plug. 387A: Three-pin male audio connector (Switchcraft® A3M) to standard .250" (6.35 mm) diameter 3-conductor phone plug. 389: Three-contact female audio connector (Switchcraft® A3F) at both ends. Pre-wired contacts: 1 to 1, 2 to 2, 3 to 3. 390: Three-pin male audio connector (Switchcraft® A3M) at both ends. Prewired pins: 1 to 1, 2 to 2, 3 to 3. 386A 387A 389 390 S*FM AUDIO CONNECTOR-ADAPTER AUDIO “Y” ADAPTERS A C Male-female connector conversion has male Q-G® insert at one end and corresponding female Q-G® insert at the other. Designed to accept internally connected transformer, attenuator, or other circuitry inline with microphone input. Includes 1.50" (38.1 mm) long x .594" (15.08 mm) diameter of usable internal volume. B Series 391Q Y-Adapters can combine or split typical audio signals using a combination of Switchcraft Q-G® A3F and A3M cord plugs. Outputs of two microphones can conveniently be connected in parallel and connected to a single input using a 391Q23 Y-Adapter. Cabling is 2-conductor shielded, 2-foot long gray jacket with molded Y-junction at center point. Mates with Switchcraft Q-G® and QGP® connectors. Q-G® Cord Plug Part Numbers Part Number ◊S3FM ◊S4FM ◊S5FM Female Insert QG3F QG4F QG5F Male Insert QG3M QG4M QG5M Insert Pins/Contacts 3 4 5 ◊ Available on special order only; contact Switchcraft for price and delivery. Part Number Plug A Plug B Plug C ◊391Q13 ◊391Q23 ◊391Q33 ◊391Q43 ◊391Q53 ◊391Q63 A3F A3F A3F A3M A3M A3M A3M A3M A3F A3F A3F A3M A3M A3F A3F A3F A3M A3M Note: “Y” adapters may use either series A(*) or AA(*) plugs. ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES DMX ADAPTER FAX: 773 792-2129 29 * Please visit the product pages on our website for the most up-to-date product information Switchcraft introduces our new series of DMX adapters. The DMX adapters were developed for use in the theater lighting industry. The adapters allow the end user to use standard 3 pin XLR cable assemblies in connecting DMX equipment.The adapters are available in 3 pin male to 5 pin female and 5 pin male to 3 pin female. All are wired “straight through.” S3F5M FEATURES AND BENEFITS • Nickel-plated die-cast housing increases durability • Pre-wired for immediate use • Available in two configurations APPLICATIONS • Theater lighting • Any DMX application S5F3M SPECIFICATIONS Shell: Die-cast zinc, satin nickel finish Insert Insulation: Molded thermoplastic Socket contacts: Silver-plated copper alloy, tarnish-resistant Pin contacts: Sliver-plated copper alloy, tarnish-resistant ORDERING INFORMATION S3F5M S5F3M 3 pin female to 5 pin male 5 pin female to 3 pin male DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES DMX ADAPTER 30 CONNECTORS & RECEPTACLES Q-G® CONNECTOR-ADAPTER RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Q-G® CONNECTOR-ADAPTER RECEPTACLES Adapter receptacles mount directly to microphones or similar equipment to provide highly reliable 3-, 4- and 5-pin Switchcraft Q-G® connections. Adapter shell and coupling nut are brass, satin nickel finish. SERIES M(*)M Male with shell having 13/16-27 external threads to engage equipment with internally threaded body. Terminals extend out rear (threaded end) to permit wiring without disassembly. SERIES L(*)MN Male has plain cylindrical shell with knurled, internally threaded collar to engage external 13/16-27 threads on microphone body. Part Numbers Series L(*)MN ◊L3MN ◊L4MN ◊L5MN Series M(*)M ◊M3M ◊M4M ◊M5M Insert Pins 3 4 5 Z MATCHING TRANSFORMERS SPECIFYING FEATURES • Plug-in impedance changes • Fully wired • Connections bi-directional (low to high impedance or high to low impedance) • Rugged die-cast housings • Mu-metal shielding 9144 MATERIAL SPECIFICATIONS Shell: Die-cast zinc shell, nickel-plated with black non-glare metalized foil label. Shielding: Mu-metal. Dimensions: Diameter–.75" (19.05 mm) nominal Length – 3" (76.2 mm) nominal (Part Number 92XX); 3.375" (85.73 mm) nominal (Part Number 91XX). 9244 ELECTRICAL SPECIFICATIONS Frequency Response: Flat–20 Hz to 20 kHz ± 2 decibels Impedance: High–50 K ohms (nominal); Low–150 ohms (nominal) Voltage Step Ratio (Input Power Level); Low to High: +29 decibels (typical); high to low: -29 decibels (typical) Series 9000 Line Matching Transformers offer low-loss interconnections between high and low impedance equipment. Exclusive mu-metal shielding protects against spurious electrostatic and RF fields. Units are bi-directional and can be used as follows: • Low to hi, such as professional low impedance microphones to high impedance amplifiers. Stereos, cassette recorders, public address systems, and mixers. • Hi to low, such as high impedance microphones or electronic instruments to low impedance amplifiers or mixers. Designed to mate with Switchcraft Q-G® connectors. Available with various terminations; see chart. Part Number ◊9115 ◊9129 9144 9244 Switchcraft Connector Lo Z: 3-contact Q-G® Hi Z: 2-conductor phone plug, female, A3F 1/4" finger diameter, right angle handle, 4" extension (shielded) cable Lo Z: 3-contact Q-G® Hi Z: 2-conductor phono plug, right female, A3F angle handle, 4 inch extension (shielded) cable Lo Z: 3-contact Q-G® female, A3F Hi Z: 2-conductor phone plug, 1⁄4" finger diameter Lo Z: 3-pin Q-G® male, A3M ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS FAX: 773 792-2129 31 * Please visit the product pages on our website for the most up-to-date product information Series TA(*)F, TA(*)FB, TA(*)FL and TA(*)FLB – Straight female cord plug Series TA(*)M, TA(*)MB, TA(*)ML and TA(*)MLB – Straight male cord plug Series TB(*)M and TB(*)MB – Chassis/panel mount male receptacle Series TY(*)F and TY(*)FPC – Chassis/panel, female receptacle, choice of solder lugs or P.C. terminations. Series TLP – Looping Plugs Series TBA(* *) – Audio Adapters Series TRA(*)M – PC Mount Male Receptacles Series TRG(*) – Reverse Gender Panel Mount, Cord Mount DESIGN FEATURES STYLE – Streamlined, miniaturized with nickel-plated metal and contrasting black plastic parts. Designed for light weight and unobtrusiveness. Also available in conductive black chrome finish. CONSTRUCTION – Metal parts are rugged die-cast or precision machined with nickel-plating; plastic parts are molded of high dimensional-stability thermoplastic. Advanced design assures minimum weight consistent with strength and durability of cord plug housings of .413" (10.5 mm) diameter Weight: Series TA(*)F plug = .25 ounce (7 g); Series TA(*)M = .3 ounce (8.5 g). INSERTS – Precision molded of thermoplastic for high mechanical and dielectric strength. Contacts and terminals are precision formed and plated for intimate contact and low resistance connections. Terminal numbers are molded on rear of male insert and on face of female insert for easy identification (except 6-pin male insert). Inserts can be supplied for OEM installation in microphones and instrumentation for optimum connecting reliability. For cord plugs, inserts can also be supplied for replacements. LATCHLOCK – Positive latch system assures high integrity, vibration-resistant mating and transfer of shielding connection between housing, combined with simple, easy fingertip release. STRAIN RELIEF – Rugged internal clamp holds cable tightly, while making a secure, low resistance connection between cable shield and housing. TA3F FLEX RELIEF – Protects by minimizing cable bending stress at point of cable entry. Maximum recommended cable diameter is .115" (2.92 mm) when flex relief is used. By omitting flex relief (Series T(*)FL and T(*)ML only), cable up to .170" (4.32 mm) diameter can be used. ASSEMBLY – Connector parts are mechanically keyed for simple assembly. POLARIZATION – Mating male and female connectors are also mechanically keyed (latch and groove) so that it is impossible to mate them incorrectly. “SCOOP-PROOF” FEATURE – Fully recessed pins on male plugs and receptacles cannot be “scooped”, bent or damaged by accidental mismating with mating connector. COLOR ESCUTCHEONS – Attractive color escutcheons, Series TYEF, are recommended for use with Series TY(*)F and TY(*)FPC receptacles (when rear mounted) for attractive panel trim, as well as color coding one or more connectors. Colors are: red, black, gray, green, blue, white and yellow. CUSTOM Tini Q-G® CABLE ASSEMBLIES – On special order where production quantities warrant, Switchcraft can supply assembled and tested Tini Q-G® cables. MOUNTING Panel/Chassis Thickness: Series TB(*)M: .25" (6.35 mm) maximum Series TY(*)F: Front—.375" (9.5 mm) maximum Rear—.093" (2.3 mm) maximum Series TY(*)FPC: Front—.312" (7.9 mm) maximum Rear—.093" (2.3 mm) maximum TINI Q-G ® AUDIO ADAPTERS Series TA Tini Q-G ® audio adapters have been designed to adapt Tini Q-G ® connections to standard audio connectors. Tini Q-G ® adapters convert to Switchcraft Q-G ® and QGP connectors and similar full-size connectors. Part Number ◊TA01 ◊TA02 ◊TA03 ◊TA04 ◊TA05 ◊TA06 Tini Q-G ® End Mates With TA3F TA4F TA5F TA3F TA4F TA5F TA3M Q-G ® End Mates With A3M A4M A5M A3F A4F A5F DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS 32 CONNECTORS & RECEPTACLES TINI Q-G ® MINIATURE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information TINI Q-G® MINIATURE CONNECTORS (continued) SPECIFICATIONS: (3 – 5 CORD MOUNT ONLY) ELECTRICAL Latch (Female): Copper alloy, nickel-plated. Mounting Nut: Copper alloy, nickel-plated. Contact Resistance: .010 ohms maximum after life (and after salt spray). Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum. Insulation Resistance: 510,000 megohms minimum @ 500 V DC (initial); 10,000 megohms minimum (after humidity test). Dielectric Strength: 1,000 V (rms). SPECIFICATIONS: (6 – 8 Cord Mount and all Receptacles and Adapters) MECHANICAL Life: 5,000 operations minimum Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal. Solderability Standard: Meets EIA RS-186-9E. Mechanical Shock: Meets MIL-STD-202, method 213B. Vibration: Meets MIL-STD-202, method 201A. Wire Size: #22 wire gauge solid; #24 wire gauge stranded. ENVIRONMENTAL Thermal Range: -55°C to + 85°C. Humidity: Meets MIL-STD-202, method 106D. Thermal Shock: Meets MIL-STD-202, method 107D. Salt Spray: Meets MlL-STD-202, method 101. MATERIAL Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle–Die-cast zinc, nickel-plated. Black Tini Q-G® Housing: Copper alloy, black chrome-plated. Pin and Socket Contacts: Copper alloy, silver-plated. Flex Relief: Molded black thermoplastic elastomer. Latch Button: Molded black thermoplastic. Release Lever and Mounting Washer: Steel, nickel-plated. Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned. Inserts and Insulating Spacer: Molded, high strength thermoplastic. STRAIGHT FEMALE CORD PLUG Part Insert Number Contacts TA3F 3 TA3FB* 3 TA3FL1 3 TA3FLB* 3 TA4F 4 TA4FB* 4 TA4FL1 4 Part Number TA4FLB* TA5F TA5FL1 TA5FLB* TA6FL1 TA7FL TA8FL ELECTRICAL Contact Resistance: .010 ohm maximum after life. Current Rating (Carry only): 1.5A, 125 VAC, based on 30° maximum Insulation Resistance: 510,000 MΩ minimum @ 500 VDC (initial). Dielectric Strength: 250 V rms. MECHANICAL Life: 2,000 operations Insertion/Withdrawal Forces (after life): –13 pound insertion; –13 pound maximum withdrawal Solderability Standard: Meets EIA RS-186-9E. Wire Size: 28 wire gauge stranded. MATERIAL Housings, Plugs and Male Receptacles: Copper alloy, nickel-plated. Socket Contacts: Copper alloy, silver-plated. Pin Contacts: Copper alloy, electrotinned. Flex Relief and Latch Button: Molded thermoplastic. Ground Terminal: Copper alloy, electrotinned. Inserts and Insulating Spacer: Molded high strength thermoplastic, UL 94 V-0. Latch (Female): Copper alloy, nickel-plated. Mounting Nut: Copper alloy, nickel-plated. Ferrite: 43 material, shielded head. Frame: Molded thermoplastic, UL 94 V-0. STRAIGHT MALE CORD PLUG Insert Contacts2 Part Number 4 5 5 5 6 7 8 TA3M TA3MB* TA3ML TA4M TA4MB* TA4ML1 Insert Pins 3 3 3 4 4 4 Part Number ◊TA5M ◊TA5ML TA5MLB* TA6ML1 TA7ML TA8ML Insert Pins 5 5 5 6 7 7 1. Add AU to Part Number for Gold Contacts. * B indicates black housing 1 Flex relief omitted for larger diameter cable 2. Add AU to Part Number for Gold Contacts. * B indicates black housing ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES TINI Q-G ® MINIATURE CONNECTORS FAX: 773 792-2129 33 * Please visit the product pages on our website for the most up-to-date product information TB(*)M AND TB(*)MB RECEPTACLE TLP(*) LOOPING PLUG Looping plug is designed for circuit testing. Other inserts and wiring patterns are possible; contact Switchcraft. Male receptacle for chassis/panel mounting. Specially designed flange permits close (front) mount on crowded panels. Mounting hardware supplied. Available with PC terminals. Call factory for details. Part Insert Part Insert Number Pins Number Pins TB3M 3 TB5MB* 5 TB3MB* 3 TB6M 6 TB4M 4 TB7M 7 TB4MB* 4 TB8M 8 TB5M 5 * B indicates black housing STRAIGHT FEMALE LOOPING PLUG Part Number Insert Contacts ◊TLP4 4 ◊TLP6 6 ◊ Available on special order only; contact Switchcraft for price and delivery. * Number of insert contacts or pins must be specified to complete Part Number. REVERSE GENDER TQG SERIES TRG4M Same specifications as the original TQG Series, however, the latch is on the male cord mount. Available in 4 pin only. TRGS4F Part Number TRGS4F TRG4M Insert Pins 4 4 Description Panel mount female Cord mount male w/latch DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS (continued) 34 CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information TINI Q-G® MINIATURE CONNECTORS (continued) TRA6M TRA3M TRA(*)M PC MOUNT MALE RECEPTACLE The TRA(*)M low profile male receptacles mount in minimum space from the rear of panel or chassis, and feature space-saving right-angle construction and PC type terminals. The TRA3M is a cost-effective choice for audio equipment, medical instrumentation, computer equipment and test/measurement applications. Also available with 6 pins. Part Number TRA3M TRA6M TRA6MF* Insert Pins 3 6 6 *F designates ferrite shielding. TRAPC3MS TRASM3M TRASM*M, TRAPC*M SERIES Switchcraft introduces an expansion of its popular TQG Series of connectors.The TRASM*M and TRAPC*M offers low profile, right angle PC board mount connectors. The TRASM*M versions are true surface mount connectors, while the TRAPC*M versions are through-hole PC mount connectors. Both versions are available in 3-8 pins. All plastic connectors, the TRASM*M and TRAPC*M series have flats on the top of the connectors to facilitate pick and place assembly. As an added option, a non-threaded bushing version is also available. • Low profile, compact design reduces PC board space • Mates with TQG female cord plugs • Rated at 5A for 3-6 pins, 3A for 7 and 8 pin versions MARKETS • Wireless microphone systems • Medical Instrumentation • Test Instrumentation ELECTRICAL Current Rating: 5A for 3-5 pins, 1.5A for 6-8 Contact Resistance: 10 m Ohm max Insulation Resistance: 100 m Ohm min Dielectric Withstanding Voltage: 250VAC Mechanical Life: 2,000 cycles FEATURES AND BENEFITS TINI Q-G® CONNECTORS ORDERING INFORMATION T ___ RA ___ ___ ___ M ___ ___ ___ ___ ___ SPECIFICATIONS MATERIALS Reel Size 15" reel, standard tape and reel size Tini QG Right Angle Termination PC - Thru Hole SM - Surface Mount Housing: Thermoplastic Contacts: Brass, tin-plated Nut and Washer: Brass, nickel-plated Contacts Configuration 3-8 Contact Gender M - Male Optional Packaging TR - Tape and Reel (std packaging - bulk) Optional Modifier 1 - no thread Optional Modifier S-small Profile (available in configurations 3&4 only) See next pages for drawings DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ® TWIN Q-G ® MINIATURE CONNECTORS FAX: 773 792-2129 35 * Please visit the product pages on our website for the most up-to-date product information TRASM*M, TRAPC*M SERIES DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES TINI Q-G ® MINIATURE CONNECTORS (continued) 36 CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information TINI Q-G ® MINIATURE CONNECTORS (continued) TRASM*M, TRAPC*M SERIES DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES TINI Q-G® MINIATURE CONNECTORS FAX: 773 792-2129 37 * Please visit the product pages on our website for the most up-to-date product information TY(*)F AND TY(*)FPC RECEPTACLES MOUNTING HOLE DETAIL SERIES TY(*)F, TY(*)FPC FRONT MOUNTING REAR MOUNTING Female receptacle mounts in minimum space from front or rear panel or chassis. Terminals are solder lugs, Series TY(*)F, or P.C., Series TY(*)FPC. All receptacles have separate ground lug. Part Number TY3F TY3FPC TY4F TY4FPC Insert Contacts 3 3 4 4 Part Number TY5F TY5FPC COMBINED P.C. /PANEL MOUNTING RECOMMENDED P.C. BOARD LAYOUT Insert Contacts 5 5 TQG(*)F AND TQG(*)M CONNECTOR INSERTS TYEF ESCUTCHEONS TBA(**) AUDIO ADAPTER Male and female inserts with 3, 4, 5 or 6 pins/ contacts. For replacement (cord plugs only) or build-into equipment, such as microphones, transducers and instruments. Trim escutcheons in seven colors for use with Series TY(*)F and TY(*)FPC receptacles, are recommended for rear mount receptacles. Escutcheons must be ordered separately. Part Number ◊TYEF01 ◊TYEF02 ◊TYEF03 ◊TYEF04 ◊TYEF05 ◊TYEF08 ◊TYEF11 Color Red Black Green Blue White Yellow Gray Male Inserts Part Number ◊TQG3M ◊TQG4M ◊TQG5M ◊TQG6M 3–6 pin male-to-male adapter is designed for through-bulkhead or cable expansion usage. Adapter is prewired pin 1 to pin 1, pin 2 to pin 2, etc. Mounting nuts are supplied for each threaded end. Panel hole diameter required is .45"; maximum panel thickness is .25" (6.35 mm). Insert Pins 3 4 5 6 Female Inserts Part Number ◊TQG3F ◊TQG4F ◊TQG5F ◊TQG6F Insert Contacts 3 4 5 6 Part Number ◊TBA03 ◊TBA04 ◊TBA05 ◊TBA06 ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Insert Pins 3 4 5 6 CONNECTORS & RECEPTACLES TINI Q-G ® MINIATURE CONNECTORS (continued) 38 CONNECTORS & RECEPTACLES HIGH POWER CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information HPC SERIES PANEL MOUNTS AND CORD PLUGS HPCPR41F HPCP41F HPCP410RA HPC SERIES Switchcraft recently introduced a complete line of panel mount speaker connectors that are completely compatible with the Neutrik® Speakon® 4 pole series. We are now introducing a complete line of cable mounts as well. The complete HPC Series offers both panel mount and cord mount connectors. The HPC panel mounts have been updated with new silver-plated contact materials that boost the contact ratings to 30A per UL 1977 on PC mount versions, 50A per UL 1977 on Faston® versions. They are still available with either 0.100" depth flanges or 0.200" depth flanges. The 0.200" depth flange allows for rear mounting of the HPC Series, and proper mating of all cord plugs. The panel mount versions are available with either 0.187" or 0.250" Faston® terminals, and either straight or right angle PC mount terminals. The right angle PC mount version also has, as an option, a mounting post which allows the connector to snap onto the PC board for wave soldering. The HPC cord plugs are available in either straight, right angle, or as an in-line. The in-line version mates with either the straight or right angle cord plug, allowing the end user to extend cable runs. All cord plugs are compatible with Speakon® panel mounts. The in-line mates with our HPC cord plugs, as well as Speakon® cord plugs. The unique feature of the HPC series cord plugs are the “push to lock” feature, similar to the connection of an XLR connector. The HPC cord plugs, when mated to either HPC panel mounts or Speakon® panel mounts do not require a 1/4" turn to engage. Simply push the connector in until it locks. To disengage, push forward on the latch lever and pull the connector out. This feature eliminates the need to remember to turn the connector to make contact. All HPC cord plugs utilize 0.250" Faston® terminals, which allow for easy assembly, and make it easy to change cord plugs. To change from a straight cord plug to an in-line cord plug, back off the strain relief nut, twist off the handle, disconnect the Faston® terminals, fasten the new cord connector, twist on the handle and the strain relief. Barbs on the handle keep the handle from vibrating loose from the front shell. Both HPC panel mounts and cord plugs incorporate a built-in gasket, which allows them to meet IP 25 harsh environment ratings, as well as IEC 529 and IEC 1010-1 safety ratings. FEATURES AND BENEFITS • Completely compatible with Neutrik® Speakon® 4 pole connectors • 30A rating per UL 1977 on PC mount versions • 50A rating per UL 1977 on Faston® versions • Panel mounts have two different Faston® terminal sizes, 0.187" and 0.250" • Panel mounts offered with two different flange depths, 0.100" and 0.200" • 0.200" depth flange offers easy rear mounting HPCI4F HPCC4RAF • Right angle or straight PC board terminals on panel mounts • Built in gasket gives all HPC connectors IP 25 environmental ratings • All HPC Series meet IEC 529 and IEC 1010-1 safety ratings • Cord plug versions offer “push to lock” design, no 1/4" turn to engage • Cord plug versions accept 10 AWG wire, 0.560" cable OD max APPLICATIONS • Loudspeakers • Power audio amplifiers SPECIFICATIONS Materials Housings: Thermoplastic UL 94V-O rated Seal Rings: Thermoplastic rubber Contacts: Silver-plated over copper alloy ELECTRICAL PC Terminals Current Rating: 30A per UL 1977 Faston® Terminals Current Rating: 50A RMS w/10AWG wire, normal ambient, per UL 1977 Voltage Rating: 1,500 AC RMS, Per Mil-Std 202 Method 301 Insulation Resistance: > 2T Ohms Contact Resistance: 1m Ohm, 1.5mOhm after 1,000 insertion/withdrawals MECHANICAL Shock: Mil-Std 202, Method 213B Cond.K Vibration: Mil-Std 202, Method 201A Life: 1,000 insertion/withdrawals Cable Range: 0.560” OD max ENVIRONMENTAL Salt Spray: Mil-Std 202, Method 101D Cond. B Thermal Shock: Mil-Std 202, Method 107G Temperature Limits: -55 C to +85 C Moisture Resistance: Mil-Std 202, Method 106E Life@Ambient Temperature: Mil-Std 202, Method 108A Touch Proof: IEC 65 and 1010-1 Weather Tightness: IEC 529, IP 25 CORD MOUNT ORDERING INFORMATION Part Number Description HPCC4F HPCI4F HPCC4RAF DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com HPCC4F Straight Cord Plug Inline Cord Plug Right Angle Cord Plug Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES HIGH POWER CONNECTORS FAX: 773 792-2129 39 * Please visit the product pages on our website for the most up-to-date product information Series High Power Connector Type of Connector P - Panel Type of Housing Blank - rectangle R - round Number of Contacts 4 Termination F - .250" Faston® ; F1 - .187" Faston®; PC - Printed Circuit RA - Right angle PC; RAP - Right angle PC with mounting post Mounting Holes Blank - Rectangle: .140” dia. w/Countersink Hole Blank - Round: .152” dia. w/Countersink Hole 0 - Rec./ Round: .093” Dia. Hole Recessed Flange (Dim. “A”) 1 - .100”; 2 - .200” DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES PANEL MOUNT ORDERING INFORMATION HPC P ___ ___ 4 ___ ___ ___ ___ ___ 40 CONNECTORS & RECEPTACLES HIGH POWER CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information HPCP*4 DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ™ EN3 MINI WEATHERTIGHT CONNECTOR SERIES FAX: 773 792-2129 41 * Please visit the product pages on our website for the most up-to-date product information GENERAL FEATURES AND BENEFITS MATING INSTRUCTIONS FOR A CORD CONNECTOR TO A PANEL MOUNT OR IN-LINE CONNECTOR First, align the notched keyway on both the panel mount or in-line and cord connector. Then, push the cord connector onto the mating connector. Grasp the coupling ring between the slots, push it toward the panel mount connector and rotate it clockwise nearly one half a turn. Continue rotating until you feel the coupling ring ride over the locking “bump”. This is the locked position. The cord connector is not securely in place unless this procedure is followed. APPLICATIONS Process Control Marine Electronics Medical Instrumentation Geothermal Instrumentation Communications Transportation General Industrial Electronics Harsh Environments Cord Connector Panel Connector ENVIRONMENTAL Temperature Limits: -40°C to +65°C (non-operating) Moisture Resistance: Mil-Std 202 Method 106F Insulation Resistance: Mil-Std 202 Method 302 condition B Thermal Shock: Mil-Std 202 Method 107G Salt Spray: Mil-Std 202 Method 101D condition B RATINGS IP16/IP18 CFR 46 Part 110.20 IP66/IP68 UL 94V-O NEMA 250 (6P) Patent 5,485,673 File 36049 EN3™ Weathertight Connector Current Carry Capability (per UL 498 Standard) ✖▲ 50.00 Temp Rise (Centigrade) • Great all-purpose connector “weather” or not sealing feature is required. • Superior leakage protection. Contact area is double-sealed for excellent moisture and chemical resistance when mated to Switchcraft’s connectors. • Integral O-ring and gasket. O-ring is molded onto cord housing assembly and gasket is molded onto panel housing assembly to prevent leakage and eliminate need for additional O-rings and gaskets. • Reduced part count for reduced labor to assemble. • No Grommets. Cable clamp assembly features living hinges, which snap easily onto and support the cable. • Thermoplastic rubber body simulates closed entry contact system to prevent probe damage or accidental loss of spring retention due to misaligned or bent pins. • Abrasion-resistant thermoplastic boot provides strain relief and accepts cable diameter .195" to .265". • Housing rated UL 94V-O against flammability. • Panel connector shell features a positioning keyway to prevent misalignments and a polarizing single “D” design for proper panel mounting and to prevent rotational movement. • 2-18 pins. • Exceeds Coast Guard specifications for water tightness (CFR 46 Part 110.20). • Optional cap covers panel housing assembly when not in use. • Exceeds enclosure rating IP16/IP18 when not mated or covered and IP66/IP68 when mated or covered (IEC 529). • Exceeds enclosure rating 6P at 1000V when mated or covered (NEMA 250). 40.00 ▲ ✖ 30.00 ■ ▲ ✖ 20.00 ▲ ✖ ■ ◆ ◆ ◆ ◆ ▲ ✖ ■ 10.00 ◆ ■ 0.00 7 10 12 13 Current (Amps) - w/14 AWG Wire MATERIALS Cord and panel connector shells, contact locking disk, and cable clamp assembly: Thermoplastic polymer glass fiber, flame retardant Coupling ring: Nylon Rear boot and connector shell interior: Thermoplastic rubber Contacts: Copper base alloy gold-plated over nickel underplate ◆ Female 3 pin ▲ Female 8 pin ■ Male 3 pin ✖ Male 8 pin Dielectric Withstanding Voltage Contact size/ number of contacts SPECIFICATIONS MECHANICAL #20-2 Shock: Mil-Std 202 Method 213B, condition K Vibration: Mil-Std 202 Method 201 Life: 600 insertion/withdrawal cycles (minimum) Voltage 3000 #20-4 #20-3 #16-2 ELECTRICAL 2000 Voltage Rating (sea level): Tested at 600 VRMS Insulation Resistance: 100 megohms (minimum) at 77° F Contact Resistance: 5 milliohms (maximum) Current Rating: 3.0 Amps (#26 contact)– 9 through 18pin 6.5 Amps (#20 contact)– 7 and 8 pin 7.5 Amps (#20 contact)– 2 through 6 pin 13.0 Amps (#16 contact)– 2 and 3 pin DIMENSIONS ARE FOR REFERENCE ONLY ■ #20-7, #20-8 #16-3 #20-5, #20-6 Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 1000 15 CONNECTORS & RECEPTACLES EN3™ MINI WEATHERTIGHT CONNECTOR SERIES 42 CONNECTORS & RECEPTACLES EN3™ MINI WEATHERTIGHT CONNECTOR SERIES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information CRIMP CONTACT INSERTION INSTRUCTIONS CRIMP TOOLS CRIMP CONTACT EXTRACTION INSTRUCTIONS Part Number Tool Description EN3INS16 Insertion/Extraction Tool for 16 AWG EN3INS20 Insertion/Extraction Tool for 20 AWG EN3CR Crimp Hand Tool EN3CRAUTO Pneumatic Crimp Tool EN3POS16 Positioner for 16 AWG contacts and pins EN3POS20 Positioner for 20 AWG contacts and pins NOTE: A positioner must be used with the EN3CR and EN3CRAUTO. Note: Solder and PC contacts are factory assembled CORD CONNECTOR ASSEMBLY INSTRUCTIONS STEP 1 Cord Connector: To assemble the three-part cord connector, first feed the end of the cable through the boot, cable clamp housing, and coupling ring in that order and position as shown in the figure below. NOTE: The coupling ring can also be inserted onto the cord connector from the front. In-line Connector: Feed the end of the cable through the boot and cable clamp housing in the order and position shown. CABLE COUPLING RING BOOT CABLE CLAMP HOUSING CABLE CORD CONNECTOR CONTACT PINS IN-LINE CONNECTOR CABLE CLAMP HOUSING BOOT CONTACT PINS O-RING (MOLDED ONTO CORD CONNECTOR) STEP 2 Next, strip the cable .218" as shown and begin soldering conductors to pins, or insert contacts crimped on wire starting with contact #1 next to the "notch" and following with the remaining conductors counter-clockwise with #6 or #8 conductor in the center. 3/8" MAX. 7/32" SOLDER NOTCH (PIN #1 INDICATOR) CORD CONNECTOR 3/8" MAX. IN-LINE CONNECTOR SOLDER 7/32" NOTCH (PIN #1 INDICATOR) 9/32" 9/32" STEP 3 Push the cable clamp housing forward until it locks into the connector body and snap the two clamps into their compartments. CORD CONNECTOR IN-LINE CONNECTOR CABLE CLAMPS CABLE CLAMPS STEP 4 CORD CONNECTOR IN-LINE CONNECTOR Finally, push the boot all the way forward to seat tightly onto the cable clamp housing. Remember: Cord connectors will not mate with each other. For cord-to-cord connection, your customer must order a cord connector plus an in-line connector. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ™ EN3 MINI WEATHERTIGHT CONNECTOR SERIES FAX: 773 792-2129 43 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES EN3™ MINI WEATHERTIGHT CONNECTOR SERIES (continued) 2 – 8 PIN CORD CONNECTOR 9 – 18 PIN CORD CONNECTOR EN3 Cord Connector Part Number Scheme Series Style EN3 Notes: C Pins/ Contacts 2-18 Gender F: Female M: Male Contact Size 16: #16 Leave blank for #20 26: for 9-18 only Contact Style C: Crimp P: PC S: Staggered Leave blank for solder 7 & 8 pin not available in cord male 9-18 pin available in either staggered solder or straight solder only 9-18 pin available only with # 26 terminals AG: Silver plating special order #16 contact available in 2 & 3 pins only DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Contact Plating AG: Silver Leave blank for gold Packaging K: Kit Leave blank for bulk packaging 44 CONNECTORS & RECEPTACLES EN3™ MINI WEATHERTIGHT CONNECTOR SERIES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EN3™ MINI WEATHERTIGHT CONNECTOR SERIES (continued) 2 – 8 PIN PANEL CONNECTOR 9 – 18 PIN PANEL CONNECTOR EN3 Panel Connector Part Number Scheme Series Style EN3 Notes: P Pins/ Contacts 2-18 Gender F: Female M: Male Contact Size 16: #16 Leave blank for #20 26: for 9-18 only Contact Style C: Crimp P: PC S: Staggered Leave blank for solder Contact Plating AG: Silver Leave blank for gold Packaging K: Kit Leave blank for bulk packaging 7 & 8 pin not available in panel female 9-18 pin available in either staggered solder or straight solder only 9-18 pin available only with # 26 terminals AG: Silver plating special order #16 contact available in 2 & 3 pins only DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES ™ EN3 MINI WEATHERTIGHT CONNECTOR SERIES FAX: 773 792-2129 45 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES EN3™ MINI WEATHERTIGHT CONNECTOR SERIES (continued) 2 – 8 PIN INLINE CONNECTOR EN3 Inline Connector Part Number Scheme Series Style EN3 Notes: I Pins/ Contacts 2-8 Gender F: Female M: Male Contact Size 16: #16 Leave blank for #20 Contact Style C: Crimp P: PC Leave blank for solder 7 & 8 pin not available in inline female #16 contact available in 2 & 3 pins only AG: Silver plating special order 2 – 8 PIN OVERMOLDED CORD AND INLINE CONNECTOR (See Cable Section for More Details.) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Contact Plating AG: Silver Leave blank for gold Packaging K: Kit Leave blank for bulk packaging 46 CONNECTORS & RECEPTACLES DIN CONNECTORS AND PLUGS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information DIN CONNECTORS MATERIAL SPECIFICATIONS ELECTRICAL Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts. Dielectric Withstanding Voltage: 500 V (rms) Contact Rating: 5-pin; 3A, 34 V DC Leakage Resistance: 105 MΩ Recommended Wire Size: 22 wire gauge maximum Shell: Die-cast zinc alloy, nickel-plated. Receptacle Mounting Flange: Steel. Receptacle Body: Plastic. Insert Material: Plastic. Socket Contacts: Tin-plated. Pin Contacts: Tin-plated. Switching Contacts: Silver-plated. Cable Relief Bushing: Soft plastic. PIN ARRANGEMENTS MECHANICAL INSERTION/WITHDRAWAL FORCES: Number of Contacts 2 3 4 5 6 7 8 Insertion Force pound/N 3.6/(16) 5.4/(24) 7.2/(32) 9.0/(40) 10.8/(48) 12.6/(56) 14.4/(64) Withdrawal Force pound/N .45- 2.7/(2-12) .67- 4.1/(3-18) .90- 5.4/(4-24) 1.24- 6.8/(5.5-30) 1.46- 8.1/(6.5-36) 1.68- 9.5/(7.5-42) 1.90-10.8/(8.5-48) CONTACT ARRANGEMENTS NOTE: All connectors meet DIN specifications #41524. Din specification numbers (except for 4-pin, 5-pin @ 240°, and 8-pin @ 262°) DIN PLUGS STRAIGHT CORD PLUG STRAIGHT CORD PLUG with Shielded Barrel with 30° lock ring Type 05CL5M – typical Male plug with ground key-rib. Unique 30° turn lockring securely fastens two halves of connector. Mates with lock flange female connectors and receptacles. Insert screw holds insert assembly in shell and also retains lockring on shell. Flexible black strain relief with 7/32" diameter cable entry. Heavy duty clamp. ORDERING INFORMATION Part Number Description Pin Arrangement Type 15GM7M – typical: Male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel’s special metal tab locks the shell in place. Standard color of plastic shell is gray. All-purpose cable clamp. ORDERING INFORMATION Part Number ◊ 05GM3M ◊05CL3M 3 pins at 180° 2 05CL5M 5 pins at 180° 5 ◊09CL4M 4 pins at 210° 3 ◊09GM4M ◊12CL5M 5 pins at 240° 4 ◊ ◊15CL7M 7 pins at 270° 7 ◊15CL8M 8 pins at 270° 9 ◊ Available on special order only; contact Switchcraft for price and delivery. 05GM5M 12GM5M ◊12GM6M ◊15GM7M ◊15GM8M ◊20GM8M Description 3 pins at 180° Gray body and strain relief. 5 pins at 180° Gray body and strain relief 4 pins at 210° Gray body and strain relief 5 pins at 240° Gray body and strain relief 6 pins at 240° Gray body and strain relief 7 pins at 270° Gray body and strain relief 8 pins at 270° Gray body and strain relief 8 pins at 262° Gray body and strain relief Pin Arrangement 2 5 3 4 6 7 9 10 SPECIFYING NOTE: Use letter “JL” in place of “GM” to order same part number with black housing. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES DIN PLUGS AND RECEPTACLES FAX: 773 792-2129 47 * Please visit the product pages on our website for the most up-to-date product information RIGHT-ANGLE CORD PLUG STRAIGHT CORD PLUG with Extended Barrel with 8 Position Barrel and 30° Lockring TYPE 12BL6M – TYPICAL TYPE 05YL5M – TYPICAL Male plug with ground key-rib. Nickel-plated diecast handle. Contact friction coupling. Flexible black strain relief. Heavy duty cable clamp. Right-angle chassis hugging, male plug with flexible strain relief. Unique 8-position barrel gives you a choice of any one of eight different cable entry angles. ground key rib 30° turn lockring securely fastens two halves of connector. ORDERING INFORMATION ORDERING INFORMATION Part Number ◊03BL2M ◊05BL3M ◊05BL5M ◊09BL4M 12BL5M ◊12BL6M ◊15BL7M ◊15BL8M Description 2 pins with insulated switch actuator 3 pins at 180° 5 pins at 180° 4 pins at 210° 5 pins at 240° 6 pins at 240° 7 pins at 270° 8 pins at 270° Pin Arrangement 1 2 5 3 4 6 7 8 Part Number ◊05YL3M ◊05YL5M ◊09YL4M ◊12YL5M Description 3 pins at 180° 5 pins at 180° 4 pins at 210° 5 pins at 240° RIGHT-ANGLE CORD PLUG with 8 Position Barrel 05DL5M shown TYPE 05DL5M – TYPICAL Right-angle chassis hugging, male plug with flexible black rubber strain relief. Unique 8-position barrel offers a choice of eight different cable entry angles. ORDERING INFORMATION Part Number ◊05DL3M ◊05DL5M ◊09DL4M ◊12DL5M ◊12DL6M ◊15DL7M Description 3 pins at 180° 5 pins at 180° 4 pins at 210° 5 pins at 240° 6 pins at 240° 7 pins at 270° Pin Arrangement 2 5 3 4 6 7 ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Pin Arrangement 2 5 3 4 CONNECTORS & RECEPTACLES DIN PLUGS AND RECEPTACLES 48 CONNECTORS & RECEPTACLES DIN PLUGS AND RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information DIN PLUGS AND RECEPTACLES (continued) STRAIGHT CORD PLUG with Flush Socket Insert STRAIGHT CORD PLUG with Lock Flange TYPE 06AL5F – TYPICAL TYPE 06EL5F – TYPICAL Female plug with ground contact. Diecast metal shell, nickel-plated. Two contact plug, Part number 04AL2F includes a break circuit switch (1-B) which is opened by engaging the insulated switch actuator of the mating plug or receptacle. Flexible black strain relief. Female plug with ground contact. Lock flange designed to accept 30° lockring. Insert screw firmly holds insert assembly in shell. Flexible black strain relief with 7/32" diameter cable entry. Heavy duty cable clamp. .216 5.5 .393 10.0 .216 5.5 2.24 57.0 .456 11.6 1.22 31.0 .622 15.8 0.51 1.3 Stain Relief ORDERING INFORMATION Part Number ◊06AL5F ◊13AL5F ◊13AL6F ◊15AL7F ◊15AL8F 5 5 6 7 8 Description contacts at 180° contacts at 240° contacts at 240° contacts at 270° contacts at 270° ORDERING INFORMATION Contact Arrangement F E G H N Part Number ◊◊06EL5F 13EL5F ◊15EL8F Description 5 contacts at 180° 5 contacts at 240° 8 contacts at 270° Contact Arrangement F E N RECEPTACLE with Extended Shell ORDERING INFORMATION TYPE 57KD3M – TYPICAL Male receptacle, 3 pins, with ground key-rib. Diecast extended shell and flange for chassis or panel mounting. Turret terminals. Part Number 57KD3M Description 3 pins at 180° Pin Arrangement 2 ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES DIN RECEPTACLES FAX: 773 792-2129 49 * Please visit the product pages on our website for the most up-to-date product information RECEPTACLE with Closed Circuit Switch TYPE 59GB3F – TYPICAL Unique 3 and 5 contact receptacles include a 1-B (closed circuit) switch which is mounted to drawn metal shell. Switch is actuated by the shell of the mating plug. Receptacles also provide complete shielding through the ground contact. Flared solder terminals. ◊59GB3F Description 3 contacts at 180° plus closed-circuit switch (Schematic #5) for Chassis or Panel Mounting For shielded and extended barrel plugs TYPE 57GB5F – TYPICAL – FLARED SOLDER TERMINALS Drawn metal recessed shell with mounting flange and ground contact. Available flared solder terminals. Part Number 58GB3F features two extra blanks in insert for proper mating (5 pins at 180°) plug where applications may require greater connector flexibility. Flared solder terminals standard. ORDERING INFORMATION ORDERING INFORMATION Part Number RECEPTACLE Contact Arrangement B ◊ Available on special order only; contact Switchcraft for price and delivery. Part Number Descriptions Contact Arrangement ◊57GB3F 3 contacts at 180° B ◊57GB5F 5 contacts at 180° F ◊60GB4F 4 contacts at 210° D ◊61GB5F 5 contacts at 240° E ◊61GB6F 6 contacts at 240° G ◊62GB7F 7 contacts at 270° H ◊62GB8F 8 contacts at 270° N ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES DIN RECEPTACLES (continued) 50 CONNECTORS & RECEPTACLES DIN RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information DIN RECEPTACLES (continued) RECEPTACLE for Lockring Plug Flared solder terminals on Part Number 57HB5F RECEPTACLE TYPE 61HA5F – TYPICAL TYPE 57NC5F – TYPICAL Female receptacle with ground contact. Chassis or panel mount. Diecast bayonet extension shell with mounting flange. Mates with all lockring plugs. such as Part Number 12CL5M. Part Number 55HA2F includes closed-circuit switch (1-B). All receptacles have straight solder terminals, except as noted. Mounts to printed circuit boards. Special PC type terminals “snap-in” precut boards. See drawing. Tubular metal shell with ground contact. Part Number 58NC3F mates with either 3 pin or 5 pin (at 180°) plugs because of its 2 extra blanks in the contact insert. for Printed Circuit Board Mounting ORDERING INFORMATION Part Number ◊55HA2F ORDERING INFORMATION Description 2 contacts with closed-circuit switch (Schematic #4) Pin Arrangement A 57HB3F* 3 contacts at 180° B 57HB5F* 5 contacts at 180° F 60HA4F 4 contacts at 210° D 61HA5F 5 contacts at 240° E 62HB7F* 7 contacts at 270° H 62HB8F* 8 contacts at 270° N Part Number Description Contact Arrangement ◊57NC5F F ◊58NC3F 5 contacts at 180° 3 contacts at 180° 2 extra blanks ◊60NC4F 4 contacts at 210° ◊61NC5F 5 contacts at 240° E ◊62NC7F 7 contacts at 270° H ◊62NC8F 8 contacts at 270° N C D “C” in part number indicates PC terminals. ◊ Available on special order only; contact Switchcraft for price and delivery. *Flared solder terminals “A” in part number indicates straight terminal. (solder lug). ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES DIN RECEPTACLES FAX: 773 792-2129 51 * Please visit the product pages on our website for the most up-to-date product information ORDERING INFORMATION for Printed Circuit Board Mounting TYPE 57PC5F–TYPICAL Mounts to PC boards. Plugs connect at right-angle to mounting surface. Part Number 57PC3F mates with either 3 or 5 pin (at 180°) plugs because of two extra blanks in contact insert. ground contact provides complete shielding through receptacles. Part Number Description Contact Arrangement ◊57PC3F 3 contacts at 180° B ◊57PC5F 5 contacts at 180° F ◊60PC4F 4 contacts at 210° D ◊61PC5F 5 contacts at 240° E ◊61PC6F 6 contacts at 240° G ◊62PC7F 7 contacts at 270° H ◊62PC8F 8 contacts at 270° N ◊ Available on special order only; contact Switchcraft for price and delivery. 61PC5F, 61PC6F .709 DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES RIGHT-ANGLE RECEPTACLE 52 CONNECTORS & RECEPTACLES DIN RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information Part Number Description Contact Arrangement ◊57PC3FS 3 contacts at 180° B ◊57PC5FS 5 contacts at 180° F ◊60PC4FS 4 contacts at 210° D ◊61PC5FS 5 contacts at 240° E ◊61PC6FS 6 contacts at 240° G ◊62PC7FS 7 contacts at 270° H ◊62PC8FS 8 contacts at 270° N SPECIFYING NOTE: Another series of receptacles with a trimmed metal flange .052" (1.32 mm) below housing top is available. Replace suffix “S” with “T” in part numbers above to specify these receptacles or contact Switchcraft. Mounting: #2 or #3 self-tapping screw. ◊ Available on special order only; contact Switchcraft for price and delivery. RIGHT-ANGLE SHIELDED RECEPTACLE for printed circuit board mounting TYPE 60PC4FS–TYPICAL Similar to 57PC5F – Typical, except flange surrounding face of insert is metal to provide through-grounding between plug and receptacle and to potential panel/chassis for common grounding. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES MINI-DIN RECEPTACLES FAX: 773 792-2129 53 * Please visit the product pages on our website for the most up-to-date product information MINI-DIN RIGHT-ANGLE RECEPTACLES Miniature DIN right-angle connectors are designed for personal computer, video and data communications, medical and instrumentation equipment and systems. RIGHT-ANGLE, PC MOUNT RECEPTACLES Available with 3 through 8 contacts, female only, receptacles also have a standard (and separate) ground contact system. Ground terminal can be straight or snap-in type. Snap-in terminals are bifurcated to assure tight hold down on PC board before, during and after soldering. Solder wicking around the terminal strengthens the connection. Additionally, PC terminals are staggered to assure more “hold down” capability during soldering. Receptacle/plug retention is “friction” type, and a separate outer shield can be specified. Series SMD*FRAX10: 3 through 8 contacts, female, right-angle PC mount, straight ground terminal, and no outer shield. Series SMD*FRAX20: Same as SMD*FRAX10, except with bifurcated snap-in ground terminal. Series SMD*FRAX11: 3 through 8 contacts, female, right-angle PC mount, straight ground terminal, and outer shield. Series SMD*FRAX21: Same as SMD*FRAX11, except with snap-in ground terminal. Series DMD*FRAX111: Dual stacked miniature DIN connectors, available in 4, 5, 6, and 8 contacts. Shielded and non-shielded versions available. Dimensions: .552" (14 mm) wide x .502" (12.8 mm maximum depth x .642" (16.3 mm) height, including terminals. SPECIFICATIONS Ratings: 1A, 100 VAC; 2A, 12 VDC. Insulation Resistance: 50 MΩ minimum Dielectric Strength: 250 VDC for 1 minute. Contact Resistance: 30 mΩ maximum Insertion/Withdrawal Force: 0.8 to 5 kilograms Withdrawal Force: 0.8 to 4 kilograms Contacts/Terminals: Copper alloy, silver or gold-plated Ground Terminal: Copper alloy, nickel-plated. External Shield: Copper alloy, solder-coated. Body: Black molded thermoplastic, UL 94V-0. MINI-DIN RIGHT-ANGLE RECEPTACLES PART NUMBER SCHEME Series Contacts SMD-Single Insert #: DMD-Dual 3-8 Style FRA Shield/Ground 110: Unshielded, no snap-in ground 111: Shielded, no snap-in ground 120: Unshielded, snap-in ground 121: Shielded, snap-in ground Optional Mounting Screw Hole A: Adds screw hole Blank: None Note: Dual available in 4,5,6, and 8 only Note: Snap-in ground available on single only Note: Optional mounting screw hole available on dual only Note: Special order only, contact factory for details DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES DIN RECEPTACLES (continued) 54 CONNECTORS & RECEPTACLES MINI-DIN RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information DIN RECEPTACLES (continued) SMD SERIES RECOMMENDED PC BOARD LAYOUTS (Viewed from component side) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES MINI-DIN RECEPTACLES FAX: 773 792-2129 55 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES DIN RECEPTACLES (continued) DMD SERIES DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 56 CONNECTORS & RECEPTACLES SINGLE AND DUAL STACKED USB CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information SINGLE AND DUAL STACKED USB CONNECTORS SUSB DUSB Switchcraft introduces single and dual USB connectors. The USB connectors are fast becoming the industry standard for plug and play connectivity between PCs and their peripherals. The DUSB and USB connectors are RAPC mounted, with kinked terminals for snap-in placement to the PC board. Both meet all Universal Serial Bus standards. FEATURES AND BENEFITS • Snap-in terminals facilitate wave soldering • Shielded for reduced EMI/RFI emissions • Dual stacked version increases PC board density APPLICATIONS • Personal Computer • Data Communications • Medical Equipment • Test Equipment • Instrumentation SPECIFICATIONS GENERAL Voltage Rating: 30 VAC (rms) Max. Current Rating: Signal application only, 1A Max. per contact Contact Resistance: 25m ohms Max. initial Temperature Rating: 32°F to 104°F (0°C to 40°C) Insertion Force: 7.7 lbs Max. (3.5 kg Max.) Withdrawal Force: 0.8 lb Min. (0.4 kg Min.) Life: 1500 cycles MATERIALS Body: Black, molded thermoplastic, UL 94V-0 Shell: Copper alloy, tin plated Contact Terminal: Copper alloy, gold plating in mating area, tin plating on solder tails, all over nickel plating. Part Number SUSB Single DUSB Dual Stacked Description USB Connector USB Connector Note: Special order only, contact factory for details. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES FAX: 773 792-2129 SINGLE AND DUAL STACKED USB CONNECTORS 57 * Please visit the product pages on our website for the most up-to-date product information DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES SINGLE AND DUAL STACKED USB CONNECTORS (continued) 58 CONNECTORS & RECEPTACLES IEEE 1394 FIREWIRE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information IEEE 1394 FIREWIRE CONNECTORS 1394SMT 1394RAPC Switchcraft introduces both right angle PC and surface mount versions of IEEE 1394 Firewire connectors. The Firewire connectors are becoming another connector standard used in the upcoming multimedia/computer market. The connectors meet IEEE 1394R-4006N Series standards. FEATURES AND BENEFITS • Shielded housings to reduce EMI/RFI emissions • Mounting posts add stability for wave soldering • Low profile requires less space APPLICATIONS • Multimedia • Video • Personal Computers • Computer Peripherals SPECIFICATIONS GENERAL Voltage Rating: 40 VAC Current Rating: 1.5A Contact Resistance: 30m Ohms Max. Temperature Rating: -55°C to +105°C Insertion Force: 6.0 lbs. Max. Withdrawal Force: 4.4 lbs. Min. Lifecycles: 1,500 Min. Part Number 1394RAPC 1394SMT Description IEEE 1394 RAPC IEEE 1394 SMT Note: Special order only, contact factory for details. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES IEEE 1394 FIREWIRE CONNECTORS FAX: 773 792-2129 59 * Please visit the product pages on our website for the most up-to-date product information DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES IEEE 1394 FIREWIRE CONNECTORS (continued) 60 CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information SLIM-LINE CONNECTORS TYPICAL SL172F REAR MOUNT RECEPTACLE HEX NUT Used in mounting rear or front of panel receptacles (supplied standard). TYPICAL SL402M CORD PLUG THREADED BUSHING Coupler ring on mating plug threads onto bushing and keeps plug/receptacle from working loose. FEMALE INSERT* Rugged molded black plastic barrel construction; positively keyed to housing. FLATTED BARREL Keys to inside flat on male insert. Polarizes the connection. Correct mating every time. PIN TERMINALS Large, rugged plated copper alloy; solder cup type. CABLE CLAMP Extra large and rugged clamp protects soldered terminations (also facilitates grounding/ shielding feature when used on receptacle insert). CORD PLUG HOUSING Precision-drawn, plated copper alloy with non-glare matte finish. STRAIN RELIEF SPRING Provides positive relief from cable wear at opening in plug housing. FLAT WASHER Used in mounting rear and front of panel receptacles (supplied standard). CONTACT TERMINALS Rugged solder lug type; copper alloy plated CONTACTS Held captive in insert. Excellent pin retention force. Copper alloy plated. MALE INSERT* Rugged black plastic; keyed to housing. Durable plated copper alloy pins are 100% molded-in. LATCH SPRING Captive spring locks insert to housing COUPLER RING Held captive on plug; non-reflective matte finish. Threads onto receptacle bushing (or mating plug) to hold connector halves secure from accidental separation. LATCH DETENT Latch spring on insert seats in detent to hold insert firmly in housing. LOCK WASHER Prevents rear or front of panel receptacle from working loose when installed (supplied standard). REAR OF PANEL MOUNT RECEPTACLE Tough, plated diecast housing with non-reflecting matte finish. Mounts in D-shape (selfkeyed) hole. Other receptacle types are: Front of Panel Mount and Flange Mount. *NOTE: Insert fits both plug and receptacle housings; can be interchanged at any time. DESIGN FEATURES Slim-Line® Audio Connectors are a unique series of premium quality connectors featuring interchangeable inserts which allow any plug or receptacle to be male or female. This versatility is valuable in a wide variety of applications: microphones, public address systems, 2-way, CB, ham, and marine radios, audio-visual systems, industrial control and instrumentation, broadcast, security and medical electronics. APPLICATIONS Retrofit/Replacement; Slim Line Cord Plug (SL405M) and Receptacle (SL105F) are recommended as a possible choice to replace Switchcraft/DIN plug (12CL5M) and receptacle (55HA5F). Receptacle SL105F fits the same mounting holes as the Switchcraft/DIN receptacle. Four pin/contact Slim-Line plugs and receptacles are recommended as direct replacements for the original Slim-Line connectors, Series 2504, and for the molded version of the Slim-Line connector, Style ST34. RECEPTACLES Receptacles can be specified with same male and female insert combinations as cord plugs. For rear and front of panel mounting types, hex nuts, lock washers, and flat washers are supplied. For flange mount receptacles, mounting holes in flange accept #4 machine screw or .125" (3.18 mm) diameter rivet. CORD PLUGS Miniature Cord Plugs feature nickel-plated copper alloy housings with matte finish on exterior parts. Plugs may be specified with inserts having 2-, 3-, 4- and 5-pins (male) or contacts (female), or 2-, 3-, or 4-contact receptacles having shunts (N.C.) on two contacts (special order only). Extra large cable clamp protects against pulling and twisting strains on terminations. Strain relief spring protects against excess cable wear at entry point at rear of housing. Cord plugs accept cables up to .281" (7.14 mm) diameter. Captive coupler ring feature (Series SL40) provides secure mechanical connection and protection against shock and vibration between cord plugs and mating plug (Series SL41) or receptacle. Three types of receptacles can be specified: 1. Flange mount (Series SL10) 2. Rear of panel mount (Series SL17) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS FAX: 773 792-2129 61 * Please visit the product pages on our website for the most up-to-date product information SPECIFICATIONS INSERTS Inserts are molded of high-strength plastic, and are completely interchangeable between plug and receptacle housings at any time. Inserts are keyed to housings, and male and female inserts are polarized to prevent mismating. PIN/CONTACT CONFIGURATIONS: Pins 2 3 4 5 Contacts 2 3 4 5 Contacts (Shunts) 2 (N.C. Shunt on each contact) 3 (N.C. Shunts on contacts 1 and 3) 4 (N.C. Shunts on contacts 1 and 4) _ ◊Add an “S” to end of part number for shunts. Special order only. MATERIALS Receptacle Housings: Die-cast zinc, nickel-plated. Cord Plug Housings: Copper alloy, nickel-plated. Inserts: Glass-reinforced thermoplastic. UL 94 V-0. Female Contacts: Copper alloy, silver-plated, solder lug type. Pins: Copper alloy, silver-plated, solder cup type. Cable Clamp, Strain Relief, and Mounting Hardware: Steel, plated. Latch: Steel, plated. ELECTRICAL Current Rating: 5 Amps carry only. MOUNTING Cord Plugs: Plugs accept cables up to .281" (7.14 mm) diameter. Insert is installed from front, and the captive latch spring locks insert to housing. To remove insert from receptacle, depress latch spring and apply pressure to rear of insert (DO NOT APPLY PRESSURE TO TERMINALS). On cord plugs, depress latch spring and press in on strain relief to free the insert. GROUNDING/SHIELDING Housings shield internal connections and provide ground (common) connections without using a pin/contact. On cord plugs, ground lead (or shield) is connected to cable clamp. For receptacles Cable Clamp, SL04 is ordered separately as a special and installed. If desired, ground/shield connection may then be made to clamp. When mated, a continuous, shielded, low resistance path is made through the connector. Receptacles: Flange mount type mounts in panels or chassis up to .188" (4.78 mm) thick. .125" (3.18 mm) diameter holes accept #4 machine screws or .125" (3.18 mm) diameter rivets. Rear and front of panel types mount in “D”-shaped hole in panels or chassis up to .219" (5.56 mm) thick. Hex nut (SL01), lockwasher (SL02), and flat washer (SL03) are supplied for mounting. CABLE CLAMP AND STRAIN RELIEF Cord Plugs: Plugs are supplied with rugged cable clamps and strain relief springs. Cable clamp serves two valuable functions: to firmly hold cable to prevent pulling or twisting strains on soldered terminations, and as a connecting point for ground (common) or shield when grounding/shielding through the connector is required. Receptacles: Receptacles are not supplied standard with cable clamp for strain relief. If grounding/shielding feature is desired, separate Cable Clamp, SL04, is installed on receptacle insert. Part Number Item ◊SL01 Hex Nut ◊SL02 Lockwasher ◊SL03 Flat Washer ◊SL04 Cable Clamp ◊SL05 Strain Relief Spring MOUNTING HARDWARE (Supplied with Series SL17 and SL18 receptacles) SLIM-LINE CONNECTOR PART NUMBERING SYSTEM SERIES SL HOUSING TYPE SLIM-LINE 10 17 18 40 41 NONE RECEPTACLE, FLANGE MOUNT RECEPTACLE, REAR MOUNT RECEPTACLE, FRONT MOUNT CORD PLUG WITH COUPLING RING CORD PLUG WITHOUT COUPLING RING Number of Contacts 2 3 4 5 Gender M MALE F FEMALE PIN AND CONTACT ARRANGEMENTS SCHEMATIC CIRCUITS DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Options S WITH SHUNTS CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS (continued) 62 CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information SLIM-LINE CONNECTORS (continued) SL40 CORD PLUG with Coupler Ring SL41 CORD PLUG without Coupler Ring SL413F (typical) SL402M (typical) Non-reflective metal shell; coupling ring; 2 through 5 pins (male) or 2 through 5 contacts (female). Also 2-, 3- and 4-contact inserts with two shunted (N.C.) contacts. Efficient cable clamp and strain relief. Non-reflective metal shell; 2 through 5 pins (male) or 2 through 5 contacts (female). Also 2-, 3- and 4-contact inserts with two shunted (N.C.) contacts. Efficient cable clamp and strain relief. SL MALE CORD PLUGS SL MALE CORD PLUGS Part Number Pins Pin Arrangements SL402M SL403M SL404M SL405M 2 3 4 5 1 2 3 4 SL FEMALE CORD PLUGS Part Number Pins Pin Arrangements SL413M SL414M SL415M 3 4 5 2 3 4 SL FEMALE CORD PLUGS Part Number Contact Contact Arrangements Part Number Contacts Contact Arrangements SL402F SL403F SL404F SL405F 2 3 4 5 A B C D SL412F SL413F SL414F SL415F 2 3 4 5 A B C D STRAIN RELIEF SPRING Strain Relief Spring Part Number SL05 ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS FAX: 773 792-2129 63 * Please visit the product pages on our website for the most up-to-date product information SL10 RECEPTACLES SL17 RECEPTACLES Flange Mount Rear of Panel Mount SL104F (typical) SL175F (typical) SL17 and SL18 Receptacles Non-turn panel cut-out Flange mounted; 2 through 5 pins (male) or 2 through 5 contacts (female). Also 2-, 3- and 4-contact inserts with 2 shunted (N.C.) contacts. Rear of panel mount; 2 through 5 pins (male) or 2 through 5 contacts (female). Also 2-, 3- and 4-contact inserts with 2 shunted (N.C.) contacts. Mounting locknut (Part Number SL01), lock washer (Part Number SL02), and flat washer (Part Number SL03) supplied. SL MALE RECEPTACLES SL MALE RECEPTACLES Part Number Pins Pin Arrangements SL102M SL103M SL104M SL105M 2 3 4 5 1 2 3 4 SL FEMALE RECEPTACLES Part Number Pins Pin Arrangements SL173M SL174M SL175M 3 4 5 2 3 4 SL FEMALE RECEPTACLES Part Number Contacts Contact Arrangements Part Number Contacts Contact Arrangements SL102F SL103F SL104F SL105F 2 3 4 5 A B C D SL172F SL173F SL174F SL175F 2 3 4 5 A B C D ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS (continued) 64 CONNECTORS & RECEPTACLES SLIM-LINE CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information SLIM-LINE CONNECTORS (continued) SL18 RECEPTACLES INSTALLING CABLE CLAMP ON INSERT Front of Panel Mount To install cable clamp on any insert: 1. Position insert approximately as shown in the diagram. 2. Hold clamp at approximately 30° angle (as shown). Place tip of clamp center finger into slot under molded ring “A”. Note position of notch on insert in relation to slot. 3. Press center finger forward into slot and reduce angle of clamp until clamp shoulders seat just ahead of molded barrier on rear of insert “B”. SL183FS (typical) Cable Clamp SL04 .696 PANEL HOLE (17.7) MOLDED RING “A” CABLE CLAMP NOTCH ON INSERT INSERT “B” Front of panel mount; 2 through 5 pins (male) or 2 through 5 contacts (female). Also 2-, 3- and 4-contact insert with 3 shunted (N.C.) contacts. Mounting locknut (Part Number SL01), lockwasher (Part Number SL02), and flat washer (Part Number SL03) supplied. SL MALE RECEPTACLES Part Number Pins Pin Arrangements SL182M SL183M SL184M SL185M 2 3 4 5 1 2 3 4 SL FEMALE RECEPTACLES Part Number Contacts Contact Arrangements SL182F SL183F SL184F SL185F 2 3 4 5 A B C D DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES AUDIO CONNECTORS FAX: 773 792-2129 65 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES CB CONNECTORS Miniature 3 and 4 circuit connectors for microphone connections in mobile/communications equipment. Cord plug has silver-plated copper alloy contacts, large cable clamp, and strain relief spring. CB-3F CB-3F 3-contact female cord plug. Knurled coupling ring has internal metric M16x1 thread. Solder lug terminals accept wires up to #18 AWG. Accommodates cables up to .281" (7.14 mm) diameter. CB-4F Same as CB-3F. except 4 contacts. CB-3M 3-pin male receptacle. Housing keys insert of mating plug; bushing with external M16x1 metric thread mates with coupling ring on plug. Cup-type terminals accept wires up to #16 AWG. Mounts in .64" (16.26 mm) diameter hole from front of panels up to .125" (3.18 mm) thick, using washer and locknut supplied. Can also be “D”-hole mounted for non-turn mounting (see drawing). Pin diameter. is .093". CB-4M Same as CB-3M, except 4 pin. Insert Part No. CB3F CB3M Contacts 3 3 CB-3M Dimensions, In. (mm) Length Diameter 1.594 (40.49) .703 (17.86) .781 (19.84) .705 (19.05) MICROPHONE CONNECTORS Connectors with 5/8-27 threads are designed for use with single conductor microphone cable with .281" (7.14 mm) maximum outside diameter. 44 adapts 2501F to fit standard 2-conductor phone jack. Coupling ring on 2501F is removable for fast change from female to male type. Spring assembled into body, cable braid and spring clamped by hollow set screws .281" (7.14 mm) maximum cable diameter. 2501MP mounts in .390" (9.92 mm) diameter hole. 44 2501F 2501M 2501MP MINI-CON MINIATURE CONNECTORS Approximately 1/2 the size of standard microphone connectors. Ideal for miniature lapel microphones, musical instruments and wherever small cable is used. Accepts single-conductor shielded cable up to .187" (4.76 mm) diameter Coupling ring on 5501F removable for quick change of female to male type. Cable is braid spring clamped to body by hollow point set screw. Part Number 5501F ◊5501M Description Female Plug Male Plug ◊5501MF Receptacle 5501MP Receptacle Mounting Hole, Inches (mm) — — .375 (9.52) (Front of panel) .375 (9.52) (Front of panel) 5501F 5501M 5501MF 5501MP ◊Available on special order; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 66 CONNECTORS & RECEPTACLES BNC CONNECTORS PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information HP75BNC SERIES BNC CONNECTORS Switchcraft Inc. introduces a complete line of true 75 Ohm BNC cable mount connectors. This new series was developed for the broadcast industry, or wherever true 75 Ohm impedance BNC's are used. The HP75BNC Series is available in a wide range of styles, to accommodate the most popular types of coaxial cables. All are crimp terminated using standard crimping tools. FEATURES AND BENEFITS • True 75 Ohm impedance • Gold-plated center pins for increased life • Available for a wide range of cable types • Outstanding electrical performance • Rugged nickel-plated, machined shells SPECIFICATIONS Electrical Characteristic Impedance: 75 Ohms Voltage Rating: 500 Volts RMS Return Loss: Less than -25 db at 3 GHz Insulation Resistance: 5000 Megohms min HP75BNC9 MECHANICAL Lifecycles: 500 min Center Contact Retention: 6 lbs. min Coupling Mechanism: 100 lbs. min Force to Engage: 2.5 lbs. max ENVIRONMENTAL Thermal Shock: -65° C to 165° C Moisture Resistance: Mil Std 202 Corrosion: Mil Std 202 Flammability: UL 94-VO Vibration: Mil Std 202 Solvent Resistance: Mil Std 202 FINISH Body/Bayonet: Nickel-plated copper alloy Center Conductor: 50 mi gold-plated copper alloy ORDERING INFORMATION Part Number HP75BNC1 HP75BNC2 HP75BNC6 HP75BNC7 HP75BNC9 HP75BNC10 HP75BNC12 DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Cable Type Belden #8241 Belden #8281B Belden #1695A Belden #1694A Belden #1505A Belden #1506A Belden #1855A Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES BNC CONNECTORS FAX: 773 792-2129 67 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES HP75BNC SERIES BNC CONNECTORS (continued) S 11 log MAG REF -15 dB 5 dB / DIV .30 MHz 3.0 GHz 1.5 GHz RETURN LOSS DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 68 CONNECTORS & RECEPTACLES EAC RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EAC RECEPTACLES SERIES EAC Two and three-pin/contact grounding primary power receptacles are designed to meet EN 60 320, as well as applicable UL, CSA, VDE and other specifications. Receptacles feature choice of short, standard or long solder lugs or FASTON ® terminals. Receptacles snap-in or screw mount from the front or rear of panel. Receptacles have orbitally riveted lugs (except EAC233, EAC305, EAC323 EAC325, EAC333, EAC405) for superior mechanical/electrical connections. Extended socket versions permit minimum behind-panel depth. Receptacles are designed for use in European and domestic instrumentation, power rack mounted devices, test equipment and appliances. Three-pin male receptacles have .125" (3.18 mm) longer center (ground) pin. Ground circuit is established before power circuits “make”, and is maintained until after power circuits “break”. EAC227 EAC311 EAC305 EAC323 EAC309 EAC325 EAC333S EAC333 DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES EAC RECEPTACLES FAX: 773 792-2129 69 * Please visit the product pages on our website for the most up-to-date product information EAC305—3-contact female receptacle. Front mount with two, #4 screws or .094" (2.38 mm) diameter rivets (not supplied). SERIES EAC EAC309—3-pin male receptacle with standard lug terminals. Mounts from front or rear of panel with two, #5 screws or .125 " (3.18 mm) diameter rivets (not supplied). EAC311—3-pin male receptacle with FASTON® terminals. Mounts from front or rear of panel with two, #5 screws or .125 " (3.18 mm) diameter rivets (not supplied). ◊EAC315—3-pin male receptacle with long solder lug terminals. Mounts from front or rear of panel with two, #5 screws or .125" (3.18 mm) diameter rivets (not supplied). EAC405 ◊EAC319—3-pin male receptacle with short solder lug terminals. Mounts from front or rear of panel with two, #5 screws or .125" (3.18 mm) diameter rivets (not supplied). SPECIFICATIONS ELECTRICAL Insulation Resistance: 2 million megohms @ 500 V DC. Dielectric Strength: 1500 V (rms). Arcing Test: Meets UL 498 Standard. MECHANICAL Solderability Standard: Meets MIL-STD-202, method 208, EIA RS-186-9E. ENVIRONMENTAL Thermal Range: -55° C to +65° C (except EAC45x series). Salt Spray: Meets MIL-STD-202, method 101; EIA-RS-186-5E, method 5. MATERIAL Shell: EAC307 through EAC327. Black polyester. EAC303, EAC307 through EAC315. UL flammability rating of UL94 V-0, yellow card #E45575. EAC309 through EAC327, EAC333. Black polyester, UL flammability rating of UL94 V-0, yellow card #E45575. EAC233, EAC233S, EAC305, EAC325, and EAC333S. Black polycarbonate, UL flammability rating of UL94 V-0, yellow card #E45329. EAC323, EAC409 through EAC411 Black polycarbonate, UL flammability rating, or equivalent UL94 V-0, yellow card #E33640, or equivalent. Pins, Contacts and Terminals: Plated copper alloy. ◊EAC227—2-pin male receptacle with standard solder lug terminals, similar to EAC327. ◊EAC233—2-pin, male receptacle with right-angle housing for PC mount. PC terminals project .130" (3.3 mm) to extend through PC board. Rear of panel mount. Two, .136 " (3.45 mm) diameter holes permit fastening to PC board; two additional .136" (3.45 mm) holes are for fastening to panel or chassis, if required. ◊EAC233S—Similar to EAC233, but with two, snap-in retainers through mounting flanges for PC mount. ◊EAC323—3-pin male receptacle with short solder lug terminals. Extended socket housing (mounting flange on rear of receptacle) provides more behind panel clearance. Mounts with two, #4 screws or .094" (2.38 mm) diameter rivets (not supplied). EAC325—3-contact female receptacle with short solder lug terminals. Extended housing (mounting flange on rear of receptacle) provides more behind panel depth. Mounts with two, #4 screws or .094" (2.38 mm) diameter rivets (not supplied). EAC327—3-pin male receptacle, similar to EAC319 except with standard solder lugs. EAC333—3-pin, 10A, 250V male receptacle with right-angle housing for PC mount. PC terminal and hole mounting details are the same as for EAC233. Ground pin is integral with ground solder lug on rear of receptacle. ◊EAC333S—Similar to EAC333, but with two, snap-in retainers through mounting flanges for PC mount. ◊EAC405—3-contact female receptacle with standard solder lug terminals. Snap-in panel mounting. EAC409—3-pin male receptacle with standard solder lug terminals. Snap-in panel mounting. EAC411—3-pin male receptacle with FASTON terminals. Snap-in panel mounting. EAC413—3-pin male receptacle with FASTON terminals on LINE and NEUTRAL and a solder lug on EARTH GROUND. Snap-in panel mounting. EAC451—3-contact female receptacle with straight PC terminals for use in “HOT” applications. Snap-in panel mounting. EAC453—Same as EAC451 except with solder lug terminations. EAC455—Same terminations. as EAC451 except with FASTON EAC457—Same as EAC451 except with FASTON power terminations and solder lug ground termination. ◊ Available on special order only; contact Switchcraft for price and delivery. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES EAC RECEPTACLES (continued) 70 CONNECTORS & RECEPTACLES EAC RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information SERIES EAC (continued) Pins/ Contacts 1 Mounting 2 Terminals ◊EAC227 M Front or Rear Solder Lug ◊EAC233 M Rear PC ◊EAC233S M Rear PC ◊EAC305 F Front Solder Lug ◊EAC309 M Front or Rear Solder Lug Part Number Listings UL CSA UL, CSA, VDE Switchcraft Mating Number 3 Ratings 15 A, 250 V AC P2392 — 15 A, 250V AC 10 A, 250 V AC P2392 Semko, Demko, Nemko, SETI, and SEV Approved P2392 Semko, Demko, Nemko, SETI, and SEV Approved — Semko, and SEV Approved UL, CSA, 15 A, 250 V AC VDE 10 A 250 V AC UL & VDE 15 A, 250 V AC VDE 10 A, 250 V AC UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC ◊EAC311 M Front or Rear FASTON ◊EAC315 M Front or Rear Solder Lug (Long) UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL & CSA VDE ◊EAC319 M Front or Rear Solder Lug (Short) ◊EAC323 M Front or Rear Solder Lug (Short) UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC ◊EAC325 F Rear Solder Lug (Short) UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC ◊EAC327 M Front or Rear Solder Lug UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & VDE 15 A, 250 V AC CSA 10 A, 250 V AC ◊EAC333 M Rear PC ◊EAC333S M Rear PC ◊EAC405 5 F Snap-In Solder Lug ◊EAC409 5 M Snap-In Solder Lug ◊EAC411 5 M Snap-In FASTON ◊EAC413 5 M Snap-In Solder Lug/ FASTON ◊EAC4516 F Snap-In6 PC ◊EAC4536 F Snap-In6 Solder Lug ◊EAC4556 F Snap-In6 FASTON ◊EAC4576 F Snap-In6 Solder Lug/ FASTON Comments 4 15 A, 250 V AC UL & VDE 15 A, 250 V AC CSA 10 A, 250 V AC UL & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, CSA VDE 15 A, 250 V AC 10 A, 250 V AC UL, CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & CSA 15 A, 250 V AC VDE 10 A, 250 V AC UL, & CSA 15 A, 250 V AC VDE 10 A, 250 V AC P2392 P2392 Demko, Semko, Nemko, SETI and SEV Approved Semko, Demko, Nemko, SETI and SEV Approved P2392 Semko, Demko, Nemko, SETI and SEV Approved P2392 — P2392 — P2392 Mounting flange on rear Semko, Nemko, SETI Approved Mounting flange on rear Demko, Semko, Nemko SETI and SEV Approved P2392 Semko, Demko, Nemko, SETI, SEV Approved P2392 Semko, Demko, Nemko, SETI, SEV Approved — — P2392 Demko, Semko, Nemko, SETI and SEV Approved P2392 Semko, Demko, Nemko, SETI and SEV Approved Semko, Demko, Nemko, P2392 SETI and SEV Approved — Rated for use up to 120°C — Rated for use up to 120°C — Rated for use up to 120°C — Rated for use up to 120°C If you have been using a 15 amp rated Switchcraft EAC connector 1 M = Male; F = Female. ending in an even number, you can now buy an identical part number 2 F = Front; R = Rear. See mounting drawings for mounting details. that has a 10 amp European rating in addition to the 15 amp UL and 3 Also mates with Belden and other standard cords. CSA approval. The part number for the new dual rated part is one 4 Semko (Sweden), Demko (Denmark), Nemko (Norway), SETI (Finland), SEV (Switzerland). less than the old part number (eg. EAC310 becomes EAC309, 5 Receptacles are snap-in mount, and can be ordered to accommodate EAC412040 becomes EAC411040, EAC234 becomes EAC233, .030, .040, .050 and .060 inch panel thickness. For snug fit in panel or EAC458050 becomes EAC457050, etc.) for other specifying assistance, contact Switchcraft. 6 Available only for .050 inch and .060 inch panel thickness ◊ Available on special order only; contact Switchcraft for price and delivery. UL No. E38829—EAC-309 thru -327 UL No. E65081—EAC-305 CSA Guide 365-E-1, Class 6233, File Card No. LR27474 Inch VDE Certificate of Compliance No. 731 (EAC-305, -325, -405), DIMENSIONS ARE FOR REFERENCE ONLY all others VDE approval No. 3181. (mm) www.switchcraft.com ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES EAC RECEPTACLES FAX: 773 792-2129 71 * Please visit the product pages on our website for the most up-to-date product information SERIES EAC Front Mount EAC227, EAC309, EAC311, EAC315, EAC319, EAC327 Front Mount EAC305 Figure 2 Rear Mount EAC323 Figure 6 Front Mount EAC323 Figure 4 EAC233, EAC309, EAC311, EAC315, EAC319, EAC327, EAC333 Figure 7 Front Mount EAC225 Figure 5 Rear Mount EAC325 Figure 9 Snap-in Mount EAC409, EAC411 Snap-in Mount EAC405, EAC451, EAC453, EAC455, EAC457 Recommended PC Board Layout EAC233, EAC333 Figure 10 Note: Center .07 inch diameter hole not used for 233, 234 Note: Unless otherwise specified, all dimension tolerances are ± .01" (+0.25 mm) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 CONNECTORS & RECEPTACLES EAC RECEPTACLES (continued) 72 CONNECTORS & RECEPTACLES EAC RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EAC RECEPTACLES (continued) SERIES EAC EAC227 EAC233S, EAC333S Note: Center PIN/Terminals not used on EAC233S EAC327 EAC311 EAC309, EAC315 Chassis/Panel Opening EAC233, EAC333 Recommended PC Board Layout (Component Side) Note: Center PIN/Terminals not used on EAC233 Note: Center .07 inch dia. hole not used on EAC233 Note: Unless otherwise specified, all dimension tolerances are ± .01" (+0.25 mm) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES EAC RECEPTACLES FAX: 773 792-2129 73 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES EAC RECEPTACLES (continued) SERIES EAC EAC319, EAC327 EAC323 EAC325 EAC405 EAC409 EAC411 DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 74 CONNECTORS & RECEPTACLES EAC RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EAC RECEPTACLES (continued) SERIES EAC EAC413 1.065 [27.05] 0.875 REF [22.23] 1.260 MAX [32.00] 1.220 ± .010 [30.99 ± .25] 1.079 ± .004 [27.41 ± .10] 0.955 ± .008 [24.26 ± .20] 0.157R [3.99] 0.079 [2.01] .005 0.940 +- .008 .12 23.88 +- .20 [ ] 0.640 ± .009 [16.26 ± .22] 0.779 ± .004 [19.79 ± .10] 0.079 [2.01] .078 x .157 [1.98 x 3.99] 0.276 [7.01] 0.276 [7.01] 0.760 [19.30] 0.032 [0.81] 0.281 [7.14] 1.130 MAX [28.70] 1.030 MAX [26.16] 0.160 [4.06] 0.806 ± .008 [20.47 ± .20] 0.656 [16.66] 0.610REF “E” [15.49] 0.490 [12.45] .008 0.120 +- .005 + .20 3.05 - .12 [ ] DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES EAC RECEPTACLES FAX: 773 792-2129 75 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES EAC RECEPTACLES (continued) SERIES EAC EAC451 RECOMMENDED P.C. BOARD LAYOUT DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 76 CONNECTORS & RECEPTACLES EAC RECEPTACLES PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information EAC RECEPTACLES (continued) SERIES EAC EAC453 EAC455 FAST-ON TERMINAL DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery CONNECTORS & RECEPTACLES EAC RECEPTACLES FAX: 773 792-2129 77 * Please visit the product pages on our website for the most up-to-date product information CONNECTORS & RECEPTACLES EAC RECEPTACLES (continued) SERIES EAC EAC457 DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 78 CONNECTORS & RECEPTACLES POWER INLET SOCKET PHONE: 773 792-2700 CONNECTORS & RECEPTACLES * Please visit the product pages on our website for the most up-to-date product information RAPC322 POWER INLET SOCKET Switchcraft introduces the RAPC322, an IEC320 inlet developed as a low power interconnect used in a variety of applications. The RAPC322 is molded from 94-VO rated material, is UL recognized, and meets a wide variety of approvals including CSA and VDE. The RAPC is rated at 2.5A at 250V. Applications for the RAPC322 include notebook computers, medical devices, and data communications products. FEATURES AND BENEFITS • Snap-in feet facilitate wave soldering • Top and side slots allow chassis to captivate connector • Conforms to EN 60320-1/2 APPLICATIONS • Appliance Inlet • Personal Computer • Data Communications • Medical Equipment • Test Equipment • Instrumentation SPECIFICATIONS GENERAL Current Rating: 5A, UL and CSA 2.5A, VDE and SEMKO Nominal Voltage: 250V Temperature Range: - 55°C to 65°C Dielectric Strength: 2000V @ 1 minute MATERIALS Housing: Black, molded thermoplastic, UL 94V-0 Male Pins: Copper alloy, nickel plated PC Terminals: Copper alloy, tin plated DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS JACK SCHEMATICS FAX: 773 792-2129 79 * Please visit the product pages on our website for the most up-to-date product information JACK SCHEMATICS Military Identification: Military specifications covering phone jacks use a special code to describe jack functions. Jack schematic descriptions are coded J-1 through J-13 (as appropriate) to coincide with Federal Item Identification Guides for Supply Cataloging. One or more groups of suffix numbers/letters identify isolated switching circuits used. Suffixes identify the switching by industry recognized notation, i.e., 1-A, 1-B, 1-C, 1-D, etc. See chart below. Notation Meaning 1-A One, SPST switching circuit. Also known as NO (normally open) or “make” circuit. 1-B One, SPST switching circuit. Also known as NC (normally closed) or “break” circuit. 1-C One, SPDT switching circuit. Also known as transfer or “break” before “make” circuit. 1-D One, SPDT switching circuit. Also known as “make” before “break” circuit. NOTE: Number indicates the quantity of circuit - 2-A means 2, A circuits. Terminals locations shown on jack schematics do not necessarily coincide with physical locations on jacks. Not all circuit types available on all jacks. Single open circuit. (J1.) Single closed circuit, sleeve common. (J3). Single closed circuit. (J4). Double open circuit. (J2). Single open circuit. Isolated switching “make” circuit. (J1-1-A). Transfer circuit. (J5). Tip closed, ring open. (J10). Tip closed, ring open (common to sleeve). (J6). Single open circuit. Isolated switching “break” circuit. (J1-1B). Double closed circuit, ring common to sleeve. (J13). Single closed. Isolated switching “make” circuit. (J4-1A). Double closed circuit. (J7). Single closed circuit. Isolated switching transfer circuit. (J4-1C). Double closed circuit. Isolated switching “break” circuit. (J7-1B). Double open circuit. Isolated switching transfer circuit. (J2-1C). Double open circuit. Isolated switching– separate “break” and make circuits (J2-1A-1B). Single closed circuit Isolated switching “break” circuit. (J4-1B). Single closed circuit– “make” before “break”. (J8). Single open circuit. Isolated switching transfer circuit. (J1-1C). Double open circuit. Isolated switching “make” circuit. (J2-1A). Double open circuit. Isolated switching– separate “make” circuits on both tip and ring. (J2-2A). Double closed circuit. Isolated switching “make” circuit on ring spring. (J7-1A). Single closed circuit plus “make” before “break”. Isolated switching–“make” before “break” circuit. (J8-1D). Single open circuit. Isolated switching– separate transfer and “make” circuits. (J1-1A-1C). Single closed circuit. Isolated switching “break” circuit. Sleeve common to isolated switching circuit throw. (J4-1B). DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 JACKS AND PLUGS Circuit Types: Jacks normally have through circuits, shunt circuits, and/or isolated switching circuits, either individually or in various combinations. The chart below shows schematics of 39 common jacks - many more combinations are possible, but these are the most commonly used. A basic description of the switching action of each jack accompanies each schematic. 80 JACKS AND PLUGS JACK SCHEMATICS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS JACK SCHEMATICS Single closed circuit. Isolated switching– “make” before “break” circuit. (J4-1D). Tip closed; ring open circuits. Isolated switching–two “make” circuits and one “break” circuit. (J10-2A-1B). Single open (tip) circuit and single closed (ring) circuit. (J9). Double jack, 2-conductors on each side. Tip circuits cross shunted; common sleeve. (J12). Single open circuit– “make” before “break”. (J11). Tip closed; ring closed circuits. Isolated switching–“break” before “make” circuit. Double closed circuit. Separate sleeve “break” circuit. Single closed circuit. Isolated switching– Two “make” circuits. Single open circuit. Isolated switching– Two “make” circuits. Double open circuit. Isolated switching– One “make” and one “break” circuit. Double closed circuit. Isolated switching– One “make” and one “break” circuit. Tip closed; ring open circuits. Isolated switching–One “make” circuit. Double closed circuit. Isolated switching– Two “make” circuits. Double open circuit. Isolated switching– “break” before “make” circuit. WIRE-WRAPPING TERMINATIONS Switchcraft can build complete Jack Panel Assemblies with jacks, lamp jacks and switches with wire-wrapping terminals. If desired, components with solder lugs and wire-wrapping terminals can be installed in the same assembly. WIRE-WRAPPING TERMINAL DESIGN Jack springs with integral wire-wrapping terminals are made of special copper alloy for maximum work-life with excellent resistance to corrosion. Shank of terminal accommodates a maximum of three wire connections. Tini-Telephone ® phone jacks, lamp jacks and switches with wire-wrapping terminals have slightly higher stack due to greater spacing required for wrapping tool access. Actuator springs and ground lug terminals are .704" long by .060" wide. WIRE-WRAPPING CONNECTIONS Use the chart below as a guide to recommended tools to be used with varying terminal thickness and wire gauges. Terminal Thickness (Inches) .020 thru .032 .016 .016 thru .032 Wire Gauge 22 & 24 24 26 Recommended Wire-Wrapping Tool (Gardner-Denver Co. Part Numbers) Use with 14B1-A Wrapping Tool Wrapping Bit Sleeve 500131 18840 500131 18840 37006 17611-2 SPECIFYING NOTE: Due to assembly variations containing components (solder lugs, wire-wrapping terminals, or both), these Jack Panel Assemblies are available on special order only. Contact Switchcraft. JACK MATING DATA NOTE: See tables for jack/plug mating data DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS LONG FRAME TELEPHONE JACKS FAX: 773 792-2129 81 * Please visit the product pages on our website for the most up-to-date product information 1/4" LONG FRAME TELEPHONE JACKS JACK MATERIALS FRAMES – Jack frames are heavy steel, formed and press welded for added strength. Side member adds to frame rigidity and resistance to shock and vibration. Both “A” and “C” type frames can be supplied. (See next page.) SPRINGS – A special copper alloy is used for leaf springs because it offers excellent mechanical and electrical characteristics, and good corrosion resistance. The spring alloy has special hardness and ductility, and springs are produced from custom-designed dies. Although normally adjusted to mate with telephone (and MIL-type) plugs, springs can be adjusted to mate with commercial phone plugs. BUSHINGS – Bushings are copper alloy (except insulated jacks), drilled to accept either a standard (.250" diameter finger) plug or a popular smaller (.206" diameter finger) plug. Series M Hi-D Jax® have a threaded brass bushing, or a molded thermoplastic bushing for insulated mounting. CONTACTS – Jack design includes “wiping” action of contacts for low resistance connections. The contacts supplied depend on the jack selected. Gold or silver plating is normally offered as an option on tip, ring and/or sleeve springs. Several precious metals and shapes are used on jacks. SOLDER LUGS TERMINALS – Lugs project out directly from rear of jack and are solder-coated for easy wiring and soldering. Offset lugs can be supplied on special order (except standard on MT-Jax ® ). Jacks with offset ground lugs are par ticularly suitable for bussing connections on jack panels. Contact Switchcraft for special order lug requirements. STRAIGHT SOLDER LUGS OFFSET SOLDER LUGS WIRE-WRAPPING TERMINALS – Wire-wrapping eliminates the need for soldering. Each terminal accepts up to three wrapped wires (22 or 24 gauge, 5 wraps each), applied with standard wire-wrapping tools. Terminal base has standoff shoulder which prevents first wrapped wire from accidentally sliding down and shorting against another terminal or adjacent spring. Terminal tips are radiused to facilitate positioning of wire-wrapping tool over terminals. See page 80 for wire-wrapping data. WIRE-WRAPPING TERMINALS PRINTED CIRCUIT TERMINALS – Components can be supplied with printed circuit terminals on special order. Terminals can be specified in various lengths to accommodate different thicknesses of single and double sided boards, as well as multilayers, and flat flexible cable and circuitry. PRINTED CIRCUIT TERMINALS (SPECIAL) Material Palladium Fine silver Gold alloy Crossbar Fine silver (Large) Gold or Silver Shape Welded Crossbar Riveted, button-type Welded switching. Riveted, button-type Plating Description Best overall combination of life, current carrying, and resistance to environment. Also known as WEco #2. Carries higher current than palladium. Recommended for dry circuit Excellent resistance to corrosion and contamination. Also known as WEco #1. Heavy currents. OTHER TERMINALS – Many other special terminal styles are possible. For example, where mounting permits, jacks can be supplied with stacks having right-angle terminals. Contact Switchcraft for special terminals. CUSTOM COMPONENTS Only the most popular types of jacks are listed. For lower contact resistance (used on through circuit springs). DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 JACKS AND PLUGS The complete Switchcraft line of standard size panels, jacks, plugs, switches and accessories are rugged, premium quality devices...hand-crafted by experts...100% inspected... and carefully adjusted to meet the traditionally high quality demands of the telephone industry and the military. Tightly controlled incoming inspection, manufacturing methods, and QC procedures assure you of long-life, reliable components. Typical applications where Switchcraft components have been specified for more than five decades are: telephone central office equipment, switchboards, jackfields, test and patch panels, and station equipment; TV and radio broadcasting consoles; PA and communication consoles; telegraph systems and apparatus; multichannel video and audio patching; and data processing equipment, such as computers, telemetry, I/O devices and facsimile. 82 JACKS AND PLUGS LONG FRAME TELEPHONE JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information LONG FRAME TELEPHONE JACKS JACKS AND PLUGS MT-Jax® (“A” Frame) MT-Jax® (“C” Frame) XMT-Jax®, Number XMT-332A MT-Jax® jacks Numbers ◊MT-342B and ◊MT-344B have shorter bushings, 0.5" long with a hold inside diameter of .21". They will mate with MIL plug M642/5-1 or M642/8-1. M642/5-1 plug (Switchcraft 480) cannot be used with ◊MT-342B or ◊MT-344B if these jacks are mounted on standard .625" thick panels. The short jack bushings are recessed .125", and the M642/5-1 is too wide to fit in the panel recess. Use plug M642/8-1 (Switchcraft 484) with a narrower diameter to fit in the recess and mate properly. CONTACTS – Contacts on shuts and isolated switching circuits are welded crossbar palladium. Welded crossbar gold alloy contacts (WEco #1) are available on special order for dry circuit applications. SPECIFICATIONS WMT-Jax®, Number WMT-332B YMT-Jax®, Number YMT-332B Details of Typical Buss Wiring of Jacks with Offset Ground Lugs Ground Lug “Toward” Frame (Y Offset) MECHANICAL Life: Commercial jacks: 10,000 insertion/withdrawal cycles, minimum. Military Jacks: 20,000 insertion/withdrawal cycles, minimum. Mechanical Shock: Military Jacks – Per MIL-STD-202, method 213, Test Condition H (75g). Vibration: Military Jacks – Per MIL-STD-202, method 213, (10-55 Hz). Buss Wire Between Rows Ground Lug “Toward” Frame Frame and Stack Screws: Plated steel, with iridescent iridite finish. Springs: Copper alloy, spring tempered. Solder lugs are tinned. Bushings: Plated copper alloy standard. Natural brass finish optional. Insulation: Rigid plastic spacers (MIL-type PBE-P per Specification LP-513). One piece molded through stack. Contacts: Welded crossbar palladium contacts in shunt and isolated switching circuits are standard. Gold alloy (WEco #1) and fine silver are available on special order. Ground Lug “Away” from Frame (X Offset) Buss Wire Outside of Rows Long frame jacks are designed especially for high quality communication equipment, and to meet exacting MIL specifications, as well as telephone and communication systems. Many jacks have WEco equivalent types. MT-Jax® phone jacks are offered in four styles: MT-Jax®, WMT-Jax®, XMT-Jax® and YMT-Jax®. Rugged steel frames are produced in specially designed dies, press welded to provide rigidity and dimensional stability required by telephone and communication jack panels - and to meet MIL frame strength tests. “A” and “C” frame styles are available. TERMINALS – Solder Lug: All MT-Jax® have solder lug terminals. Wire-Wrapping Terminals: WMT-Jax® have wire-wrapping terminals. Offset Ground Lugs: XMT-Jax® and YMT-Jax® have ground lugs, which simplify production line wiring time. A single row of jacks can be installed with a single buss wire connected to all ground lugs in a row, or when double rows are mounted on .625" vertical centers with lugs oriented between rows, holes in ground lugs line up so a single buss wire provides connections for both rows. XMT-Jax® have ground lugs oriented away and YMT-Jax® are oriented toward jack frame. See illustration. MIL STANDARDIZATION – MIL jack types listed have been adjusted for use with plugs specified in Amendment No.1, MIL-P-642, usually M642/1-1, M642/1-2, M642/2-1, M642/2-2, M642/4-1 or M642/4-2. When applicable, specify the plug you will use; we will adjust with that plug where the item is not a MIL-type. NOTE: ELECTRICAL Contact Resistance: Commercial Jacks – .030 ohms maximum (initial), .050 ohms maximum (after humidity, durability exposure). Military Jacks – .010 ohms maximum (initial), .020 ohms maximum (after life), .10 ohms maximum (after salt spray). Insulation Resistance: Commercial Jacks – 10,000 MΩ minimum (initial), 1,000 MΩ minimum (after humidity). Military Jacks – 10,000 MΩ minimum (initial), 1,000 MΩ minimum (after humidity, durability exposure). Dielectric Withstanding Voltage: 500 V, 60 Hz (rms) AC. ENVIRONMENTAL Thermal Range: Commercial Jacks – -55°C to +85°C (non-operating); -20°C to +65°C (operating). Military Jacks -55°C to +85°C (non operating); -40°C to +65°C (operating). Thermal Shock: Commercial Jacks – Per MIL-STD-202, method 107. Military Jacks – Per MIL-STD-202, method 107. Humidity: Commercial Jacks – Per MIL-STD-202, method 106. Military Jacks – 0% to 95% operating and non-operating. Salt Spray: Commercial Jacks – Per MIL-STD-202, method 101. Military Jacks – Per MIL-STD-202, method 101 (48 hours). Moisture Resistance: Military Jacks – Per MIL-STD-202, method 106 (240 hours). ORDERING – Order jacks by part number. Additional variations in jacks are available on special order. Special circuitry, frames, contacts, natural brass bushings, as other terminals are available. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS LONG FRAME TELEPHONE JACKS FAX: 773 792-2129 83 * Please visit the product pages on our website for the most up-to-date product information 1/4" LONG FRAME TELEPHONE JACKS ® MT-JAX (with WEco Equivalent Jacks) 2 WEco Equiv. MIL Type1 Schematic Circuit* Dim. “X” maximum Inch (mm) Mating Plug3 Switchcraft Part Number WEco Equiv. MT332B ◊CMT332B WMT332B ◊WCMT332B MT333B ◊MT334B ◊CMT334-B WMT334B ◊WCMT334B ◊MT336 ◊CMT336 ◊WMT33610 ◊WCMT336 ◊MT336A10 ◊CMT336A ◊WMT336A ◊WCMT336A ◊MT336B10 ◊CMT336B MT336C10 ◊CMT336C ◊WMT336C10 ◊WCMT336C ◊MT336D10 ◊CMT336D ◊WMT336D10 ◊WCMT336D ◊MT338 ◊CMT338 ◊MT33910 ◊CMT339 ◊MT342B 238A 238C 238AM 238CM 300A 239A 239C 239AM 239CM 241A 241C 241AM 241CM 242A 242C 242AM 242CM 285A 285C 240A 240C 240AM 240CM 280A 280C 280AM 280CM 267A 267C 284A6 384C6 246A 2-CONDUCTOR 2 MT331 ◊CMT331 ◊WMT331 ◊WCMT331 ◊MT332 ◊CMT332 MT332A ◊CMT332A ◊MT332C MT333 ◊CMT333 ◊MT333E ◊CMT333A MT334A ◊CMT334A MT334C ◊CMT334C MT334E ◊CMT334E ◊MT334F ◊CMT334F ◊MT335 ◊CMT335 ◊MT336E10 CMT336E ◊MT33710 ◊CMT337 ◊CMT351C ◊MT352A ◊CMT354F 233A, 221E3 223C 223AM 223CM 232A, 544A4 232C 218A 218C 303A 215A 215C 237A 237C 225A, 234A 225C, 234C 216A 216C, 484C5 217A 217C 226A 226C 236A 236C 438A 438C 411A 411C 394C 218J 361C M641/2-8 – – – I I I I .438 (11.1) .438 (11.1) .438 (11.1) .438 (11.1) – – M641/2-3 – M641/2-1 M641/2-6 – – – II II III III XVIII V V IX IX .5 (12.7) .5 (12.7) .5 (12.7) .5 (12.7) .562 (14.3) .469 (11.9) .469 (11.9) .625 (15.9) .625 (15.9) XI .562 (14.3) – M641/2-5 XI XVII .562 (14.3) .625 (15.9) – M641/2-7 – M641/2-4 – – – – M641/1-2 M641/2-9 M641/1-1 – – – XVII XXV XXV XIX XIX XIII XIII XXIII XXIII XXIV XXIV XXXIII III XXXIV .625 (15.9) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .75 (19.0) .75 (19.0) .75 (19.0) .75 (19.0) .812 (20.6) .5 (12.7) .75 (19.0) – M642/4-1 M642/4-2 or M642/4-3 *Refer to page 79 and 80 for schematics. ◊ Special order only; contact Switchcraft. 1. Many jacks are offered with MIL specifications. Other jacks are made of MIL-spec materials but do not have MIL approval because no MIL type numbers have been assigned. 2. MT-Jax have nickel-plated copper alloy bushing. WEco equivalent jacks have plain copper alloy bushings (except WEco Number 221E, which has nickel-plated copper alloy bushing). 3. Mating plugs and patch cords are contained in the catalog. 4. Adjust non-short tip-ring. 5. Adjusted for plug M642/1-1 or M642/1-2. 6. Actuates differently (insulated “A” off ring instead of tip). 7. Same as MIL type M641/2-3 except with offset ground lug. 8. Same as MIL type M641/3-1 except with offset ground lug. 9. Same as MIL type M641/3-2 except with offset ground lug. 10. When mounted on “A” frames, stacks are too high to fit in standard panels with .625" horizontal space add prefix “C” to part number to order jacks with “C” frame. MIL Type1 Schematic Circuit* 3-CONDUCTOR M641/3-1 IV – IV – IV – IV – VII M641/3-2 XII – XII – XII – XII M641/3-4 XX – XX – XX – XX M641/5-5 XIV – XIV – XIV – XIV M641/3-6 XXI – XXI M641/3-3 XXII – XXII – XXII – XXII – XXXI – XXXI – XXXI – XXXI – XXXII – XXXII M641/3-7 XXVII – XXVII – IV Dim. “X” maximum Inch (mm) .562 (14.3) .562 (14.3) .562(14.3) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .578 (14.7) .578 (14.7) .562 (14.3) .562 (14.3) .625 (15.9) .625 (15.9) .688 (17.5) .688 17.5) .75 (19.0) .75 (19.0) .812 (20.6) .812 (20.6) .688 (17.5) .688 (17.5) .75 (19.0) .75 (19.0) .75 (19.0) .75 (19.0) .938 (23.8) .938 (23.8) .562 (14.3) .562 (14.3) .967 (24.6) .967 (24.6) .563 (14.3) Mating Plug3 M642/2-1 or M642/2-2 M642/5-1 MT-JAX (WITH WECO EQUIVALENT JACKS) 2 Switchcraft Part Number WEco Equiv. ◊WMT342B MT344B ◊MT346 ◊CMT346 ◊MT354B ◊MT35510 ◊MT356C10 ◊CMT356C ◊MT35710 ◊CMT358 ◊CMT359 246 AM 248A 249A 249C 248E 243C 245A 245C 363A 290C 326C DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 MIL Type1 Schematic Circuit* 3-CONDUCTOR 2 – IV – XII – XX – XX – XII – XXXV – XXXVI – XXXVI – XXXVII – XXXVIII – XXXIX Dim. “X” maximum Inch (mm) Mating Plug3 .562 (14.3) .625 (15.9) M642/5-1 .562 (14.3) .562 (14.3) .625 (15.9) .812 (20.6)10 .938 (23.8)10 M642/5-1 or .938 (23.8) M642/2-2 .75 (19.0)10 .875 (22.2) .75 (19.0) JACKS AND PLUGS Switchcraft Part Number 84 JACKS AND PLUGS LONG FRAME TELEPHONE JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information MT-JAX ® MT-JAX® (Industry Standard – No WEco Equivalent) JACKS AND PLUGS Switchcraft Part Number ◊WMT332A ◊WCMT332A XMT332A ◊YMT332A ◊CMT332C ◊WMT332C ◊WMT333 ◊WCMT333 ◊MT333A ◊WMT333E ◊WMT334A ◊WMT334C ◊WMT334E ◊WMT334F ◊WMT33510 ◊WCMT335 MT335A10 ◊CMT335A ◊WMT335A ◊WCMT335A ◊WMT336E10 ◊WCMT336E ◊CMT341 MIL Type 1 Schematic Circuit* 2-CONDUCTOR2 – III – III – III – III – XVIII – XVIII – V – V – VI – IX – XI – XVII – XXV – XIX – XIII – XIII M641/2-2 XXVI – XXVI – XXVI – XXVI – XXIII – XXIII – I Dim. “X” maximum Inch (mm) .5 (12.7) .5 (12.7) .5 (12.7) .5 (12.7) .562 (14.3) .5 (12.7) .469 (11.9) .469 (11.9) .967 (24.6) .625 (15.9) .562 (14.3) .562 (14.3) .562 (14.3) .641 (16.3) .688 (17.5) .688 (17.5) .75 (19.0) .75 (19.0) .75 (19.0) .75 (19.0) .875 (22.2) .875 (22.2) .438 (11.1) (Industry Standard – No WEco Equivalent) Mating Plug 3 M642/4-1 M642/4-2 or M642/4-3 Switchcraft Part Number MIL Type 1 XMT332B ◊YMT332B ◊CMT333B ◊WMT333B XMT334B ◊YMT334B10 ◊WMT336B ◊WCMT336B ◊MT343B ◊CMT342B ◊CMT344B ◊WMT344B ◊MT346A10 ◊MT346B10 ◊MT346C10 ◊CMT346C – – – – – – – – – – – – – – – – Schematic Circuit* 3-CONDUCTOR2 IV IV VII VII XII XII XXI XXI VII IV XII XII XIV XXI XXII XXII Dim. “X” maximum Inch (mm) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .562 (14.3) .812 (20.6) .812 (20.6) .5 (12.7) .562 (14.3) .625 (15.9) .625 (15.9) .688 (17.5) .812 (20.6) .688 (17.5) .688 (17.5) Mating Plug 3 M642/2-1 or M642/2-2 M642/5-1 M642/5-1 or M642/2-21 *Refer to pages 79 and 80. ◊ Special order only; contact Switchcraft. 1. Many jacks are offered with MIL specifications. Other jacks are made of MIL-spec materials but do not have MIL approval because no MIL type numbers have been assigned. 2. MT-Jax have nickel plated copper alloy bushing. WEco equiv. jacks have plain copper alloy bushings (except WEco No. 221E, which has nickel plated copper alloy bushing). 3. Mating plugs and patch cords are contained in this catalog. 7. Same as MIL type M641/2-3 except with offset ground lug. 8. Same as MIL type M641/3-1 except with offset ground lug. 9. Same as MIL type M641/3-2 except with offset ground lug. 10. When mounted on “A” frames, stacks are too high to fit in standard panes with .625" horizontal space add prefix “C” to part number to order jacks with “C” frame. MT-Jax®, Offset Lugs MT-Jax® and WMT-Jax® MT-Jax®,Wire-Wrapping Detail DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS LONG FRAME TELEPHONE TWIN JACKS FAX: 773 792-2129 85 * Please visit the product pages on our website for the most up-to-date product information 1/4" LONG FRAME TELEPHONE TWIN JACKS SPECIFICATIONS MT388 ORDERING Order by part number from table. WMT389 Part Number1 MT388 ◊WMT388 MT389 High quality telephone jacks are essentially doubled versions of MT-Jax®. Twin-Jax® are used in Switchcraft Series 2400, 2600 and JP® Jack Panels and other standard jack panels. Twin-Jax® have direct WEco equivalents. MT388 AND WMT388 Frame mounting ears are on 1.375" centers, and bushings are on .625" centers. Jacks are double, 2-conductor type with a crossover wiring feature. If a mating plug is inserted in either bushing, crossover contacts are opened (see schematic). MT388 (solder lugs) is equivalent to WEco jack 410A, 410C and 410D. WMT388 (wire-wrapping) is equivalent to WEco 410AM. WMT389 Adjusted for Plug WEco types 298B and 347B MIL types M642/9-1 and M642/1-1 Switchcraft types 411, 412, 413, 420 WEco type 310 MIL types M642/2-1 and M642/2-2 Switchcraft types 414 and 482 Dim. “X” max. Inch (mm) .562 (14.3) .562 (14.3) .594 (15.1) .562 (14.3) ◊ Special Order only; contact Switchcraft. 1. Number MT388 is equivalent to MIL-type M641/11-1 2. Complete data for telephone and MIL-type plugs are contained in this section. Mounting Screws: #6-32, Part Number P10725, can be ordered separately. Contact Switchcraft. (Screws not supplied with jacks). SCHEMATIC CIRCUITS MT389 AND WMT389 Double, 3-conductor jacks with both the tip and ring circuits interconnected (crossover wired) so if a plug is inserted in either jack, common circuits are opened (see schematic). MT-389 (solder lugs) is equivalent to WEco 482A. WMT389 (wire-wrapping) is equivalent to WEco 482AM and 482BM. MT388 and WMT388 MT389 and WMT389 MT389 and WMT389 MT388 and WMT388 DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 JACKS AND PLUGS MT389 Frame and Stack Screws: Steel, plated with iridescent iridite finish. Springs: Copper alloy, spring tempered. Solder lugs are solder coated. Bushings: Nickel-plated copper alloy. Contacts: Welded crossbar palladium in shunt circuits. Insulation: Rigid plastic (MIL-type PBE-P, per MIL Specification LP-513C). Extruded plastic insulating tubing through stack. 86 JACKS AND PLUGS JACK BLOCKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" JACK BLOCKS JACKS AND PLUGS DUAL-JAX BLOCK® ORDERING Order by part number from table. Part Number 2300 2331 2332A 2332B ◊2333 Dual-Jax Blocks are ideal where limited jack connections are needed but larger jack panels are not required. Designed for broadcasting, intercom and PA systems, switchboards, and commercial, industrial and military communications equipment. Dual-Jax Blocks mount in panels or chassis, either singularly or in multiples. Four countersunk holes accommodate four #8-32 screws (not supplied) for block mounting. Blocks can be supplied without jacks, or with MT-Jax® installed. Many other jacks including, T-Jax®, T-Switch® switches and lamp jacks can be installed. Jacks with wire-wrapping terminals or offset lugs can also be supplied. By drilling additional holes, Twin-Jax® may also be used. Contact Switchcraft for any special order items. ◊ Special order only; contact Switchcraft for price and delivery. Mounting Screws: #6-20, P1544, can be ordered separately, contact Switchcraft. SPECIFICATIONS SERIES 2300 Block: Molded black thermoplastic. Screws: #6-20 plated steel, QQ-P-416, Type II, Class 2 (for jack mounting). DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Description Block, without jacks. Two, MT331 MT-Jax installed. Two, MT332A MT-Jax installed. Two, MT332B MT-Jax installed. Two, MT333 MT-Jax installed. Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS BANTAM TYPE ® JACKS FAX: 773 792-2129 87 * Please visit the product pages on our website for the most up-to-date product information TT-JAX ® (.173") TELEPHONE JACKS BANTAM TYPE® TT32BDC DIE-CAST FRAME TT36FM FRONT MOUNT (special order only) SWITCHCRAFT VS. MIL NUMBERS FEATURES • Steel (standard) or die-cast frames (special order). • 2-or 3-conductors. • Palladium crossbar welded contacts are standard in switching circuits. Fine silver or gold alloy contacts are available on special order. • Series TT30, TT30FM and TT600 - solder lugs; Series WTT-30, WTT30FM and WTT600FM -wire-wrapping terminals. Bussing solder lugs are available on special order. • Series TT30 and WTT30 jacks mounts in Series 1600, A1600, B1600 and C1600 jacks panels. • Series TT30FM and WTT30FM jacks mount in Series TT51, TT52, TT55 and TT56 jack panels. • Series TT600 and WTT600 jacks mount in .25" diameter holes in panels up to .281" thick. Mounting centers: .438". • Add “N” for nickel-plated frame and “Y” or for offset solder lugs. Jack Number MIL Spec. Number TT32B 641/19-2 TT32BFM 641/19-6 TT34B 641/19-4 TT34BFM 641/19-8 TT36C 641/19-10 WTT32B 641/19-1 WTT32BFM 641/19-5 WTT34B 641/19-3 WTT34BFM 641/19-7 WTT36C 641/19-9 Part Numbers, Jack with Solder Lugs Dim. “X” Series TT30 Series TT30FM Series TT600 Max. Steel Die Cast Steel Die Cast Steel Schem.1 In (mm)2 Cond. TT31 ◊TT31DC TT31FM ◊TT31FMDC TT631 I .422 (10.7) 2 TT32A ◊TT32ADC TT32AFM ◊TT32AFMDC TT632A III .406 (10.3) 2 TT32B ◊TT32BDC TT32BFM ◊TT32BFMDC ◊TT632B IV .578 (14.68) 3 TT32C ◊TT32CDC ◊TT32CFM ◊TT32CFMDC ◊TT632C XVIII .422 (10.7) 2 TT33 ◊TT33DC TT33FM ◊TT33FMDC ◊TT633 V .578 (14.7) 2 ◊TT33B ◊TT33BDC ◊TT33BFM ◊TT33BFMDC ◊TT633B VII .484 (12.3) 3 TT34A ◊TT34ADC ◊TT34AFM ◊TT34AFMDC ◊TT634A XI .547 (13.9) 2 TT34B ◊TT34BDC TT34BFM ◊TT34BFMDC TT634B XII .578 (14.68) 3 TT34C ◊TT34CDC TT34CFM ◊TT34CFMDC ◊TT634C XVII .547 (13.9) 2 TT34F ◊TT34FDC – – – XIX .609 (15.5) 2 TT35 ◊TT35DC ◊TT35FM ◊TT35FMDC ◊TT635 XIII .609 (15.5) 2 TT36 ◊TT36DC ◊TT36FM ◊TT36FMDC ◊TT636 XX .609 (15.5) 3 TT36A ◊TT36ADC TT36AFM ◊TT36AFMDC TT636A XIV .625 (15.9) 3 TT36B ◊TT36BDC – – – XXI .703 (17.9) 3 TT36C ◊TT36CDC TT36CFM ◊TT36CFMDC ◊TT636C XXII .625 (15.9) 3 Typical Mating Plug3 TT251 TT251 TT253 TT251 TT251 TT253 TT251 TT253 TT251 TT251 TT251 TT253 TT253 TT253 TT253 Part Numbers, Jack with Wire Wrapping Terminals Dim. “X” Typical Series WTT30 Series WTT30FM Series WTT600 Max. Mating Steel Die Cast Steel Die Cast Steel Schem.1 In (mm)2 Cond. Plug3 WTT31 WTT32A WTT32B ◊WTT32C WTT33 ◊WTT33B ◊WTT34A WTT34B – ◊WTT35 ◊WTT36 ◊WTT36A WTT36C ◊WTT31DC ◊WTT32ADC ◊WTT32BDC ◊WTT32CDC ◊WTT33DC ◊WTT33BDC ◊WTT34ADC ◊WTT34BDC – ◊WTT35DC ◊WTT36DC ◊WTT36ADC ◊WTT36CDC WTT31FM WTT32AFM WTT32BFM ◊WTT32CFM WTT33FM ◊WTT33BFM ◊WTT34AFM WTT34BFM – ◊WTT35FM ◊WTT36FM ◊WTT36AFM WTT36CFM ◊WTT31FMDC ◊WTT32AFMDC ◊WTT32BFMDC ◊WTT32CFMDC ◊WTT33FMDC ◊WTT33BFMDC ◊WTT34AFMDC ◊WTT34BFMDC – ◊WTT35FMDC ◊WTT36FMDC ◊WTT36AFMDC ◊WTT36CFMDC WTT631 WTT632A WTT632B ◊WTT632C ◊WTT633 ◊WTT633B ◊WTT634A WTT634B ◊WTT634C ◊WTT635 ◊WTT636 ◊WTT636A ◊WTT636C WTT636C THREADED BUSHING I III IV XVIII V VII XI XII XVII XIII XX XIV XXII .422 (10.7) .406 (10.3) .578 (14.68) .422 (10.7) .578 (14.7) .484 (12.3) .547 (13.9) .578 (14.68) .547 (13.9) .609 (15.5) .609 (15.5) .625 (15.9) .625 (15.9) ◊ Special order only. 1. See schematic diagrams. 2. “X” dimension of die cast frame jacks may be slightly greater. 3. See Mating Plugs Section. DIMENSIONS ARE FOR REFERENCE ONLY 2 2 3 2 2 3 2 3 2 2 3 3 3 Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 TT251 TT251 TT253 TT251 TT251 TT253 TT251 TT253 TT251 TT251 TT253 TT253 TT253 JACKS AND PLUGS TT36 STEEL FRAME 88 JACKS AND PLUGS BANTAM TYPE ® JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information ® ® JACKS AND PLUGS TT-JAX (.173") TELEPHONE JACKS BANTAM TYPE SPECIFICATIONS MOUNTING HARDWARE Frame: Plated (steel or zinc diecast). Stack Screws: Steel plated. Bushing: Plated (brass or steel). Tip and Ring Springs: Copper alloy. Contact Spring: Copper alloy. Contacts: Welded crossbar palladium. Other alloys in various sizes available on special order. Insulation: Rigid plastic with plastic tubing through stack assembly. Series TT30: #3-48 x 1/4"; mounting screws, P10834, can be ordered separately. Series TT30FM: Supplied with one #3-48 x 1⁄4" fil. head machine screw, steel-plated. Series TT600: Supplied with one P1975, nickel-plated copper alloy locknut, and one S3997, steel, nickel-plated washer. NOTE: Dimensional drawings show panels with steel frame jacks. Overall dimensions for steel or die-cast frame jacks are the same, except as noted. 0.375 [9.5] REF B0.115 [2.9] REF 0.281 [7.1] REF 0.250 [6.4] REF B0.251 [6.4] REF 2-17/32 [64.3] REF 0.780 5.015 [19.8] REF 0.590 5.015 [14.9] REF 0.650 [16.51] REF 0.035 [.79] REF 0.279 [7.1] REF B0.176 [4.46] REF Series TT32B DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS BANTAM TYPE ® JACKS FAX: 773 792-2129 89 * Please visit the product pages on our website for the most up-to-date product information ® ® TT-JAX (.173") TELEPHONE TWIN JACKS BANTAM TYPE SPECIFICATIONS • Steel or die-cast frames. (Special order only). • Twin, 3-conductor jacks on .312" centers, inter-connected so circuit is opened when a mating plug is inserted in one side of the jack. Palladium welded crossbar contacts are standard in switching circuits. • Solder lugs or wire-wrapping terminals. • TT89, TT89C, WTT89 and WTT89DC jacks mount in Series 1700 jack panels. • TT89FM, TT89FMDC, WTT89FM and WTT89FMDC jacks mount in Series TT59, TT60, TT61 and TT62 jack panels. Frame: Plated (steel or diecast zinc). Stack Screws: Steel-plated. Bushing: Plated (steel or copper alloy). Tip, Ring and Contact Springs: Copper alloy. Contacts: Welded crossbar palladium. Other alloys in various sizes available on special order. Insulation: Rigid plastic with plastic tubing through stack assembly. Mounting Hardware: #3-48 x 1/4" mounting screws, P10834, can be ordered separately for TT89, TT89DC, WTT89 and WTT89DC jacks. Two mounting screws, P25424, are supplied with TT89FM, TT89MDC, WTTFM and WTT89FMDC jacks. NOTE: Dimensional drawings show panels with steel frame jacks. Overall dimensions for steel or die-cast frame jacks are the same. TT89 SCHEMATIC Solder Lugs Steel TT89 TT89FM Die Cast ◊TT89DC ◊TT89FMDC Wire-Wrapping Terminals Steel Die Cast WTT89 ◊WTT89DC WTT89FM ◊WTT89FMDC 1. See Mating Plugs Section. ◊ Special order only DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Conductors Twin 3-conductor Typical Mating Plug1 TT263 TT263 JACKS AND PLUGS FEATURES 90 JACKS AND PLUGS BANTAM TYPE® JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information TT-JAX® (.173") TELEPHONE TRIPLE JACKS BANTAM TYPE® JACKS AND PLUGS FEATURES • Steel or die-cast frames. • TT95 Tri-Jax® Jacks: three, 3-conductor jacks on one frame. Twin jacks, (on .312" centers, LINE & EQUIPMENT functions), have strapped shunts installed. The third jack (MONITOR) is unwired. See TT95 schematic. • TT96 Tri-Jax Jacks: Same as TT95 jacks, except third jack (MONITOR) has tip and ring springs, respectively, jumpered to tip and ring springs of top (LINE) jack. • Selection of solder lugs or wire-wrapping terminals. • Palladium welded crossbar contact are standard in switching circuits. • TT95, TT95DC, WTT95 and WTT95DC jacks mount in Series B1700 jack panels. • TT95FM, TT95FMDC, TT96FM, TT96FMDC and wire-wrapping versions mount in Series TT53, TT54, TT57 and TT58 jack panels. TT95 SCHEMATIC TT96 SCHEMATIC TT95 TT95FM TT96FM TT95DC TT95FMDC TT96FMDC WTT95 WTT95FM WTT96FM WTT95DC WTT95FMDC WTT96FMDC TT253 TT263 ◊ Special order only SPECIFICATIONS Frame: Plated (steel or diecast) Stack Screws: Stainless Steel Plated. Bushings: Plated (steel or copper alloy). Contact Springs: Copper alloy. Contacts: Welded crossbar palladium. Other precious metal alloys in various sizes available on special order. Mounting Hardware: #3-48 x 1/4" mounting screws, P10834, can be ordered separately for rear mount jacks. Two mounting screws, P25424, are supplied with front mount jacks. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS MINIATURE TELEPHONE JACKS FAX: 773 792-2129 91 * Please visit the product pages on our website for the most up-to-date product information MINIATURE TELEPHONE JACKS, RIGHT ANGLE, PC MOUNT RTT34B02 COVER P286302 JACKS AND PLUGS CLOSE-UP OF “Snap-In” TERMINAL RTT8702 COVER P286402 Right-angle miniature phone jacks provide low-profile packaging. Single and twin 3-conductor jacks provide plug-jack access to communication circuits for patching and/or testing. Tips and rings are shunted. These jacks mate with Switchcraft miniature TT® plugs and patch cords. Jacks are designed for right-angle mounting on .062" (1.6 mm) maximum thickness PC boards. Snap-on covers in colors are available and can be installed or removed in the field without special tools. Covers and jacks may be ordered in different colors for color coded circuits. SPECIFICATIONS ELECTRICAL Dielectric Withstanding Voltage: 500 V AC Contact Resistance: .020 Ω maximum (initial), .030 Ω maximum (after life test). Insulation Resistance: 1010 Ω at 500 V DC (initial). MECHANICAL Shock: MIL-STD 202 Method 213. Vibration: MIL-STD 202 Method 201. Insertion Force: 7 pounds maximum (31.14 N). Withdrawal Force: 1.5 pounds minimum (6.67 N). Life: 10,000 cycles. MATERIALS Housing: Thermoplastic UL 94V-0. Springs: Copper alloy, plated. Contacts: Gold alloy (WEco #1) crossbar. ENVIRONMENTAL Temperature Limits: -55°C to +85°C (non-operating). Thermal Shock: MIL-STD 202 Method 107. Salt Spray: MIL-STD 202 Method 101. Humidity: MIL-STD 202 Method 106, less steps 7A and 7B. LOW SILHOUETTE PERMITS CRITICAL SPACE-SAVING HIGH DENSITY PACKAGING ORDERING INFORMATION Jack Part No. Cover Part No. Color ◊P286301 Red RTT34B02 P286302 Black RTT34B04 ◊P286304 Blue RTT34B05 P286305 White ◊RTT34B07 ◊P286307 Orange ◊RTT34B08 ◊P286308 Yellow RTT34B01 Schem. Cond. XII 3 Typical Mating Plug 2 TT-253 RTT8701 ◊P286401 Red RTT8702 P286402 Black RTT8704 ◊P286404 Blue Twin Twin RTT8705 P286405 White XII 3 ◊RTT8707 ◊P286407 Orange ◊RTT8708 ◊P286408 Yellow TT-263 1. See schematic diagrams on pages 79 and 80. 2. See Mating Plugs Section. ◊ Special order only; contact Switchcraft for price and delivery. ORDERING 1. Order jacks and covers separately from table. 2. Covers can be ordered assembled on special order. 3. To order RTT jack with cover installed, add the letter C after RTT in part number. Special order only. 4. To order RTT jack with Snap-in terminals, add the letter S to the end of the part number. Special order only. 5. For all special orders items, contact Switchcraft. RTT JACK PART NUMBERING SYSTEM Series RTT Right Angle TT Jack Cover Option Blank- No Cover Standard Circuitry C- 87- DIMENSIONS ARE FOR REFERENCE ONLY Cover Supplied Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 34B- Jack Color XII 01- Red Two XII Circuits 02- Black 04050708- Blue White Orange Yellow 92 JACKS AND PLUGS MINIATURE TELEPHONE JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS MINIATURE TELEPHONE JACKS, RIGHT ANGLE, PC MOUNT (continued) RECOMMENDED PCBOARD LAYOUT No. RTT34B (Less cover) No. P2863 Cover No. RTT87 (Less cover) RECOMMENDED PC BOARD LAYOUT No. P2864 Cover DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS ENCLOSED JACKS FAX: 773 792-2129 93 * Please visit the product pages on our website for the most up-to-date product information .177" ENCLOSED JACKS Two- and 3-conductor Unijax® jacks have advanced features of Hi-D Jax® jacks including chassis/panel and PC mounting and .177" bushing that mates with a variety of tini-telephone® plugs and patchcords. Bushing diameter is .281" inside diameter; panel thickness is .125". Mounts in rows or arrays on .469" centers. UJ4B JACKS AND PLUGS SPECIFICATIONS MECHANICAL Insertion/Withdrawal: 2-conductor, 1.25 pounds nominal, 3 pounds maximum insertion. 3-conductor, 1.5 pounds nominal, 3 pounds maximum insertion. 2-conductor, 3 pounds nominal, 1.5 pounds minimum withdrawal. 3-conductor, 3 pound nominal, 1.5 pounds minimum withdrawal. Life: 10,000 insertion/withdrawal cycles minimum. ELECTRICAL Contact Resistance: .10 ohms maximum. Insulation Resistance: 1,000 MΩ minimum. Dielectric Withstanding Voltage: 500 V AC maximum. MATERIAL Housing: Thermoplastic. Mounting Bushing: Nickel-plated copper alloy. Tip and Ring Springs: Copper alloy, silver-plated. Integral contacts. Shunt Springs: Copper alloy, silver-plated integral contacts. Sleeve Terminal: Steel, tin-plated. Hardware: Supplied with one, Number P2060 nickel-plated copper alloy locknut, and one, Number P2061 nickel-plated copper alloy washer. TWO CONDUCTOR PART NUMBERS Part Number Description Jack Schematic1 Typical Mating Plug2 UJ1 Open circuit I TT251 UJ2A Single closed circuit III TT251 THREE CONDUCTOR PART NUMBERS UJ2B Double Open circuit IV TT253 UJ4B Double closed circuit XII TT253 1. See jack schematics on pages 79 and 80. 2. See Mating Plugs Section. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 94 JACKS AND PLUGS LITTEL-JAX ® 2- AND 3- CONDUCTOR PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" PHONE JACKS PC-12A 14B JACKS AND PLUGS PREFIX OPTIONS Blank- 1/4" Commercial Jack CAccepts Mill Plug FA.205" Faston Terminals FAL.205" Faston Terminals and .375" Long Bushing L.375" Long Bushing PCPC Terminals SAccepts .206 Diameter Plugs SERIES 1-Littel Jax® CIRCUITRY 1I 2A- III 2B- IV 3V 3A3B3E4B- VI VII IX XII TWO CONDUCTOR PART NUMBERS 11 FAL-11 .205 FASTON TERMINAL Jack Schematic1 Typical Mating Plug Open circuit I 250 C11 MIL Number M641/6-1 I 440 FA11 .205 inch FASTON terminal I 250 FAL11 .375 inch long bushing .205 FASTON terminal I 250 L11 .375 inch long bushing I 250 12A Tip shunt III 250 C12A MILNumber M641/12-1 III 440 L12A .375 inch long bushing III 250 PC12A PC board mount III 250 13 Isolated “make” circuit V 250 13A Transfer circuit VI 250 13E Isolated “break” circuit IX 250 Part Number LITTEL-JAX® COMMERCIAL PHONE JACKS 2- AND 3-CONDUCTOR Littel-Jax phone jacks mate with standard commercial phone plugs and are available with .25" and .21" inside diameter bushings. MIL LITTEL-JAX® PHONE JACKS 2- AND 3-CONDUCTOR MIL-SPEC, MIL-J-641 (E) MIL jacks mate with MIL-type phone plugs with .25" (6.35mm) or .21" (5.34mm) diameter bushings. Numbers C11 and C12B have a non-turn locating pin which keys the jack to the mounting surface. For low contact resistance applications, jack number C12A has fine silver contacts on shunts and tip springs. 11 Description MOUNTING Chassis/Panel: See Mounting Data drawing below; smallhole is required only for jacks numbers C11 and C12B with non-turn locating pin. Maximum Panel Thickness: .156" (4mm) for standard .276" (7mm) long bushing; .25" (6.35mm) for .375" (9.5mm) long bushing. NOTE: For panels thicker than .25" see Thick Panel Phone Jax. Insulated Mount: See drawing. S1028 flatwasher and Part Number S1029 shoulder washer must be ordered separately for mounting in .437" diameter hole. NOTE: See Hi-D Jax ® for jack specifically designed for insulated mounting without additional washers. PC Board Mounting: See Recommended PC Board Layout drawing below for jacks with PC terminals. Recommended PC board thickness is .062". Mounting Centers: 1.188" (30mm) recommended. Centers may vary with jack selected, for example, Number 11 mounts on .813" (20.6mm) and 14B mounts on 1.125" (28.6mm) minimum centers. THREE CONDUCTOR PART NUMBERS 12B Double open circuit IV 267 L12B .375 inch long bushing IV 267 C12B MIL number M641/5-1, .250 inch inside diameter IV 480 13B Tip shunt VII 267 14B Double closed circuit XII 267 PART NUMBERS (.210" INSIDE DIAMETER BUSHING) S11 S12A S12B S13B 2 2 3 3 conductor conductor conductor conductor I III IV VII S250 S250 S267 S267 1. Refer to jack schematics on pages 79 and 80. Other circuits are available; contact factory. STEREO JACK CONNECTIONS DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS ® LITTEL-JAX 2- AND 3- CONDUCTOR FAX: 773 792-2129 95 * Please visit the product pages on our website for the most up-to-date product information 1/4" PHONE JACKS (continued) LITTEL-JAX® COMMERCIAL PHONE JACKS - 2- AND 3-CONDUCTOR AND MIL LITTEL-JAX® PHONE JACKS - 2- AND 3-CONDUCTOR MIL-SPEC, MIL-J-641 (E) Life: Commercial Jacks: 10,000 insertion/withdrawal cycles, minimum. Military Jacks: 20,000 insertions/ withdrawals, minimum. Mechanical Shock: Military Jacks: Per MIL-STD 202, method 213, Test Condition H (75g). Vibration: Military Jacks: Per MIL-STD-202, method 213, (10-55 Hz). Insertion/Withdrawal Forces: (see charts below) Sleeve Terminal: Copper alloy. Hardware: Supplied with one Number P10001 copper alloy nickel-plated hex nut, and one Number 51022 steel nickel-plated washer - except copper alloy nickel-plated washer Number S10451 supplied on C11, C12A and C12B. *Commercial jacks feature integral contacts. Integral contacts should not be used where low contact resistance is a requirement. Littel Jax® Jacks COMMERCIAL JACKS Plug Diameter (inches) Insertion (maximum) Withdrawal (minimum) .210 7 lb. 1 lb. .250 7 lb. 1 lb. MILITARY JACKS Part Number Insertion (maximum) Withdrawal (minimum) Withdrawal (maximum) C11 6 lb. 2 lb. 7 lb. C12A 7 lb. 3 lb. 7 lb. C12B 6 lb. 1.5 lb. 5 lb. 11, L-11, C-11, S-11 *.276" for No. FA-11 FA-11, FAL-11 S-12A, SC-12A 12 12-A, L-12A S-12A, SC-12A 12A, L-12A ELECTRICAL Contact Resistance: Commercial Jacks - .030 ohms maximum (initial), .050 ohms maximum (after humidity, durability exposure). Per MIL-STD-202E. Military Jacks .010 ohms maximum (initial), .020 ohms maximum (after life), .10 ohms maximum (after salt spray). Insulation Resistance: Commercial Jacks - 10,000 MΩ minimum (initial), 1,000 MΩ minimum (after humidity). Military Jacks - 10,000 MΩ minimum (initial), 1,000 MΩ minimum (after humidity, durability exposure). Dielectric Withstanding Voltage: 500 V, 60 Hz (rms) AC. Contact Rating: 1 A, 25 V DC. PC-12A 12B, C12B S-12B, SC-12B 13 ENVIRONMENTAL Thermal Range: Commercial Jacks; -55°C to +85°C (non-operating); -20°C to +65°C (operating). Military Jacks; 55°C to +85°C (non-operating); -40°C to+65°C (operating). Thermal Shock: Commercial Jacks - Per MIL-STD 202, method 107. Military Jacks - Per MIL-STD 202, method 107. Humidity: Commercial Jacks - Per MIL-STD 202, method 106. Military Jacks - 0% to 95% operating and non-operating. Salt Spray: Commercial Jacks - Per MIL-STD 202, method 101. Military Jacks - Per MIL-STD 202, method 101 (48 hours). Moisture Resistance: Military Jacks - Per MIL-STD 202, method 106 (240 hours). 13B, S-13B MATERIAL 13E Mounting Bushing: Nickel-plated copper alloy. Insulation: Rigid plastic. Springs: Special copper alloy. Integral contacts are standard in the isolated switching circuits; fine silver contacts in C12A switching circuit. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 14B 13A JACKS AND PLUGS SPECIFICATIONS MECHANICAL 96 JACKS AND PLUGS ENCLOSED JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS 1/4" ENCLOSED TELEPHONE JACKS Series M11* Series MNS11* Compactly constructed jacks permit direct cross-patching with Switchcraft, WEco and MIL-type telephone plugs and patch cords. Series M Hi-D Jax® offer a choice of solder lugs or PC terminals. Both insulated and metal bushings can be specified, as well as .21" inside diameter sleeves for narrow plug fingers. Maximum contact resistance is .1 ohm. Springs are made of a special gold-plated copper alloy. Welded cross bar gold alloy contacts are available on special order. SERIES M-11* HI-D JAX® Two- and 3-conductor type mate with .25" diameter finger plugs. Tip and ring springs are gold-plated. Shunts (if used) have welded crossbar palladium contacts. Ring springs (where used with shunts) have welded crossbar palladium contacts. Tip springs (when used) do not have a contact welded to the spring. Bushing has 3/8-32-NEF-2 thread; locknut and flat washer for mounting are supplied. SERIES MN-11* HI-D JAX® Same as Series M-11* except threaded bushing is molded thermoplastic for insulated mounting. Continuous sleeve contact assures positive sleeve connection without exposed metal on front of panel. ® SERIES M113 AND M114 HI-D JAX The versatile 3-conductor M113 and M114 feature springs which accept a wide variety of 1/4" plug designs. Self-aligning PC terminals allow for easier insertion into a printed circuit board. Also feature a metric thread mounting. Series MS11* Series MN11* MECHANICAL Life: 10,000 insertion/withdrawal cycles, minimum. Insertion/Withdrawal Forces: Nominal plug retention on 2-conductor jack is .75 pounds with .5 pounds minimum. Nominal plug retention on 3-conductor jack is 2 pounds with 1.5 pounds minimum. With double tips, the nominal is 1.5 pounds and 1 pound minimum. Maximum Recommended Mounting Torque: 6" -lb. for thermoplastic bushing. Mounting Torque (for Spring Lock PC Terminal): 8" -pound for thermoplastic bushings. ELECTRICAL Contact Resistance: .020 ohms maximum (initial), .050 ohms maximum (after humidity, durability exposure). Per MIL-STD-202E. Insulation Resistance: 10,000 MΩ minimum (initial), 1,000 MΩ minimum (after humidity). Dielectric Withstanding Voltage: 500 V, 60 Hz (rms) AC. Contact Rating: 0.25, 48 VDC make and break, 3A carry only. ENVIRONMENTAL Thermal Range: -55°C to +85°C (non-operating); -20°C to +65°C (operating). Thermal Shock: Per MIL-STD 202, method 107. Humidity: Per MIL-STD 202, method 106. Salt Spray: Per MIL-STD 202, method 101. SPECIFICATIONS MATERIALS Mounting Bushing: Series M11*, MS11* - Nickel-plated copper alloy. Series MN11*, MNS11* - Molded thermoplastic. Housing: Molded thermoplastic, UL 94V-0. Springs: Copper alloy. Contacts (mil-type): Tip and Ring Springs are gold-plated. Shuntsprings (where used) are welded crossbar palladium. Welded crossbar gold alloy contacts are available on special order. Contacts (commercial): Tin-plated integral contacts. Sleeve Terminal: Steel, tin-plated. Hardware: Supplied with one P10001 copper alloy, nickel-plated locknut and one S10221 steel, nickel-plated washer. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS ENCLOSED JACKS FAX: 773 792-2129 97 * Please visit the product pages on our website for the most up-to-date product information 1/4" ENCLOSED TELEPHONE JACKS (CONTINUED) ORDERING INFORMATION 3-conductor with .21" inside diameter sleeve. Mates with plugs having .206" diameter finger. Protects against accidental insertion of .25" diameter finger plugs. Gold-plated tip and ring springs. Welded crossbar palladium contacts on shunt springs standard. Bushing has 3/8-32-NEF-2 thread; locknut and flat washer for mounting are supplied. Order by part number from table. ◊SERIES MNS11* HI-D JAX ® Same as Series MS11* except bushing is molded thermoplastic. ◊TWIN M11* HI-D JAX® Two Series M11* Hi-D Jax strapped on .625" centers. Mates with Switchcraft® Twin Plugs. 411, 412 and 413. MIL-type Littel-Plug® phone plugs, 420, 430 and 440 (2-conductor) and 482 and 483 (3-conductor) are also recommended for mating with this series. 2-CONDUCTOR Part Number Solder Lugs Part Number PC Terms M111 – M111 MN111 M112A – M112APC ◊M112A ◊M112APC MN112A MN112A ◊MN112APC MN112APC M113E M113E – MN113E MN111 MN113E – Description .25" .25 I.D. inchsleeve, I.D. sleeve, metal bushing. .25" .25 I.D. inchsleeve, I.D. sleeve, molded thermoplastic bushing. .25" .25 I.D. inchsleeve, I.D. sleeve, metal bushing. .25" .25 I.D. inchsleeve, I.D. sleeve, molded thermoplastic bushing. .25" .25 I.D. inchsleeve, I.D. sleeve, metal bushing. .25" .25 I.D. inchsleeve, I.D. sleeve, molded thermoplastic bushing. Typical Sche- Mating matic** Plug* I III 420 IX ◊ Special Order only; contact Switchcraft. * Other mating plugs are contained in this plug section. ** See pages 79 and 80. 3-CONDUCTOR Part Number Solder Lugs Part Number PC Terms M112B ⋅ M112BPC ML112B MN112B MNL112B M113B MN113B Description .25" inch I.D. sleeve, metal bushing. – .25" inch I.D. sleeve, .375 inch long metal bushing. ⋅ MN112BPC .25 inch I.D. sleeve, molded thermoplastic bushing. – .25 inch I.D. sleeve, .375 inch long metal bushing. – .25 inch I.D. sleeve, metal bushing. MN113BPC .25 inch I.D. sleeve, molded thermoplastic bushing. M113BPC1M .25 inch I.D. sleeve, molded thermoplastic bushing, metric hardware Schematic1 Typical Mating Plug2 3-CONDUCTOR Part Part Number Number ML112B Description MN112B Solder M112B Lugs PC Terms Typical Sche- Mating M113B matic1 Plug2 MNL113B 482 IV .25 inch I.D. sleeve, MN113B– M112BPC MN112BPC .375 inch long metal bushing. MN113BPC M113PPC1M M114B ⋅ M114BPC .25 inch I.D. sleeve, MNL113B MNL112B M114B VII metal bushing. M114BPC1M .25 inch I.D. sleeve,MN114B M114BPC M114BPC1M metal bushing, MN114BPC metric hardware. XII MN114B 482 VII ⋅ MN114BPC .25 inch I.D. sleeve, molded thermoplastic bushing. ◊ Special order only; contact Switchcraft for price and delivery. 1 See schematics, pages 79 and 80. 2 Number(s) specified are not necessarily the only mating plug(s). See Plugs Section. 482 DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 482 482 480, 484 JACKS AND PLUGS SERIES MS11* HI-D JAX® 98 JACKS AND PLUGS HI-D JAX ® 2- AND 3-CONDUCTOR PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" ENCLOSED PHONE JACKS (continued) JACKS AND PLUGS HI-D® JAX 2- AND 3-CONDUCTOR SERIES 11* PC TERMINAL VIEW TWO CONDUCTOR PART NUMBERS SERIES N11* Hi-D Jax® 2- and 3-conductor enclosed phone jacks are ideal for panel/chassis and PC board mounting. Unitized molded housing protects springs, provides mechanical and electrical reliability, minimizes leakage and provides low capacity between springs. Mounts on .625" minimum centers in rows or arrays. .25" or .21" inside diameter bushing types, metal or thermoplastic bushings (for insulated mounting). Insulated Hi-D Jax® jacks are specifically designed for in-circuit (insulated) mounting from mounting surface and have fully protected enclosed internal sleeve feature. Solder lugs or PC terminals may be selected. MOUNTING Jacks mount in a single .375" diameter hole on .625" minimum centers. Series 11*, N11*, NS11* and S11* mount in panels up to .156" thick. Series L11* and NL11* (long bushing) mount in panels up to .25" thick. Jacks with PC terminals mount on PC boards up to .094" thick. Formed “shoulders” on each terminal provide stable stand-off mount. Threaded bushing permits mechanical connection to equipment panel. Mounting hardware is supplied. Also available is a grounding spur bushing, which allows for positive grounding of the bushing to the chassis. Contact factory for details. SERIES 11* - 2- and 3-conductor types, threaded metal bushing .276" long. .25" inside diameter bushings. SERIES L11* - Same as Series 11*, except bushing is .375" long for mounting in panels up to .25" thick. SERIES N11* - Same as Series 11*, except bushing is molded thermoplastic for insulated mounting. Solder Lug Part Number PC Terminals Part Number Jack Schematic1 Typical Mating Plug2 111 111PC Open circuit N111 N111PC I 250 Insulated bushing I NL111 - 250 .375 " long insulated bushing I 112A 250 112APC Single closed circuit III 250 L112A ◊L112APC .375" long bushing III 250 N112A N112APC Insulated bushing III 250 NL112A - .375" long insulated bushing III 250 113 113PC Isolated "make" circuit V 250 N113 - Insulated bushing V 250 ◊113D ◊113DPC Transfer circuit (1-C) VI 3 250 113E 113EPC Isolated "break" circuit IX 250 Description THREE CONDUCTOR PART NUMBERS 112B 112BPC Double open circuit IV 267 L112B - .375" long bushing IV 267 N112B N112BPC Insulated bushing IV 267 NL112B - .375" long bushing IV 267 - S112BPC .210" inside diameter bushing IV S-267 113B 113BPC Single closed circuit VII 267 - 113BPC1M Single closed circuit VII - L113B - .375" long bushing VII 267 N113B N113BPC Insulated bushing VII 267 NL113B - .375" long bushing VII 267 113F 113FPC Ring circuit closed XXVIII 267 114B 114BPC Double closed circuit XII 267 114BPC1M Double closed circuit XII - ◊L114BPC .375" long bushing XII 267 N114B N114BPC Insulated bushing XII 267 NL114B NL114BPC .375" long bushing XII 267 L114B 1 Other circuits available; contact factory. Schematics pages 79 and 80. 2 See Plug Section for other options. 3 Two tip springs. ◊ Special order only. Contact Switchcraft. SPECIFYING NOTE: Unless otherwise shown in “Description”, jacks have .276" long threaded bushings with .25" inside diameter. SERIES NL11* - Same as Series N11*, except bushing is .375" long for insulated mounting in panels up to .25" thick. SPECIFICATIONS MATERIAL SERIES S11* - Same as Series 11*, except bushing has .21" inside diameter. Smaller diameter protects against accidental insertion of plugs with .25" diameter fingers. Mounting Bushing: Series 11*, L11*, S11* Nickel-plated copper alloy. Series N11*, NL11*, NS11* - Molded thermoplastic over nickel-plated copper alloy sleeve. ◊SERIES NS11* - (SPECIAL ORDER ONLY) - Same as Series N11*, except bushing is .21" inside diameter. 113BPC1M AND 114BPC1M - Versatile, 3-conductor 113BPC1M and 114BPC1M feature springs which accept a wide variety of 1/4" plug designs. Self-aligning PC terminals allow for easier insertion into a printed circuit board. Also feature a metric thread mounting. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery ® JACKS AND PLUGS HI-D JAX 2- AND 3-CONDUCTOR FAX: 773 792-2129 99 * Please visit the product pages on our website for the most up-to-date product information 1/4" ENCLOSED PHONE JACKS (continued) HI-D JAX® 2- AND 3-CONDUCTOR JACKS AND PLUGS M Series Hi-D Jax® with PC Terminals Hi-D Jax® with Insulated Bushing Recommended PCBoard Layout Standard (Solder lugs) .375 (long bushing only) [9.53] DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 100 JACKS AND PLUGS HI-D JAX ® 2- AND 3-CONDUCTOR PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information SPRING LOCK PC TERMINALS FOR HI-D JAX® JACKS AND PLUGS HI-D JAX® SHOWING SPRING LOCK PC TERMINALS Hi-D Jax® enclosed 1/4" phone jacks offer spring lock PC terminals which close during insertion into PC board. Upon completed insertion, the terminals reopen to securely hold the jack to the PC board during soldering. Solder “fills” the terminals which provides an additional security from loosening. The spring lock terminal is available on all Hi-D Jax® which currently offer PC terminals. NOTE: Tip and ground terminals can be specified with spring lock terminals (also ring terminal on 3-conductor jacks). MOUNTING Jacks mount in a single .375" diameter hole on .625" minimum centers. Series 11*, N11* and S11* mount in panels up to .156 " thick. Series NL11* (long bushing) mount in panels up to .250 " thick. Jacks with PC terminals mount on PC boards up to .094 " thick. Spring lock PC terminals hold jack securely to PC board. Threaded bushing permits mechanical connection to equipment panel. Mounting hardware is supplied. See “RECOMMENDED PC BOARD LAYOUT” for further details. CLOSE-UP VIEW OF SPRING LOCK TERMINALS SERIES 11* - 2- and 3-conductor types, threaded metal bushing .276" long. .250 inch inside diameter bushings. SERIES N11* - Same as Series 11* except bushing is molded thermoplastic for insulated mounting. SERIES NL-11* - Same as Series N11* except bushing is .375" long for insulated mounting in panels up to .250" thick. SERIES S11* - Same as Series 11* except bushing has .210" inside diameter Smaller diameter protects against accidental insertion of plugs with .250" diameter fingers. SPECIFICATIONS MATERIAL PARTIAL VIEW SHOWING SPRING LOCK TERMINALS Tip, ring and sleeve terminals are spring lock type. Mounting Bushing: Series 11*, S11*: Nickel-plated copper alloy. Series N11*, NL11*: Molded thermoplastic over plated copper alloy sleeve. ORDERING INFORMATION TWO CONDUCTOR PART NUMBERS Part Number ◊111PCS ◊N111PCS ◊112APCS ◊N112APCS ◊113PCS ◊113EPCS Jack Description Schematic Open circuit I Insulated bushing I Single closed circuit III Insulated bushing III Isolated “make” circuit V Isolated “break” circuit IX THREE CONDUCTOR PART NUMBERS Double open circuit IV ◊N112BPCS Insulated bushing IV ◊S112BPCS .210" I.D. bushing IV ◊113BPCS Single closed circuit VII ◊N113BPCS Insulated bushing VII ◊113FPCS Ring closed circuit XXVIII ◊114BPCS Double closed circuit XII ◊N114BPCS Insulated bushing XII ◊NL114BPCS .375" long bushing XII ◊112BPCS RECOMMENDED PC BOARD LAYOUT SPRING LOCK TERMINALS (COMPONENT SIDE) NOTES: 1. SERIES 110PC––ALL HOLES TO CLEAR .078" X .016" TERMINAL. 2. SERIES 110PCS––TIP, RING & SLEEVE HOLES TO BE .055" DIA. RING SHUNT & TIP SHUNT HOLES TO CLEAR .078" X .016" TERMINAL. Typical Mating Plug1 250 250 250 250 250 250 267 267 S267 267 267 267 267 267 267 1 See Jack Section for other mating plugs. ◊ Special order only. Contact Switchcraft. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS RIGHT-ANGLE PHONE JACKS FAX: 773 792-2129 101 * Please visit the product pages on our website for the most up-to-date product information 1/4" RIGHT-ANGLE PHONE JACKS SERIES SN37, SN49 AND SN70 SN49A12B SN37A14B with cover Number P2993 SN70B12A SN49C12B These low-profile phone jacks have “snap-in” PC mounting, right-angle plug insertion and available with 2- and 3-conductor circuits and plastic or metal bushings. Ideal for telecommunications, data processing and other high quality audio connecting applications. SERIES SN37A - Right-angle PC mount phone jack with molded plastic housing. Only .375" high, this jack features a plain (non-threaded) bushing and accepts commercial standard phone plugs with .25" diameter finger. Jack circuit selection: 2-conductor • Single open circuit • Shunted tip 3-conductor • Double open circuit • Shunted tip and ring Jack housing snaps into PC boards (.062" thick) and features molded tension fingers to provide stable mount. Location pin polarizes mounting for correct insertion every time. Clearance between housing facilitates board cleaning without disturbing internal springs. SN37 without tension fingers available on special order. Molded housing protects internal parts and allows high density packaging. Supplied with “Snap-On” cover. SERIES SN49A - Similar to Series SN37A, except .492" high and insulated/plain (non-threaded) bushing. “Snap-On” cover available on special order only. SN70C14B Insertion Force: 8 pounds maximum. Withdrawal Force: 1.5 pounds minimum. Life: 10,000 cycles minimum. ELECTRICAL Insulation Resistance: 2 x 106 MΩ at 500 V DC per MIL-STD-202, method 302 (initial). Dielectric Withstanding Voltage: 500 V AC. ENVIRONMENTAL Thermal Range: -55°C (-67°F) to +85°C (+185°F) Non operating. -20°C to + 65°C Operating. Thermal Shock: Per MIL-STD-202d, method 107. Humidity: Per MIL-STD-202, method 106, less steps 7A and 7B. Salt Spray: Per MIL-STD-202, method 101. MATERIAL Housing and Cover: Black thermoplastic, UL 94V-O. Contact Springs: Copper alloy with tin-plated terminals. Hardware: Nickel-plated copper alloy. Metal Bushing: Nickel-plated copper alloy. ORDERING 1. Order jacks from tables on page 103. 2. For all special order items, contact Switchcraft. SERIES SN49B - Similar to Series SN37A, except .492" high and insulated threaded bushing. Washer and hex nut for bushing mount supplied. “Snap-On” cover available on special order only. SERIES SN49C - Similar to Series SN37A, except .492" high and threaded metal bushing. Washer and hex nut for bushing mount supplied. “Snap-On” cover available on special order only. SERIES SN70B - This series features threaded/insulated bushing and .708" in height. Circuit selection and housing features are same as Series SN49B. “Snap-On” cover not available. SERIES SN70C - Same as Series SN70B, except bushing is threaded metal type. SPECIFICATIONS MECHANICAL Shock: Per MIL-STD-202, method 213. Vibration: Per MIL-STD-202, method 201. DIMENSIONS ARE FOR REFERENCE ONLY SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Inch (mm) JACKS AND PLUGS SN49B12B with cover Number P2994 102 JACKS AND PLUGS RIGHT-ANGLE PHONE JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" RIGHT-ANGLE PHONE JACKS (continued) JACKS AND PLUGS SERIES - RA and RN Series RN110 Series RA SERIES RA - 2- and 3-conductor RA Jax® are designed with split terminals which provide two distinct advantages over contemporary jacks: 1. Positive retention of jack in PC board during wave soldering. 2. Split terminal permits additional solder flow paths up the terminal for better mechanical/electrical connection Tip spring design facilitates positive retention of differing mating plug tip shapes (industry standard and others). SPECIFICATIONS Housing: Thermoplastic. Bushing: Integral with housing. Springs: Copper alloy, silver-plated (also available with selectively gold-plated contact points and selectively tin-plated terminals). Contacts: Integral, part of shunt springs. NOTE: Specifications for Mechanical, Electrical and Environmental are the same for Hi-D® Jax. (page 98) SERIES RN - Right-angle Hi-D Jax® permits space-saving mounting on PC boards. Available in 2- and 3-conductor types with or without shunt circuits, which can mate with .25" diameter COMMERCIAL or TELEPHONE/MIL plug fingers. Right-angle jack permits tip of mating plug to be inserted parallel with PC board. Can be mounted on PC boards or combined PC board and panel/chassis. Mounted through .375" diameter holes (locknut and washer supplied) in panels and chassis up to .141" thick. Minimum mounting centers are .625". If insulated mount is desired, mounting with flat, non-conductive washer (not supplied) is recommended. PC terminals mount on boards up to .125" thick, and hand dip or wave soldering, is recommended. Three separate standoffs fit through board to provide stable mounting.Threaded bushing permits optional fastening to panel or chassis. SERIES RN110 - 2- and 3-conductor right-angle types mount in PC boards or panel/chassis. Bushing is .278" long. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS RIGHT-ANGLE PHONE JACKS – SERIES RA, RN AND SN FAX: 773 792-2129 103 * Please visit the product pages on our website for the most up-to-date product information 1/4" RIGHT-ANGLE PHONE JACKS (continued) ORDERING INFORMATION SN49A12B1 SN49A14B1 SN49B111 SN49B12A1 SN49B12B1 SN49B14B1 SN49C11 SN49C12A SN49C12B SN49C14B SN70B11 SN70B12A SN70B12B SN70B14B SN70C11 SN70C12A SN70C12B SN70C14B Description 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit Jack2 Schematic I III IV XII I III IV XII I III IV XII I III IV XII I III IV XII I III IV XII Typical Mating Plug3 250 267 250 267 250 267 250 267 250 267 250 267 1 Series SN37A supplied with Part Number P2993 cover. Series SN49A and SN49B can be supplied with Part Number P2994 cover on special order. Contact Switchcraft. SERIES RA Part Numbers RA49B11 RA49B12A RA49B12B RA49B14B RA49C11 RA49C12A RA49C12B RA49C14B RA70B11 RA70B12A RA70B12B RA70B14B RA70C11 RA70C12A RA70C12B RA70C14B SERIES RN Part Numbers RN111PC RN112APC RN112BPC RN113BPC ◊RN113FPC RN114BPC Description 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit 2-cond., open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., double closed circuit Jack2 Schematic I III IV XII I III IV XII I III IV XII I III IV XII 2-cond., single open circuit 2-cond., single closed circuit 3-cond., double open circuit 3-cond., tip closed, ring open 3-cond., tip open, ring closed 3-cond., double closed circuit I III IV VII XXVIII XII 2 See pages 79 and 80. 3 Other mating plugs are available. ◊ Special order only. Contact Switchcraft. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Typical Mating Plug3 250 267 250 267 250 267 250 267 250 250 267 267 267 267 JACKS AND PLUGS SERIES SN Part Numbers SN37A111 SN37A12A1 SN37A12B1 SN37A14B1 SN49A111 SN49A12A1 ORDERING INFORMATION 104 JACKS AND PLUGS RIGHT-ANGLE PHONE JACKS – SERIES SN PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" RIGHT-ANGLE PHONE JACKS (continued) JACK SCHEMATICS JACKS AND PLUGS SERIES SN SERIES SN37A SERIES SN49A SERIES SN49B SERIES SN49C SERIES SN70B SERIES SN70C RECOMMENDED PC BOARD LAYOUT SERIES SN37A, SN49A & SN49B (Component Side) RECOMMENDED PC BOARD LAYOUT SERIES SN49C (Component Side) COVERS, PART NO. P-293 & P-2994 (No. P-2994, special order only) RECOMMENDED PC BOARD LAYOUT SERIES SN70B (Component Side) DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com RECOMMENDED PC BOARD LAYOUT SERIES SN70C (Component Side) Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS 1/4" RIGHT-ANGLE PHONE JACKS – SERIES RA AND RN FAX: 773 792-2129 105 * Please visit the product pages on our website for the most up-to-date product information 1/4" RIGHT-ANGLE PHONE JACKS (continued) SERIES RA and RN JACKS AND PLUGS SERIES RA49B SERIES RA49C SERIES RA70B SERIES RA70C RN SERIES DIMENSIONS RECOMMENDED PC BOARD LAYOUT (Component Side) RECOMMENDED PC BOARD LAYOUT (Component Side) DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 106 JACKS AND PLUGS JACK COVERS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS JACK COVERS Reliable, spring-loaded covers effectively seal front panel bushing openings from dust and dirt when mating plugs are not connected to jack. Series 500 is mounted with conventional threaded bushing jacks. Special locknut (comes with Series 500 jack covers) seals tightly against rubber washer when cover is closed. Series 600 is used with certain type tip jacks. Due to variable jack dimensions, two .031" washers are supplied. 515 SPECIFICATIONS MATERIAL Base and Cover: Steel per QQ-S-698; finish per MIL-F-14072 (Sig. C), enamel, semi-gloss. Axle: Copper alloy per QQ-W-321, Type 321, composition B. Plated per QQ-P-416, Type II, Class 3. Spring: Stainless steel per QQ-W-432, Type 302. Hex Nut: Copper alloy per QQ-B-626, composition 22. Same plating as axle. Gasket: Synthetic rubber per MIL-R-6855, Type II, 35-40 Durometer. Washer (600 only): Steel per QQ-S-698; plated per QQ-P-416, Type II, Class 3. Additional Specifications for Numbers 512 and 612: Same as above, except rivet, base, cover and hex nut and washer (Number 612 only) are nickel-plated per QG-N-290. Color Olive Drab Bright Nickel Part No. 510 512 Part No. ◊610 612 Color Black Navy Gray Part No. 515 520 520 Part No. 615 ◊620 ◊ Special order only. Contact Switchcraft. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS FAX: 773 792-2129 1/4" PHONE JACKS – SERIES E (LOCKING) AND THICK PANEL PHONE JACKS 107 * Please visit the product pages on our website for the most up-to-date product information 1/4" PHONE JACKS (continued) THICK PANEL PHONE JACKS LOCKING PHONE JACKS 151 Series E jacks provide stable, secure connections in panels where shock/vibration or accidental disconnect may occur. Plug locks-in automatically upon insertion; press “PUSH” tab to unlock and remove plug. Series E jacks have the same front panel appearance as Series E Q-G® audio connectors. SPECIFICATIONS MECHANICAL SPECIFICATIONS MATERIAL Life: 10,000 cycles minimum. ELECTRICAL Mounting Bushing: Nickel-plated copper alloy with knurled flange. Insulating Spacer: Rigid plastic. Insulator/Spring Mount: Thermoplastic. Springs: Copper alloy. Terminals: Tip: Copper alloy. Ring: (Number 152B only) copper alloy. Sleeve: Steel, tin-plated. Hardware: Supplied with one, Number P10531 nickel-plated copper alloy hex nut, and one, Number P14761 nickel-plated copper alloy flat washer. Insulation Resistance: 2 x 106 MΩ at 500 V DC per MIL-STD-202, method 302 (initial). Dielectric Withstanding Voltage: 1,000 V AC (rms). ENVIRONMENTAL Thermal Range: -55°C to +85°C (non-operating); -20°C to +65°C (operating). Thermal Shock: Per MIL-STD-202, method 107. Humidity: Per MIL-STD-202, method 106. Salt Spray: Per MIL-STD-202, method 101. MATERIAL Shell: Die-cast zinc, with satin nickel-plating. Black chrome over nickel-plating on special order. Insert and Latch: Thermoplastic, UL 94V-O. Latch Release: Nickel-plated die-cast zinc. Contact Springs: Tin-plated copper alloy. Part Number E111L E112BL Description 2-cond., open circuit 3-cond., double open circuit Jacks are standard 2- and 3-conductor phone jacks with extra long threaded bushing for mounting in panels/chassis up to 1.25" thick. Metal bushing virtually eliminates hum pick-up, and is ideal for electric guitar and speaker connections. Jacks mate with standard commercial phone plugs. See plug section for mating plugs. Jacks mount in a single .469" diameter hole. Rugged cable clamp protects connections from twisting and pulling stresses. Jack Schematic1 I IV Part Number 151 152 152B 153 154 155 Description 2-conductor, open circuit, nickel finish 2-conductor, open circuit, brass finish 3-conductor, double open circuit, nickel finish 2-conductor, open circuit, gold-plated springs, electro-polish brass finish, 9/16-12 UNC wood threads 3-conductor, double open circuit, gold finish, no cable clamp 3-conductor, double open circuit, black satin finish, no cable clamp Jack Schematic I I IV I Typical Mating Plug 280 280 297 280 IV 297 IV Typical Mating Plug2 250 267 1. See Jack Schematics, pages 79 and 80 2. See Plugs Section THICK PANEL PHONE JACKS RECOMMENDED PANEL CUTOUT LOCKING PHONE JACKS, SERIES E DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 JACKS AND PLUGS SERIES E 108 JACKS AND PLUGS EXTENSION JACKS AND 1/4" SPEAKER JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 1/4" EXTENSION JACKS (IN-LINE) JACKS AND PLUGS TWO-CONDUCTOR PART NUMBERS 80 121, 131 120 Extension Jax® jacks are connected to the end of a cable. 2- and 3-conductor jacks mate with standard commercial phone plugs, and have a sturdy cable clamp strain relief, knurled shielded or molded black plastic handles, and a screw type solder terminal. All internal parts are interlocked. Note: See locking phone plugs section. SPECIFICATIONS MATERIAL Body, Sleeve and Shielded Handle: Nickel-plated copper alloy. Plastic Handles: Molded black thermoplastic. Springs: Special copper alloy. Bushing and Flange: Plated copper alloy. Insulation: Thermoplastic. Clamp Terminals: Tin-plated copper alloy. Part Number 80 88 120 121 128 Description Black handle; screw terminals Black handle; solder lugs Shielded handle; screw terminals Shielded handle; solder lugs; cable clamp Shielded handle; solder lugs Mating 1 Plug 250 250 250 250 250 THREE-CONDUCTOR PART NUMBERS Part Number 131 830 S830 838 1230 1238 Description Shielded handle; solder lugs Black handle; screw terminals Similar to No. 830 except, .21" I.D. sleeve Black handle; solder lugs Shielded handle; screw terminals Shielded handle; solder lugs Mating 1 Plug 267 267 480 267 267 267 1. Other mating plugs are available. 121, 131 Z15J 1/4" SPEAKER JACKS High power 2-conductor speaker jack carries 15A (continuous) audio speaker current levels. Jack Number Z15J has positive detent for plug retention. Terminations are solder lug; wires accepted are up to 10 AWG. Red housing indicates high current rating. Recommended mating plugs: 70, 184, 187 series. Z15J SPECIFICATIONS Housing: Glass reinforced thermoplastic, UL 94V-O. Tip Spring and Ground Terminals: Copper alloy. Bushing and Hardware: Nickel-plated copper alloy (hardware supplied). Heat Rise: 30°C with 15 A continuous carry. Life: 10,000 (minimum) with proper plug. Part Number Description Z15J High power speaker jack DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery FAX: 773 792-2129 JACKS AND PLUGS ® SHIELDED PHONE JACKS, SF-JACKS SHORT FRAME JACKS, MINI PHONE JACKS 109 * Please visit the product pages on our website for the most up-to-date product information 1/4" SHIELDED PHONE JACKS Shield is assembled as part of the jack; cover “snaps” into place. Shield is designed for Hi Z circuits. Mounting is through a 3/8" diameter hole in chassis/panel up to .156" thick with hex nut and flat washer (supplied). On special order, jacks with .21 inch inside diameter bushing are available. TWO CONDUCTOR PART NUMBERS Part Number ◊CN11 Description Uses Number 11 Littel-Jax ® jacks Uses Number 12A Littel-Jax® jacks ◊CN12A Jack Schematic1 I III ◊ Special order only. Contact Switchcraft. SPECIFICATIONS MATERIAL THREE CONDUCTOR PART NUMBERS Cover and Shield: Copper alloy, nickel-plated. Cable Entry Insulation: Thermoplastic. Uses Number 12B Littel-Jax® jacks Uses Number 13B Littel-Jax® jacks ◊CN12B ◊CN13B IV VII 1 See jack schematics on pages 79 and 80. 2 See Plug Section for mating information. ◊ Special order only. Contact Switchcraft. SF-JAX® SHORT FRAME JACKS Typical Part Schematic Mating Mounting No. Cond. Number Plug MIL Type Contacts Rating In. (mm) 24B 3 XII 267 ----25 2 XIII 250 ----.375 (9.52) ◊53B 3 VII 267 ----hole, 3A ◊54A 2 XI 250 ----Fine mounts in 125V panels up ◊54B 3 XII 267 ----Silver to .156 AC ◊55 2 XIII 250 ----(3.96) thick ◊C-55B 3 XV 482 JJ-095, M641/14-1 Long spring design reliability with minimum behind-panel depth. Series 50 same as Series 20, except solder lug location requires more depth, but less panel space. Number C55B has MIL type insulation and finish. .141" MINIATURE PHONE JACKS 125 MINIATURE EXTENSION JACK, PHONE JACK NUMBER 125 (EIA STANDARD) Cable-mounted Tini-Extension Jax® 2-conductor single open circuit jack has built in cable clamp/sleeve terminal. Mates with Tini-Plug® phone plugs and other plugs with .141" diameter fingers and compatible tip shape. Shielded housing/handle is knurled for positive fingertip grip; solder lug terminals. Body and handle: Nickel-plated copper alloy. Insulation: Rigid plastic. Springs: Plated copper alloy. TINI-EXTENSION JAX JACK SERIES 50 SERIES 20 24B 25 53B 54A 54B 55 C55B Part Number 125 DIMENSIONS ARE FOR REFERENCE ONLY Description Extension Jack Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 Jack Schematic I Typical Mating Plug 750 JACKS AND PLUGS CN12A 110 JACKS AND PLUGS MINIATURE PHONE JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS .141" MINIATURE PHONE JACKS 41 42A 142A PC142A TINI-JAX® MINIATURE PHONE JACKS, NUMBERS 41, 42A, 43A TINI-D-JAX® MINIATURE ENCLOSED PHONE JACKS, NUMBERS 142A, PC142A Tini-Jax 2-conductor phone jacks, (for limited space connecting, mate with miniature phone plugs having .141 " diameter fingers and compatible tip shape) are 1/3 the size of Littel-Jax® and weigh less than 1/8 ounce. Notched insulators interlock internal parts. Unique tip spring shape mates with Switchcraft Tini-Plug® phone plugs. Mounting hole: .250" diameter in panels up to .125" thick (mounting hardware supplied). For insulated mount, order two washers separately, Number S1564 (swedged fiber washer .312" diameter mounting hole) and number S2207 (flat phenolic washer). Tini-D Jax uses Hi-D Jax® construction and mounts on .375" centers. Weight: 3.6 grams. Number 142A mounts through .25" diameter hole in chassis/panel up to .125" thick. Four standoff dimples can be molded into housing to reduce effective length of bushing to .187" (special order). Number PC142A has special spring terminals for “snap-in” mounting to PC boards up to .125" thick - ready for hand, wave or dip-soldering. SPECIFICATIONS MECHANICAL Life: 5,000 insertion/withdrawal cycles, minimum. Insertion/Withdrawal: 15 ounce minimum, 40 ounce maximum, insertion. 12 ounce minimum, 25 ounce maximum, withdrawal. Life: 5,000 insertion/withdrawal cycles, minimum. ELECTRICAL SPECIFICATIONS MECHANICAL Contact Resistance: .075 ohms maximum. Insulation Resistance: 5,000 MΩ minimum. Dielectric Withstanding Voltage: 250 V AC maximum. Contact Rating: .25A, 48 V DC. ELECTRICAL MATERIAL MATERIAL Mounting Bushing: Nickel-plated copper alloy. Insulating Spacers: Rigid plastic. Springs: Special copper alloy. Sleeve Terminal: Tin-plated copper alloy. Hardware: Supplied with one, Number P11501 nickel-plated copper alloy locknut, and one, Number S17901 nickel-plated steel flat washer. Housing: Molded plastic. Mounting Bushing: Plated copper alloy. Tip Spring: Plated copper alloy, bifurcated. Shunt Springs: Plated copper alloy. Sleeve Bracket: Plated steel. Insulator: Rigid plastic. Hardware: Number 142A supplied with one, Number P1975 nickel-plated copper alloy locknut, and one, Number S3997 nickel-plated steel flat washer. Part Number 41 42A 43A 142A PC142A Description Open circuit Shunted (closed circuit) Special transfer circuit Shunted (closed circuit) Shunted (closed circuit) Jack Schematic1 Typical Mating Plug2 I III Note 3 III III 750 750 750 750 750 Contact Resistance: .10 ohms maximum. Dielectric Withstanding Voltage: 250 V AC maximum. Shunt Tension: 100 grams minimum. 1. See jack schematics, pages 79 and 80. 2. See Plugs Section for mating information. 3. When inserted, plug tip contacts “make” tip spring. Further insertion allows tip to short “make” tip spring and tip spring together. Full insertion opens tip shunt circuit. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS MINIATURE PHONE JACKS FAX: 773 792-2129 111 * Please visit the product pages on our website for the most up-to-date product information .141" MINIATURE PHONE JACKS (continued) JACKS AND PLUGS “TINI-JAX” JACKS 142A “TINI-D” JACKS DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 112 JACKS AND PLUGS 3.5MM DUAL STEREO JACK PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS 3.5MM DUAL STEREO JACK UNSHIELDED - 35RAPC7J SHIELDED - 35RAPC7JS FEATURES MATERIALS • 3-conductor, miniature phone jack mates with 3.5 mm finger plugs. • Saves board space...two jacks in a single vertical mount footprint. • Ideally suited for infra-red and convection oven soldering 235°C (455°F). • Board retention pins accommodate PC board thickness range of .050" to .080". • Single-screw panel mounting hole is standard. • EMI-RFI shield, optional. • Housing UL 94V-0 rated against flammability. Housing: Thermoplastic. Tip and Ring Springs: Silver-plated copper alloy. Shunt Terminals: Silver-plated copper alloy. Sleeve Terminals: Silver-plated copper alloy. Shield: Pre-tinned copper alloy. APPLICATIONS • Multi-media workstations • Headphones/microphone sets • Interactive TV • Audio • Telecommunications • Medical • Computer • Instrumentation PERFORMANCE SPECIFICATIONS Insertion/Extraction Forces, initial: 0.8 to 6 pounds. Dielectric Withstanding Voltage: 500 VAC. Insulation Resistance, initial: 100 Megaohms, min. Contact Resistance: Between plug and jack: 50 milliohms, maximum Between springs and shunts: 30 milliohms, maximum. Life: 5000 cycles, minimum. ORDERING INFORMATION Part Number: Shielded - 35RAPC7JS Unshielded - 35RAPC7J 1. Order by part number. 2. Contact Switchcraft for special order information. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS 3.5MM DUAL STEREO JACK FAX: 773 792-2129 113 * Please visit the product pages on our website for the most up-to-date product information 3.5MM DUAL STEREO JACK (continued) JACKS AND PLUGS NOTES: 1. Shield isolated from terminals 1 and 6. 2. Width of all terminals = 0.032" (0.814 mm). 3. Use Camcar Textron S25 T8 TORX pan head “Duro-PT” thread cutting fastener of appropriate length or equivalent. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 114 JACKS AND PLUGS 3.5MM SINGLE MONO AND STEREO JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information JACKS AND PLUGS 3.5MM SINGLE MONO AND STEREO JACKS 35RAPC4BV4 35RAPC2BHN2 35RAPC2AV 35RAPC4BH3 35RAPC2BH3 35RAPC2BV4 FEATURES MATERIALS • 2 and 3 conductor 3.5mm phone jacks • Right angle PC mount, true SMT versions, and open frame panel mounts • Wide variety of circuits available • Mates with all 3.5mm plugs Right angle PC mount available in low profile, horizontal styles Housing: Thermoplastic, UL94V-1 Terminals: Silver-plated, copper alloy Bushing: Nickel-plated, copper alloy Performance Specifications: Contact Resistance: < 50 milliohms Insulation Resistance: 100 milliohms min. Dielectric Withstanding Voltage: 250 VAC (35RAPC2BHN2- 500 VAC) Open Frame Versions Materials: Housing (35PM2BV2): Thermoplastic, 94V-1 Life: 5000 cycles, min. Bushing: Nickel-plated, copper alloy Insulating Washers: Rigid Plastic Springs: Copper alloy Sleeve Terminal: Tin-plated, copper alloy Hardware: Supplied with one, P11501 nickel-plated brass locknut, and one, S17901 nickel-plated steel flat washer Performance Specifications: Contact Resistance: .075 ohms max. Insulation Resistance: 5,000 Mohms min Dielectric Withstanding Voltage: 250 VAC Life: 5000 cycles, min ORDERING INFORMATION Part numbers which include the letter “N” designate non-threaded bushings. Part numbers without the letter “N” designate threaded bushing. Part Number Description Height vs. Width Bushing Part Number Description Height vs. Width Bushing 35RAPC2AV 35RAPC2AHN2 35RAPC2AHN3 35RAPC2BHN2 35RAPC2BHN3 35RAPC3BHN2 35RAPC3BHN3 35RAPC4BHN2 35RAPC4BHN3 35RAPC2AH3 35RAPC2BH3 35RAPC3BH3 mono mono mono stereo stereo stereo stereo stereo stereo mono stereo stereo vertical horizontal horizontal horizontal horizontal horizontal horizontal horizontal horizontal horizontal horizontal horizontal threaded3 non-threaded non-threaded non-threaded non-threaded non-threaded non-threaded non-threaded non-threaded threaded3 threaded3 threaded3 35RAPC4BH3 35RAPC2AV4 35RAPC2BV4 35RAPC3BV4 35RAPC4BV4 35RAPC2AVN4 35RAPC2BVN4 35RAPC3BVN4 35RAPC4BVN4 stereo mono stereo stereo stereo mono stereo stereo stereo horizontal vertical vertical vertical vertical vertical vertical vertical vertical threaded3 threaded3 threaded3 threaded3 threaded3 non-threaded non-threaded non-threaded non-threaded Replacement Knurl Nut P3345 1. Order by part number 2. Contact Switchcraft for special ordering information 3. Mounting hardware included. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS 3.5MM SINGLE MONO AND STEREO JACKS FAX: 773 792-2129 115 * Please visit the product pages on our website for the most up-to-date product information 3.5MM SINGLE, MONO AND STEREO JACKS (continued) PERFORMANCE SPECIFICATIONS Coil Spring: Steel wire. Bushing: Nickel-plated copper alloy. Terminal: Silver-plated copper alloy. Tip Spring: Silver-plated copper alloy. Shunt Terminal: Plated copper alloy. Cover: Thermoplastic, transparent UL 94V-2. Body: Thermoplastic, UL 94V-1 black color. Contact Resistance: 20 milliohms maximum. Insulation Resistance: 100 milliohms minimum at 250V DC. Dielectric Withstanding Voltage: 250V AC. Life: 5000 cycles, minimum. Insertion Force: 0.88 pounds - 3.5 pounds. Withdrawal Force: 0.88 pounds - 2.64 pounds. 35RAPC2AV4, 35RAPC2BV4, 35RAPC3BV4, 35RAPC4BV4 - STEREO, VERTICAL, THREADED MATERIALS PERFORMANCE SPECIFICATIONS Coil Springs: Steel Wire. Ring Spring: Copper alloy strip, tin alloy plating. Ground Terminal: Copper alloy strip, tin alloy plating. Bushing: Nickel-plated copper alloy. Cover: Thermoplastic, UL 94V-0 black color. Body: Thermoplastic, UL 94V-0 black color. Contact Resistance: 20 milliohms maximum , initial 50 milliohms maximum , after life. Insulation Resistance: 50 megohms minimum at 500V DC. Dielectric Withstanding Voltage: 250V AC. Life: 5 ,000 cycles, minimum. Insertion Force: 0.88 lbs. to 3.50 lbs. Withdrawal Force: 0.88 lbs. to 3.10 lbs. DIMENSIONS ARE FOR REFERENCE ONLY Inch (mm) SWITCHCRAFT, INC. 5555 N. Elston Ave. • Chicago, IL 60630 JACKS AND PLUGS 35RAPC2AV – MONO, VERTICAL, THREADED MATERIALS 116 JACKS AND PLUGS 3.5MM SINGLE MONO AND STEREO JACKS PHONE: 773 792-2700 * Please visit the product pages on our website for the most up-to-date product information 3.5MM SINGLE, MONO AND STEREO JACKS (continued) JACKS AND PLUGS 35RAPC2AHN2, 35RAPC2BHN2, 35RAPC3BHN2, 35RAPC4BHN2 - STEREO, HORIZONTAL, NON-THREADED MATERIALS PERFORMANCE SPECIFICATIONS Cover: Thermoplastic, UL 94V-1 black color. Ring Spring: Copper alloy. Tip Spring: Silver-plated copper alloy. Ground Terminal: Silver-plated copper alloy. Metal: Copper alloy, nickel plating. Body: Thermoplastic, UL 94V-0 black color. Contact Resistance: 30 milliohms maximum, initial 100 milliohms maximum, after life. Insulation Resistance: 100 megohms minimum at 500V DC. Dielectric Withstanding Voltage: 500V AC. Life: 5000 cycles, minimum. Insertion Force: 0.88 pounds - 6.6 pounds. Withdrawal Force: 0.88 pounds - 6.6 pounds. **Same drawing for jack with non-threaded bushing. 35RAPC2AH3, 35RAPC2BH3, 35RAPC3BH3, 35RAPC4BH3 - STEREO, HORIZONTAL, THREADED MATERIALS PERFORMANCE SPECIFICATIONS Coil Springs: Steel wire. Tip Spring: Silver-plated copper alloy. Ring Spring: Silver-plated copper alloy. Ground Terminal: Silver-plated copper alloy. Bushing: Nickel-plated copper alloy. Cover: Thermoplastic, transparent UL 94V-2. Body: Thermoplastic, UL 94V-1 black color. Contact Resistance: 20 milliohms maximum, initial 100 milliohms maximum, after life. Insulation Resistance: 100 megohms minimum. Dielectric Withstanding Voltage: 250V AC. Life: 5000 cycles, minimum. Insertion Force: 0.88 lbs. - 3.50 lbs. Withdrawal Force: 0.88 lbs. - 3.10 lbs. DIMENSIONS ARE FOR REFERENCE ONLY www.switchcraft.com Inch (mm) ® Registered trademark of Switchcraft, Inc. Note: Contact your Switchcraft Representative for price and delivery JACKS AND PLUGS 3.5MM SINGLE MONO AND STEREO JACKS FAX: 773 792-2129 117 * Please visit the product pages on our website for the most up-to-date product information 3.5MM SINGLE MONO AND STEREO JACKS FEATURES AND BENEFITS 3.5MM SINGLE MONO AND STEREO JACKS • SMT mounting • Tape and reel packaging • Wide variety of circuits APPLICATIONS • Computer • Video Cameras • Personal/Portable Audio Devices • Multimedia SPECIFICATIONS Electrical Current Rating: 3A Contact Resistance:
