FGG.1B.305.CYCD62

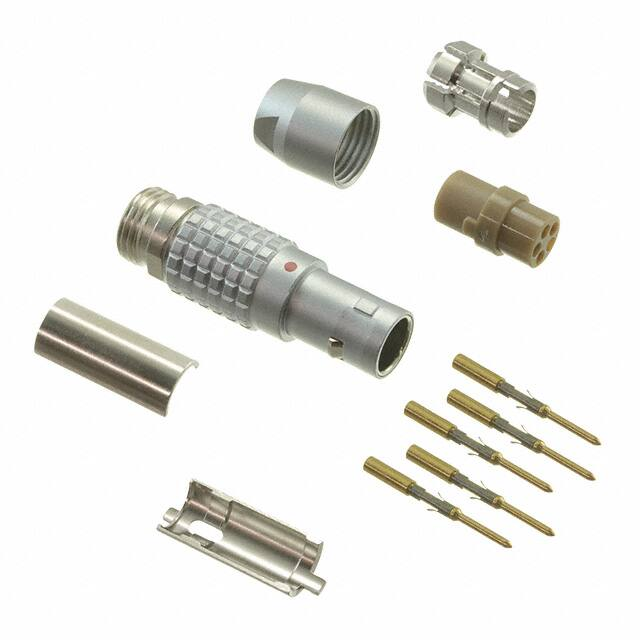

FGG.1B.305.CYCD62 www.lemo.com SUMMARY # Wires Low voltage 5 Image is for illustrative purpose only Series 1B Termination type Male crimp IP rating 50 AWG wire size 24.00 - 20.00 Catalog Cable Ø 5.30 - 6.20 mm See video assembly instructions Status active Matching parts EGG.1B.305.CYM Download Request a quote Eplan PHG.1B.305.CYMD62 TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 16.17 g Performance Configuration 1B.305 : 5 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 9 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 1550 V (AC), 2200 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-contact): 1300 V (AC), 1840 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 12 43 32 10 9 in. 0,47 1,69 1,26 0,39 0,35 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 20-22-24/6-5-5 Positionner: DCE.91.091.BVC Extractor: DCF.91.090.2LT Replacement contact: FGG.1B.560.ZZC Spanner wrench: DCD.1B.015.PA090 Caps: BFG.1B.100.PCSG Cables CMN.05.T20.057PGZE Grey CMN.05.T20.057PNZE CMN.05.T20.057QGZE TPR (medical) Grey 150250 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
