PAG.M0.5GL.AC52G

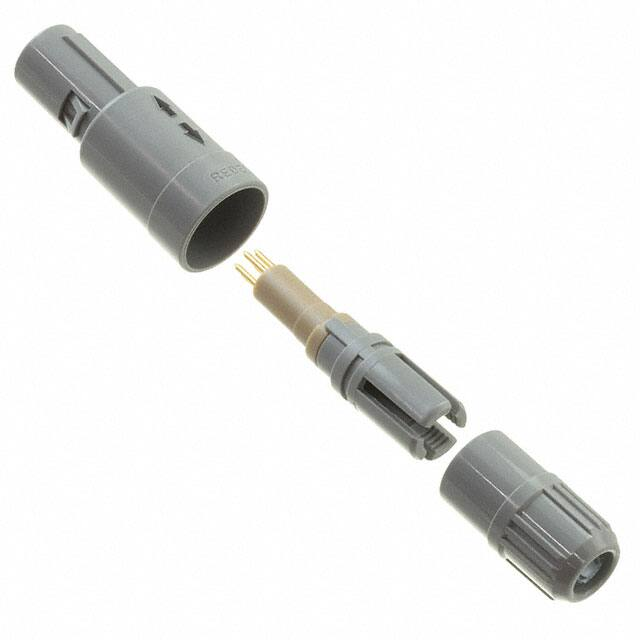

PAG.M0.5GL.AC52G www.lemo.com SUMMARY # Wires Low voltage 5 Image is for illustrative purpose only Series 1P Termination type Male solder IP rating 50 AWG wire size 0.00 - 22.00 Cable Ø 4.00 - 5.20 mm Status active Matching parts PLG.M0.5GL.LG Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PA*: Straight plug with cable collet Keying 1 key (alpha=0; Plug: male contact; Receptacle: female contact) Housing Material PSU (Polysulfone), gray Variant G : Gray collet nut Weight 5.00 g Performance Configuration 1P.M05 : 5 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 7 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 4.5 mOhm Test voltage (kV rms) Contact-contact: 1.05 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/2 Air clearance min.: 0.8 mm Creepage distance min.: 0.8 mm Others Endurance (Shell): >2000 mating cycles Temp (min / max): -50°C / +150°C F ret (min): 50 N F ret (max): 150 N Steam sterilization: > 100 times (with potting on rear connection) DRAWINGS RECOMMENDED BY LEMO Tools Cables CMN.05.T22.051QGZE TPR (medical) Grey 50090 PVC Black 50140 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/2
