TC7W-P1-N

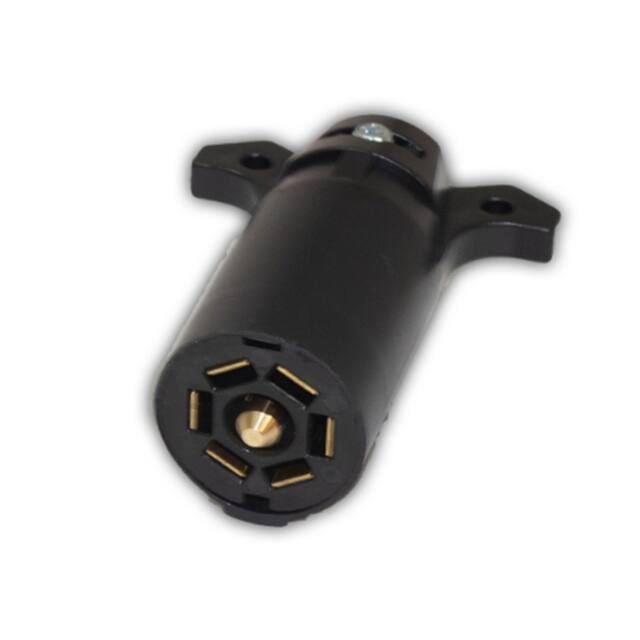

Trailer Connector TC7W-P1-N Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Material Specifications Wiring Color Codes A.T.A & S.A.E WIRING CODES RECOMMENDED STANDARD NAME MATERIAL 1 PLUG SHELL ABS 12 GA 2 SET SCREW IRON Tail, License and Running Lights Green 14 GA 3 7-WAY TERMINAL BRASS Battery Charge Black 10 GA 4 WIRE BOOT PVC Stop & Left Hand Turn Signal Red 14 GA 5 HOUSING SCREW BRASS Stop & RIght Hand Turn Signal Brown 14 GA Auxiliary Circuit Yellow 14 GA CIRCUITS POLE WIRING COLOR CODE RECOMMENDED WIRE GAUGE Ground Return White 10 GA Electric Brake Blue ITEM# Rev A 07/2019 Trailer Connector Rev A TC7W-P1-N Designed Approved Date of issue Revision Notes 07-16-2019 Initial Drawing RC Rev A 07/2019 OH
