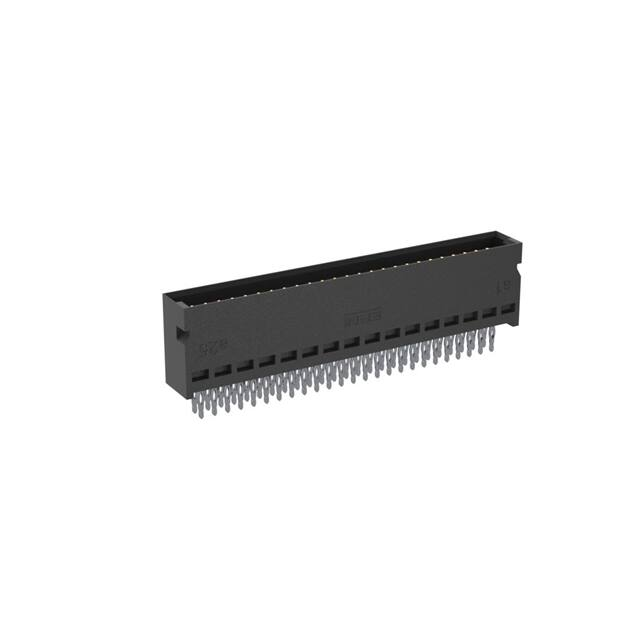

064004

Verpackt in Stangenprofil - Tube Packaging - Packaging unit: 19 pcs Verpackungseinheit: 19 Stück Stangenprofil - Tube Packaging 044915 1,8 3,25 1,27 33,7 32,7 a1 24 x 1,27 = 30,48 1,27 Anforderungsstufe 1 Performance Level 1 2,8 Kontaktbereich vergoldet +0,2 8,2 Anschlussbereich verzinnt 1-2 µm 4 -0,1 34,48 Terminal Area 1-2 µm tin plating 4,2 Lochbild für Leiterplatte 1) Lochaufbau siehe ERNI-Spezifikation 164062 Nr. 1 Board hole pattern hole design according to ERNI-specification 164062 No. 1 1,27 1) a1 Copyright by ERNI GmbH Proprietary notice pursuant to ISO 16016 to be observed. 24 x 1,27 = 30,48 1,27 5 3,2 Mating Area gold plating Tolerances Information: 3:1 Scale All Dimensions in mm All rights reserved. Only for Information. To ensure that this is the latest version of this drawing, please contact one of the ERNI companies before using. Designation Subject to modification without prior notice. Drawing will not be updated. Messerl. SMC-Q 50-EE-BA 3 Male SMC-Q 50-EE-type 3 064004 www.ERNI.com e 02.07.2015 Index Date Class SMCQ I A3
