W18280-2PG-P-311

W18280-2PG-P-311

  • 厂商:

    SWITCHCRAFT

  • 封装:

    -

  • 描述:

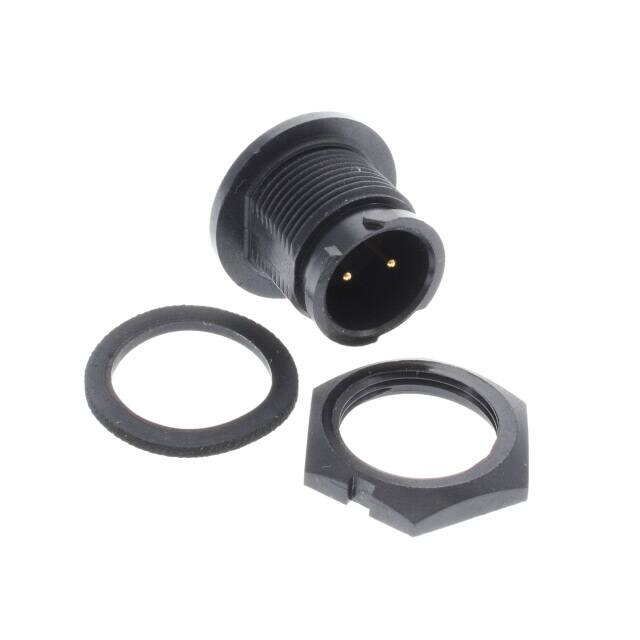

    CONN RCPT MALE 2POS GOLD CRIMP

  • 数据手册
  • 价格&库存
W18280-2PG-P-311 数据手册
NOTES: 1. ALL PARTS TO BE BULK PACKED 2. CONTACTS SHIPPED UNASSEMBLED 3. ALL DIMENSIONS ARE REFERENCE EXCEPT THOSE WITH A TOLERANCE ASS'Y P/N FOR CABLE O.D. ASS'Y P/N CONTACT QTY W18280-XPG-P-311 .09-.14 [2.3-3.5] W18280-XPG-P-315 .15-.17 [3.8-4.3] 2 3 W18280-XPG-P-318 .18-.20 [4.6-5.1] W18280-2PG-P-3XX W18280-3PG-P-3XX W18280-XPG-P-3XX GROMMET SIZE NUMBER OF CONTACTS .177±.015 4.5±0.4 CONTACT HEIGHT SEE NOTE 2 CUSTOMER PRINT (2-3) #20 PIN CONTACT, CRIMP MAT'L: GOLD PLATED COPPER ALLOY .938 23.8 .700 17.8 .648 16.5 KEY KEY 2 2 1 FACE VIEW 1 WIRING VIEW W18280-2PG-P-3XX CABLE TO CABLE CONNECTOR, MALE MAT'L: UV PBT, BLACK GROMMET MAT'L: RUBBER, BLACK W18280-2PG-P-3XX BACKSHELL MAT'L: UV PBT, BLACK KEY KEY W18280-XPG-P-3XX 1 PART NUMBER: 2 2 1.312 33.3 3 FACE VIEW 1 3 WIRING VIEW W18280-3PG-P-3XX W18280-3PG-P-3XX .500 12.7 CUSTOMER APPROVAL SHOWN ASSEMBLED FOR CUSTOMER REFERENCE ONLY THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: DIMENSIONS IN BRACKETS [ ] IN MILLIMETERS RoHS COMPLIANT A MA 08-18-20 JGK 8/22/19 REV. INIT. DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX RELEASED PER PDR 18004 DRAWING CREATED FOR PDR #18004. DESCRIPTION ORIG. DRAWN BY: DATE: 8/22/19 JGK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE NTS B FILE: W18280-XPG-P-3XX SHEET 1 OF 1 DIRECTORY: SLW CABLE TO CABLE CONN. ASS'Y (2-3) #20 PIN CONTACTS, CRIMP INSTA-CLICK™ MICRO-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: W18280-XPG-P-3XX REV A
