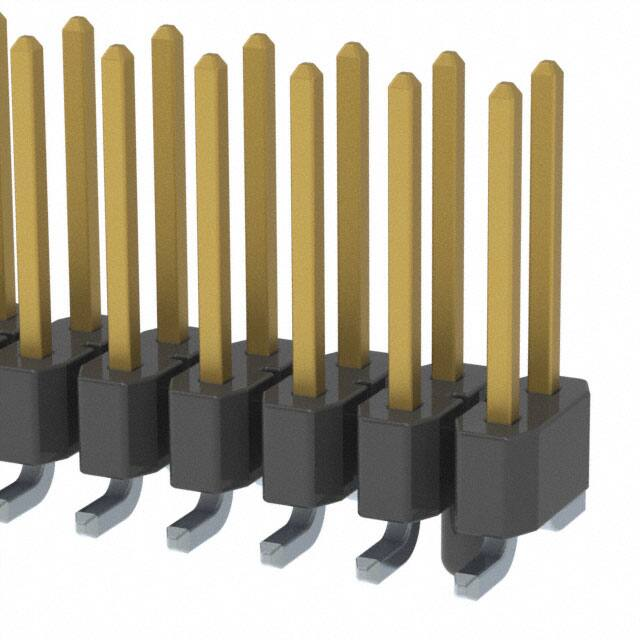

TSM-112-02-L-DV-A

SURFACE MOUNT .025" SQ POST HEADER 8 G b p s (2.54 mm) .100" PITCH • TSM SERIES TSM Board Mates: SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, HLE Cable Mates: IDSS, IDSD - TSM 1 - NO. PINS PER ROW LEAD STYLE 02 thru 36 Specify LEAD STYLE from chart SPECIFICATIONS Insulator Material: Black Liquid Crystal Polymer Terminal Material: Phosphor Bronze Plating: Au or Sn over 50 µ" (1.27 µm) Ni Operating Temp Range: -55 °C to +105 °C with Tin; -55 °C to +125 °C with Gold Voltage Rating: 475 VAC -SV/-DV mated with BCS or SSM (2.54) .100 x No. of positions (2.54) .100 Post Height (2.54) .100 PROCESSING Lead–Free Solderable: Yes -DH/-SH/-SV Lead Coplanarity: (0.15 mm) .006" max (02-36)* -DV Lead Coplanarity: (0.10 mm) .004" max (02-05) (0.13 mm) .005" max (06-10)* (0.15 mm) .006" max (11-36)* *(.004" stencil solution may be available; contact ipg@samtec.com) (3.81) .150 LEAD POST STYLE HEIGHT —SV Row Option (2.54) .100 x No. of positions (3.05) .120 MATES WITH –01 (5.84) .230 SSW, BCS, SSM, IDSS, IDSD –02 (8.13) .320 SSM -DH –03 (10.67) .420 Bottom Mount & Pass Through –04 (3.05) .120 SLW, CES, HLE (No. of positions x (2.54) .100) – (5.08) .200 MATES TSM/SSW CURRENT RATING (PER PIN) Post Height 4.7 A TSM/SSM 5.4 A TSM/HLE 4.1 A 2 POSITIONS POWERED (2.54) .100 –01= (4.57) .180 –02, –03, –04 = (4.82) .190 —SH Row Option (2.54) .100 x No. of positions (5.08) .200 Post Height (2.54) .100 (3.81) .150 (No. of positions -2) x (2.54) .100) Note: Some lengths, styles and options are non-standard, non-returnable. F-221 (Rev 15SEP21) —DV Row Option samtec.com?TSM Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. - - PLATING OPTION - - ROW OPTION –F –SV = Gold flash on post, Matte Tin on tail = Single Row Vertical Pin –L –DV = 10 µ" (0.25 µm) Gold on post, Matte Tin on tail = Double Row Vertical Pin –S = Single Row Horizontal Pin –T = Double Row Horizontal Pin (Style –01, –02 or –03 only) –SH = 30 µ" (0.76 µm) Gold on post, Matte Tin on tail –DH = Matte Tin –TM = Triple Row Vertical Mixed Technology (Style –01 only) (02 thru 30 positions only) –MT = Mixed Technology Pin (Style –01, –02 or –03 only) (2.54) .100 x No. of positions –“XXX” = Polarized Position –A = Alignment Pin metal or plastic at Samtec discretion (Not available with –TM or –MT) (02 positions minimum) (Not available with –LC) –LC = Locking Clip (Not available with –TM) (3 positions minimum) (Not available with –A) (Manual placement required) –K = (6.50 mm) .256" DIA Polyimide Film Pick & Place Pad (–SH: 4 positions minimum without –TR; 2 & 3 positions available with –TR) (–DH: 4 positions minimum without –TR) –P = Plastic Pick & Place Pad (–DV: 4 positions minimum without –TR; 2 & 3 positions available with –TR) (–SH: 4 positions minimum without –TR; 2 & 3 positions available with –TR) (–DH: 5 positions minimum without –TR) (–SV: 4 positions minimum without –TR; 2 & 3 positions available with –TR) (6.10) .240 (No. of positions x (2.54) .100) – (5.08) .200 –TR Post Height = Tape & Reel –SV: 02-22 positions, –DV: 02-28 positions, –SH: 02-30 positions, –DH: 02-29 positions (Not available with –MT or –TM) (2.54) .100 (3.68) .145 (7.87) .310 OTHER OPTIONS –FR (1.16) .046 = Full Reel Tape & Reel (must order maximum quantity per reel; contact Samtec for quantity breaks) –SV: 02-22 positions, –DV: 02-28 positions, –SH: 02-30 positions, –DH: 02-29 positions (Not available with –MT or –TM) —DH Row Option (2.54) .100 x No. of positions (2.54) .100 x No. of positions (6.10) .240 (1.52) .060 (2.54) .100 (7.62) .300 Post Height Post Height (2.54) .100 (7.87) .310 —TM Row Option (1.16) .046 —MT Row Option samtec.com?TSM F-221 (Rev 15SEP21) Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
