PM20204HBNN

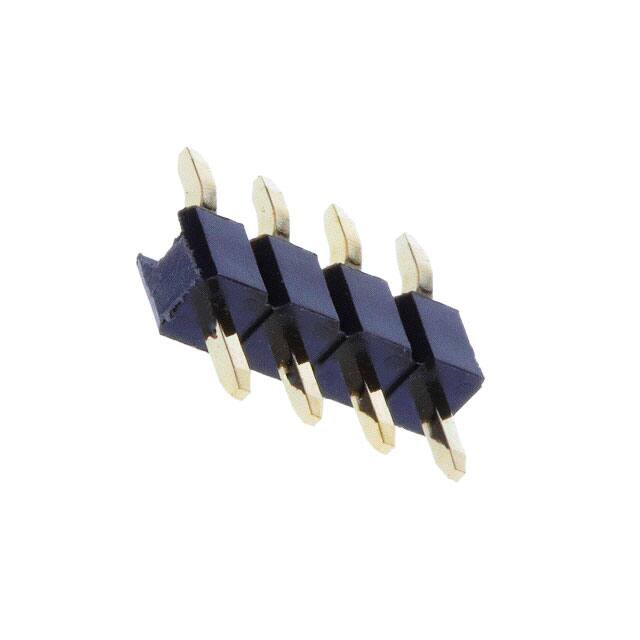

Page 1/4 Data sheet P/N PM202XXHBNN xx=number of poles PM202xxHBNN 2021/09/15 Version: X Illustrations Dimensional drawing Drill pattern See enlarged drawings at the end of document Product specification • pin header, SMT solderable • centerline 2.54 mm, direction of connection 90° • color black • Tape & Reel packaging possible • single row Data sheet Page 2/4 PM202xxHBNN P/N PM202XXHBNN xx=number of poles 2021/09/15 Version: X Technical Data General Data min. number of poles max. number of poles 2 Rated current 3A 40 Material insulating material PE-HT contact material CuZnPb Contact surface Ni + Au contact pin material CuZn contact pin surface Ni + Au Flash Glow-Wire Flammability GWFI - Glow-Wire Flammability GWIT - Climatic Data upper limit temperature 105 °C lower limit temperature -40 °C general Tolerance ISO 2768 -mH Solderability Acc. to IPC/JEDEC J-STD-020D-MSL 1 Data sheet PM202xxHBNN Page 3/4 P/N PM202XXHBNN xx=number of poles 2021/09/15 Version: X Illustrations Dimensional drawing L=(pole size - 1) x centerline + 2.54 mm [0.1] Data sheet PM202xxHBNN Page 4/4 P/N PM202XXHBNN xx=number of poles 2021/09/15 Version: X Illustrations Drill pattern Powered by TCPDF (www.tcpdf.org)
