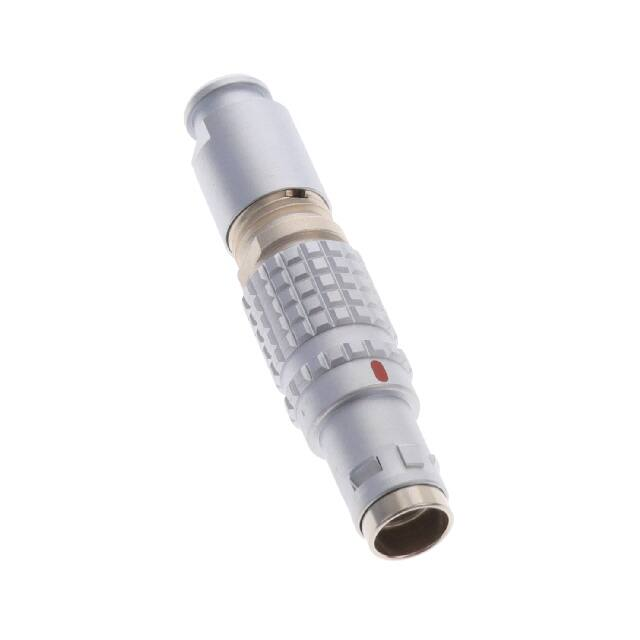

FGG.0T.309.CLAC50Z

FGG.0T.309.CLAC50Z www.lemo.com SUMMARY # Wires Low voltage 9 Image is for illustrative purpose only Series 0T Termination type Male solder IP rating 68 AWG wire size 34.00 - 28.00 Cable Ø 4.60 - 5.00 mm Status active Alternative part FGG.0T.309.CLAK50Z Matching parts EGG.0T.309.CLL Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet and nut for fitting a bend relief Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 8.42 g Performance Configuration T.309 : 9 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 2 Amps Specifications Contact Type: Solder Contact Dia.: 0.5 mm (0.02in) Bucket Dia.: 0.45 mm (0.018in) Max. Solid Conductor: 0.09 mm^2 (AWG 28) Max. Stranded Conductor: 0.09 mm^2 (AWG 28) R (max): 8.7 mOhm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-shell): 500 V (AC), 710 V (DC) Vtest (contact-contact): 600 V (AC), 850 V (DC) Others Endurance (Shell): >3000 mating cycles Temp (min / max): -55°C / +200°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 9.5 38 28 7.5 7 in. 0,37 1,50 1,10 0,30 0,28 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.09.T28.050CNQZ LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
