ECG.0B.302.CLN

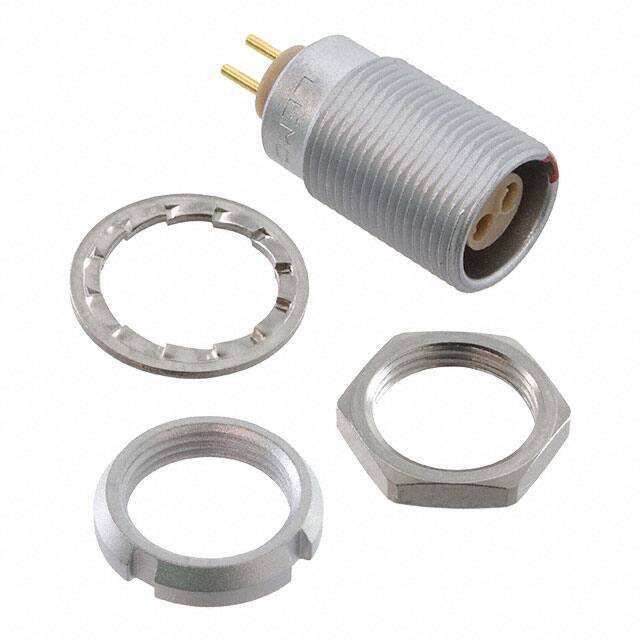

ECG.0B.302.CLN www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 0B Termination type Female print PCB IP rating 50 AWG wire size 28.00 - 20.00 PCB Altium Pattern Cable Ø 0.00 - 0.00 mm PCB KiCad Pattern Status active Catalog Matching parts FGG.0B.302.CLAD42 Download Request a quote PCB Eagle Pattern TECHNICAL DETAILS Mechanics Shell Style/Model EC*: Fixed receptacle with two nuts and straight contacts for printed circuit (back panel mounting) Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 4.83 g Performance Configuration 0B.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Print (straight) Contact Dia.: 0.9 mm (0.035in) R (max): 4.8 mOhm Vtest (contact-contact): 1300 V (AC), 1840 V (DC) Vtest (contact-shell): 1050 V (AC), 1490 V (DC) Others LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E Lmax M Nmax S1 S3 e mm. 12 12.4 5.5 19.55 2.5 16.3 8.2 11 M9x0.6 in. 0,47 0,49 0,22 0,77 0,10 0,64 0,32 0,43 RECOMMENDED BY LEMO Tools Spanner 2: DCH.91.121.PA LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
