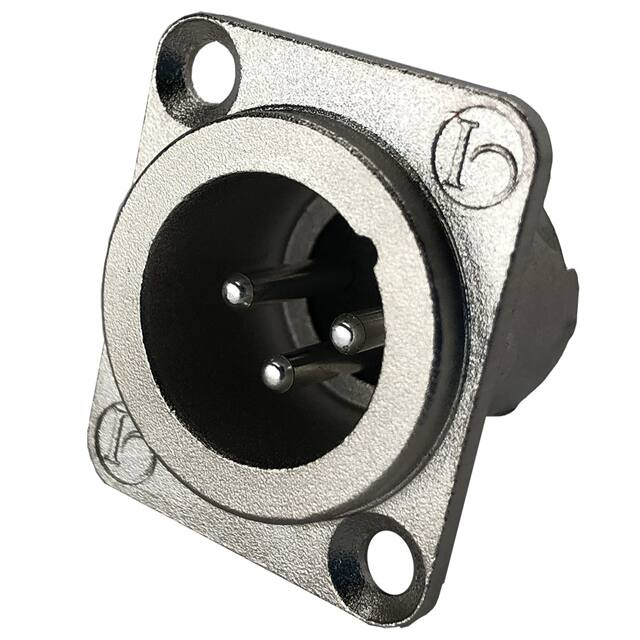

IO-XLR3-M-JLX

XLR CHASSIS CONNECTORS 3 PIN JLX SERIES Locking 3 pin connectors with rugged metal shells for audio and lighting control. IO-XLR3-M-JLX IO-XLR3-F-JLX SPECIFICATIONS PRODUCT MECHANICAL Gender: Male (IO-XLR3-M-JLX) Lifetime: > 1000 Mating Cycles Female (IO-XLR3-F-JLX) Wiresize (Male): 2.0mm Max O.D. Wiresize (Female): 2.5mm Max O.D. Contacts: 3 Wiring: Solder Contacts ELECTRICAL Capacitance Between Contacts: ≤ 2.5 pF Capacitance Between Contact and Ground: ≤ 2.7 pF Contact Resistance: < 3 mΩ Locking Device: Latch Lock Mounting Direction: Front Solderability: Complies with IEC 60068-2-20 Insulation Resistance: ≥ 5000 MΩ Dielectric Strength: 1500V @ 60s Current Rating: 15 A / 125 V AC Grounding: Separate ground contact to shell of mating connector and panel MATERIAL Pins: Brass Pin Plating: Silver Ground: Brass Ground Finish: Tin ENVIRONMENTAL Standard Compliance: IEC 61076-2-103 UL Flammability: Meets UL 94 HB Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Shell: Die Cast Zinc Shell Finish: Nickel Locking Element: Die Cast Zinc Locking Element Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR3-F-JLX IO-XLR3-M-JLX FEATURES & APPLICATIONS JLX Series XLR chassis connectors offer a sleek and robust connection in a standard "J" Size shell. This series is perfect for permanent installations or design-in applications where the termination method is solder cups. The connectors feature “metal on metal” housing which provides improved RF and EMI protection, making these connectors perfect for use in high noise environments or where cell phone or radio frequencies are most offensive. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in 3 or 5 pin variations. The JLX Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created. PART NUMBER BREAKDOWN: Panel Cutout STANDARDS & CLASSIFICATIONS IO-XLR3-M-JLX Series Identifier IO-XLR3-M-JLX Number of Pins IO-XLR3-M-JLX Gender IO-XLR3-M-JLX Series Identifier Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas , TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 |
