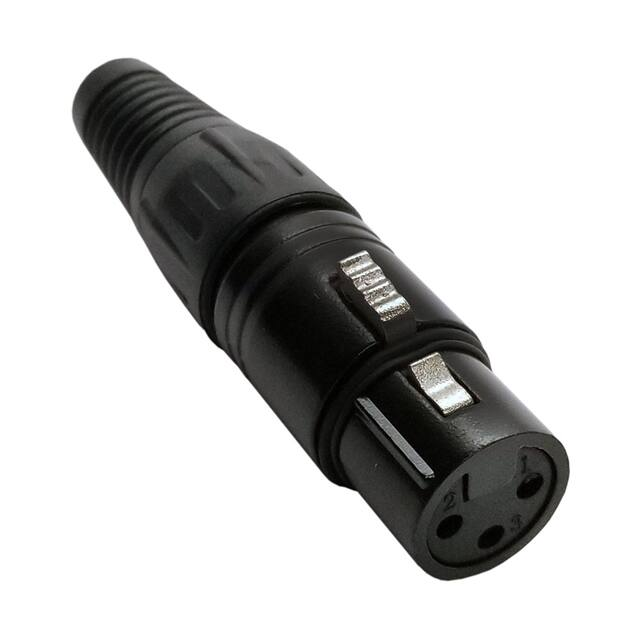

IO-XLR3-F-BKAU

XLR CABLE CONNECTORS 3 PIN XLR- Gold Plated 3 pin, gold plated XLR style connectors perfect for use in audio cables and also in entry level DMX cables. IO-XLR3-M-BKAU SPECIFICATIONS IO-XLR3-F-BKAU MECHANICAL PRODUCT Gender: Male (IO-XLR3-M-BKAU) Female (IO-XLR3-F-BKAU) Lifetime: > 1000 Mating Cycles Cable O.D.: 3.5 - 8.0mm Wiresize (Male): 2.00mm OD Max Contacts: 3 Wiresize (Female): 2.50mm OD Max ELECTRICAL Wiring: Solder Contacts Capacitance Between Contacts: < 2 pF Capacitance Between Contact and Ground: < 2 pF Solderability: Complies with IEC 60068-2-20 Contact Resistance: < 3 mΩ MATERIAL Insulation Resistance: ≥ 5000 MΩ Pins: Brass (IO-XLR3-M-BKAU) Dielectric Strength: 1500V @ 60s Phosphor Bronze (IO-XLR3-F-BKAU) Current Rating: 15 A / 125 V AC Pin Plating: .05μm Au ENVIRONMENTAL Push Button: Die Cast Zinc UL Flammability Rating: UL 94 HB Standard Compliance: IEC 61076-2-103 Temperature Range: -30°C to +80°C Locking Mechanism: Stainless Steel Locking Mechanism Finish: Tin Shell: Die Cast Zinc Shell Finish: Black Insert: POM Bushing: PVC Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR3-M-BKAU IO-XLR3-F-BKAU FEATURES & APPLICATIONS The IO-XLR3-M-BKAU and IO-XLR3-F-BKAU connectors feature durable die cast zinc shells with built in latch locks which provide a reliable connection when mated with the opposite gender. They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support from excessive bending. The gold plated contacts help extend the useful life of the cable. 3 pin XLR connectors are a perfect solution for applications requiring a rugged and dependable locking connection. Because the housing construction is threaded, the connectors require no tools for assembly, making them ideal for onsite termination and allow the user to be able to troubleshoot connection issues quickly. This connector is perfect for use in balanced audio, DMX, low voltage power, and control applications where the termination method is solder cups. These connectors are also available with silver plated contacts (IO-XLR3-M-BK & IO-XLR3-F-BK) PART NUMBER BREAKDOWN STANDARDS & CLASSIFICATIONS IO-XLR3-M-BKAU Connector Type IO-XLR3-M-BKAU Number of Pins IO-XLR3-M-BKAU Gender IO-XLR3-M-BKAU Body Color IO-XLR3-M-BKAU Gold Contacts Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas , TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 |
