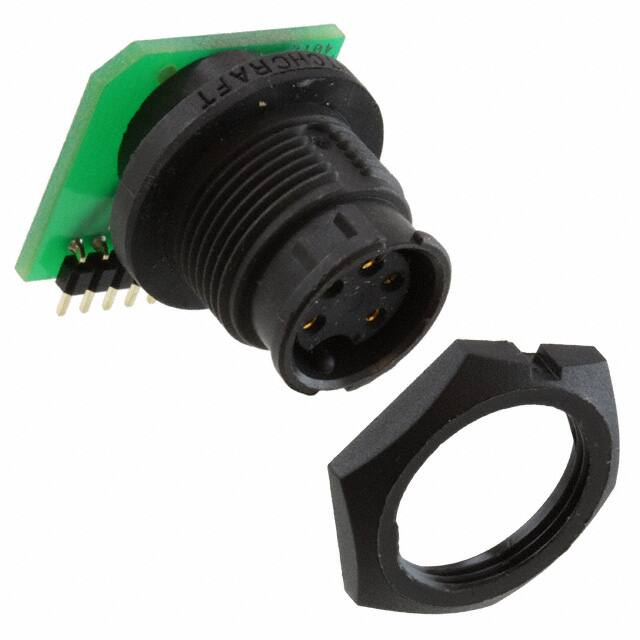

EN3P5FRAPCBN

EN3® RIGHT ANGLE PC BOARD MOUNT 2-18 CONTAC T NEW PRODUCT BULLETIN 597 Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® RIGHT ANGLE PC BOARD MOUNT 2-18 CONTAC T NEW PRODUCT BULLETIN 597 FEATURES & BENEFITS APPLICATIONS • Sealed to IP68 NEMA 250 (6P) • Any sealed data transmission • Military or industrial GPS location devices • Instrumentation • Medical data carts • Marine Applications • Transportation • General industrial electronic applications • O-ring free design • Easily mounts to PC boards • Narrow or wide versions to fit your applications • Gold plated contacts standard Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® RIGHT ANGLE PC BOARD MOUNT 2-18 CONTAC T NEW PRODUCT BULLETIN 597 Mechanical Specifications Vibration: Life: Hex Nut Torque: Specifications Mil-Std 202G Method 201A 600 insertion/withdrawal cycles minimum 8-10 in/lb tightening torque Electrical Specifications Dielectric Withstanding Voltage: Tested at 500 VAC Insulation Resistance: 100 MΩ minimum at 77˚F Contact Resistance (2-8 #20 contact): 15 mΩ maximum initial 30 mΩ maximum after environmental Contact Resistance (9-18 #26 contact): 30 mΩ maximum initial 50 mΩ maximum after environmental Current Rating: 2.0 A (9-18 #26 contact) 4.0 A (5-8 #20 contact) 5.0 A (2-4 #20 contact) Environmental Specifications Temperature Rating: Moisture Resistance: Insulation Resistance: Thermal Shock: Salt Spray: -40˚C to +65˚C (-40˚F to +149˚F) Mil-Std 202G Method 106G Mil-Std 202G Method 302 Mil-Std 202G Method 107G Mil-Std 202G Method 101E Material Specifications Panel Connector Shell, Locking Disk: Connector Shell Interior: Contacts: PCB: Header Insulator: Thermoplastic, UL94V-0 Thermoplastic Elastomer, UL94HB Copper Alloy, Gold over Nickel Plate FR-4 Thermoplastic, UL94V-0 Product Ratings: IEC 60529 IP16/IP18. IEC 60529 IP66. IEC 60529 IP68 24 hours at 2 meters of water. NEMA 250 6P 24 hours at 2 meters of water. CFR 46 Part 110.20 EN3 P RAPC Connector Type: P - Panel # of Contacts: 2 - 8 #20 9 - 18 #26 Gender: M - Male F - Female PCB Style: BN - Narrow PCB BW - Wide PCB EN3 Style: RAPC - Right Angle PC (Note: 7 & 8 Pin not available in female) Notes:Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. 7 and 8 pin not available in female Panel connector EN3® RIGHT ANGLE PC BOARD MOUNT 2-18 CONTAC T NEW PRODUCT BULLETIN 597 EN3 2-8 PIN RIGHT-ANGLE NARROW PCB PANEL CONNECTOR 0.610 15.5 0.582 14.8 RECOMMENDED PANEL CUT-OUT 0.188 MAX PANEL THICKNESS MOUNTING NUT 8-10 INCH-LBS MAX TORQUE EN3 2-8 PIN RIGHT-ANGLE WIDE PCB PANEL CONNECTOR EN3 9-18 PIN RIGHT-ANGLE NARROW PCB PANEL CONNECTOR SEE EN3 9-18 PIN LOCATIONS EN3 9-18 PIN RIGHT-ANGLE WIDE PCB PANEL CONNECTOR EN3 9-18 PIN LOCATIONS FRONT VIEW OF CONNECTOR (MATING SIDE) SEE EN3 9-18 PIN LOCATIONS NUMBERS SHOWN FOR REFERENCE. THEY DO NOT APPEAR ON ACTUAL PART All dimensions are for reference only. Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
