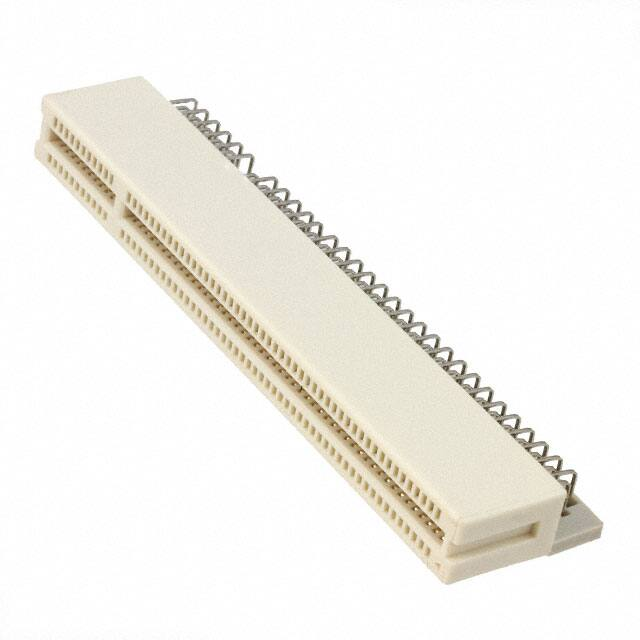

TRWB060DKAN-T621

8 7 4 5 6 1 2 3 REVISIONS REV. ECO. NO DESCRIPTION DATE BY A --- 6/20/2000 JASON B 2036 INITIAL RELEASE UPDATE KEY LOCATION & TITLE BLOCK, NEW DWG # WAS PR12005001 8/27/2009 JH 84.84±0.30 63.25±0.15 F NOTES: MATERIAL INSULATOR: GLASS-REINFORCED THERMOPLASTIC. CONTACT: COPPER ALLOY. PLATING: MATING AREA - SELECTED GOLD OVER NICKEL. SOLDER AREA - TIN/LEAD OVER NICKEL. F 1.78 ELECTRICAL VOLATGE RATING: 250 VAC RMS. CURRENT RATING: 1 AMP. DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC RMS 60Hz FOR 1 MINUTE. INSULATION RESISTANCE: 1000 MEGOHMS MIN AT 500 VDC. CONTACT RESISTANCE: 30 MILLIOHMS MAX AT 1 AMP DC. 14.99±0.15 60.96 12.70 E 8.88±0.30 E MECHANICAL RETENTION FORCE: 460 GRAMS MIN PER CONTACT. INSERTION FORCE: 230 GRAMS MAX PER CONTACT PAIR. WITHDRAWAL FORCE: 15 GRAMS MIN PER CONTACT PAIR. ENVIRONMENTAL TEMPERATURE RANGE: -55 C TO +85 C. 1.27TYP 3.81 1.90 0.60±0.20 D D 7.62 14.00 21.35 3*1.90 C C 2.70±0.40 2.54 TYP 3.81 3*1.90 B B 1.27 TYP Ø1.00 60.96 12.70 RECOMMENDED PCB LAYOUT (TOP VIEW) UNLESS OTHERWISE SPECIFIED: Pb A RoHS COMPLIANT 8 7 6 5 4 DIMENSIONS ARE IN MM TOLERANCES: ANGULAR: 30' .X= 0.30 .XX= 0.20 .XXX= 0.10 SURFACE FINISH: 63 Ra REMOVE ALL BURRS AND SHARP EDGES .010 MAX DATE DRAWN A PCI .050" CC, 60P, RA TRWB060DKAN-T621 SIZE DWG. NO. INTERPRET DIMENSIONS AND GEOMETRIC TOLERANCING PER: ANSI Y14.5M-1994 3 NAME 8/27/09 JH THE INFORMATION HEREIN CONTAINS PROPIETARY INFORMATION OF SULLINS ELECTRONICS AND IS NOT DESCRIPTION TO BE REPRODUCED, USED OR DISCLOSED TO OTHERS FOR ANY PURPOSE EXCEPT AS SPECIFICALLY PART NUMBER AUTHORIZED IN WRITING BY AN OFFICER OF SULLINS ELECTRONICS. C REV 11392 B SCALE: 3:1 2 SHEET 1 OF 1 1 FILE NAME: Z:\ECO PENDING\2036\11392, TRWB060DKAN-T621 PRINT: 8/27/2009
