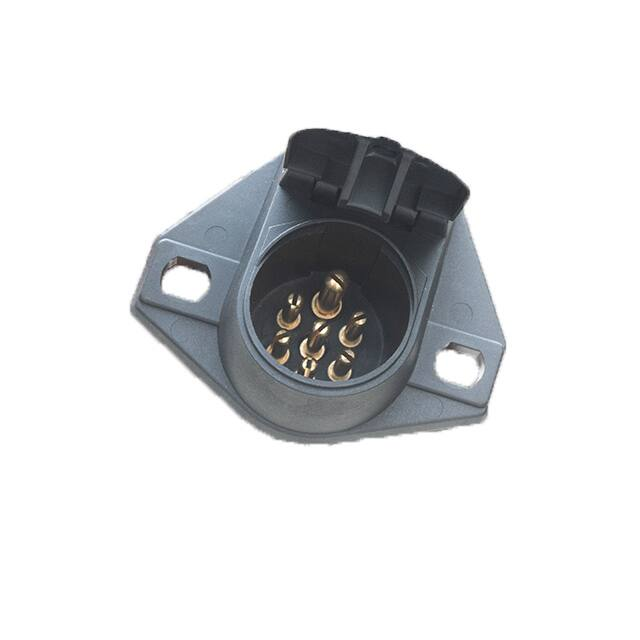

TC7-SE2-N

Trailer Connector TC7-SE2-N Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Material Specifications Wiring Color Codes A.T.A & S.A.E WIRING CODES RECOMMENDED STANDARD CIRCUITS POLE WIRING COLOR CODE RECOMMENDED WIRE GAUGE ITEM# NAME MATERIAL Ground Return White 8 GA 1 SOCKET SHELL NYLON ADD FIBER Clearance, Side Marker and Identification Lamps Black 12 GA 2 COVER NYLON ADD FIBER Left Turn & Hazard Signal Yellow 12 GA 3 BASE SET SCREW IRON Stop Lamps & Anti-Lock Devices Red 10 GA 4 TERMINALS BRASS 5 HINGE PIN IRON Right Turn Signal & Hazard Signal Green 12 GA Tail, Rear Clearance Marker, and License Plate Lamps Brown 12 GA Auxiliary Circuit/ABS Blue 10 GA Rev A 07/2019 Trailer Connector Rev A TC7-SE2-N Designed Approved Date of issue Revision Notes 07-31-2019 Initial Drawing RC Rev A 07/2019 OH
