IO-XLR5-F-EV

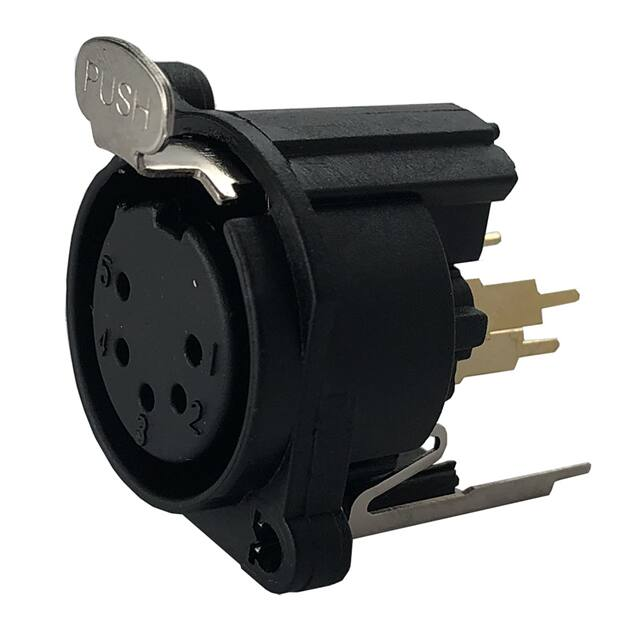

XLR CHASSIS CONNECTORS 5 PIN E SERIES - VERTICAL PCB MOUNT Locking vertical PCB Mount 5 pin chassis connector with plastic body for audio and lighting control. Other Available Mounting Option: Horizontal PCB Mount SPECIFICATIONS IO-XLR5-M-EV IO-XLR5-F-EV MECHANICAL PRODUCT Gender: Male (IO-XLR5-M-EV) Female (IO-XLR5-F-EV) Lifetime: > 1000 Mating Cycles Wiring: Vertical PCB Mount Locking Device: Latch Lock Contacts: 5 Mounting Direction: Rear ELECTRICAL Capacitance Between Contacts: ≤ 2 pF Capacitance Between Contact and Ground: ≤ 2.4 pF Contact Resistance: < 6 mΩ Solderability: Complies with IEC 60068-2-20 MATERIAL Contacts: Brass Insulation Resistance: ≥ 5000 MΩ Dielectric Strength: 1500V @ 60s Current Rating: 3 A / 50 V AC Grounding: Separate ground contact to shell of mating connector and panel Contact Plating: .05μm Au Ground Terminal: Brass Ground Terminal Finish: Nickel Shell: PA Shell Finish: Black ENVIRONMENTAL Push Button: Stainless Steel Standard Compliance: IEC 61076-2-103 Push Button Finish: Nickel UL Flammability: Meets UL 94 HB Latch: Stainless Steel Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Latch Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR5-F-EV IO-XLR5-M-EV FEATURES & APPLICATIONS Panel Cutout E Series XLR chassis connectors offer the most cost-effective solution for design-in applications where the termination method is to a printed circuit board. The small footprint makes this our XLR receptacle with the highest packing density available.These connectors feature a compact all plastic housing with precision machined, one piece, gold plated contacts to help prolong the useful life of the connectors. They also come with a separate nickel plated ground pin that grounds the connector to the panel. The compact form factor of the these connectors makes them perfect for situations where space saving is a priority or space for a connector is limited. Available in 3 or 5 pin, Male or Female variations with options for vertical or horizontal PCB mounting. PART NUMBER BREAKDOWN: STANDARDS & CLASSIFICATIONS IO-XLR5-M-EV Series Identifier IO-XLR5-M-EV Number of Pins IO-XLR5-M-EV Gender IO-XLR5-M-EV Series Identifier IO-XLR5-M-EV H = Horizontal PCB Mount V = Vertical PCB Mount Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
