EGG.00.302.CLL

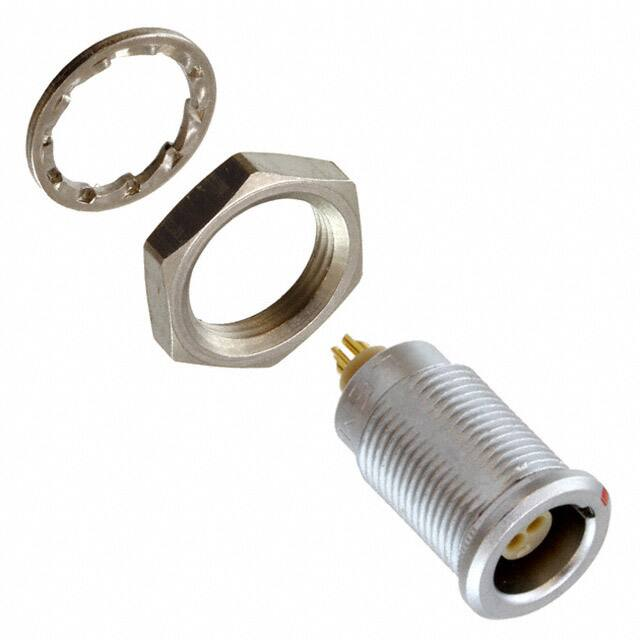

EGG.00.302.CLL www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 00 Termination type Female solder IP rating 50 AWG wire size 34.00 - 28.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.00.302.CLAD35 Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 2.54 g Performance Configuration 00.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 3.5 Amps Specifications Contact Type: Solder Contact Dia.: 0.5 mm (0.02in) Bucket Dia.: 0.4 mm (0.016in) Max. Solid Conductor: 0.09 mm^2 (AWG 28) Max. Stranded Conductor: 0.05 mm^2 (AWG 30) R (max): 8.7 mOhm Vtest (contact-shell): 950 V (AC), 1340 V (DC) Vtest (contact-contact): 1000 V (AC), 1400 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Salt Spray Corrosion: >1000 hr 12NC part number: 4022.438.73020 DRAWINGS Dimensions A B E L M N S1 S3 e mm. 8 10.3 6 15.5 1 13.7 6.3 9 M7x0.5 in. 0,31 0,41 0,24 0,61 0,04 0,54 0,25 0,35 RECOMMENDED BY LEMO Tools Cables CMN.02.T28.030PGCE PVC CMN.02.T28.030PGZE CMN.02.T28.030PNCE GREY Grey PVC Black CMN.02.T28.030PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 102080 PVC Grey 2050 PVC Black 20550 PUR Black 20560 PUR White 2080 PVC Grey 2280 PVC Black 4082 PVC Grey CMB.02.210.635 PUR Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
